District Offshore (DOF) have divided themselves into a number of companies, although it is not always obvious which companies the vessels work within. However at the 2013 an effort has been made to divide the ships up in the same way as the company does.

DOF Subsea operates 22 vessels in the construction sector, and an effort will be made to include them all here. Some were included on the other two DOF sites, but hopefully will be removed.

At the 2014 review all the construction and other vessels were assigned to the DOF Subsea fleet in accordance with the DOF website, except for the DOF Brasil Construction and Other Vessels which are included in that fleet, again in accordance with the DOF vessel distribution.

At the 2015 review the DOF Subsea fleet had lost two ships and gained one in addition there are four ships on order but who knows where they will work. It is possible that one of the subsea fleet may be laid up.

Reviewed 30th October and 18th November 2015.

SHIP TYPE

NOW

ORDERED



AHTS Under 10000 bhp - -
AHTS 10000bhp to 20000bhp - -
AHTS 20000 bhp and over - -
IMR/Well intervention 14 -
Cable layer 1 -
Diving 2 -
IMR ships - -
PSVs deck less than 1000 m2 - -
PSVs deck 1000 m2 + - -
SBSs/ERRVs - -



CONSTRUCTION AND OTHER VESSELS

  TYPE: NAME: GEOHOLM   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 85.65 m Engines 4 x Wartsila Workdrum pull -
Breadth 19.7 m BHP 9140 Capacity 1 -
DWT - kW 6720 Capacity 2 -
Deck area 810 m2 For'd Thruster 1 x 883 kW Accomm berths 70
Fuel 1330 m3 Az Thruster 1 x 883 kW Storage capacity

-

Pot water 750 m3 Aft Az Props 2 x 2200 kW ROV 2 x work class
Mud - Bollard pull - Diving Capability -
Brine - DP II - Cranes 1 x 90 t
Dry bulk - Joystick - Tank cleaning -
Year built 2006     Shipyard Aker Soviknes
Previous names -
Comments -



  TYPE: UT 745 NAME: GEOSUND   PHOTO: Robby Norman


GENERAL

PROPULSION

EQUIPMENT

Length OA 98.5 m Engines 2 x RR BRM9 Workdrum pull -
Breadth 18.8 m BHP 10812 Capacity 1 -
DWT - kW 7950 Capacity 2 -
Deck area 720 m2 For'd Thruster 2 x 736 kW Accomm berths 88
Fuel 1295 m3 Az Thruster 1 x 883 kW Storage capacity

-

Pot water 1025 m3 Aft Thrusters 2 x 736 kW ROV 2 x Work class
Mud - Bollard pull - Diving Capability -
Brine - DP II Kongsberg SDP21 Cranes 1 x 76 t
Dry bulk - Joystick - Tank cleaning -
Year built 2001     Shipyard Simek
Previous names Far Swan
Comments -

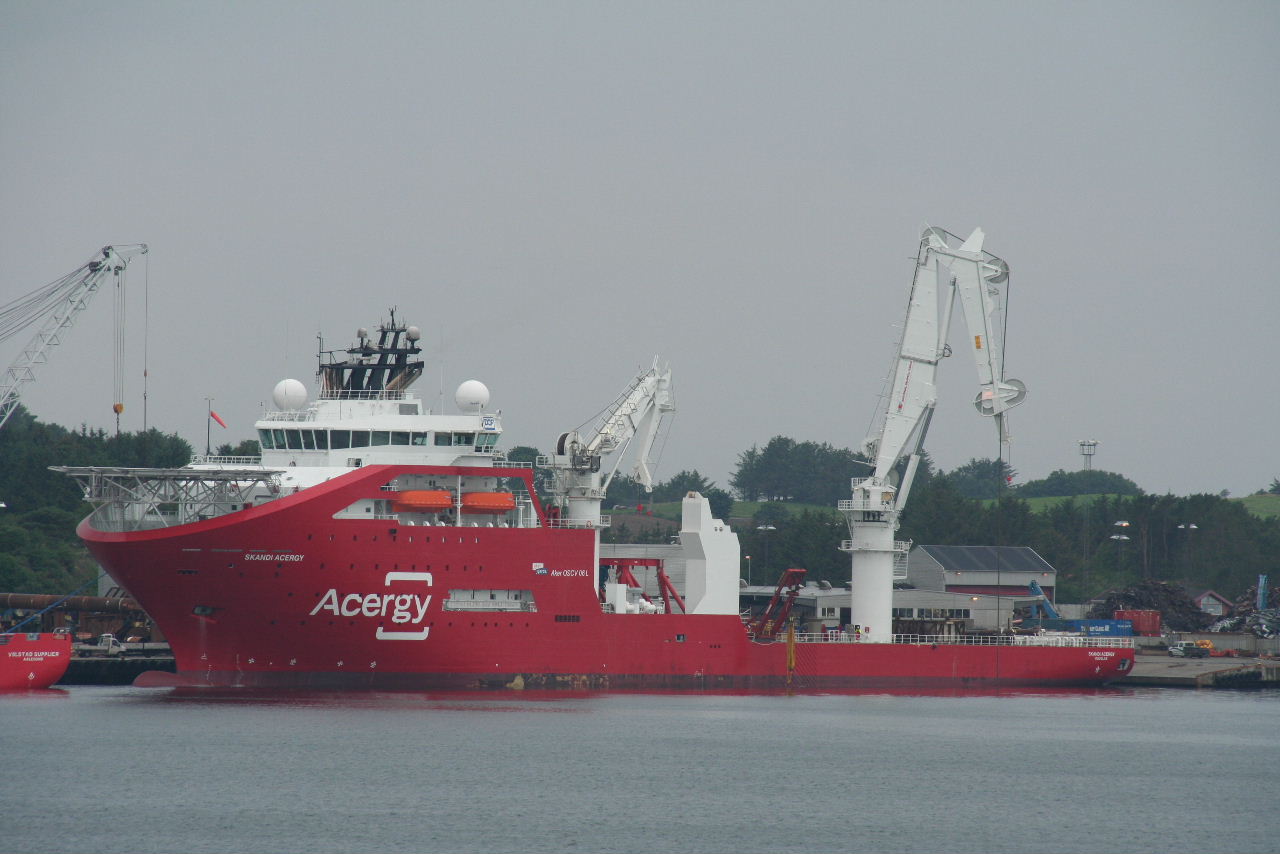

  TYPE: Aker OSCV 06L NAME: Skandi Acergy   PHOTO: Thorleif Moar, Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 156.9 m Engines 6 x MaN Workdrum pull
Breadth 27.0 m BHP 25,000 Capacity 1
DWT 11500 t kW 19,200 Capacity 2
Deck area 2100 m2 For'd Thruster 2 x 1500 kW Flexible Capacity -
Fuel 2300 m3 Az Thruster 2 x 1900 kW Accommodation 140 berths
Pot water 1500 m3 Aft Az 2 x 3000 kW
1 x 4000 kW
ROVs -
Mud   Bollard pull   Diving Capacity -
Brine   DP Simrad SDP22 Cranes 1 x 400 t
Dry bulk   Joystick   Tank cleaning
Year built/due 2008     Shipyard Aker Soviknes
Previous names
Comments



  TYPE: Aker DSV 06 NAME: Skandi Achiever   PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 105.9 m Engines 4 x Wartsila
2 x MAN
Workdrum pull
Breadth 21.0 m BHP 13806 Capacity 1
DWT 4000 t kW 10620 Capacity 2
Deck area 540 m2 For'd Thruster 2 x 1500 kW Flexible Capacity -
Fuel 1278 m3 Az Thruster 1 x 1500 kW Accommodation 100 berths
Pot water 820 m3 Aft Az 2 x 2200 kW ROVs -
Mud   Bollard pull   Diving Capacity 18 man
Brine   DP DP II Cranes 1 x 400 t
Dry bulk   Joystick   Tank cleaning
Year built/due 2007     Shipyard Aker Soviknes
Previous names
Comments -



  TYPE: Aker OSCV 06L NAME: SKANDI AKER   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 156.9 m Engines 6 x MAN Workdrum pull -
Breadth 27.0 m BHP 26110 Capacity 1 -
DWT 11500 t kW 19200 Capacity 2 -
Deck area 2210 m2 For'd Thruster 2 x 1900 bhp Accomm berths 140
Fuel 2300 m3 Az Thruster 2 x 1500 bhp Storage capacity

-

Pot water 1890 m3 Aft Az Props 2 x 3000 bhp ROV 2 x work class
Mud - Main Propeller 1 x 4000 bhp Diving Capability -
Brine - Bollard pull - Cranes 1 x 400 t
Dry bulk - DP III Yes Tank cleaning -
Year built 2010 Joystick - Shipyard STX Soviknes
Previous names -
Comments Provided with well intervention tower. Maybe this ship now laid up.



  TYPE: VARD OSCV12 NAME: Skandi Africa   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 160.9 m Engines 6 x Workdrum pull -
Breadth 32.0 m BHP 32640 Capacity 1 -
DWT 16000 mt kW 24,000 Capacity 2 -
Deck area 2700 m2 For'd Thruster 2 x 2800 kW Accomm berths 140
Fuel 2650 m3 Az Thruster 2 x 2200 kW Storage capacity

-

Pot water 800 m3 Aft Az Props 3 x 3700 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine 500 m3 DP II - Cranes 1 x 150 t
Dry bulk - Joystick - Tank cleaning -
Year built 2015     Shipyard -
Previous names -
Comments -
Charter Technip Available - Location -

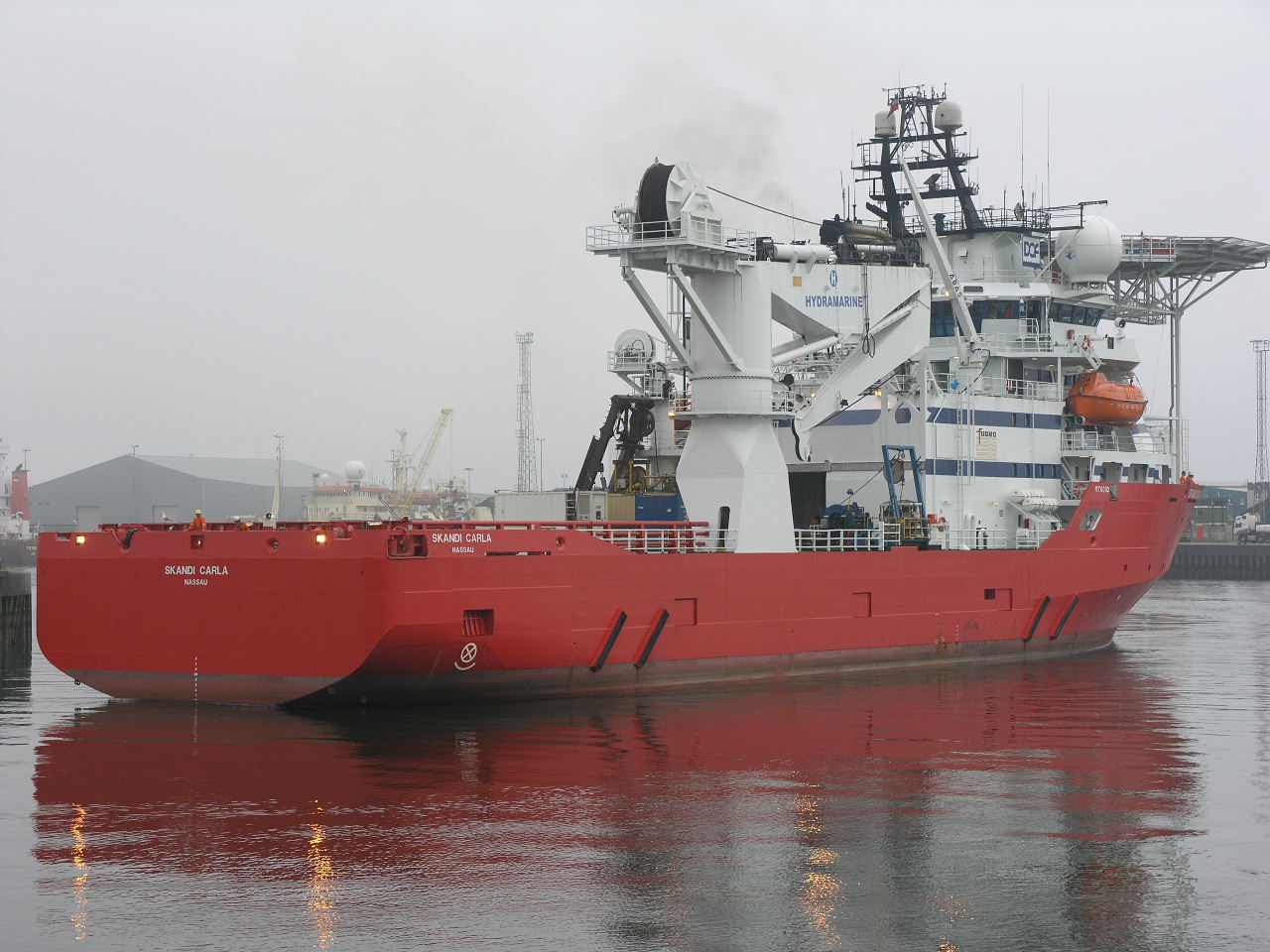

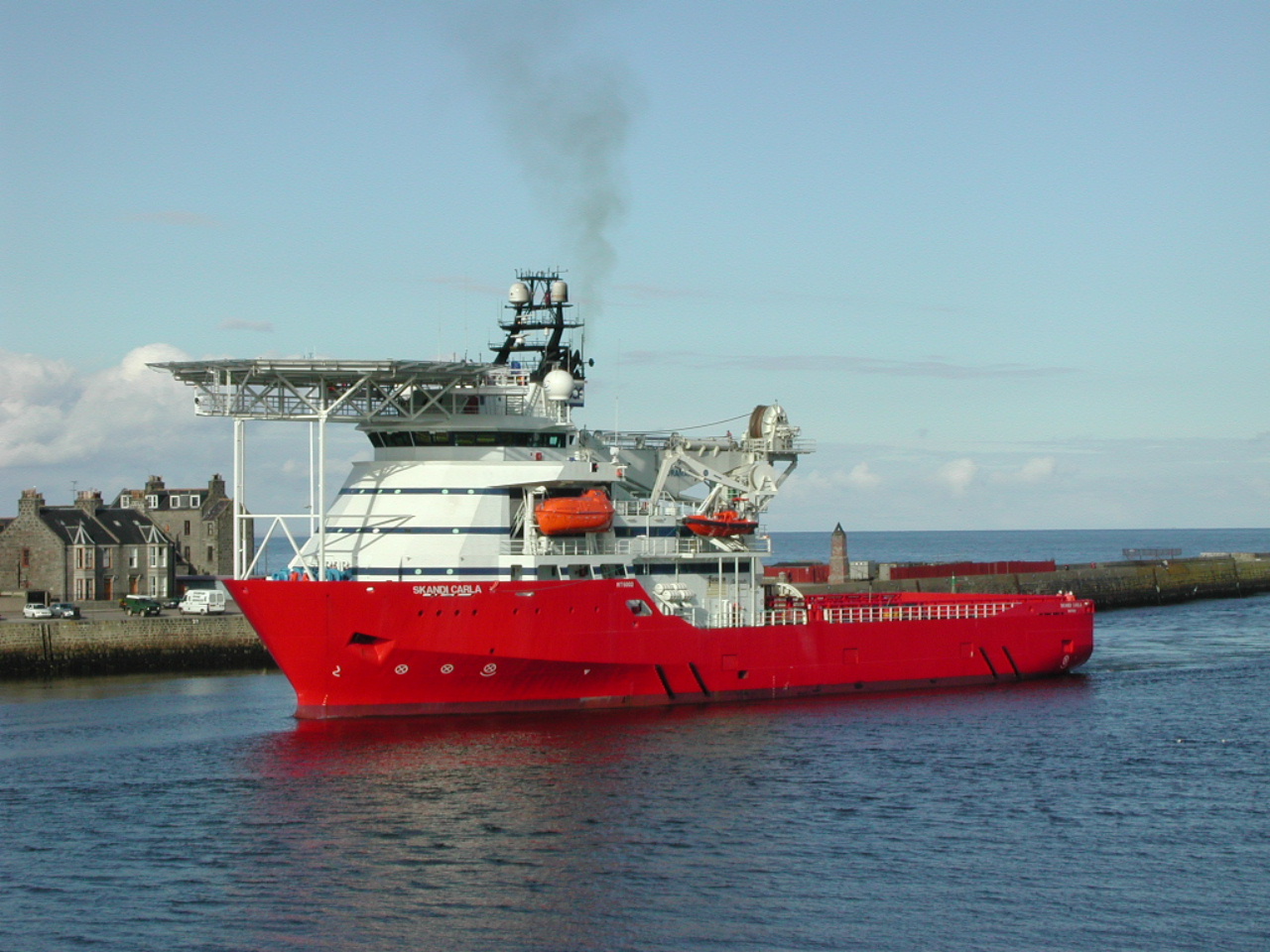

  TYPE: MT 6002 NAME: Skandi Carla   PHOTO: Vic Gibson, George Craigen

GENERAL

PROPULSION

EQUIPMENT

Length OA 83.85 m Engines 4 x Cats Workdrum pull
Breadth 76.80 m BHP 13760 Capacity 1
DWT 6540 t kW 10120 Capacity 2
Deck area 620 m2 For'd Thruster 2 x 1000 kW Flexible Capacity -
Fuel 1450 m3 Az Thruster 1 x 1000 kW Accommodation 80 berths
Pot water 850 m3 Aft Thrusters 2 x 2200 kW ROVs -
Mud   Bollard pull   Diving Capacity -
Brine   DP Simrad SDP22 Cranes 50t @ 15m
Dry bulk   Joystick   Tank cleaning
Year built/due 2001     Shipyard Brattvaag
Previous names
Comments



  TYPE: ULSTEIN SX 121 NAME: SKANDI CONSTRUCTOR   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 120.2 m Engines - Workdrum pull -
Breadth 25.0 m BHP 19640 Capacity 1 -
DWT 8500 mt kW 14440 Capacity 2 -
Deck area 1470 m2 For'd Thruster 2 x 1920 kW Accomm berths 100
Fuel 2212 m3 Az Thruster 2 x 1800 kW Storage capacity

-

Pot water 990 m3 Aft Az Props 2 x 1750 kW ROV 2 x work class
Mud - Bollard pull - Diving Capability -
Brine - DP III Kongsberg Cranes 1 x 140 t
Dry bulk - Joystick - Tank cleaning -
Year built 2009     Shipyard Zaliv/Unstein
Previous names African Sarah, Sarah
Comments This vessel fitted with well intervention tower



  TYPE: STX PSV 09 CD NAME: SKANDI HAWK   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 88.1 m Engines 4 x Wartsila 9L20 Workdrum pull -
Breadth 1`9.0 m BHP 8714 Capacity 1 -
DWT - kW 6408 Capacity 2 -
Deck area 100 m2 For'd Thruster 1 x 880 kW Accomm berths 62
Fuel 1070 m3 Az Thruster 1 x 880 kW Storage capacity

-

Pot water 1240 m3 Aft Az Props 2 x 2200 kW ROV 2 x work class
Mud 970 m3 Bollard pull - Diving Capability -
Brine 970 m3 DP II Kongsberg SDP21 Cranes 1 x 60 t
Dry bulk 320 m3 Joystick - Tank cleaning -
Year built 2012     Shipyard Cochin Shipyard
Previous names -
Comments -



  TYPE: STX AH 04 NAME: SKANDI HERCULES   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 108.0 m Engines 2 x Wartsila 16V32
4 x Wartsila 8L26
Workdrum pull 500t
Breadth 24.0 m BHP 35,000 Capacity 1 6700m x 76mm
DWT - kW 25,700 Capacity 2 18700m x 76mm
Deck area 1070 m2 For'd Thruster 2 x 1500 kW Accomm berths 90
Fuel 1200 m3 Az Thruster 1 x 1500 kW Storage capacity

1150 m3 chain

Pot water 1000 m3 Aft Tunnel 2 x 1200 kW ROV -
Mud - Bollard pull 360 t Diving Capability -
Brine - DP II Kongsberg SDP21 Cranes 1 x 140 t
Dry bulk - Joystick - Tank cleaning -
Year built 2010     Shipyard Tulcea/Aukra
Previous names -
Comments -

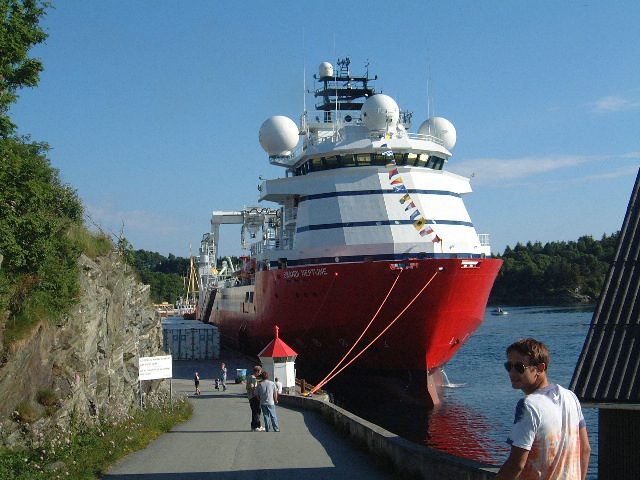

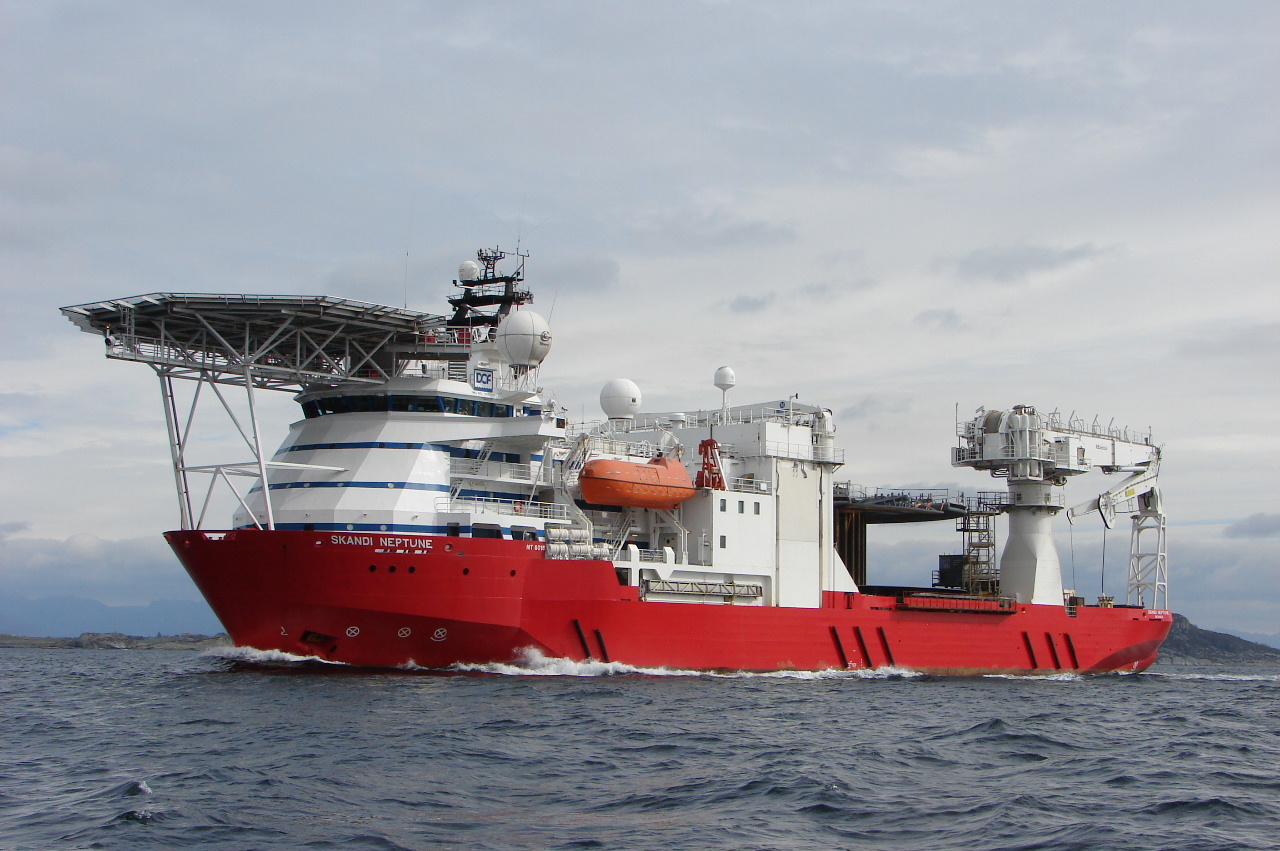

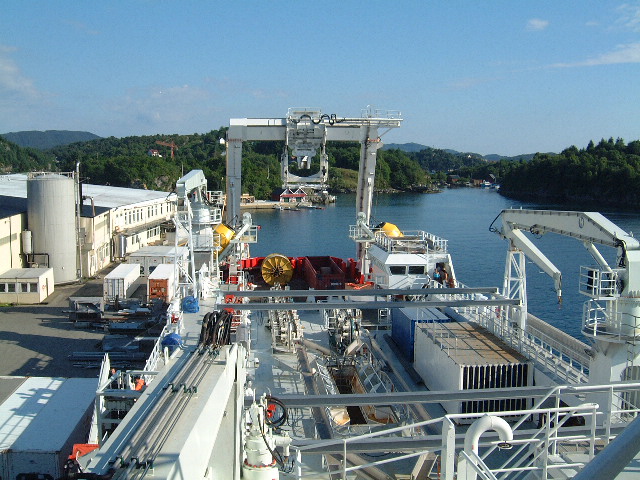

  TYPE: MT 6016 NAME: Skandi Neptune   PHOTO: Jan Plug, crew of Skandi Neptune

GENERAL

PROPULSION

EQUIPMENT

Length OA 108.36 m Engines 4 x Wartsila Workdrum pull
Breadth 24.0 m BHP 13338 Capacity 1
DWT 5090 t kW 10260 Capacity 2
Deck area 1180 m2 For'd Thruster 2 x 883 kW Flexible Capacity -
Fuel 1800 m3 Az Thruster 1 x 880 kW Accommodation 106 berths
Pot water 966 m3 Aft Azimuthing 2 x 3700 bhp ROVs -
Mud - Bollard pull   Diving Capacity -
- - DP II Konsberg SDP 21 Cranes 1 x 250 t
- - Joystick   Tank cleaning
Year built/due 2001     Shipyard Brattvaag
Previous names
Comments This ship seems to have been built as a cable ship. It has two very large carousels underdeck, but is used as a construction and ROV ship today.



  TYPE: Aker ROV 06 NAME: OCEAN PROTECTOIR   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 105.9 m Engines 4 x Wartsila 6L32 Workdrum pull -
Breadth 21.0 m BHP 15660 Capacity 1 -
DWT 4000 mt kW 11520 Capacity 2 -
Deck area 1120 m2 For'd Thruster 2 x 1500 kW Accomm berths -
Fuel 1350 m3 Az Thruster 1 x 1500 kW Storage capacity

-

Pot water 1060 m3 Aft Az Props 2 x 2400 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP II Yes Cranes 1 x 140 t
Dry bulk - Joystick - Tank cleaning -
Year built 2007     Shipyard -
Previous names Geo Bergen, Skandi Bergen
Comments -



  TYPE: MT 6009 L NAME: Skandi Olympia   PHOTO:

General Propulsion Cargo Capacity
Length OA 79.6 m Engines 4 x Cat 3512B Fuel -
Breadth 16.4 m BHP/kW 7746/5696 Pot water -
DWT 3700 t For'd Thrusters 1 x 800 kW Mud -
Deck area 718 m2 Az Thruster - Base oil -
 Berths 40 Aft Azimuths 2 x 1470 kW Brine -
Year built 2009 Joystick   Dry bulk -
Shipyard Fitjar MV DPII K-POS 2 Tank Cleaning
Previous names
Comments Underdeck capacities unknown



  TYPE: MT 6016 NAME: Skandi Patagonia   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 93.3 m Engines 4 x Wartsila Workdrum pull 200 t
Breadth 19.7 m BHP 13953 Capacity 1 ?
DWT 3722 t kW 10260 Capacity 2
Deck area 560 m2 For'd Thruster 2 x 1000 kW Flexible Capacity -
Fuel 1580 m3 Az Thruster 1 x 883 kW Accommodation 62 berths
Pot water 1012 m3 Aft Azimuthing 2 x 3700 bhp ROVs -
Mud 671 m3 Bollard pull   Diving Capacity -
Brine 500 m3 DP II Konsberg SDP 21 Cranes 1 x 50 t
- - Joystick   Tank cleaning
Year built/due 2000     Shipyard Brattvaag
Previous names
Comments This is a construction and diving ship with a winch.



  TYPE: Aker OSCV 03 NAME: Skandi Seven   PHOTO: Mike Prendergast


GENERAL

PROPULSION

EQUIPMENT

Length OA 120.7 m Engines 4 x MAN Workdrum pull
Breadth 23.0 m BHP 15000 Capacity 1
DWT 5500 t kW 11520 Capacity 2
Deck area 1300 m2 For'd Thruster 2 x 1500 kW Flexible Capacity -
Fuel 1860 m3 Az Thruster 2 x 1090 kW Accommodation 119 berths
Pot water 880 m3 Aft Azimuthing 2 x 3000 bhp ROVs -
Mud - Bollard pull   Diving Capacity -
- - DP III Kongsberg Cranes 1 x 250 t
- - Joystick   Tank cleaning
Year built/due 2008     Shipyard Brattvaag
Previous names
Comments A construction and ROV ship.



  TYPE: STX DSV 06 NAME: SKANDI SINGAPORE   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 107.1 m Engines 4 x MAN 9L27/38 Workdrum pull -
Breadth 21.0 m BHP 17136 Capacity 1 -
DWT 9500 mt kW 12600 Capacity 2 -
Deck area 900 m2 For'd Thruster 2 x 1500 kW Accomm berths 100
Fuel 1170 m3 Az Thruster - Storage capacity

-

Pot water 1100 m3 Aft Az Props 2 x 3000 kW ROV 1 x work class
Mud - Bollard pull - Diving Capability 18 divers in sat
Brine - DP II Kongsberg KPOS 21 Cranes 1 x 140 t
Dry bulk - Joystick - Tank cleaning -
Year built 2011     Shipyard Singapore Tech
Previous names -
Comments -

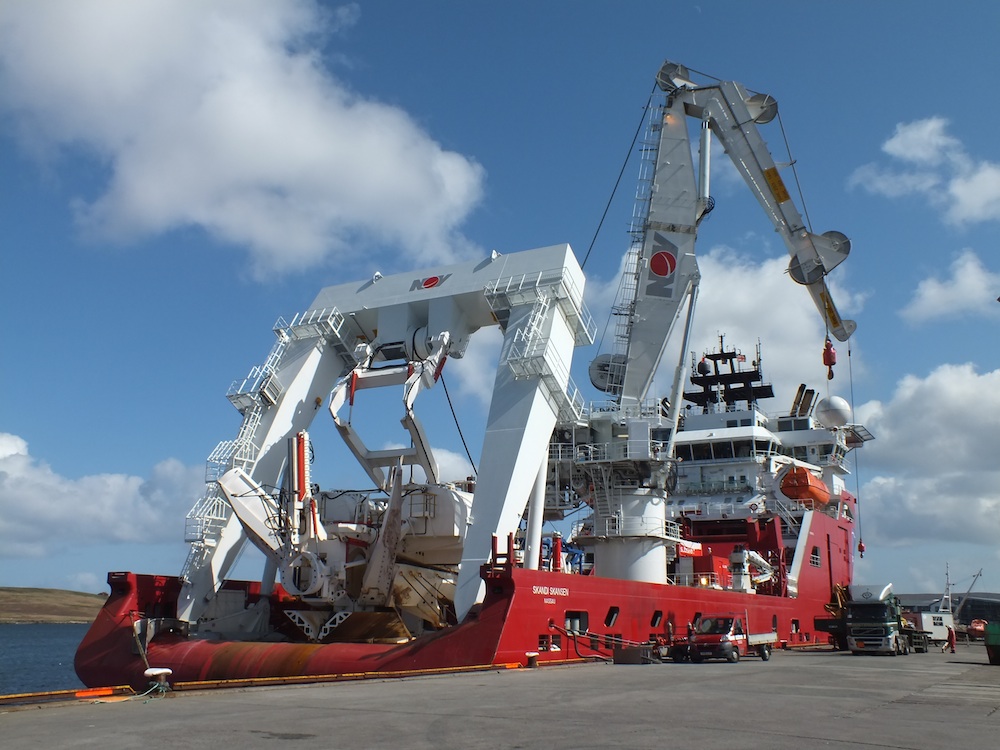

  TYPE: STX AH 04 NAME: SKANDI SKANSEN   PHOTO: Paul Moar

GENERAL

PROPULSION

EQUIPMENT

Length OA 109.6 m Engines 2 x Wartsila 16V32
4 x Wartsila 8L26
Workdrum pull 500 t
Breadth 24.0 m BHP 35000 Capacity 1 6700m x 76mm
DWT 4982 mt kW 25735 Capacity 2 18700m x 76mm
Deck area 1070 m2 For'd Thruster 2 x 1500 kW Accomm berths 90
Fuel 1800 m3 Az Thruster 1 x 1500 kW Storage capacity

-

Pot water 1000 m3 Aft Tunnel 2 x 1500 kW ROV -
Mud - Bollard pull 350 t Diving Capability -
Brine - DP II Kongsberg DP21 Cranes 1 x 250 t
Dry bulk - Joystick - Tank cleaning -
Year built 2007     Shipyard Tulcea/Aukra
Previous names Skandi Bergen
Comments -

DISPOSALS

  TYPE: NAME: GEOBAY   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 86.98 m Engines 2 x Cat 3516B
2 x Mitubishi S12R
Workdrum pull -
Breadth 15.6 m BHP 8625 Capacity 1 -
DWT - kW 6342 Capacity 2 -
Deck area 450 m2 For'd Thruster 2 x 925 kW Accomm berths 66
Fuel 1054 m3 Az Thruster 1 x 830 kW Storage capacity

-

Pot water 614 m3 Aft Az Props 2 x 1400 kW ROV 1 x work class
Mud - Bollard pull - Diving Capability -
Brine - DP II Kongsberg SDP21 Cranes 1 x 30 t
Dry bulk - Joystick - Tank cleaning -
Year built 1978     Shipyard KK Uwajima
Previous names Dahila, Salvanguard
Comments Sold in 2013.



  TYPE: Aker OSCV 06L DSV NAME: Skandi Arctic   PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 156.9 m Engines 6 x Wartsila 7L 32 Workdrum pull
Breadth 27.0 m BHP 27420 Capacity 1
DWT 13000 t kW 20160 Capacity 2
Deck area 700 m2 For'd Thruster 2 x 1900 kW Flexible Capacity -
Fuel 1812 m3 Az Thruster 2 x 1500 kW Accommodation 140 berths
Pot water 664 m3 Aft Az props 2 x 3000 kW ROVs 2 x work class
Mud   Bollard pull   Diving Capacity 24 man
Brine   DPIII KPOS DP21 Cranes 1 x 400 t
Dry bulk   Joystick   Tank cleaning
Year built/due 2009     Shipyard Aker Soviknes
Previous names
Comments Sold to Technip

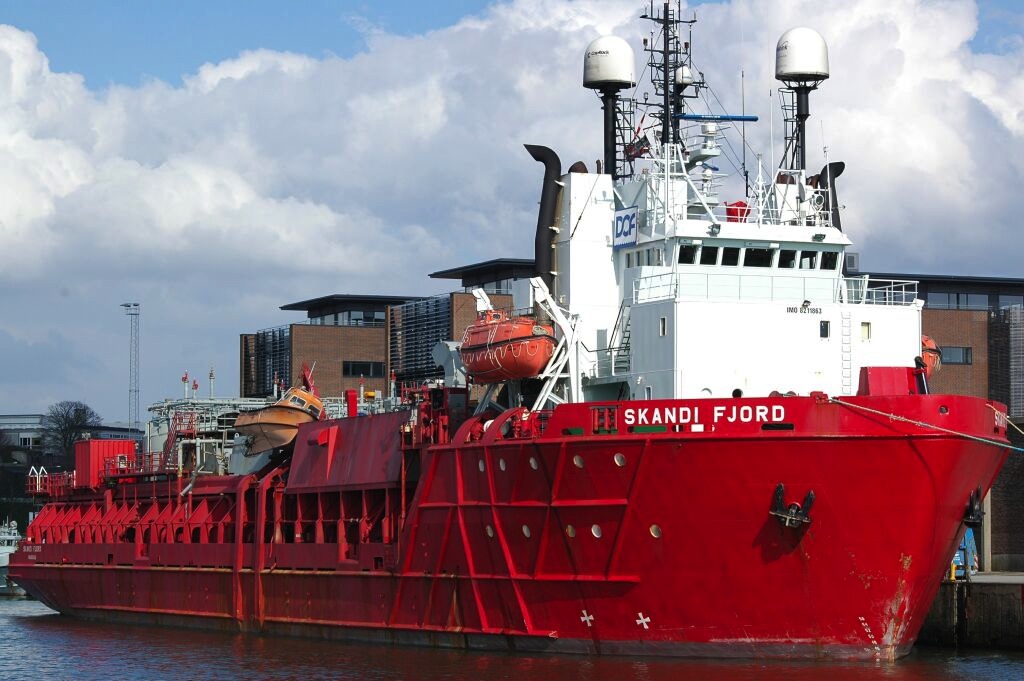

  TYPE: TMV 4000 NAME: Skandi Fjord   PHOTO: Vic Gibson, Udo Herkenrath

GENERAL

PROPULSION

EQUIPMENT

Length OA 88.1 m Engines 2 x Wickmann Workdrum pull
Breadth 18.45 m BHP 7200 Capacity 1
DWT 1951 t kW - Capacity 2
Deck area NA For'd Thruster 2 x 950 bhp Flexible Capacity -
Fuel 616 m3 Az Thruster - Accommodation 31 berths
Pot water 571 m3 Aft Thrusters 2 x 700 bhp ROVs -
Mud 270 m3 Bollard pull   Diving Capacity -
Stimulation Fluid 1171 m3 DP II ADP 703 Cranes
Methalon 302 m3 Joystick   Tank cleaning
Year built/due 1983     Shipyard Langsten Slip
Previous names
Comments This is well stimulation vessel on charter to Halliburton. Sold in 2015, now Eagle Fjord

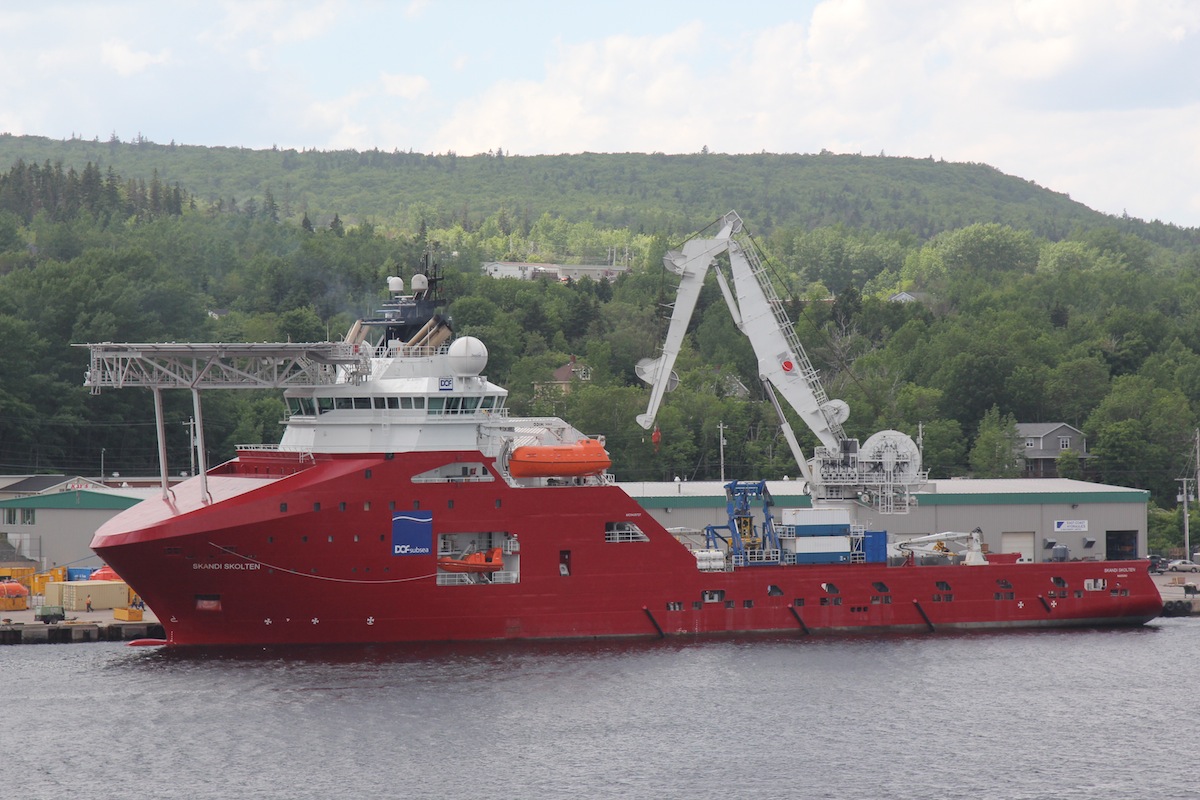

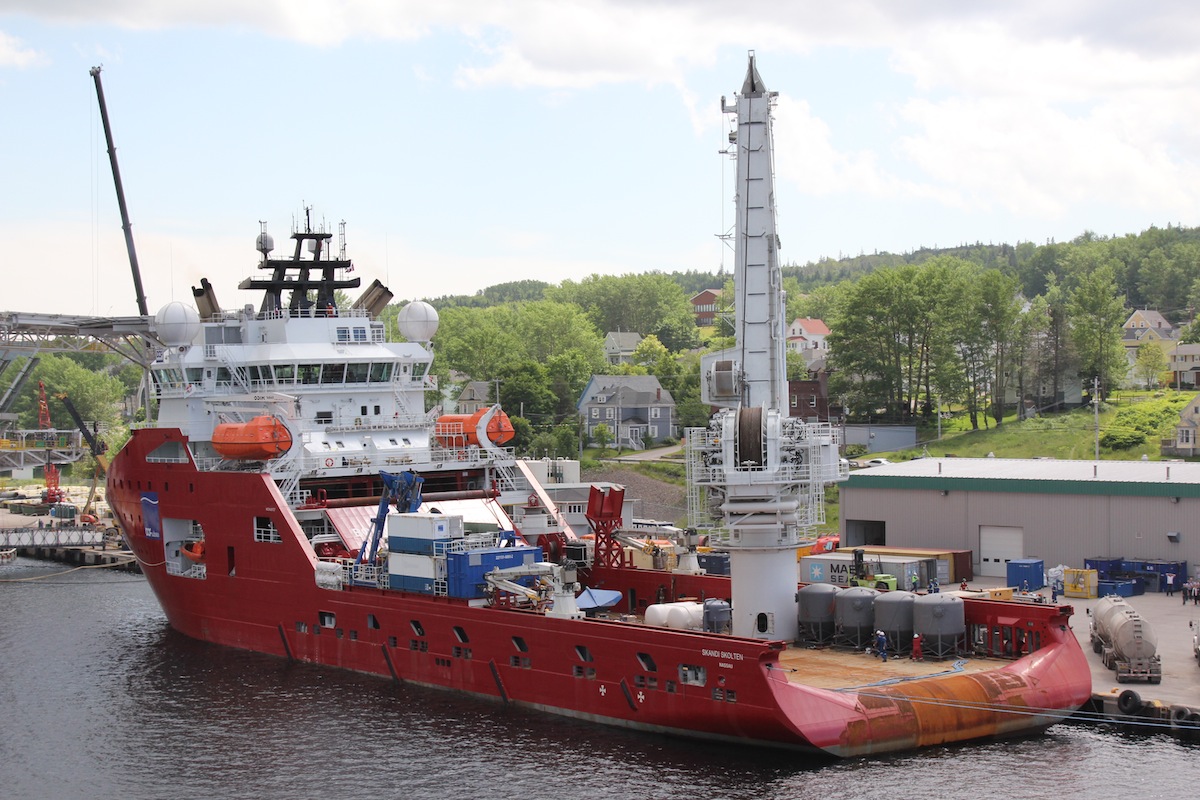

  TYPE: STX AH 04 NAME: SKANDI SKOLTEN   PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 108.0 m Engines 2 x Wartsila 16V32
4 x Wartsila 8L26
Workdrum pull 500t
Breadth 24.0 m BHP 35,000 Capacity 1 6700m x 76mm
DWT - kW 25,700 Capacity 2 18700m x 76mm
Deck area 1070 m2 For'd Thruster 2 x 1500 kW Accomm berths 90
Fuel 1200 m3 Az Thruster 1 x 1500 kW Storage capacity

1150 m3 chain

Pot water 1000 m3 Aft Tunnel 2 x 1200 kW ROV -
Mud - Bollard pull 350 t Diving Capability -
Brine - DP II Kongsberg SDP21 Cranes 1 x 250 t
Dry bulk - Joystick - Tank cleaning -
Year built 2010     Shipyard Tulcea/Aukra
Previous names -
Comments Sold in 2015 and now Hai Yang Shi You 291



  TYPE: UT 705 NAME: Skandi Inspector   PHOTO: Jan Plug, Vic Gibson

GENERAL

PROPULSION

EQUIPMENT

Length OA 81.1 m Engines 2 x MAK Workdrum pull
Breadth 18.00 m BHP 4814 Capacity 1
DWT 2419 t kW - Capacity 2
Deck area NA For'd Thruster 2 x 750 bhp Flexible Capacity -
Fuel 1350 m3 Az Thruster 1 x 880 bhp Accommodation 64 berths
Pot water 461 m3 Aft Thrusters 2 x 750 bhp ROVs -
Mud - Bollard pull   Diving Capacity -
- - DP I Simrad SDP 21 Cranes 1 x 50 t
- - Joystick   Tank cleaning
Year built/due 1979     Shipyard Ulstein Halto
Previous names
Comments An ROV vessel with 2 moonpools. Sold to undisclosed buyer November 2015.

















RETURN TO TOP OF PAGE


SHIPPING COMPANY INFORMATION UPDATED IN 2014

Abeille Bourbon
Acergy
Acomarit
Active Offshore
Aker Solutions
Allseas
ALP Maritime
Arctia Shipping
Arendal Offshore
Aries Offshore
Arktikmor
Atlantic Offshore
Axis Offshore
Bergen Offshore
Bibby Offshore
Blue Star Line
Boa Offshore
Boston Putford
Bourbon Norway
Bourbon Offshore
BP
Branding Offshore
British Antarctic Survey (New)
Brovig Offshore
BUE Marine
BUE Viking
Bukser og Bergung
Deep Sea Supply
Deepocean
DOF
DOF Subsea
Eide Offshore
Eidesvik
ER Schiffahrt
Esvagt
Fairmount
Fairplay Towage
Farstad
Femco Management
FS Shipping
Fugro
Gardline
Geoships
Golden Energy

GulfOffshore Norg
Gulf Offshore UK
Hanzevast Capital
Harms Bergung
Harrisons
Hartmann Offshore
Havila Shipping
Heerema
Irish Mainport

Island Offshore
JPKnight
K Line Offshore
Maersk Supply
Marine Carrier AB

Marine Subsea
Myklebusthaug
Chornomornaftogaz
NAO
N-Sea
Nomis
Nordic American
Nordane Shipping
North Sea Shipping
North Star
O.H.Meling
OIL
Olympic Shipping

OOC
OSA
Ostenjo Rederi
PetroBaltic
Portosalvo
Rem Offshore
Remoy Managment
Rovde Shipping
SBS
SeaMar Shipping
Sealion
Seaworx
Siem Offshore
Simon Mokster
Smit Lloyd
Smitwijs
SMS
Solstad
Subsea7
Stirling
Surf
Technip
Trico Offshore
Tschudi Offshore
Troms Offshore
URAG
URS
Varada Marine
Vestland Marine
Viking Supply
Volstad Shipping
Vroon
Vroon Standby
World Wide Supply
Zafiro Marine














ALL CONTENT OF THIS SITE REMAINS THE PROPERTY OF THE WRITERS AND THE PHOTOGRAPHERS AND MUST NOT BE REPRODUCED WITHOUT PERMISSION
