HAVILA SHIPPING ASA

Havila purchased the Boa fleet in about 1998, at least part of which was made up of former Smit Lloyd anchor handlers. However, like a number of other owners, they have built some new ships, including a couple of UT719s which have long term Shell charters. The latter vessels have more or less inherited the roles of the Rembas and the Torbas which are now renamed and part of the Havila fleet. Havila sold their larger ships to Groupe Bourbon in 2003 and retained ownership of the ERRVs only.

In a stunning event during February of 2005 Havila purchased five of UK based ships from Seacor and a single ship from Harrisons. This increased their fleet by five platform ships, three of which were VS486s and one anchor-handler the utility vessel Stirling Iona whose sisters are out in the Caspian being operated by BUE. Big money is rumoured to have changed hands, but this is possibly to be expected if a deal is made between what seem to be the two most volatile supply ship-owners, who seem in reality to be more ship dealers.

In the autumn of 2006 Havila sold the whole of their standby vessel fleet to Ocean Mainport (Now Sartor Shipping). The sale resulted in the departure of eight vessels. Possibly as a result of this sale the company instituted a building programme which continues in to 2009. There are a number of Havyard vessels still to be delivered, and their future at the time of writing (May 2009) is unknown.

Since the last update the company has disposed of one ship to Subsea 7, and have brought into service one platform ship. They have no ships on order.

At the 2014 review the company was seen to have sold one standby vessel. They have no ships on order. It is evident from the photographs that some of the fleet are in Brazil, but I have not chosen to reassign them to that area.

Page updated 26/09/2014

SHIP TYPE

NOW ON ORDER



AHTS under 10000 bhp - -
AHTS 10000 to 20000 bhp 3 -
AHTS 20000 bhp and over 2 -
Seismic ships - -
Heavy lift vessels - -
Pipelayers - -
IMR Ships 3 -
PSVs less than 1000 m2 10 -
PSVs 1000 m2 + 4 -
ERRV/RRVs 1 -


  ANCHOR HANDLERS

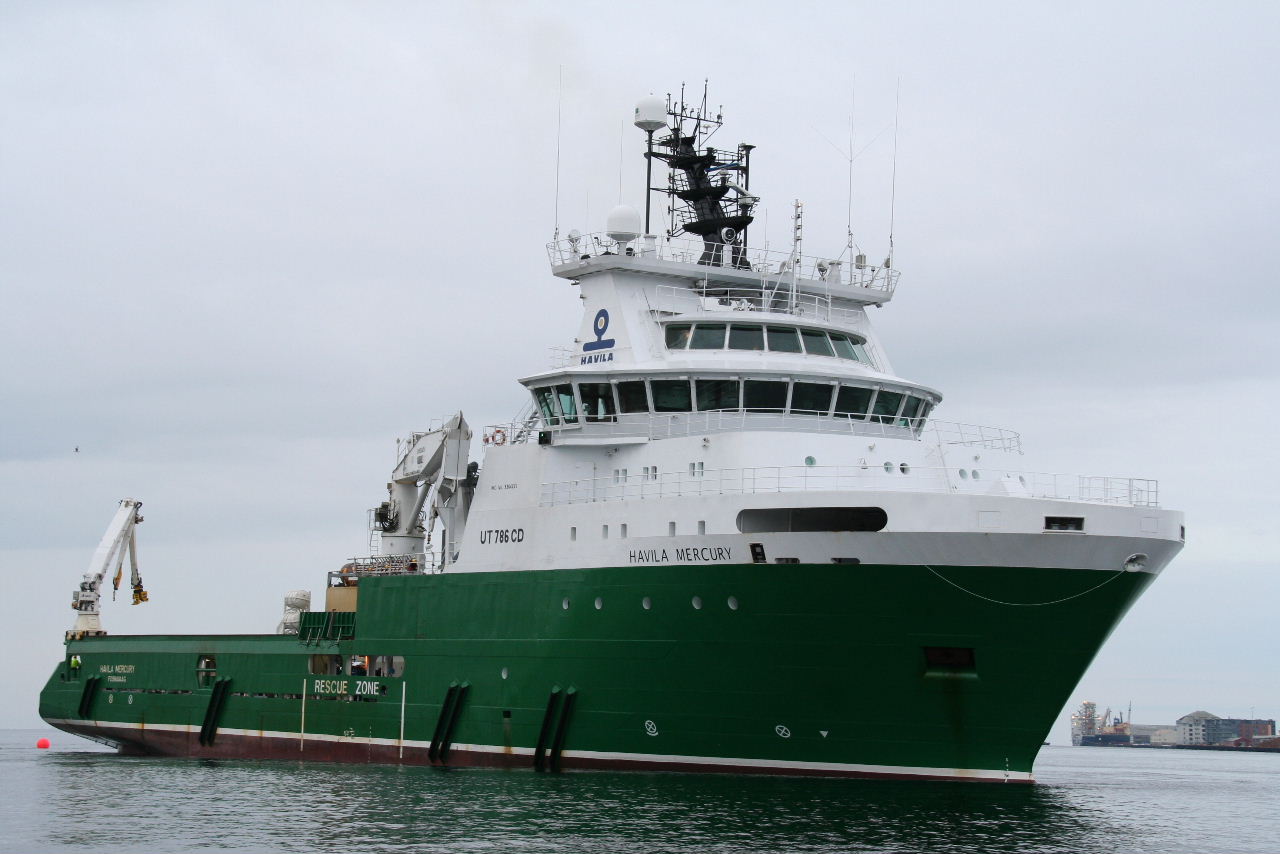

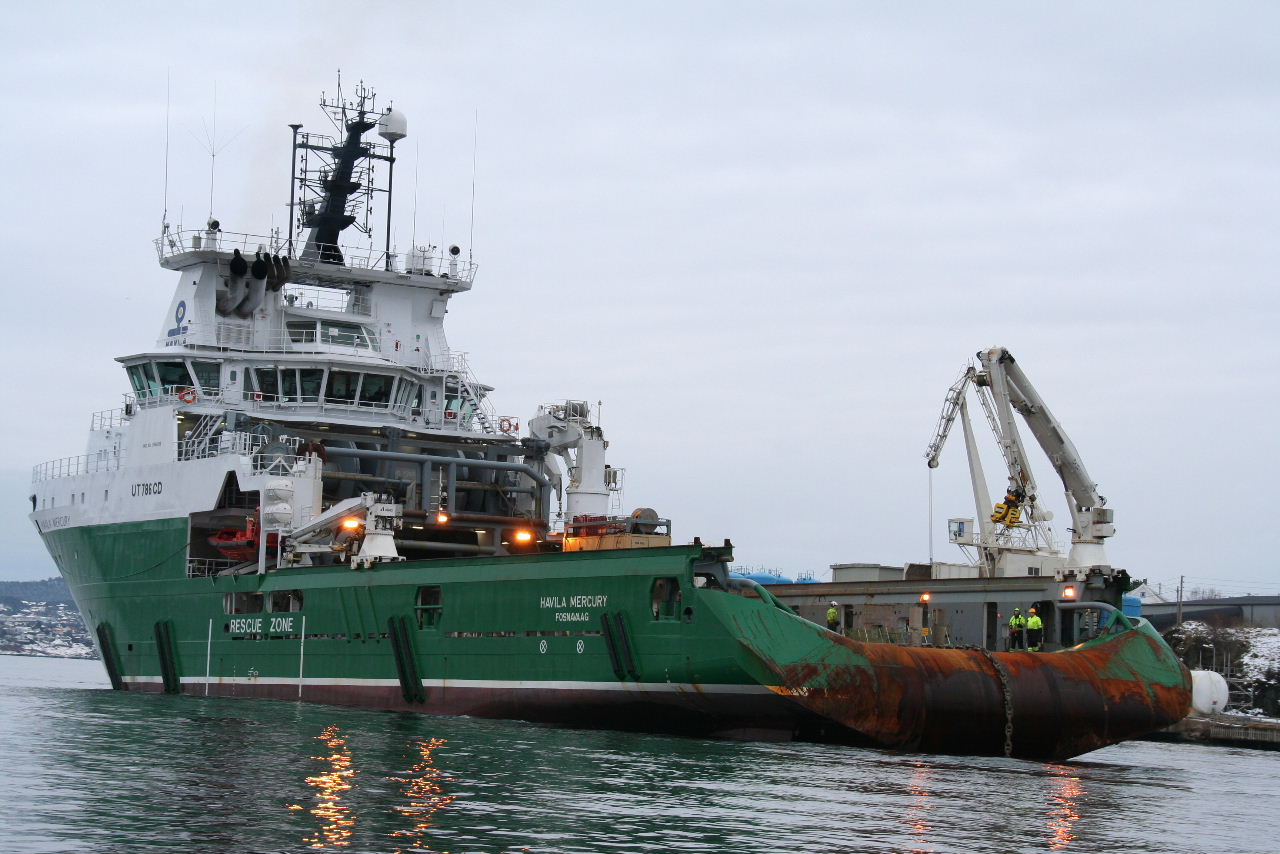

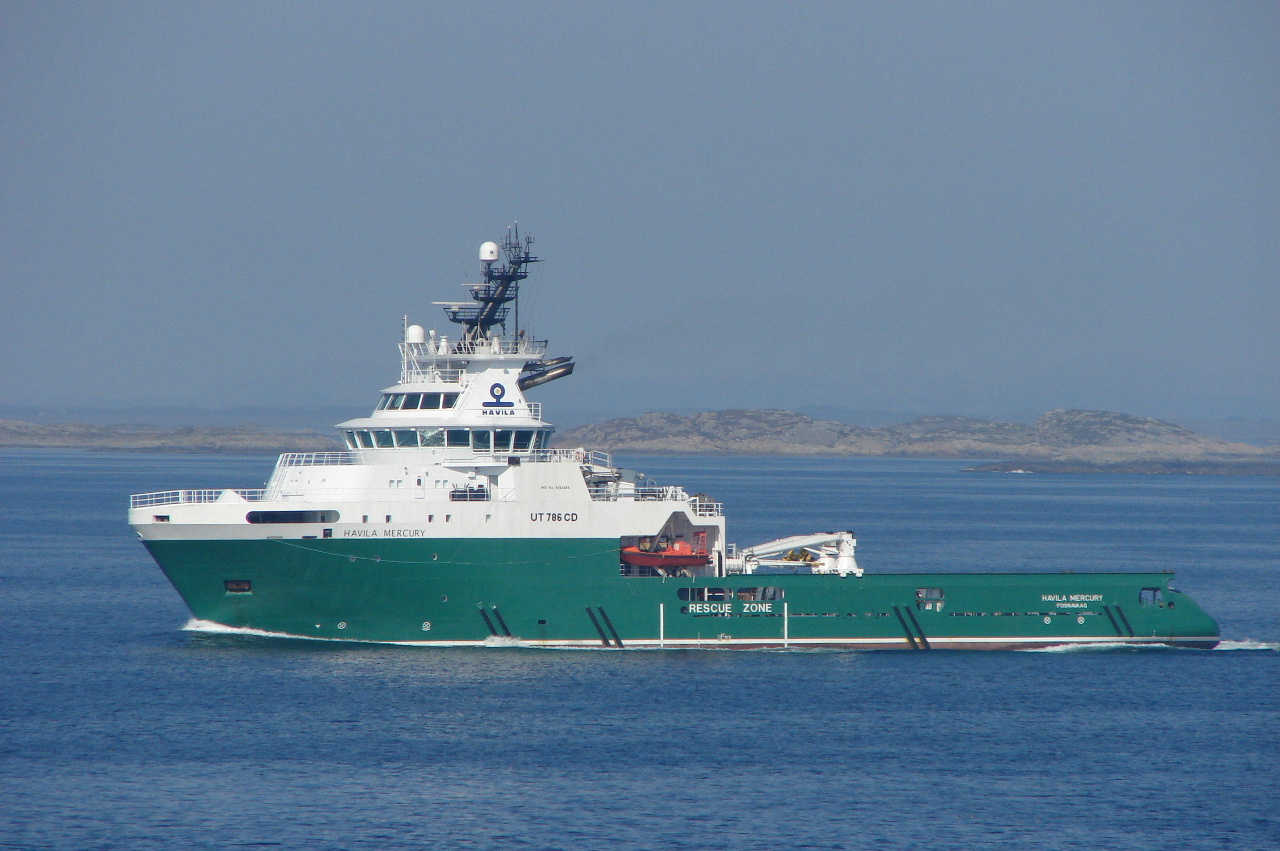

  TYPE: UT 786 CD NAME: Havila Mercury   PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 86:00 m Engines 2 x Bergen B32 Workdrum pull 400 t
Breadth 19.9 m BHP 16320 Capacity 1 5000m x 84mm
DWT 7848 t kW 12000 Capacity 2 1732m x 84mm
Deck area 664 m2 For'd Thruster 1 x 883 kW Towdrum pull 400 t
Fuel 930 m3 Az Thruster 1 x 1500 kW Capacity 1 2759m x 84mm
Pot water 1170 m3 Aft Thrusters 2 x 736 kW Capacity 2
Mud 695 m3 Bollard pull 200 t Sharks Jaw 2 x RRM
Brine 1023 m3 DPII Kongsberg SDP21 Cranes
Dry bulk 235 m3 Joystick Yes Tank cleaning
Year built/due 2007     Shipyard Havyard Leirvik
Previous names -
Comments

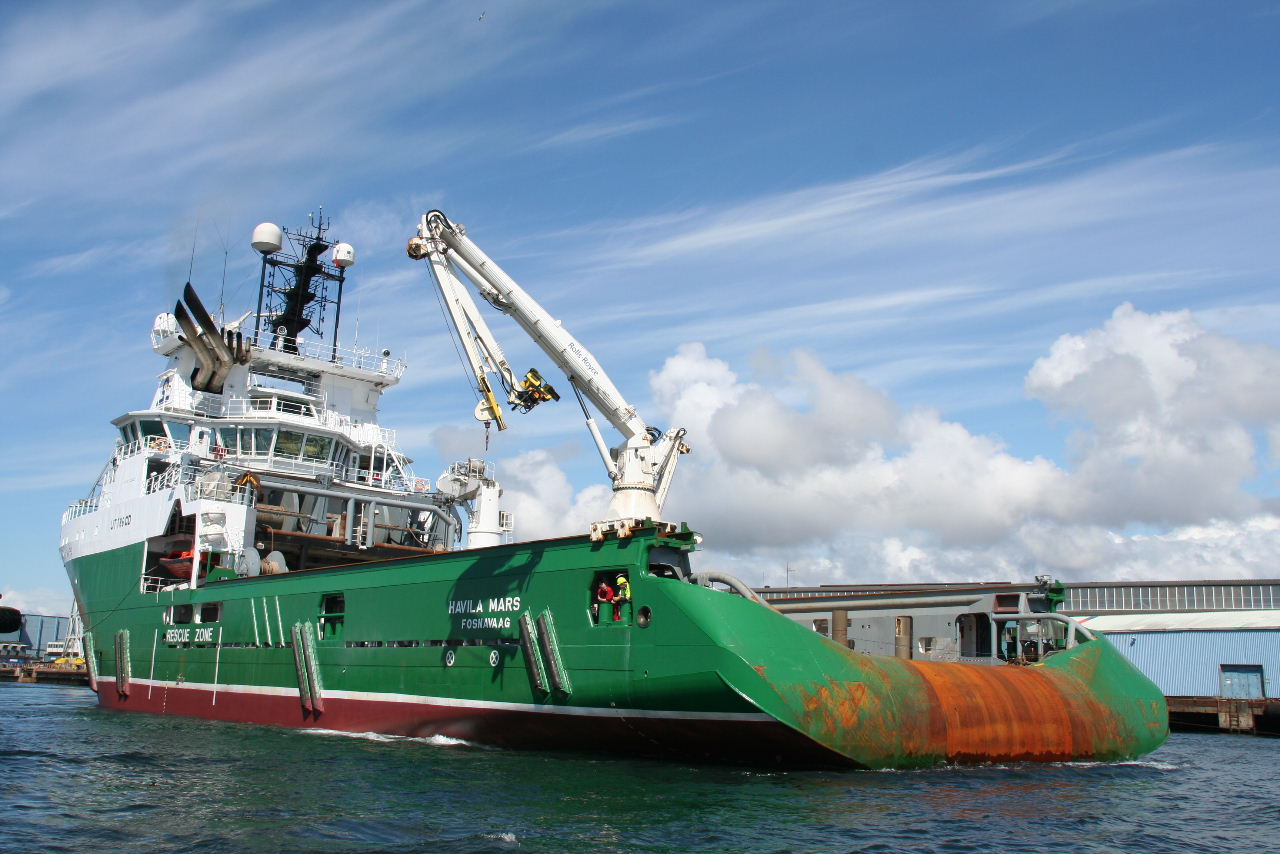

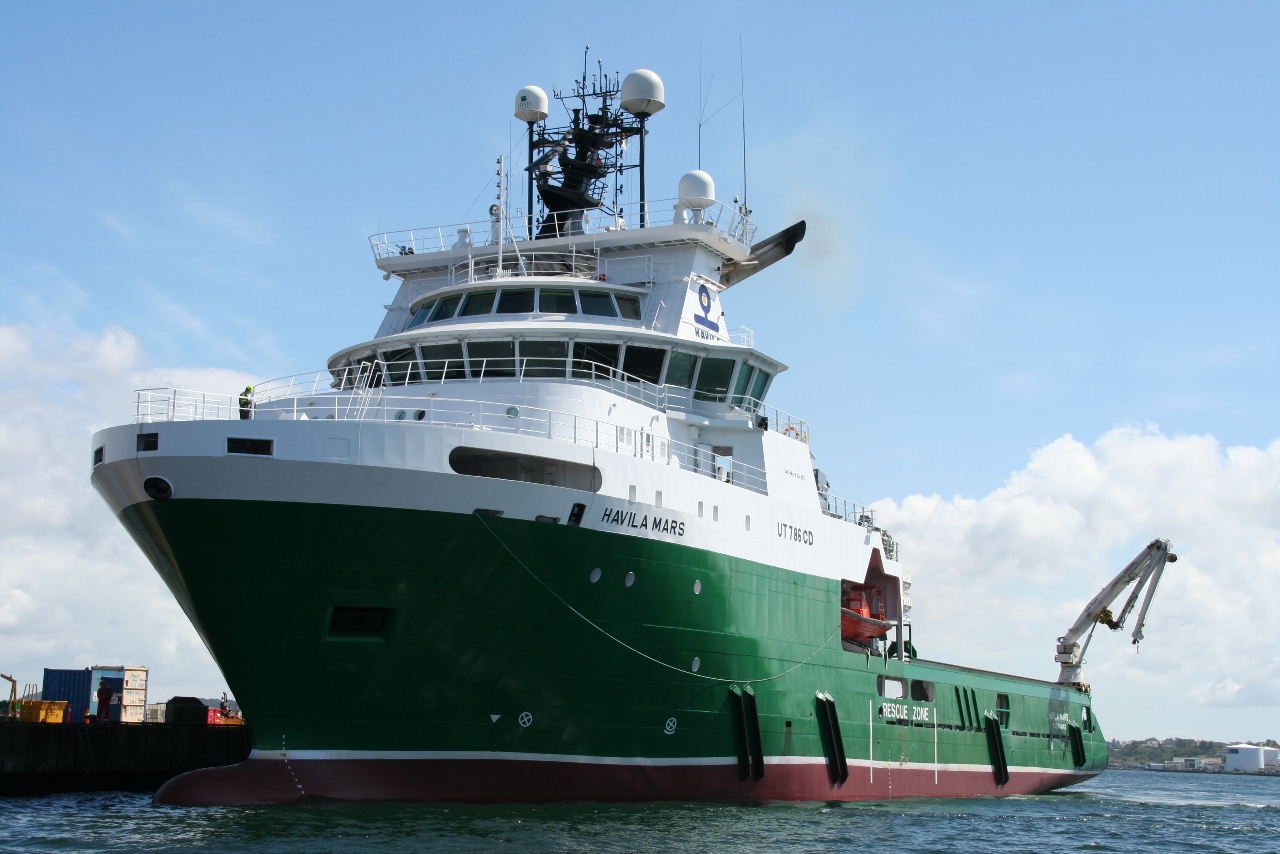

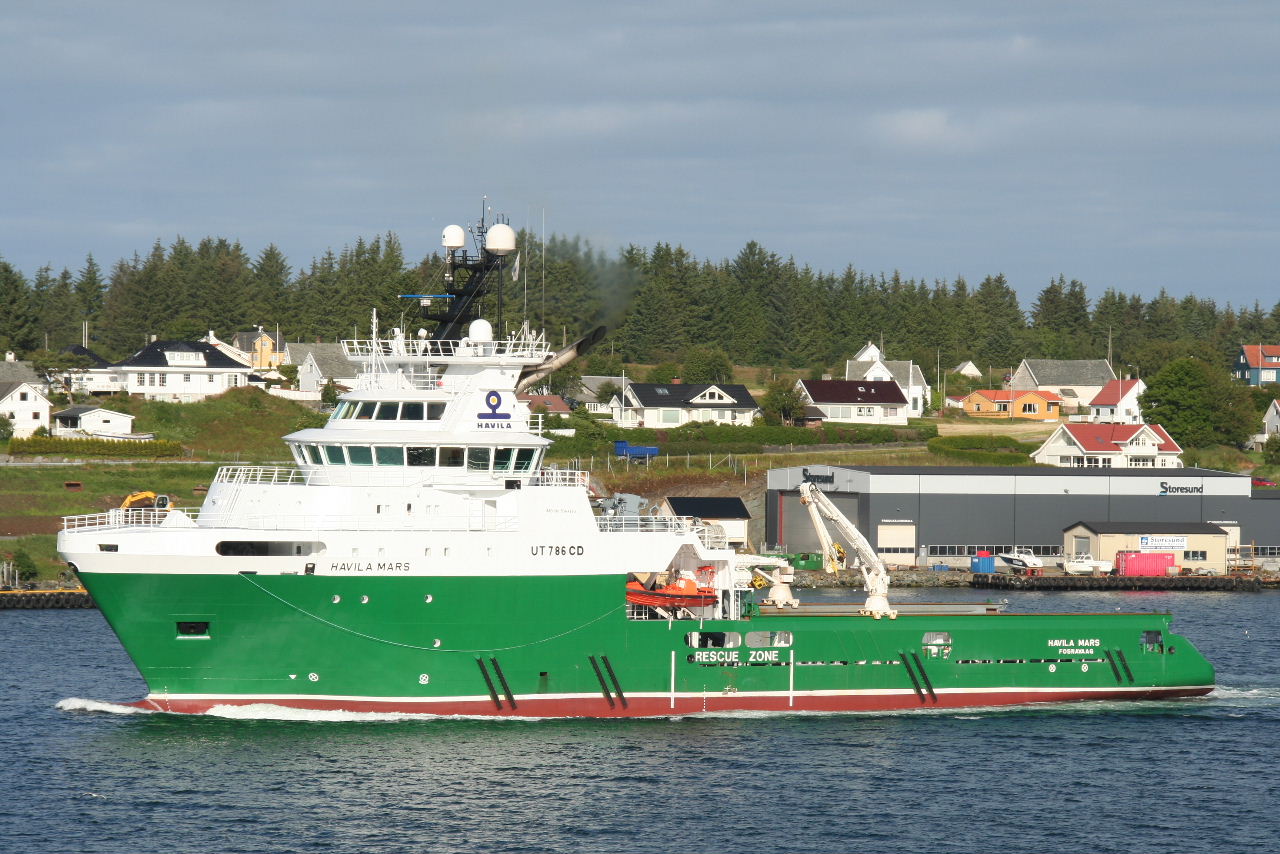

  TYPE: UT 786 CD NAME: Havila Mars   PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 86:00 m Engines 2 x Bergen B32 Workdrum pull 400 t
Breadth 19.9 m BHP 16320 Capacity 1 5000m x 84mm
DWT 7848 t kW 12000 Capacity 2 1732m x 84mm
Deck area 664 m2 For'd Thruster 1 x 883 kW Towdrum pull 400 t
Fuel 930 m3 Az Thruster 1 x 1500 kW Capacity 1 2759m x 84mm
Pot water 1170 m3 Aft Thrusters 2 x 736 kW Capacity 2
Mud 695 m3 Bollard pull 200 t Sharks Jaw 2 x RRM
Brine 1023 m3 DPII Kongsberg SDP21 Cranes
Dry bulk 235 m3 Joystick Yes Tank cleaning
Year built/due 2007     Shipyard Havyard Leirvik
Previous names -
Comments



  TYPE: HAVYARD 845 NAME: Havila Jupiter   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 92.0 m Engines 2 x MAK 12 M32C Workdrum pull 500 t
Breadth 22.0 m BHP 25432 Capacity 1 13600m x 76mm
DWT 3866 t kW 18700 Capacity 2 3500m x 76mm
Deck area 750 m2 For'd Thruster 1 x 1200 kW Towdrum pull 400 t
Fuel 1436 m3 Az Thruster 1 x 1500 kW Capacity 1 5700m x 76mm
Pot water 1034 m3 Aft Thrusters 2 x 1200 kW Capacity 2 -
Mud 529 m3 Bollard pull 284 t Sharks Jaw -
Brine 402 m3 DPII Rolls Royce Cranes 1 x 250 t
Dry bulk 262 m3 Joystick - Tank cleaning ?
Year built 2010     Shipyard Havyard Leirvik
Previous names -
Comments -



  TYPE: HAVYARD 845 NAME: Havila Venus   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 92.0 m Engines 2 x MAK 12 M32C Workdrum pull 500 t
Breadth 22.0 m BHP 25432 Capacity 1 13600m x 76mm
DWT 3866 t kW 18700 Capacity 2 3500m x 76mm
Deck area 750 m2 For'd Thruster 1 x 1200 kW Towdrum pull 400 t
Fuel 1436 m3 Az Thruster 1 x 1500 kW Capacity 1 5700m x 76mm
Pot water 1034 m3 Aft Thrusters 2 x 1200 kW Capacity 2 -
Mud 529 m3 Bollard pull 284 t Sharks Jaw -
Brine 402 m3 DPII Rolls Royce Cranes 1 x 250 t
Dry bulk 262 m3 Joystick - Tank cleaning ?
Year built 2009     Shipyard Havyard Leirvik
Previous names -
Comments -



  TYPE: HAVYARD 842 NAME: Havila Neptune   PHOTO: Vic Gibson

GENERAL

PROPULSION

EQUIPMENT

Length OA 74.5 m Engines 2 x MAK 12VM32C Workdrum pull 350 t
Breadth 17.2 m BHP 16320 Capacity 1 5500m x 77mm
DWT 5828 t kW 12000 Capacity 2 -
Deck area 520 m2 For'd Thruster 1 x 883 kW Towdrum pull 350 t
Fuel 1100 m3 Az Thruster 1 x 883 kW Capacity 1 5500m x 77mm
Pot water 725 m3 Aft Thrusters 1 x 883 kW Capacity 2
Mud 540 m3 Bollard pull 194 t Sharks Jaw Karmforks
Brine 515 m3 DPI RRM Icon Cranes
Dry bulk 220 m3 Joystick Yes Tank cleaning
Year built/due 2008     Shipyard Havyard Leirvik
Previous names -
Comments



construction and other Vessels

  TYPE: Havyard 855 NAME: Havila Subsea   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 98.00 m Engines 6 x Cat 3516C Workdrum pull -
Breadth 19.8 m BHP 17544 Capacity 1 -
DWT 5947 mt kW 12900 Capacity 2 -
Deck area 600 m2 For'd Thruster 1 x 1500 kW Accomm berths 78
Fuel 1222 m3 Az Thruster 2 x 1500 kW Storage capacity

-

Pot water 1000 m3 Aft Az Props 2 x 1750 kW ROV  2 x
Mud - Bollard pull - Diving Capability -
Brine - DP II RR Icon Cranes 1 x 150 t
Dry bulk - Joystick - Tank cleaning -
Year built 2011     Shipyard Havyard Liervik
Previous names -
Comments -

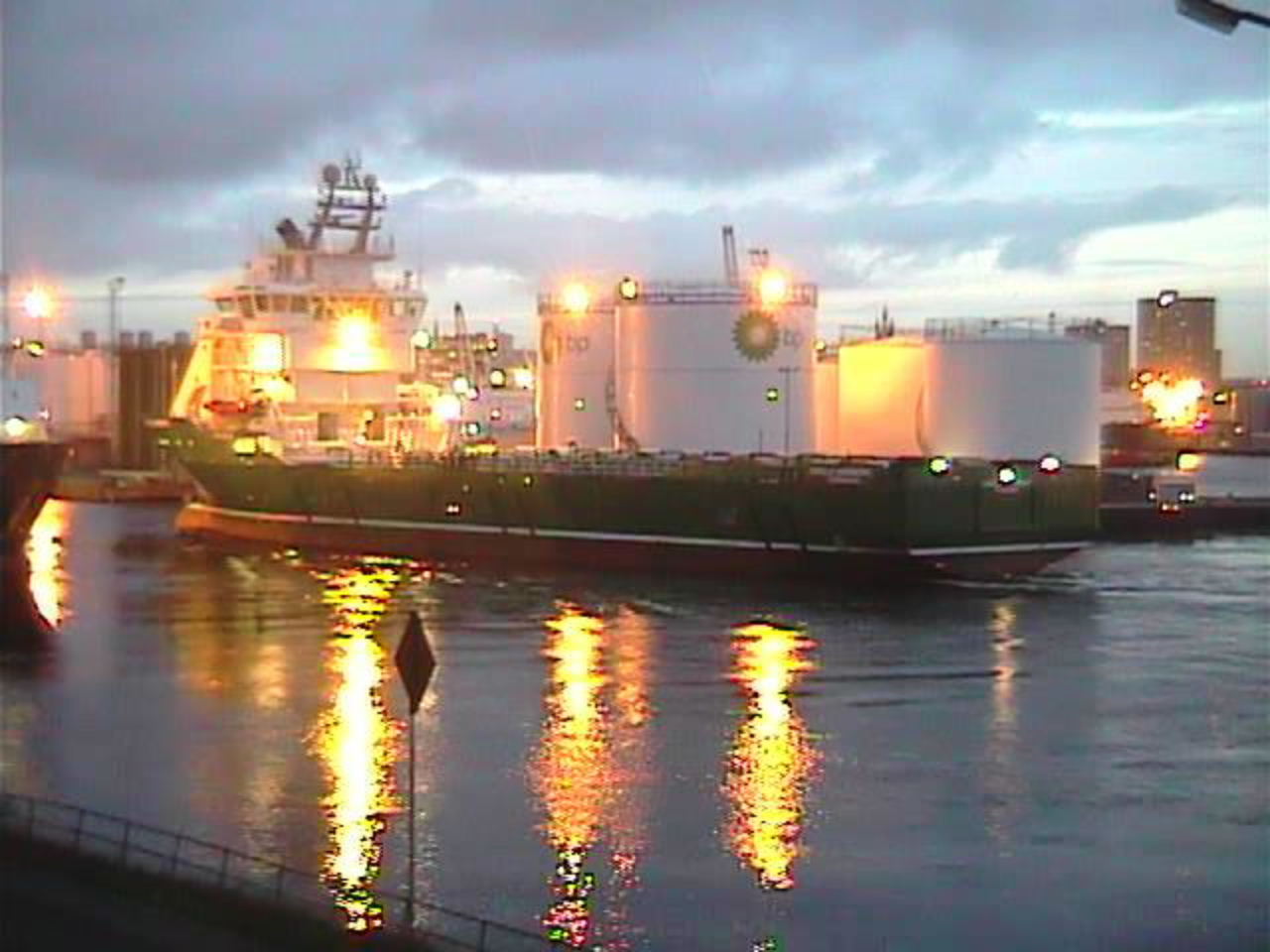

TYPE: mt 6010

NAME: Havila Harmony photo: Marex Webcam

General Propulsion Cargo Capacity
Length OA 92.95 m Engines 4 x CumminsQSK60 Fuel 1144 m3
Breadth 19.7 m BHP/kW 10400/7600  Pot Water 1012 m3
DWT 3974 tonnes For'd Thrusters 2 x 1000 kW Mud 860 m3
Deck area 816 m2 Az Thrusters - Base oil 289 m3
    Aft Azimuthing 2 x 2000 kW? Brine 495 m3
Year built 2005 DPII Simrad SDPII Dry bulk 400 m3
Shipyard Havyard Liervik Joystick Yes Tank Cleaning 14 machines
Previous names -
Comments 140 tonne crane and accommodation for 86. Upgrade in 2007.

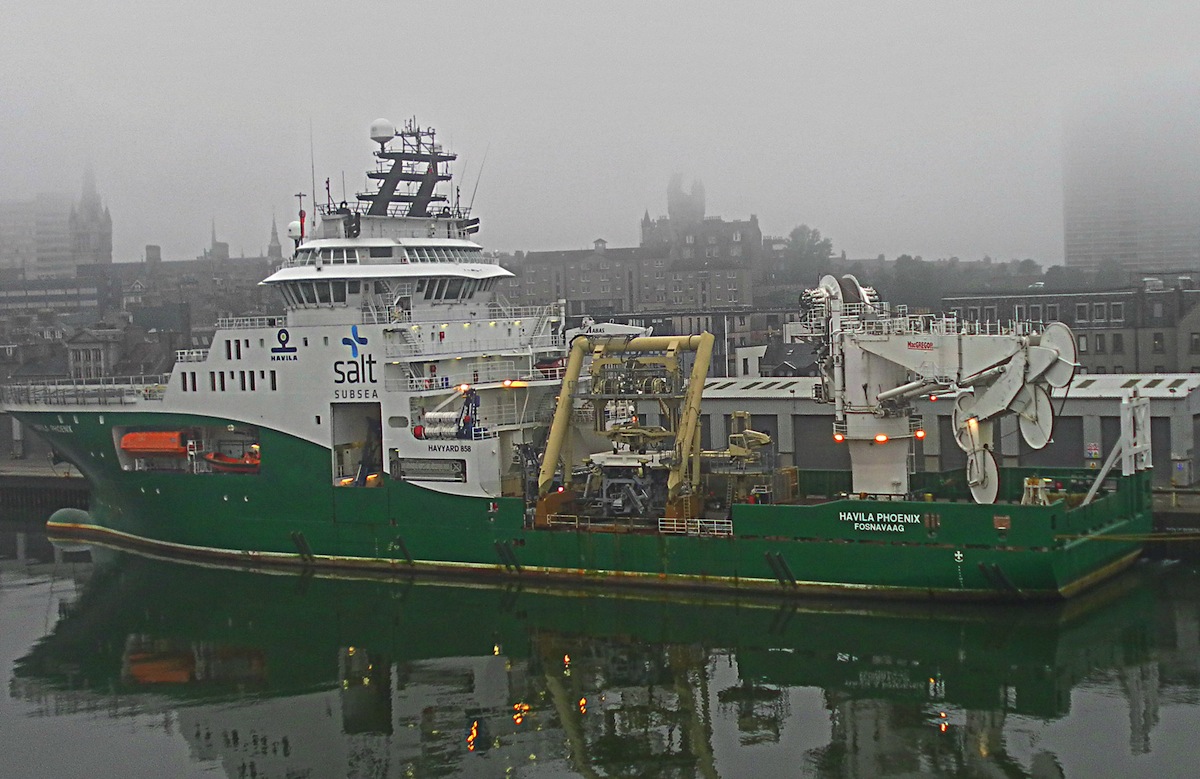

  TYPE: HAVYARD 858 NAME: Havila Phoenix   PHOTO: Kenny Polson


GENERAL

PROPULSION

EQUIPMENT

Length OA 110 m Engines - Workdrum pull -
Breadth 23 m BHP - Capacity 1 -
DWT - kW - Capacity 2 -
Deck area - For'd Thruster - Accomm berths 140
Fuel - Az Thruster - Storage capacity

-

Pot water - Aft Az Props - ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP II - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2008     Shipyard -
Previous names -
Comments -



PLATFORM SHIPS

TYPE: Havyard 833L NAME: HAVILA CHARISMA PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 92.8 m Engines 4 x MTU 4000 Fuel 711 m3
Breadth 19.6 m BHP/kW 11315/8320 Pot water 814 m3
DWT 4976 mt

For'd Thrusters

2n x 1000 kW Mud 1044 m3
Deck area 1082 m2 Az Thruster 1 x 880 kW Base oil 308 m3
Year built 2012 Retractable Thruster 1 x 800 kW Brine 516 m3
Shipyard Havyard Leirvik Joystick - Dry bulk -
Berths 27 DPII Kongsberg KPos Tank Cleaning 15 machines.
Previous names -
Comments -

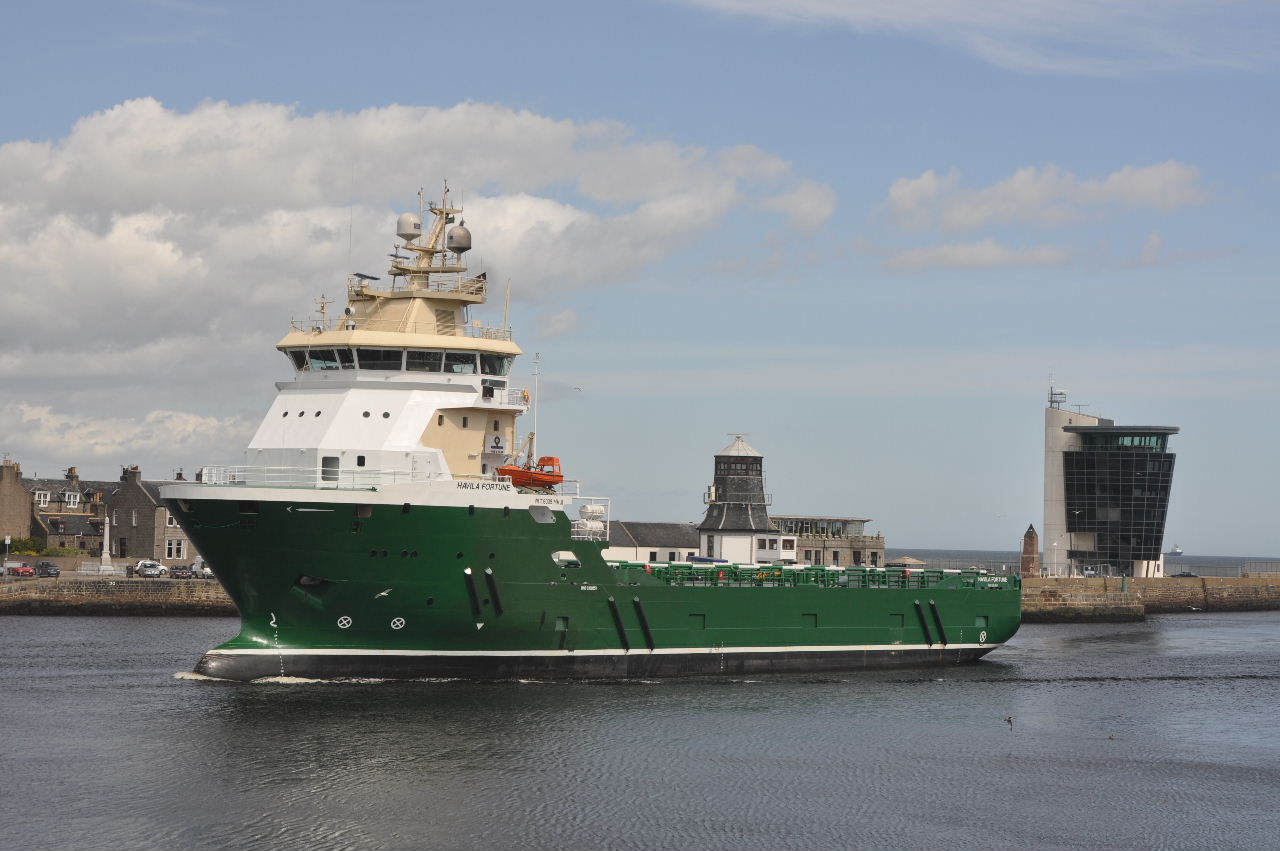

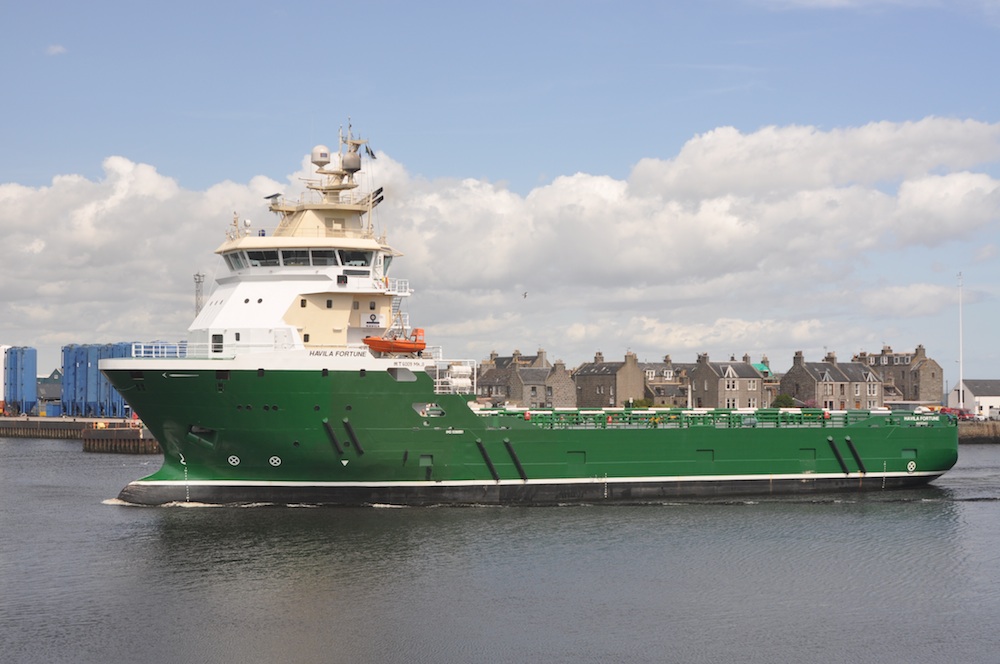

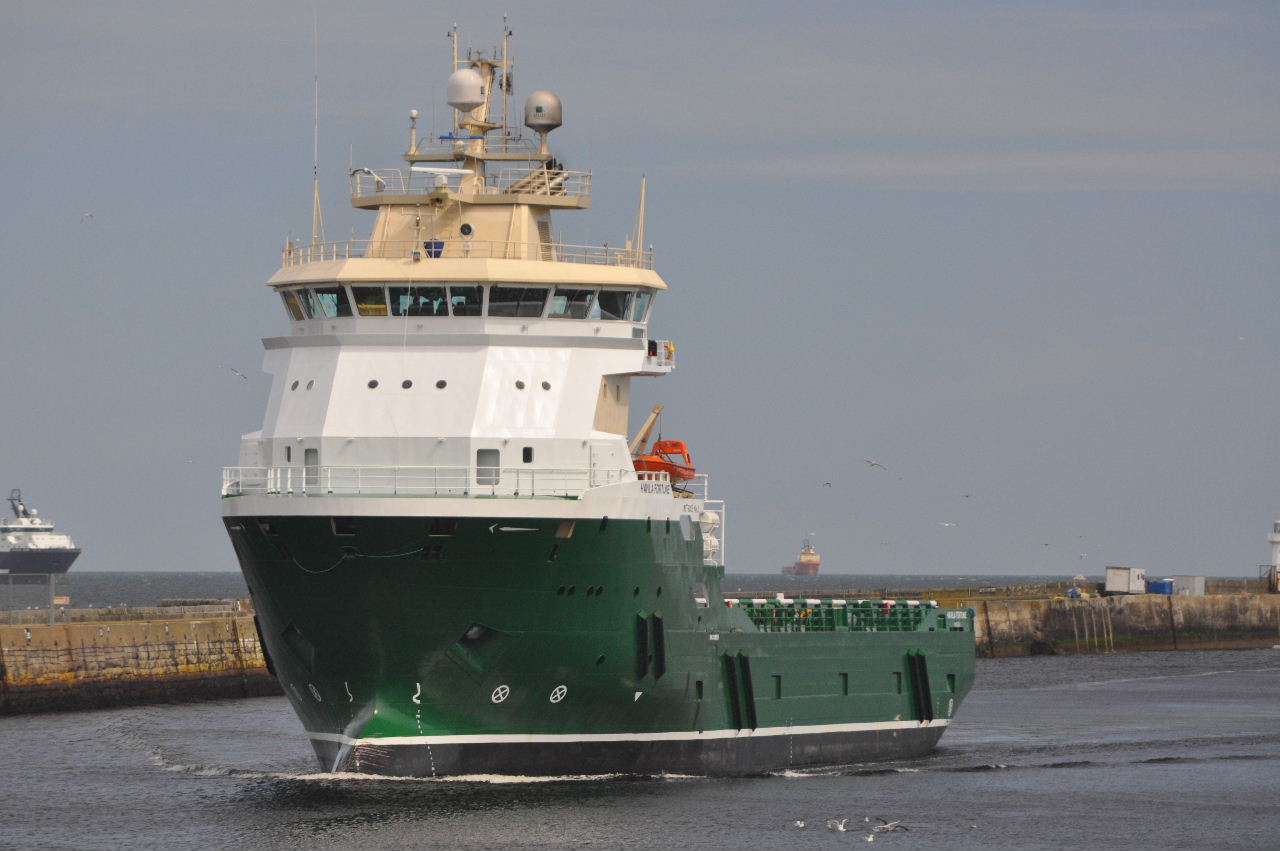

type: MT 6009 MkII name: Havila Fortune PHOTO: Vic Gibson
General Propulsion Cargo Capacity
Length OA 74.87 m Engines 4 x Cummins KTA5 Fuel 1228 m3
Breadth 16.40 m BHP/kW 7030/5164 Pot water 639 m3
DWT 3250 t For'd Thrusters 2 x 800 kW Mud 651 m3
Deck area 683 m2 Az Thruster 1 x 895 kW Base oil 143 m3
    Aft AziThrusters 2 x 1500 kW Brine 221 m3
Year built 2009 DPII Kongsberg Dry bulk 310 m3
Shipyard Havyard Joystick Yes Tank Cleaning -
Previous names Trico Sapphire
Comments -



TYPE: VS 485 CD NAME: Havila Crusader PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 85.0 m Engines 4 x 3516BTA Fuel 903 m3
Breadth 20.0 m BHP/kW 10340/7604 Pot water 1007 m3
DWT -

For'd Thrusters

2 x 1000 kW Mud 702 m3
Deck area 1005 m2 Az Thruster 1 x 800 kW Base oil 203 m3
Year built 2010 Aft Aziprops 2 x 2300 kW Brine 418 m3
Shipyard Hellesoy Joystick - Dry bulk 440 m3
Berths 23 DPII Kongsberg Kpos Tank Cleaning Yes
Previous names -
Comments -

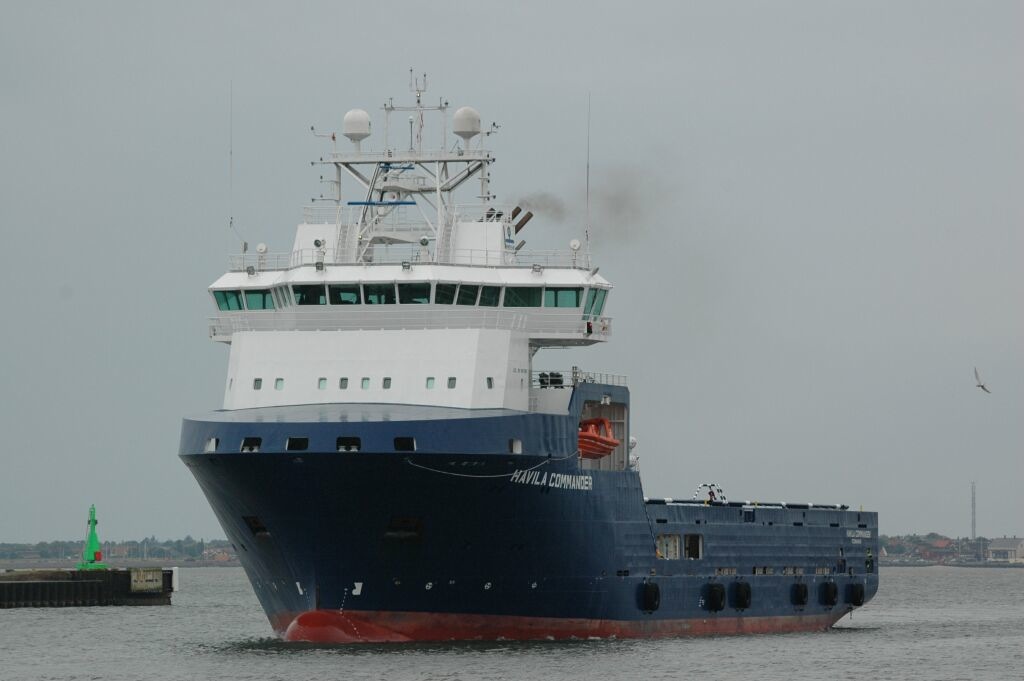

TYPE: VS 485 CD NAME: Havila Commander PHOTO: Udo Herkenrath

GENERAL PROPULSION CARGO CAPACITY
Length OA 85.0 m Engines 4 x 3516BTA Fuel 903 m3
Breadth 20.0 m BHP/kW 10340/7604 Pot water 1007 m3
DWT -

For'd Thrusters

2 x 1000 kW Mud 702 m3
Deck area 1005 m2 Az Thruster 1 x 800 kW Base oil 203 m3
Year built 2010 Aft Aziprops 2 x 2300 kW Brine 418 m3
Shipyard Hellesoy Joystick - Dry bulk 440 m3
Berths 23 DPII Kongsberg Kpos Tank Cleaning Yes
Previous names -
Comments -

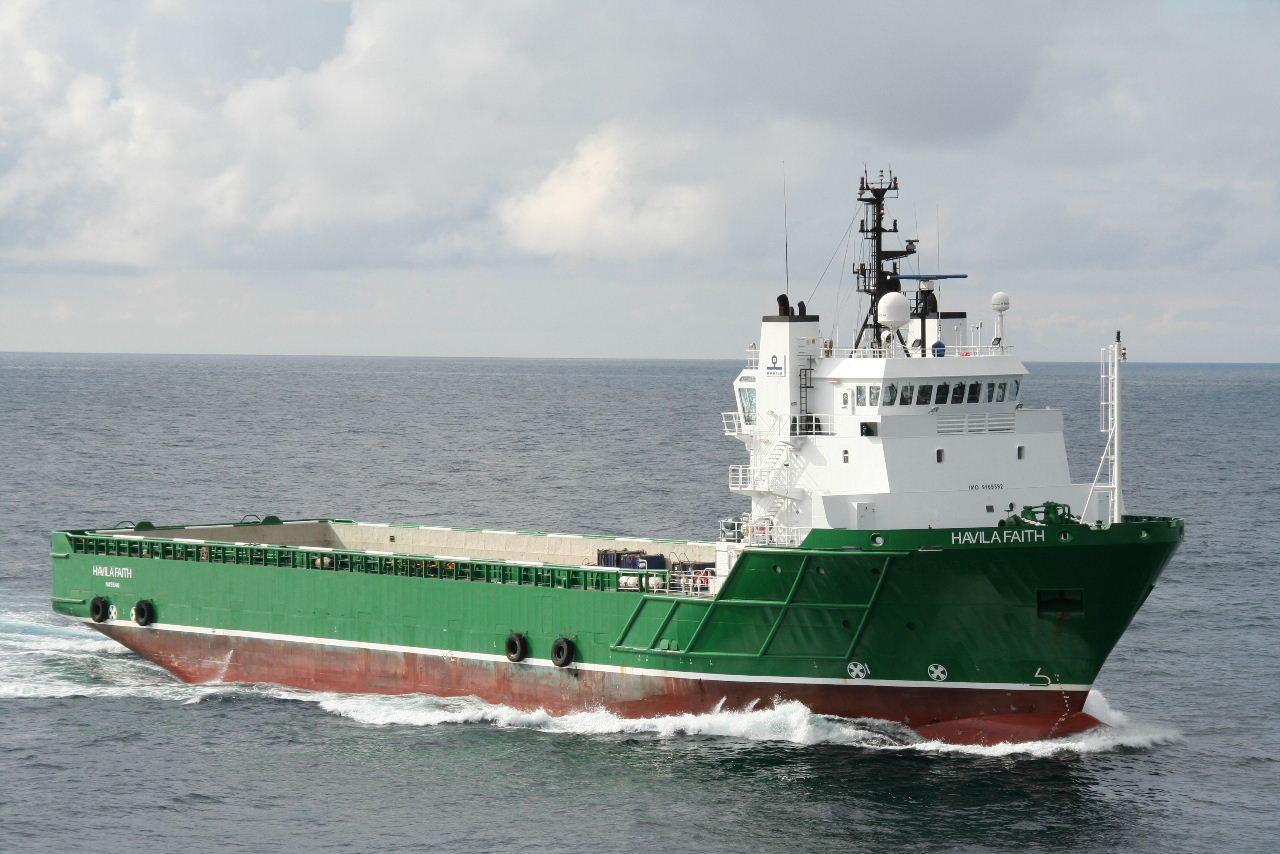

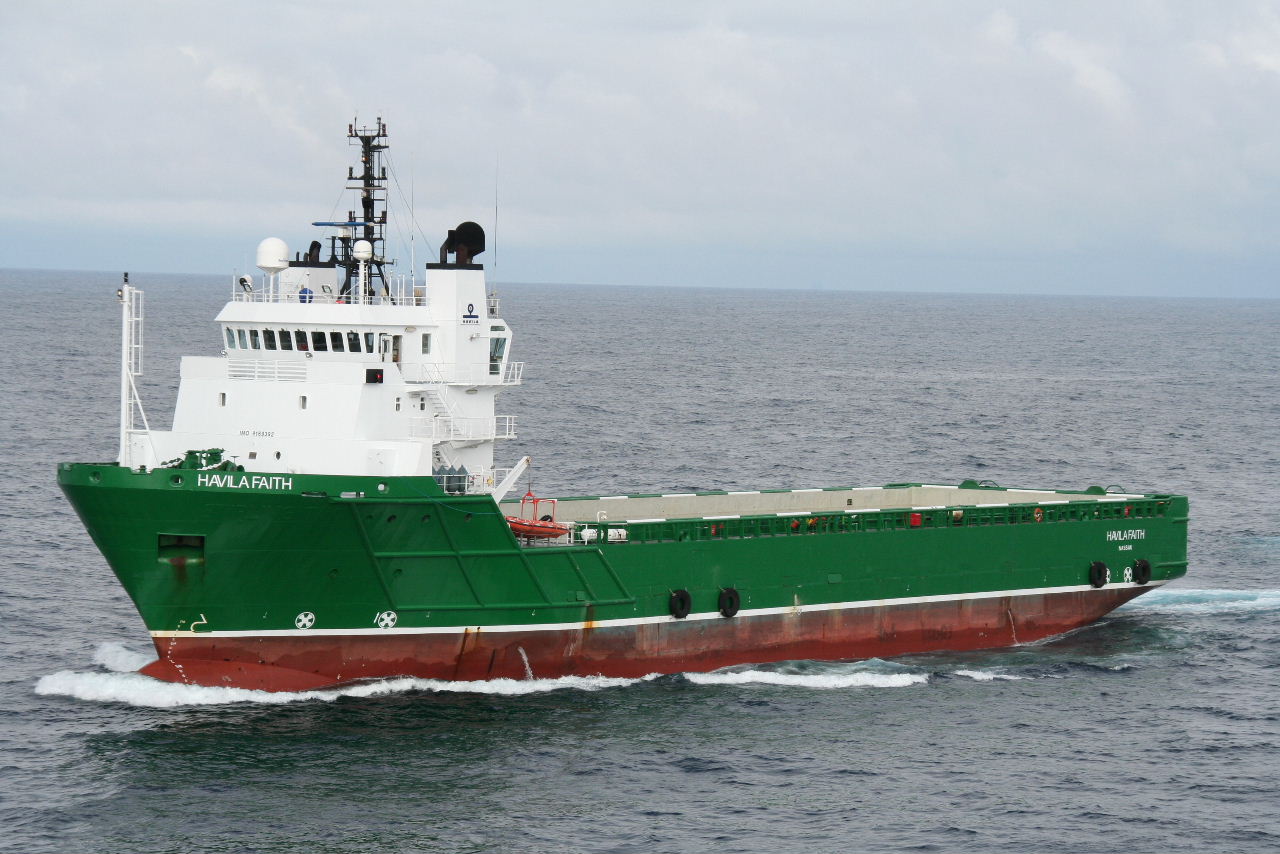

type: vs 483 name: Havila Faith PHOTO: Jan Plug
General Propulsion Cargo Capacity
Length OA 82.88 m Engines 2 X Wartsila 6R32 Fuel 909 m3
Breadth 19.0 m BHP/kW 6600/4920 Pot water 1021 m3
DWT 4679 t For'd Thrusters 1 x 746 kW Mud 676 m3
Deck area 902 m2 Az Thruster 1 x 895 kW Base oil 221 m3
    Aft Thrusters 2 x 746 kW Brine 772 m3
Year built 1998 DPII Alstrom ADP 21 Dry bulk 400 m3
Shipyard Kvaerner Govan Joystick Alstrom Tank Cleaning MAREX
Previous names Stirling Tay
Comments -

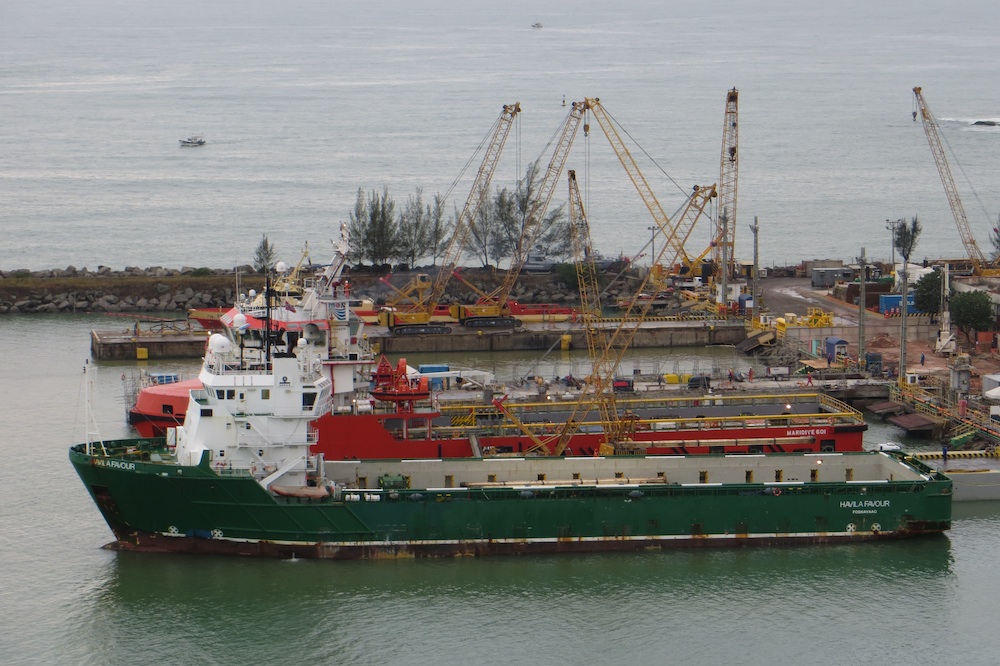

type: vs 483 name: Havila Favour PHOTO: Jan Plug

General Propulsion Cargo Capacity
Length OA 82.88 m Engines 2 X Wartsila 6R32 Fuel 909 m3
Breadth 19.0 m BHP/kW 6600/4920 Pot water 1021 m3
DWT 4679 t For'd Thrusters 1 x 746 kW Mud 676 m3
Deck area 902 m2 Az Thruster 1 x 895 kW Base oil 221 m3
    Aft Thrusters 2 x 746 kW Brine 772 m3
Year built 1999 DPII Alstrom ADP 21 Dry bulk 400 m3
Shipyard Kvaerner Govan Joystick Alstrom Tank Cleaning MAREX
Previous names Stirling Spey
Comments -

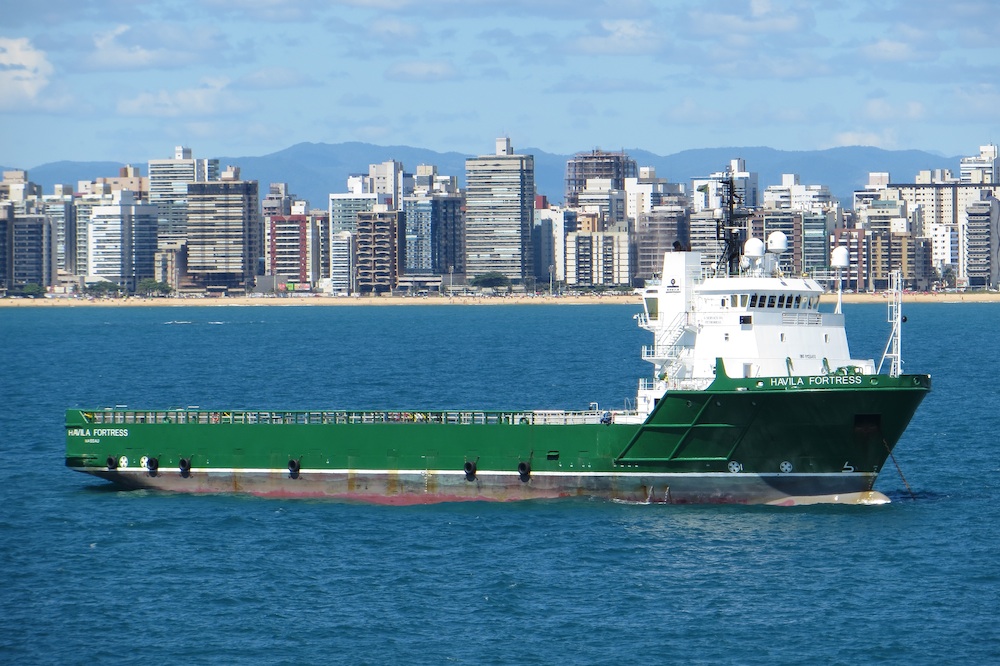

type: vs 483 name: Havila Fortress PHOTO: Jan Plug

General Propulsion Cargo Capacity
Length OA 82.88 m Engines 2 X Wartsila 6R32 Fuel 909 m3
Breadth 19.0 m BHP/kW 6600/4920 Pot water 1021 m3
DWT 4679 t For'd Thrusters 1 x 746 kW Mud 676 m3
Deck area 902 m2 Az Thruster 1 x 895 kW Base oil 221 m3
    Aft Thrusters 2 x 746 kW Brine 772 m3
Year built 1996 DPI Simrad ADP 700 Dry bulk 400 m3
Shipyard Kvaerner Govan Joystick Simrad Tank Cleaning MAREX
Previous names -
Comments -



type: MT 6010 MkII name: Havila Foresight PHOTO:

General Propulsion Cargo Capacity
Length OA 93.60 m Engines 4 x Cat 3516L Fuel 1140 m3
Breadth 19.70 m BHP/kW 11900/8752 Pot water 1020 m3
DWT 8039 t For'd Thrusters 2 x 880 kW Mud 860 m3
Deck area 1046 m2 Az Thruster 1 x 1200 kW Base oil 245 m3
    Aft Podded Props 2 x 2200 kW Brine 505 m3
Year built 2008 DPII RRM Dry bulk 400 m3
Shipyard Havyard Leirvik Joystick Yes Tank Cleaning -
Previous names -
Comments -

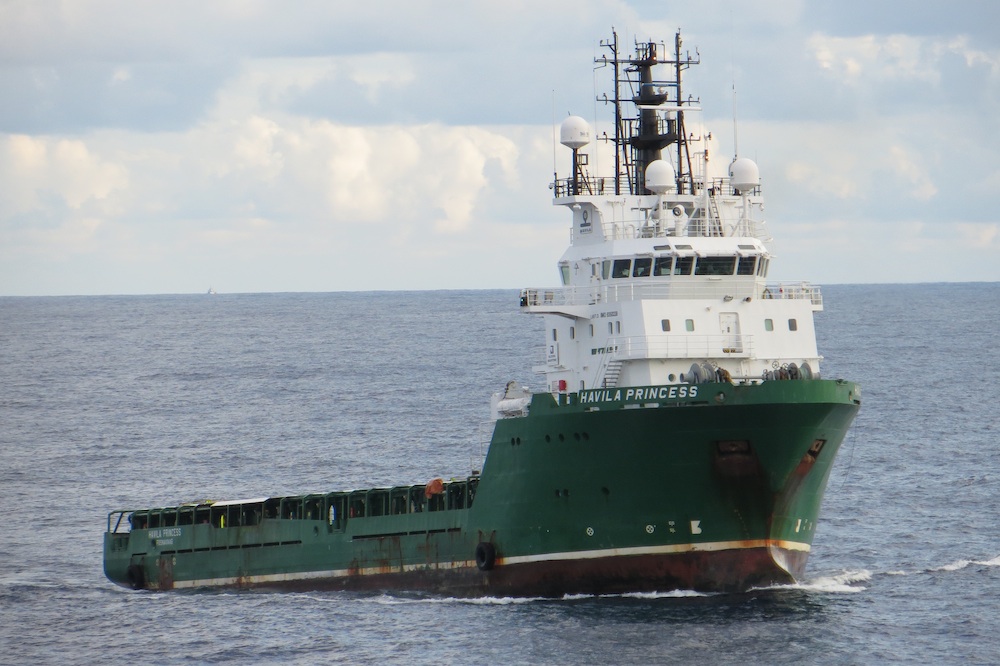

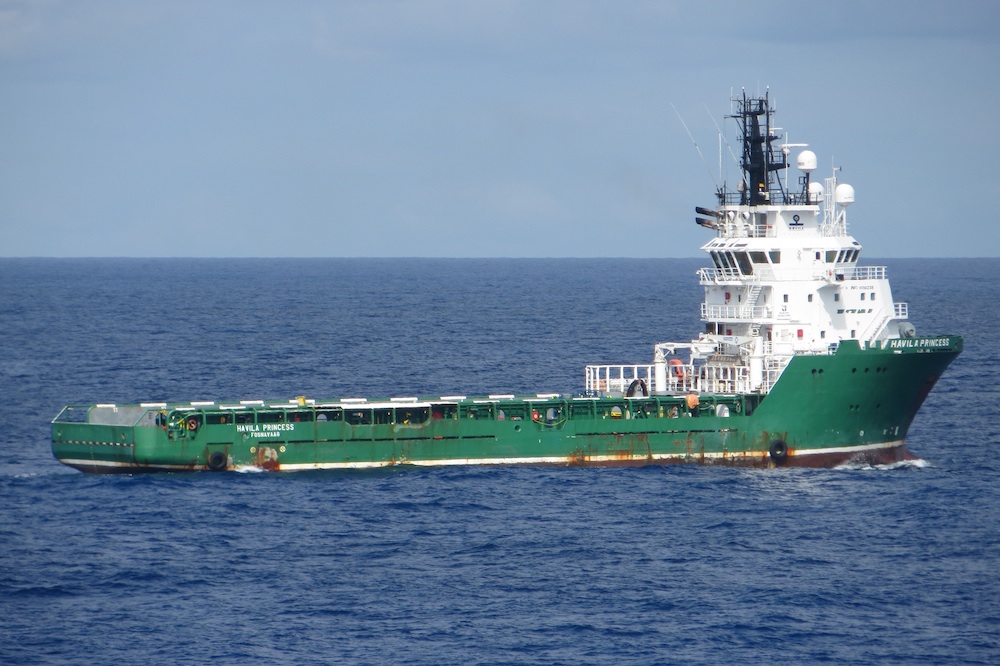

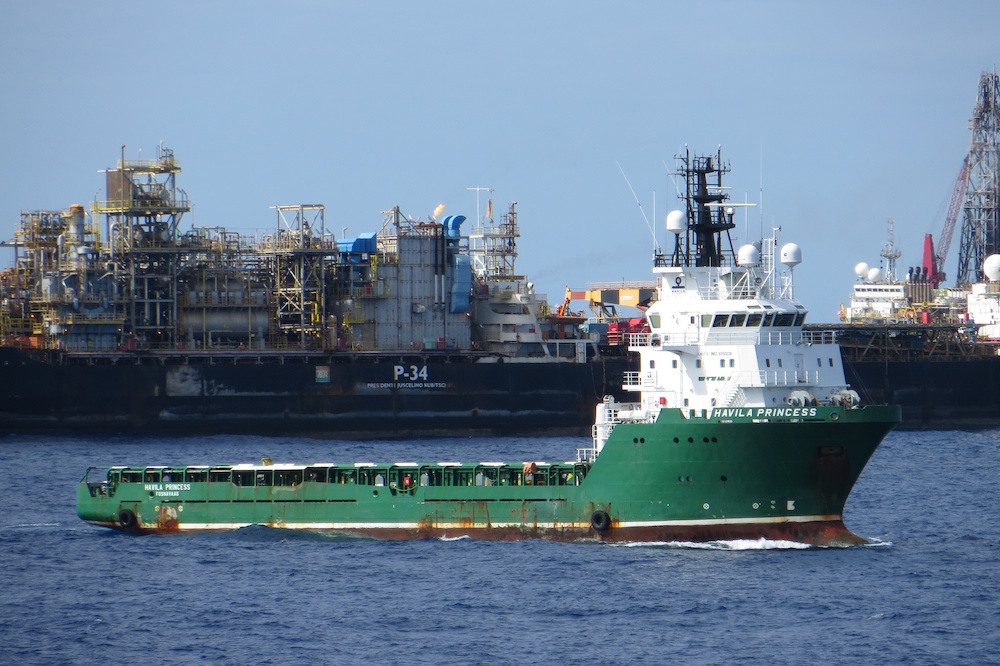

TYPE: VS 470 Mk II NAME: Havila Princess PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines 2 x Wartsila 6R32 Fuel   935 m3
Breadth 16.6 m BHP 6040/4440 Pot water   983 mt
DWT 3500 tonnes For'd Thrusters 2 x 588 kW Mud   644 m3
Deck area 704 m2 Az Thruster   Base oil   215 m3
    Aft Thrusters 2 x 588 kW Brine   215 m3
Year built 2005 DPI Kongsberg SDPII Dry bulk   371 m3
Shipyard  Kleven Joystick Kongsberg Tank Cleaning   ?
Previous names -
Comments -

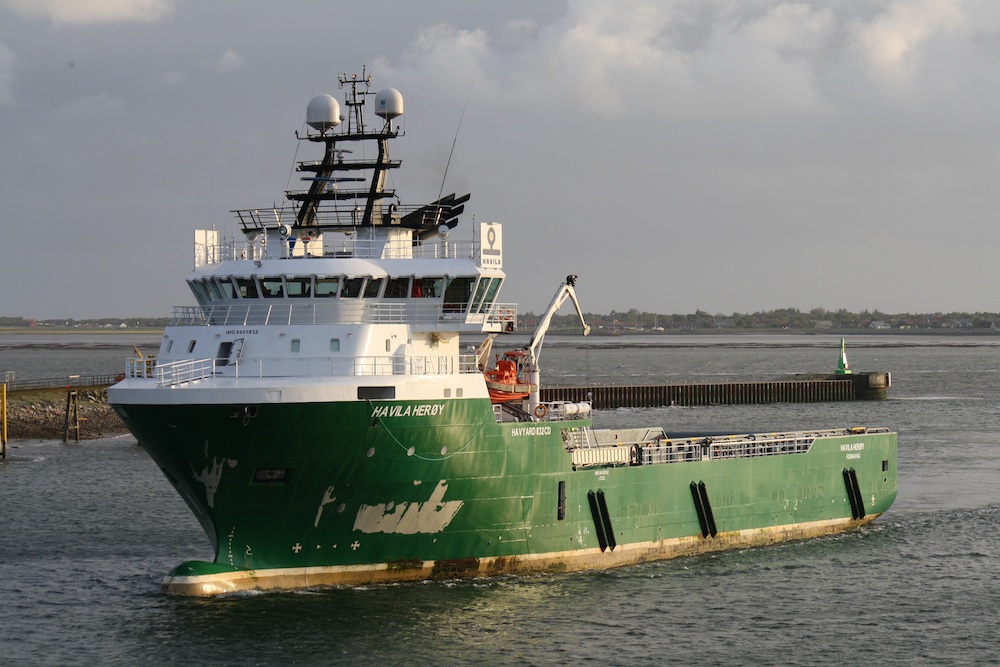

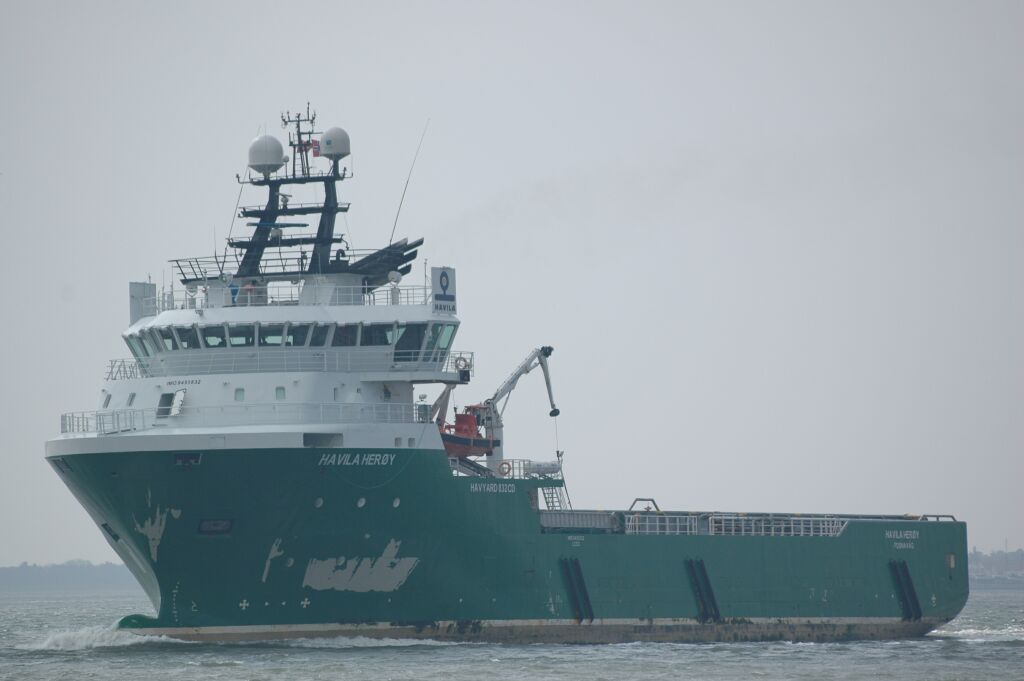

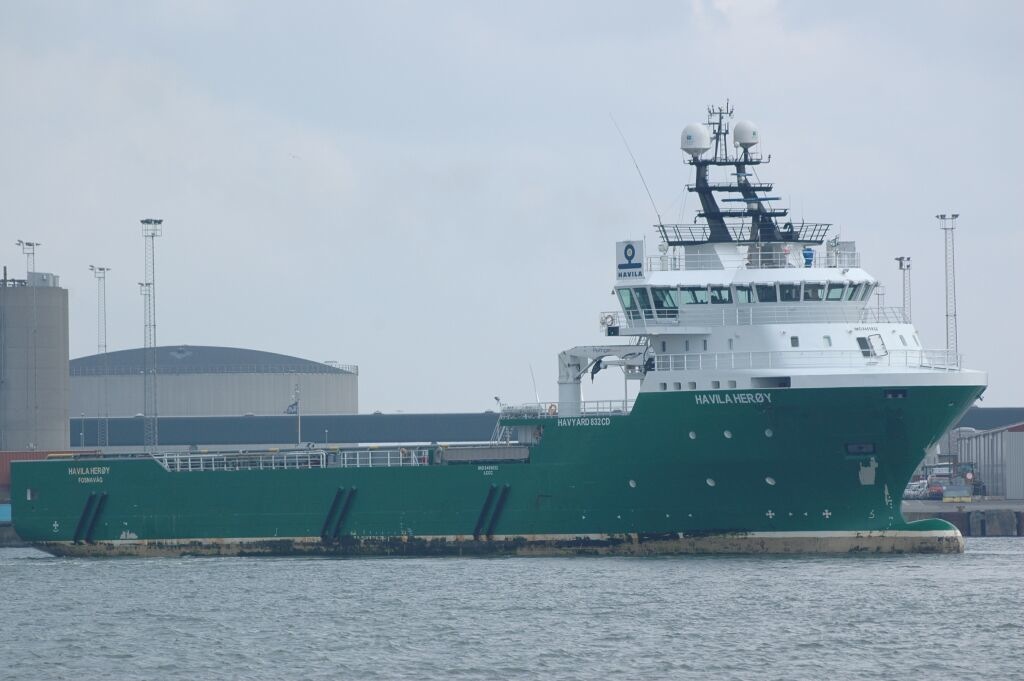

TYPE: HAVYARD 832 CD NAME: Havila Hery PHOTO: Scott Vardy, Udo Herkenrath
GENERAL PROPULSION CARGO CAPACITY
Length OA 80.4 m Engines - Fuel 910 m3
Breadth 17.6 m BHP/kW - Pot water 900 kW
DWT 4000 t approx For'd Thrusters 2 x 880 kW Mud 975 m3
Deck area 805 m2 Az Thruster - Base oil -
    Aft Aziprops 2 x 1600 kW Brine 975 m3
Year built 2009 Joystick - Dry bulk 320 m3
Shipyard - DPII Yes Tank Cleaning -
Previous names -
Comments -

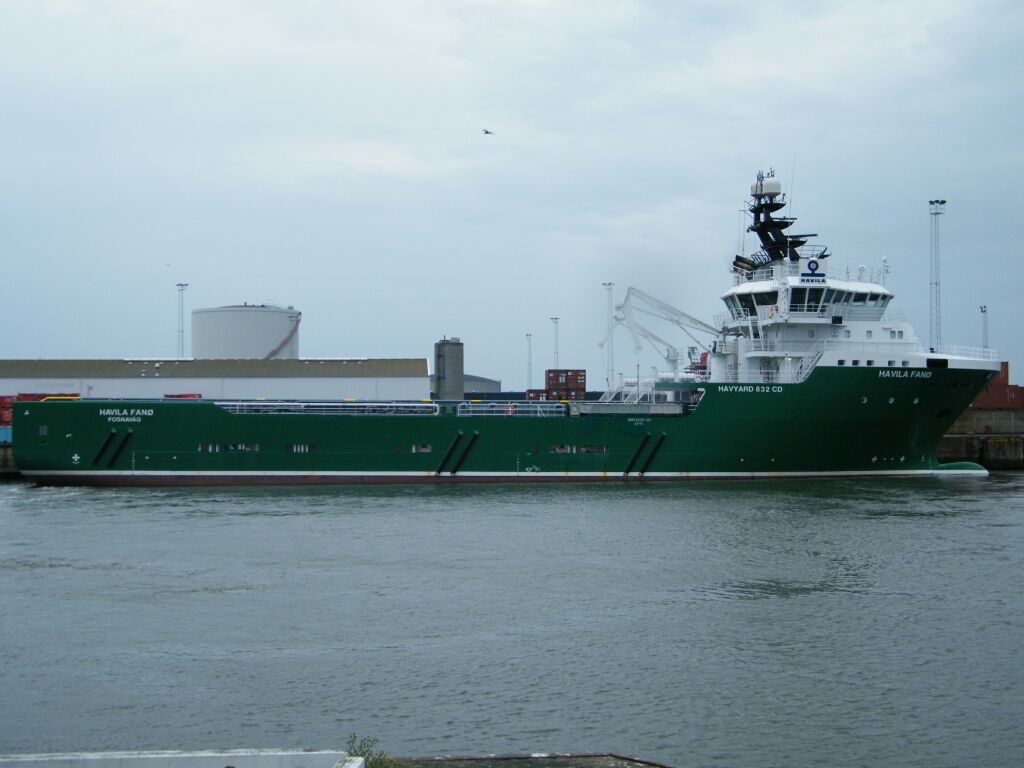

TYPE: HAVYARD 832 CD NAME: Havila Fan PHOTO: Udo Herkenrath

GENERAL PROPULSION CARGO CAPACITY
Length OA 80.4 m Engines - Fuel 910 m3
Breadth 17.6 m BHP/kW - Pot water 900 kW
DWT 4000 t approx For'd Thrusters 2 x 880 kW Mud 975 m3
Deck area 805 m2 Az Thruster - Base oil -
    Aft Aziprops 2 x 1600 kW Brine 975 m3
Year built 2010 Joystick - Dry bulk 320 m3
Shipyard Simek Flekfjord DPII Yes Tank Cleaning -
Previous names -
Comments -

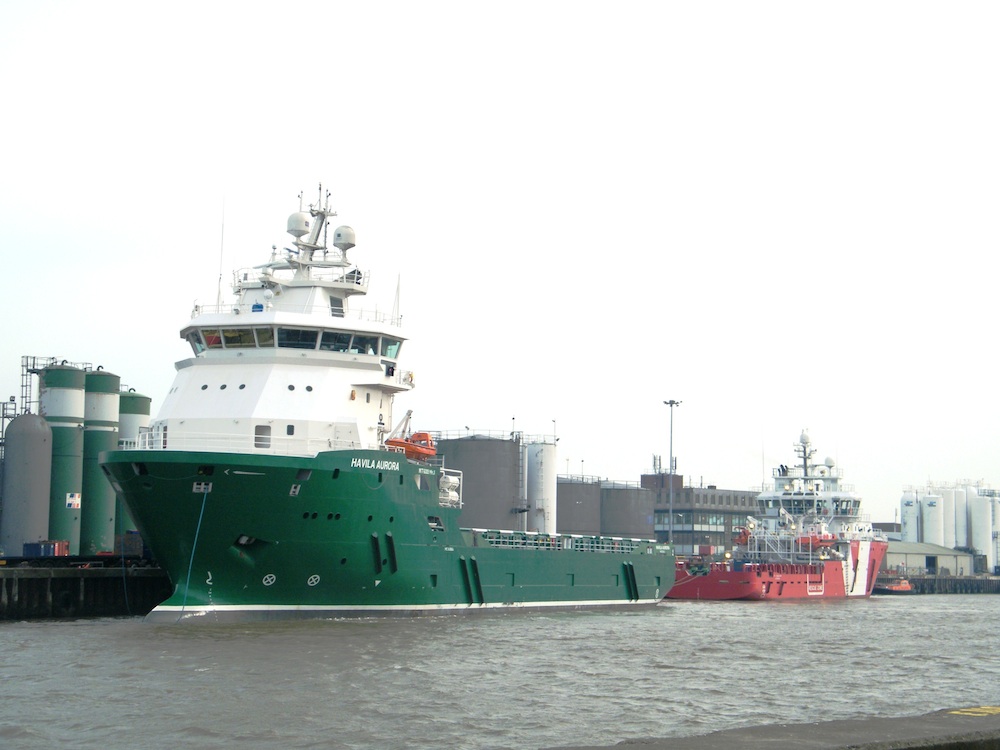

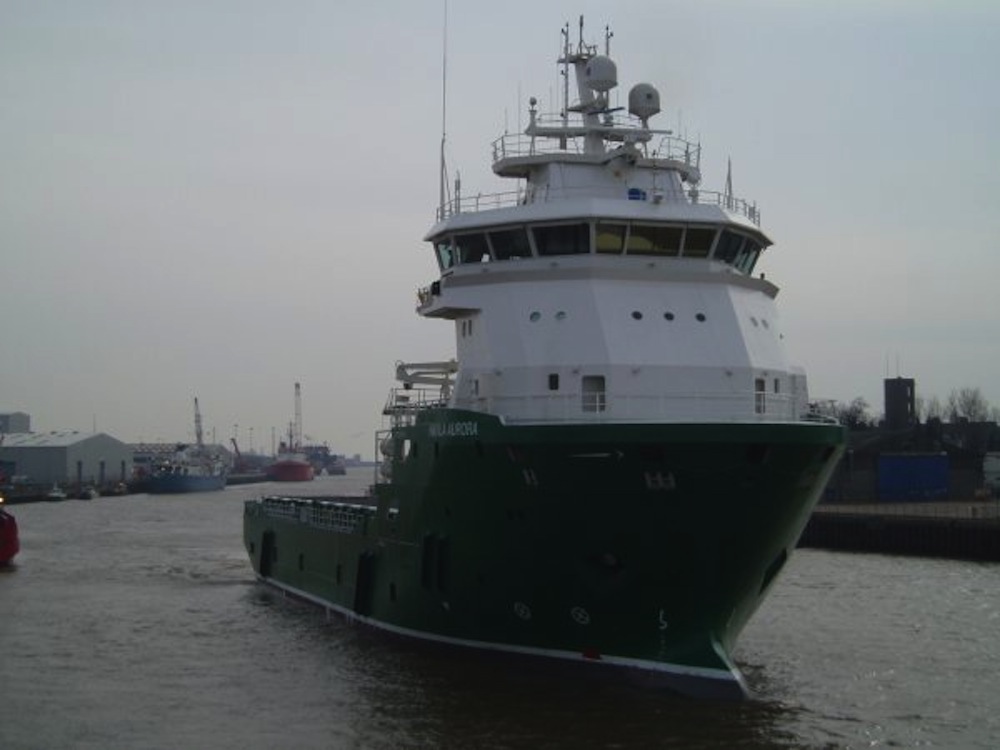

type: MT 6009 MkII name: Havila Aurora PHOTO: Andrew Wilson, Scott Vardy

General Propulsion Cargo Capacity
Length OA 74.87 m Engines 4 x Cummins KTA5 Fuel 1228 m3
Breadth 16.40 m BHP/kW 7030/5164 Pot water 639 m3
DWT 3250 t For'd Thrusters 2 x 800 kW Mud 651 m3
Deck area 683 m2 Az Thruster 1 x 895 kW Base oil 143 m3
    Aft AziThrusters 2 x 1500 kW Brine 221 m3
Year built 2009 DPII Kongsberg Dry bulk 310 m3
Shipyard Havyard Joystick Yes Tank Cleaning -
Previous names SBS Sirocco, Ocean Atlantic
Comments -

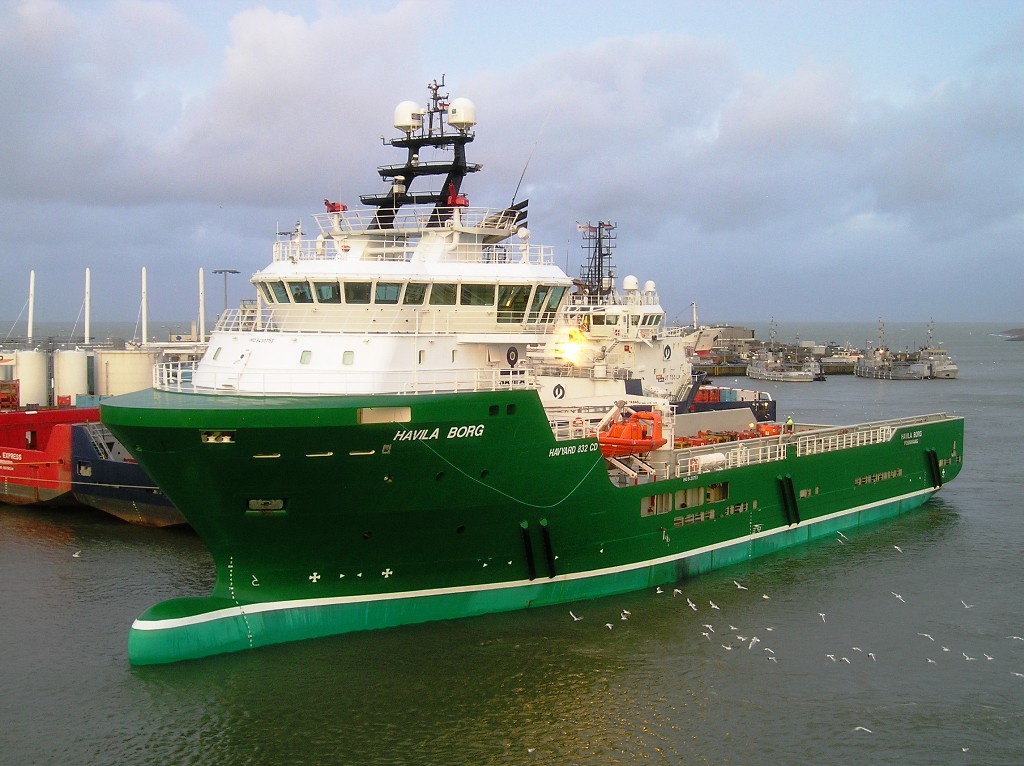

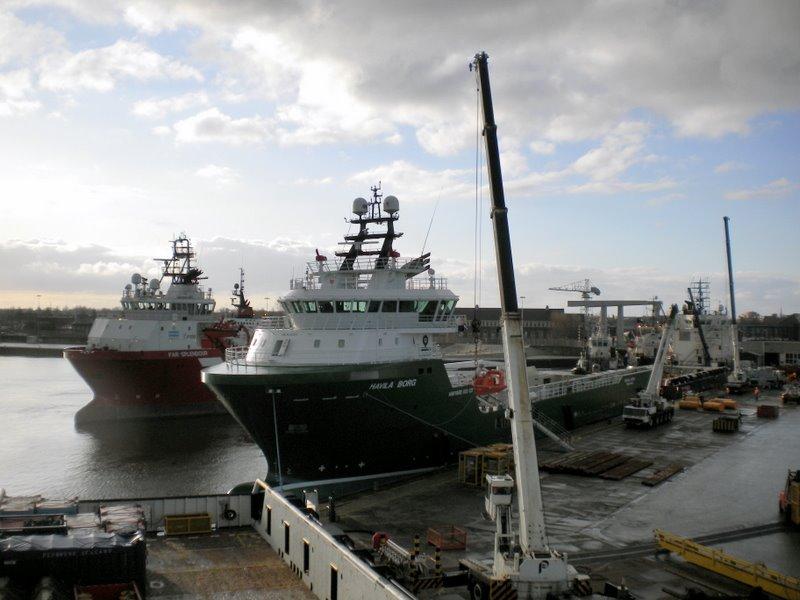

TYPE: HAVYARD 832 CD NAME: Havila Borg PHOTO: Pat McCardle, Scott Vardy

GENERAL PROPULSION CARGO CAPACITY
Length OA 80.4 m Engines - Fuel 910 m3
Breadth 17.6 m BHP/kW - Pot water 900 kW
DWT 4000 t approx For'd Thrusters 2 x 880 kW Mud 975 m3
Deck area 805 m2 Az Thruster - Base oil -
    Aft Aziprops 2 x 1600 kW Brine 975 m3
Year built 2009 Joystick - Dry bulk 320 m3
Shipyard HavyardTromrefjord DPII Yes Tank Cleaning -
Previous names -
Comments -

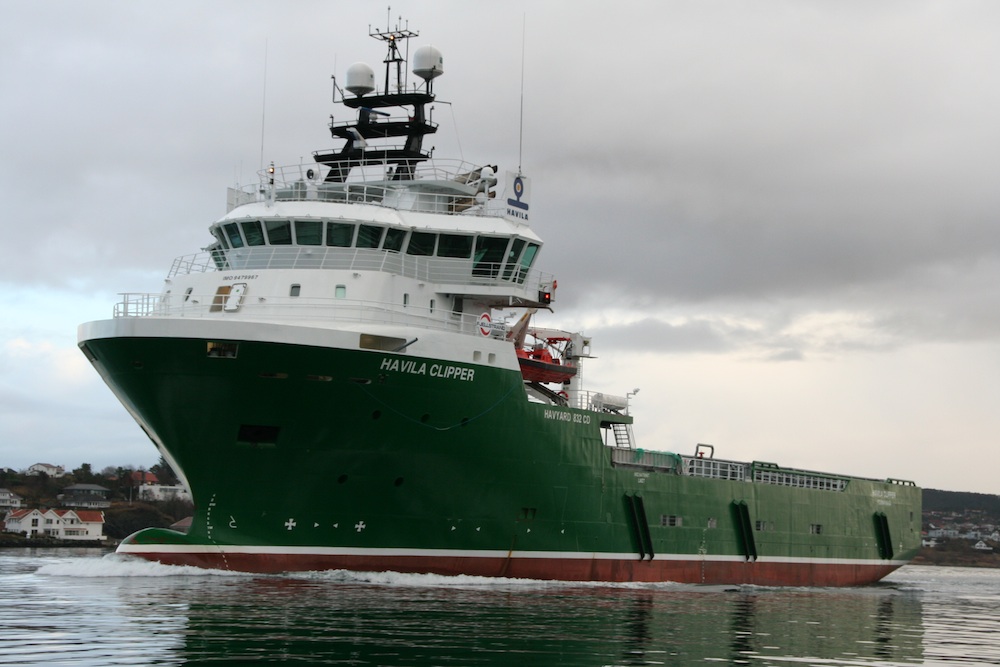

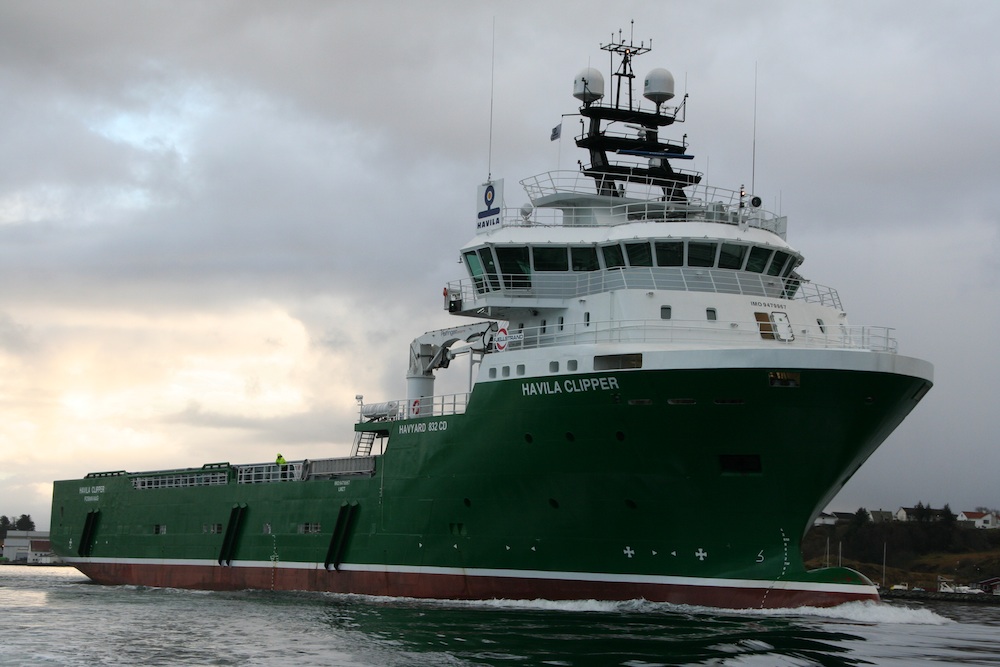

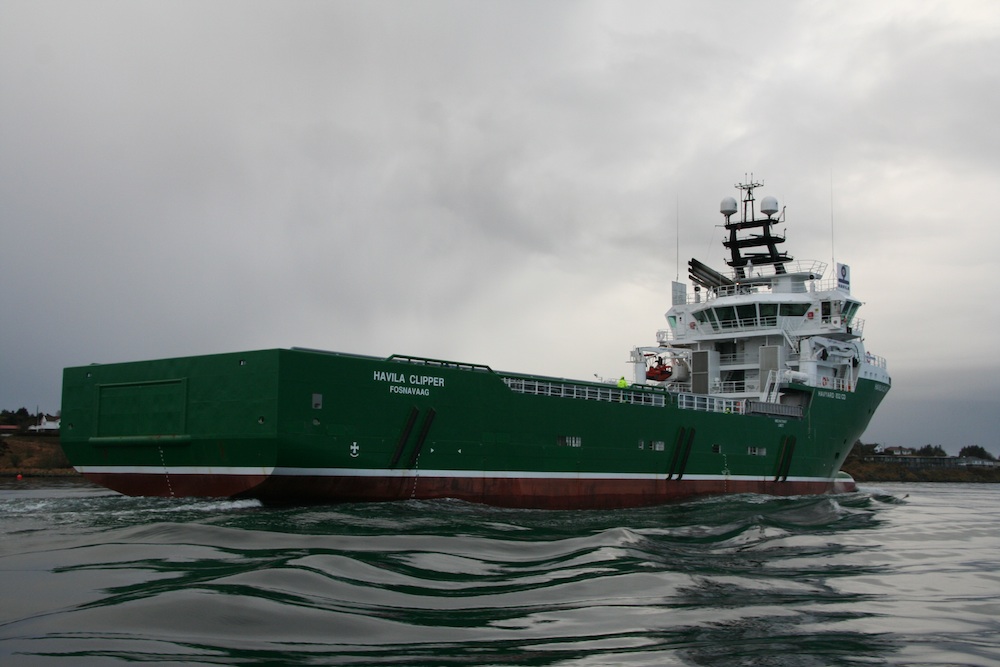

TYPE: HAVYARD 832 CD NAME: Havila Clipper PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 80.4 m Engines - Fuel 910 m3
Breadth 17.6 m BHP/kW - Pot water 900 kW
DWT 4000 t approx For'd Thrusters 2 x 880 kW Mud 975 m3
Deck area 805 m2 Az Thruster - Base oil -
    Aft Aziprops 2 x 1600 kW Brine 975 m3
Year built 2011 Joystick - Dry bulk 320 m3
Shipyard - DPII Yes Tank Cleaning -
Previous names -
Comments -



RRVs

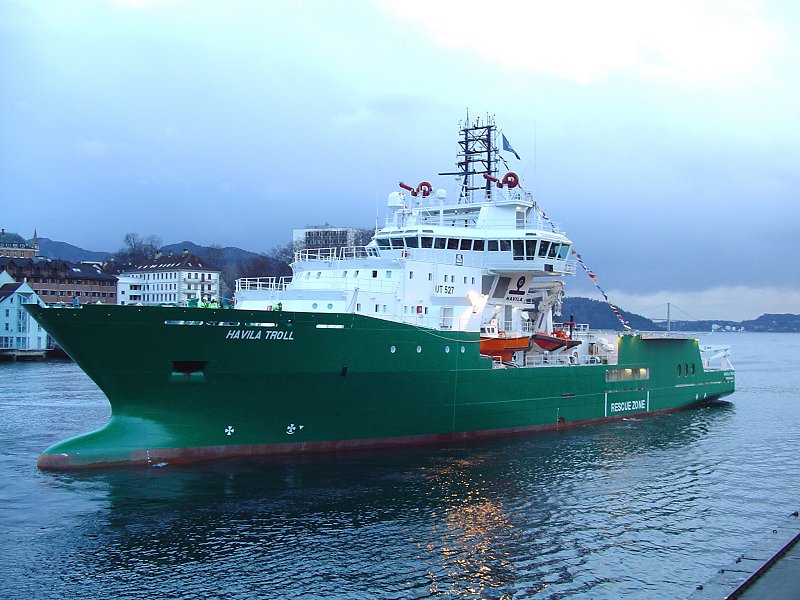

  TYPE: UT 527 NAME: Havila Troll   PHOTO: Erik Ask




GENERAL

PROPULSION

RESCUE EQUIPMENT

Length OA 92.4 m Engines 2 x Bergen B32 Survivors Capacity 320
Breadth 18 m BHP/Kw 14500/10660 FRCs 1
DWT 1600 t For'd Thruster 1 x 1150 bhp Daughter Craft 1
Deck area - Az Thruster 1 x 2010 bhp Dacon Scoop 1
Fuel 1400 m3 Aft Thrusters 2 x 845 bhp Helideck Super Puma
Pot water 300 m3 DPII Yes -
Year built/due 2003 Joystick Yes Shipyard Kvaerner Kleven
Previous names -
Comments Also provided with a winch 135 t pull. capacity 1200m x 72mm



DISPOSALS

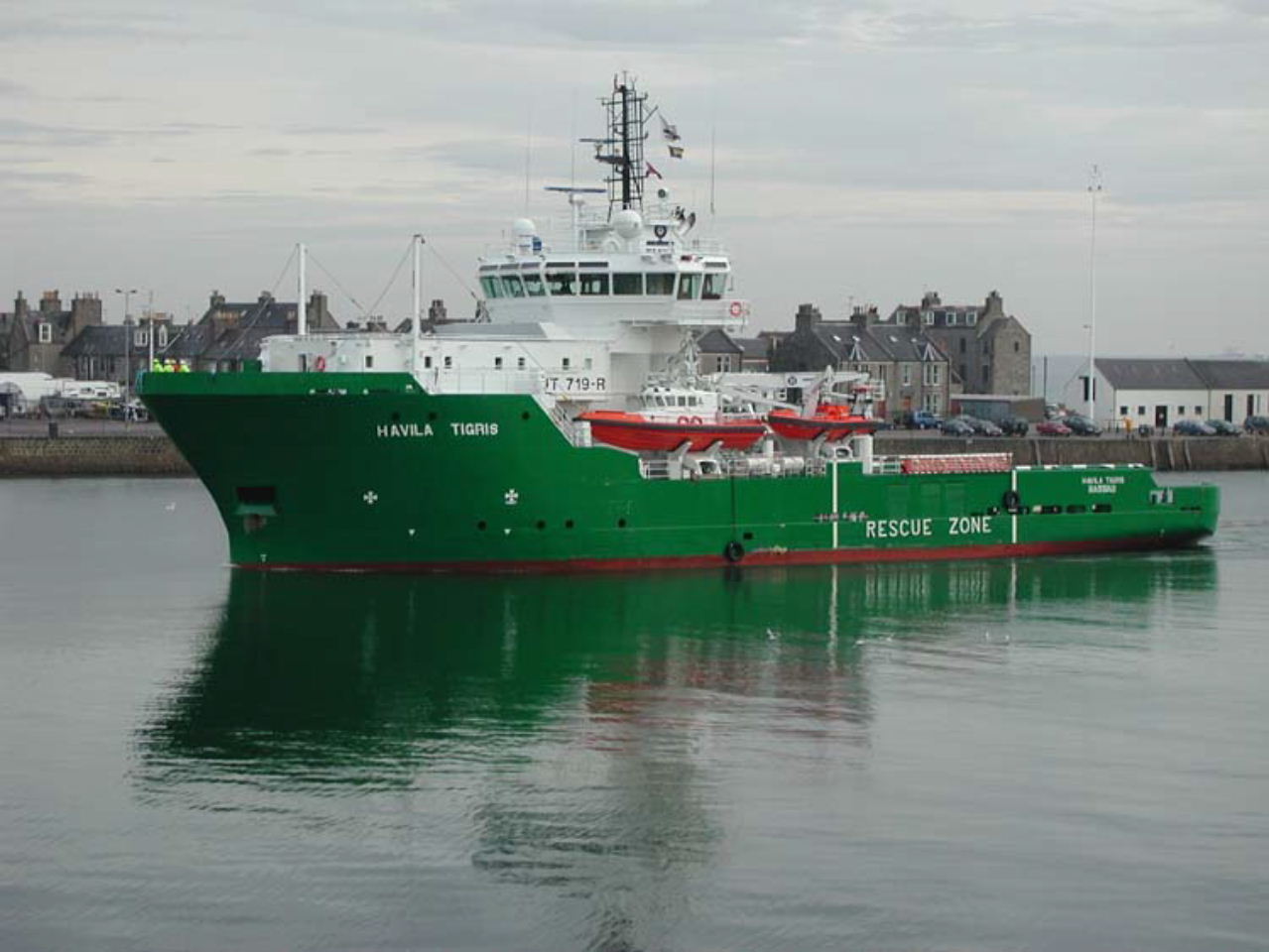

NAME: UT719-R name: Havila Tigris photo: Vic Gibson
General Propulsion Rescue Equip
Length OA 66 m Engines 2 x Bergen Survivors Capacity 300
Breadth 15 m BHP 4010 kW FRCs 2
DWT 1400 tonnes For'd Thrusters 2 Daughter Craft 2
Deck area 350 m2 Aft Thrusters   Dacon Scoop 2
    Joystick Yes
Year built 2000 DP
Shipyard   Tank Cleaning
Previous names -
Comments -

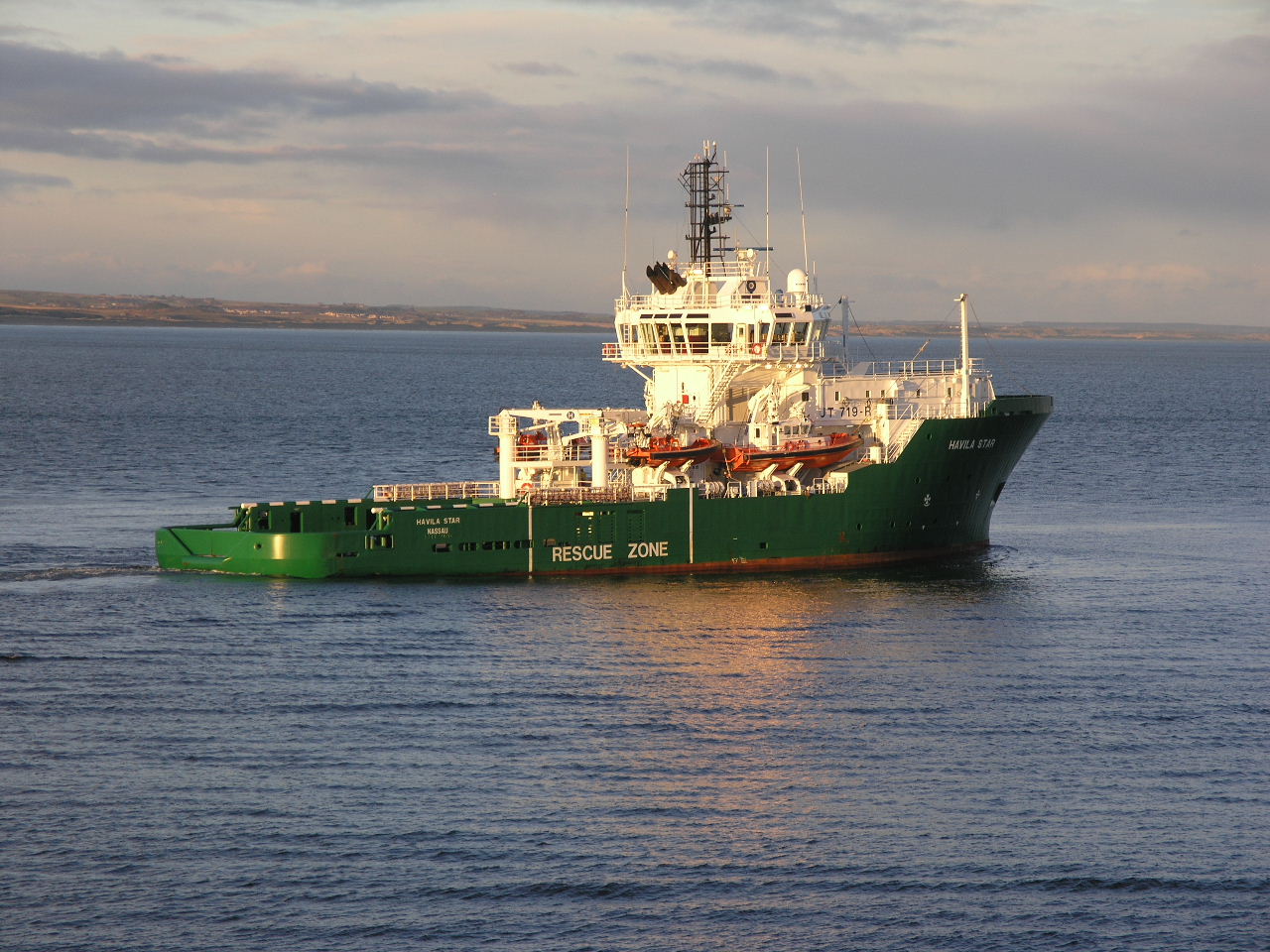

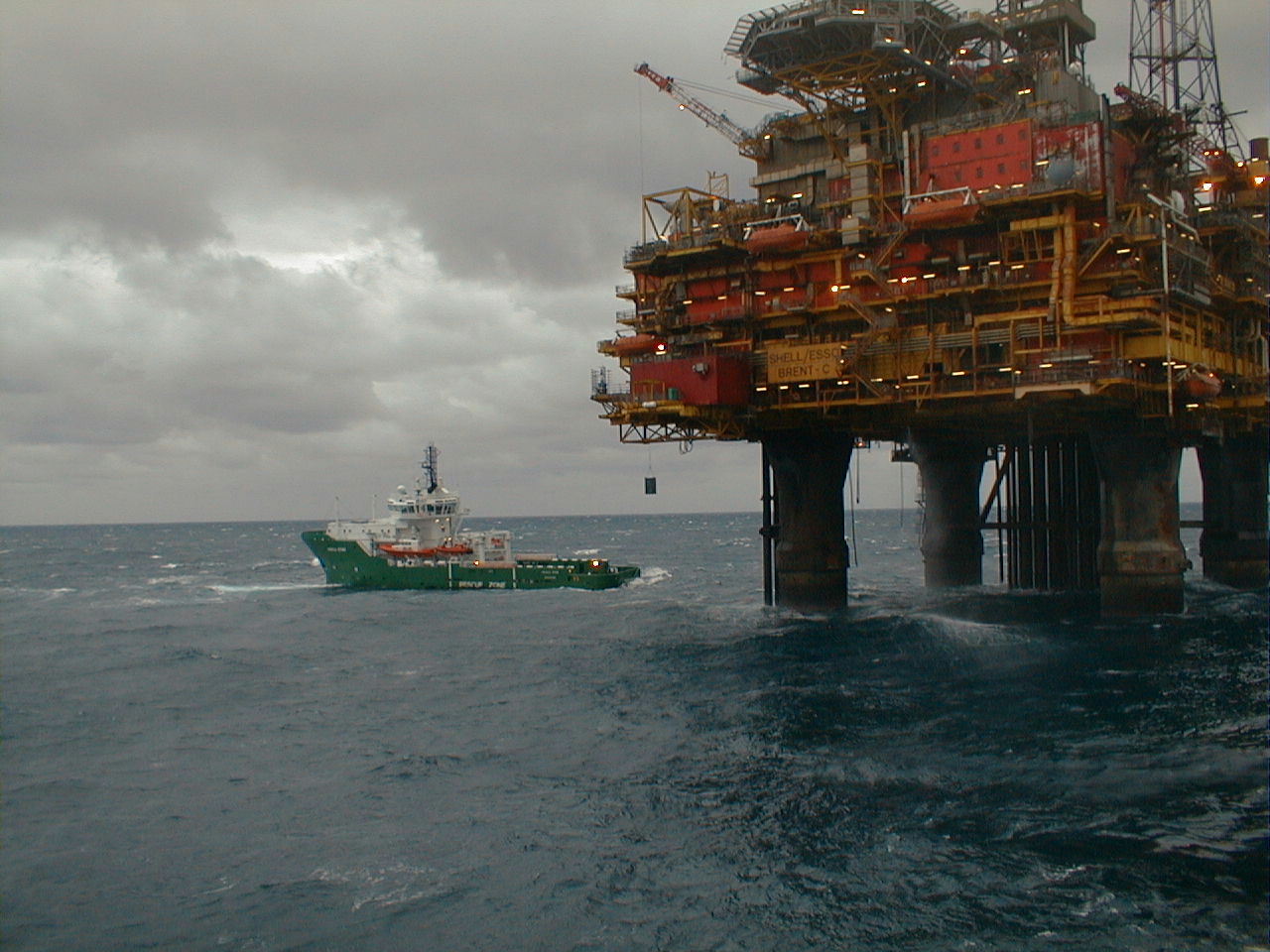

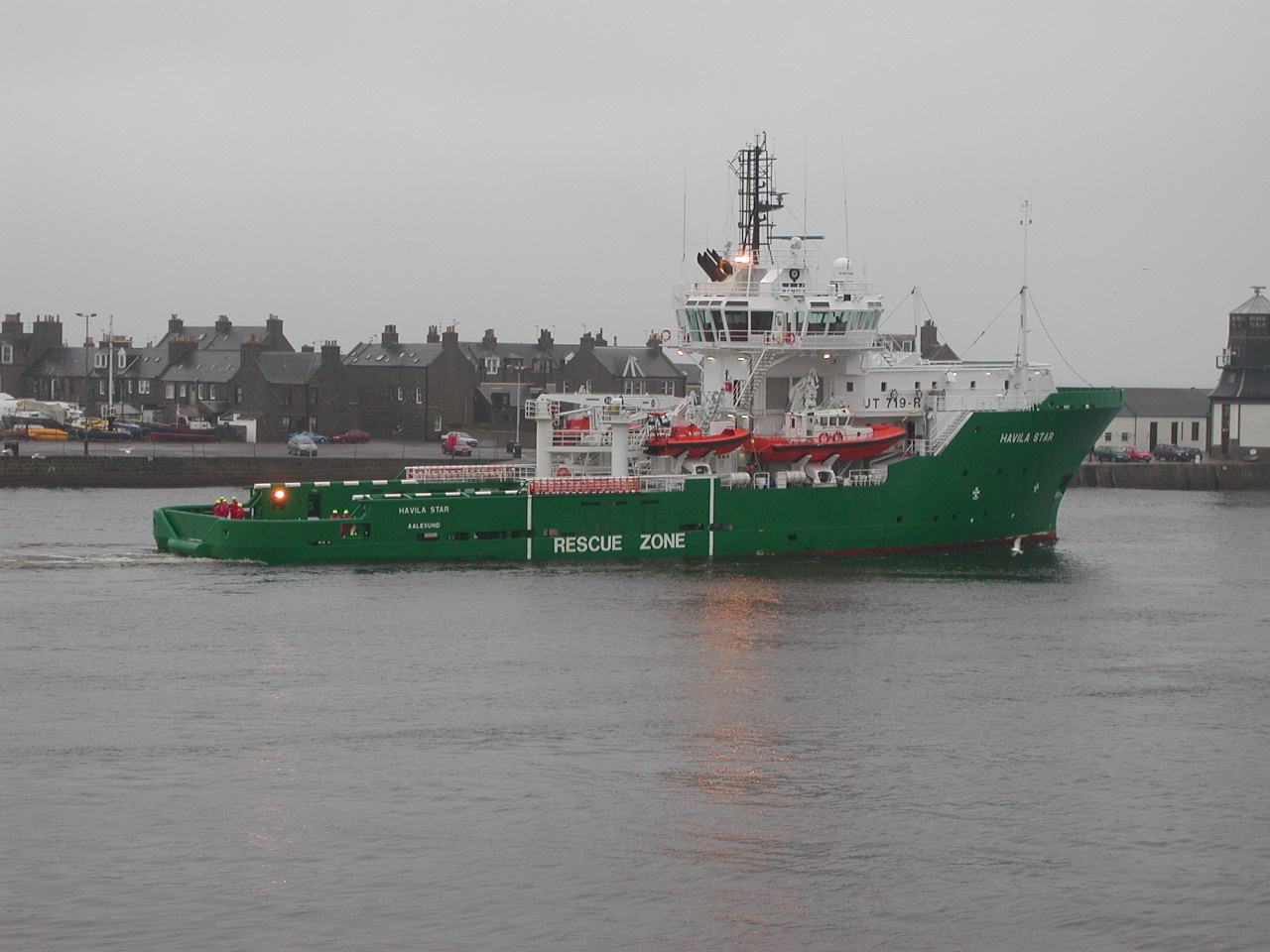

NAME: UT719-R name: Havila Star photo: Vic Gibson, Skandi Falcon
General Propulsion Rescue Equip
Length OA 66 m Engines 2 x Bergen Survivors Capacity 300
Breadth 15 m BHP 4010 kW FRCs 2
DWT 1400 tonnes For'd Thrusters 2 Daughter Craft 2
Deck area 350 m2 Aft Thrusters   Dacon Scoop 2
    Joystick Yes
Year built 2000 DP
Shipyard   Tank Cleaning
Previous names -
Comments More on Havila Star here.

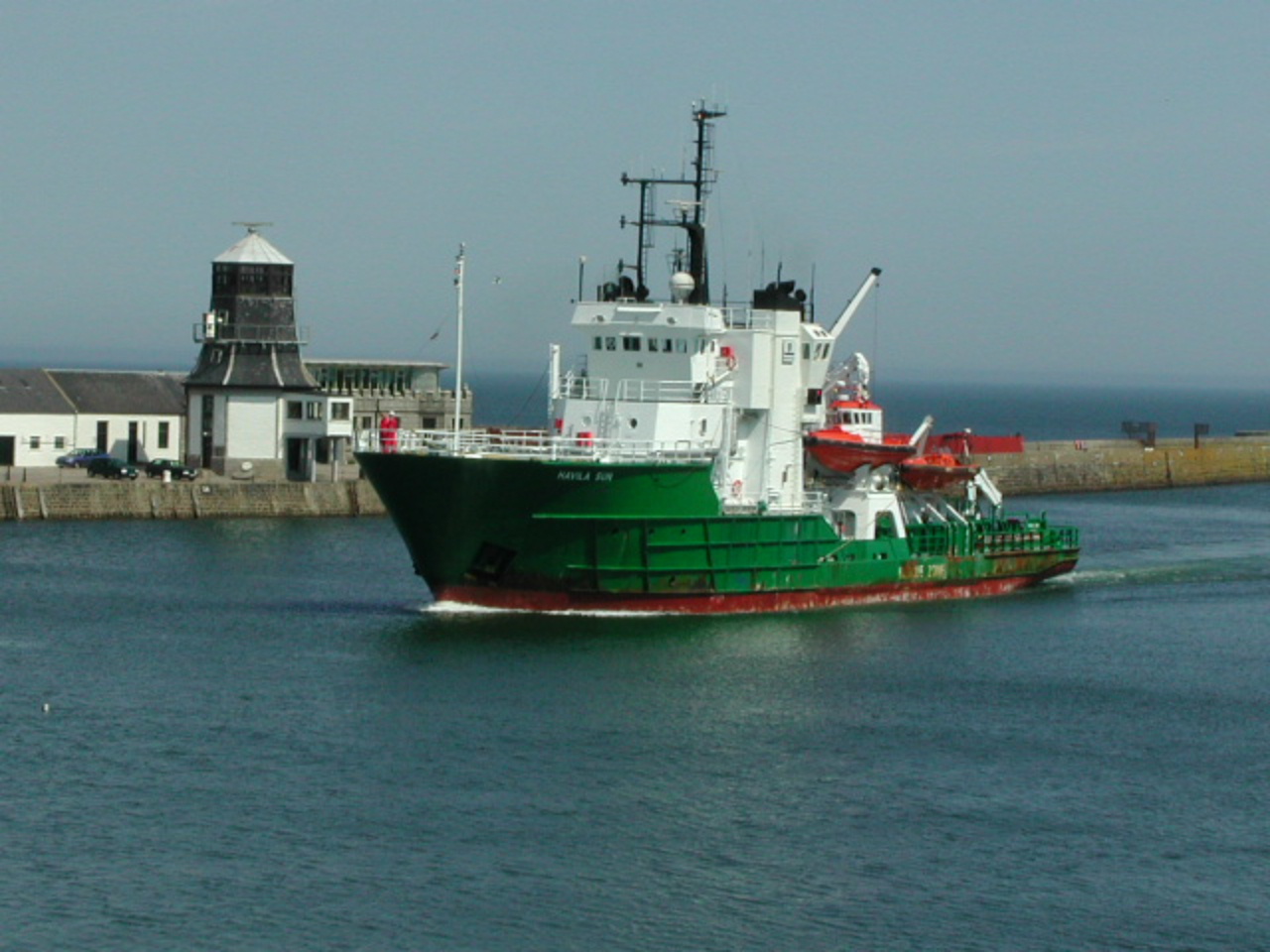

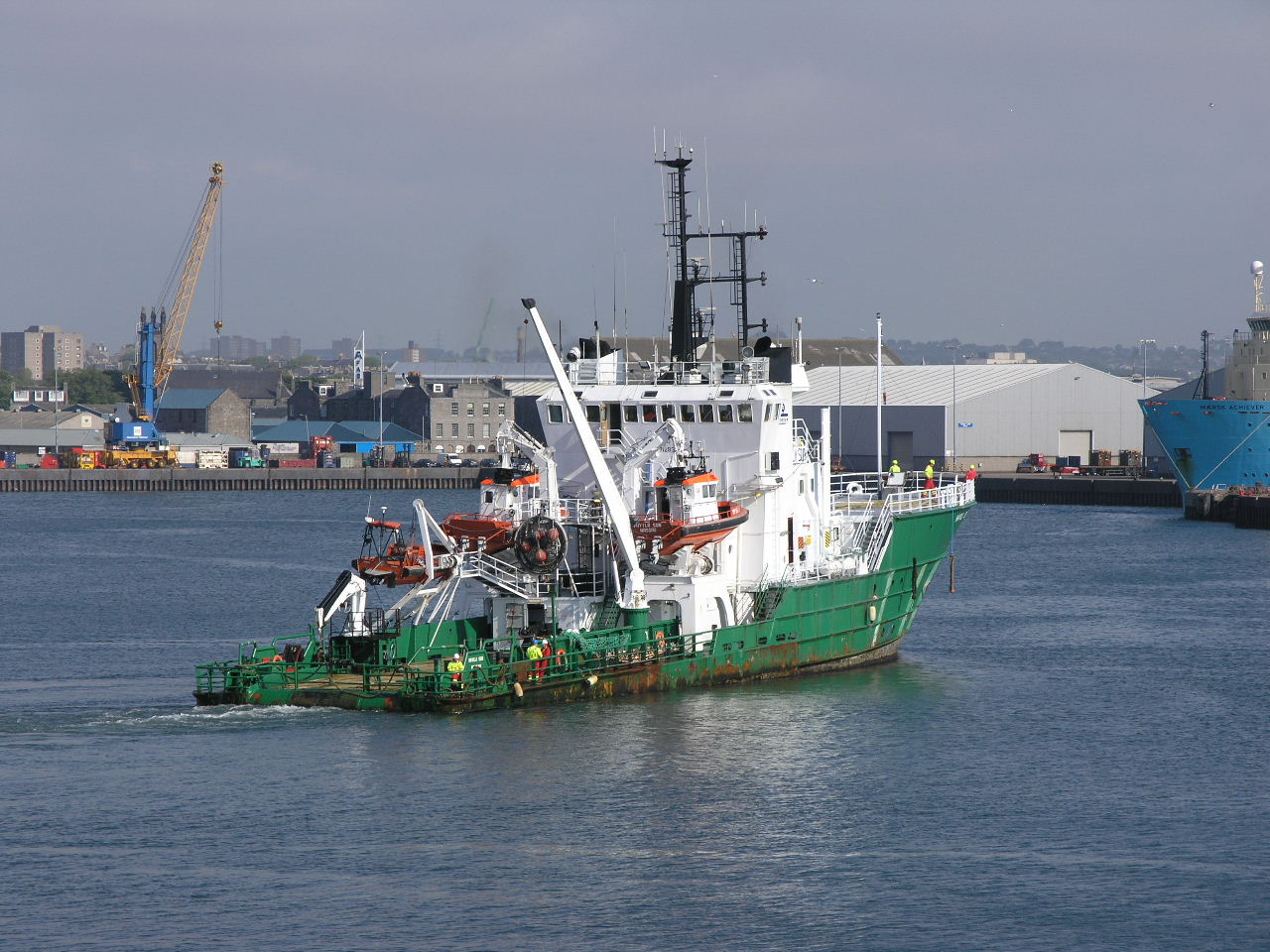

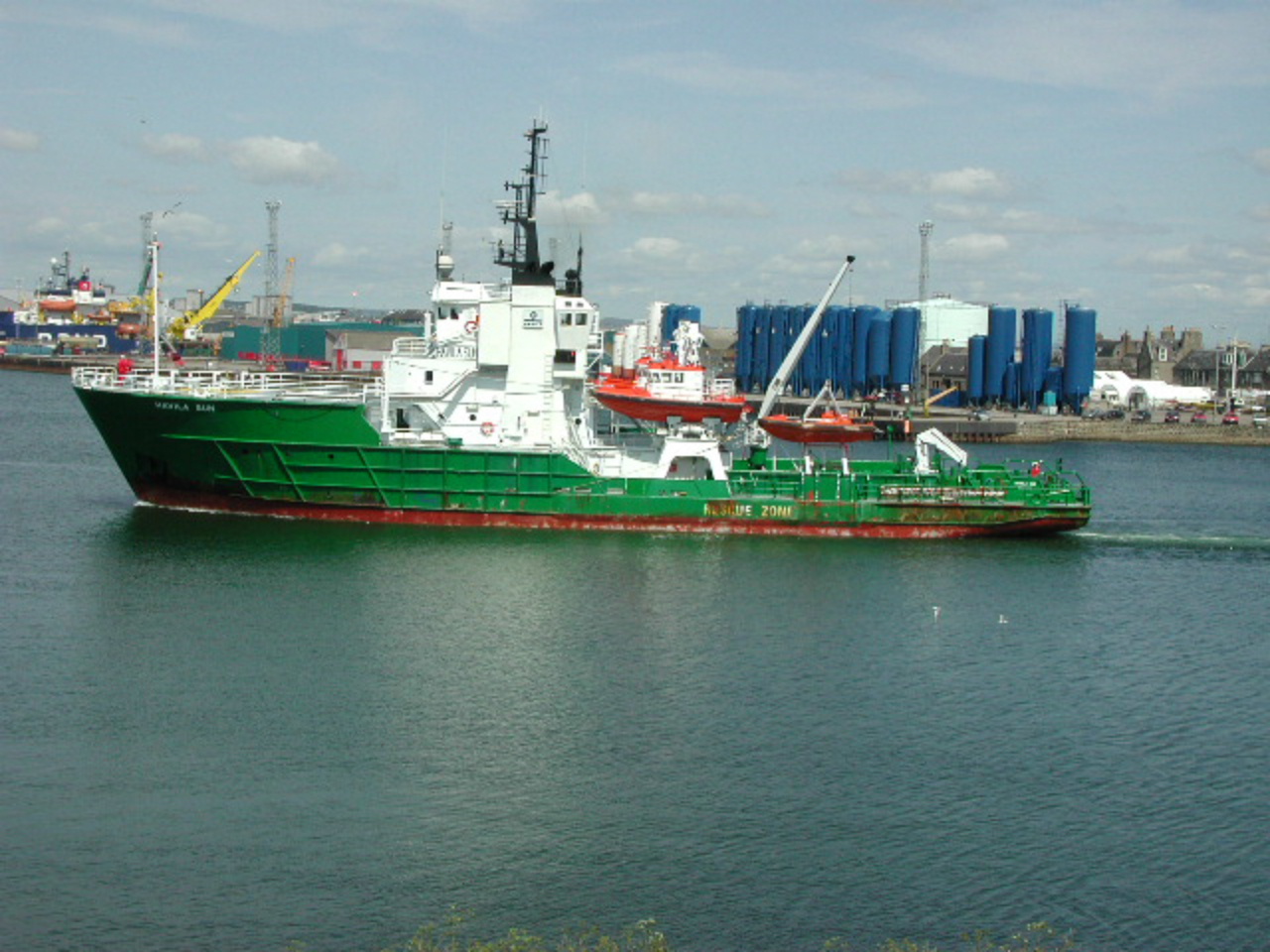

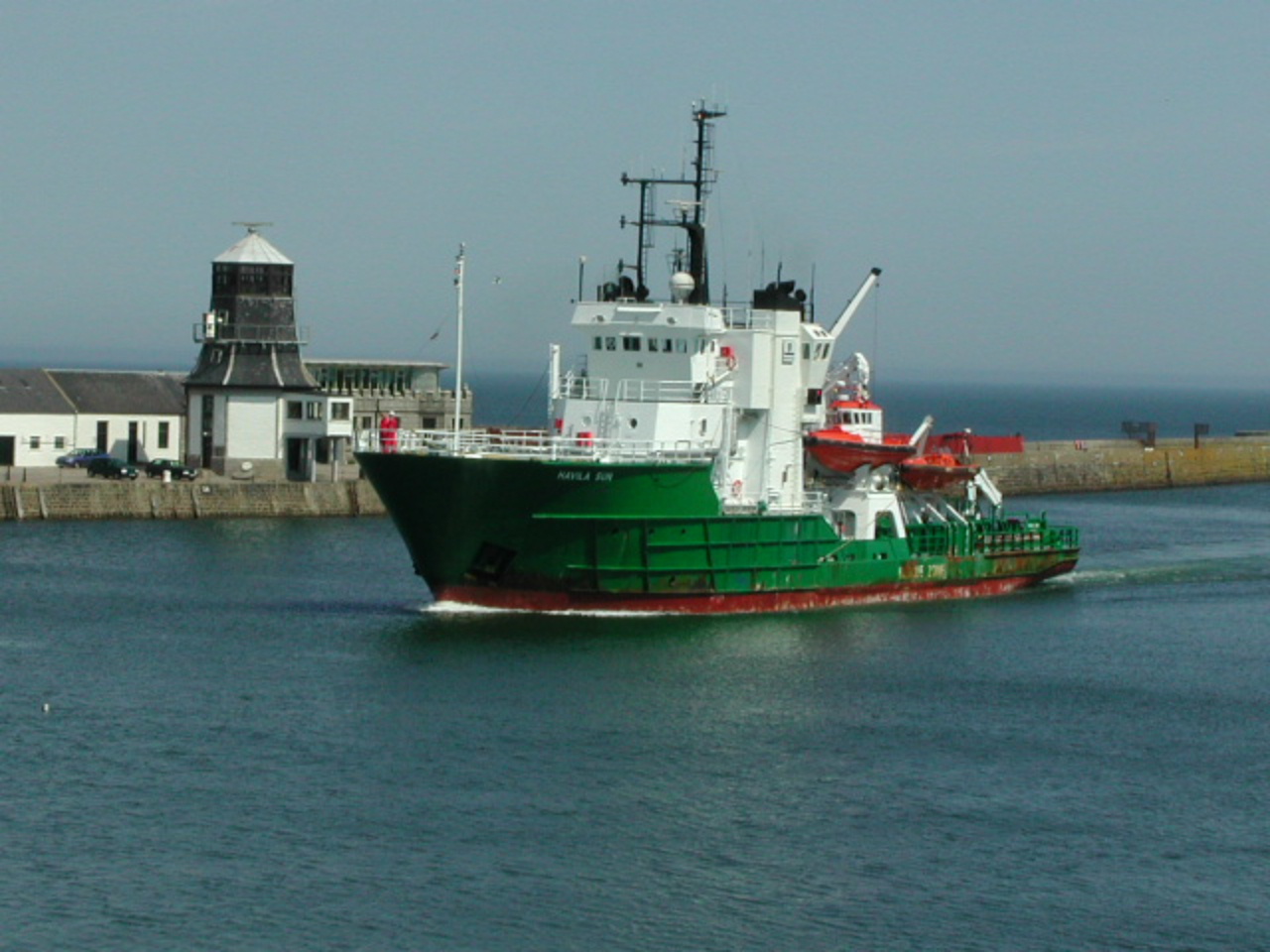

TYPE: OSA 6001 NAME: Havila Sun PHOTO: George Craigen
General Propulsion Rescue Equip
Length OA 56.49 m Engines 2 x MAN Survivors Capacity 300
Breadth 11.71 m BHP 4200 FRCs yes
DWT 962 tonnes For'd Thrusters 1 x 400bhp Daughter Craft yes
Deck area   Aft Thrusters   Dacon Scoop
    Joystick
Year built 1972 DP
Shipyard Hitzler Werft Tank Cleaning
Previous names Sun Bas, Sun Tender, North Breeze, Ocean Range, Rembertiturm
Comments In its original form it was an anchor handler with a bollard pull of 64 tonnes - apparently.




TYPE: UT 704 name: Havila Searcher photo:

General Propulsion Cargo Capacity
Length OA 64.4 m Engines 2 x Mak12M 453 AK Fuel 800 m3
Breadth 13.8 m BHP 8900 Pot water 146 m3
DWT 1110 t For'd Thrusters 1 Mud
Deck area 390 m2 Aft Thrusters   Base oil
    Joystick   Brine
Year built 1975 DP   Dry bulk 170 m3
Shipyard Hermann Surken Tank Cleaning
Previous names Tender Searcher, Far Searcher, Pan Searcher, Plan Searcher, Rem Searcher.
Comments Sold to what is now Sartor Shipping, becoming Ocean Searcher.

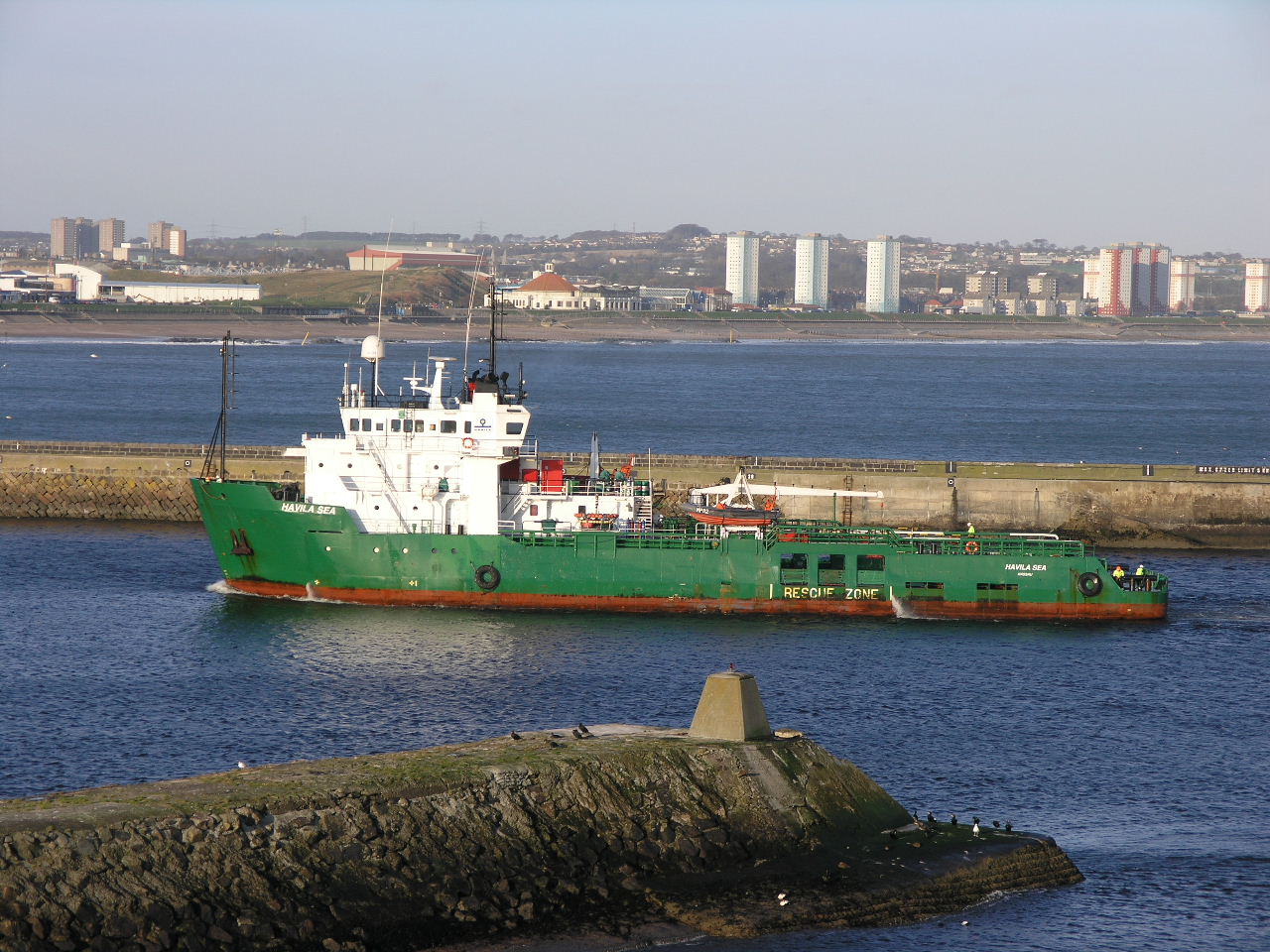

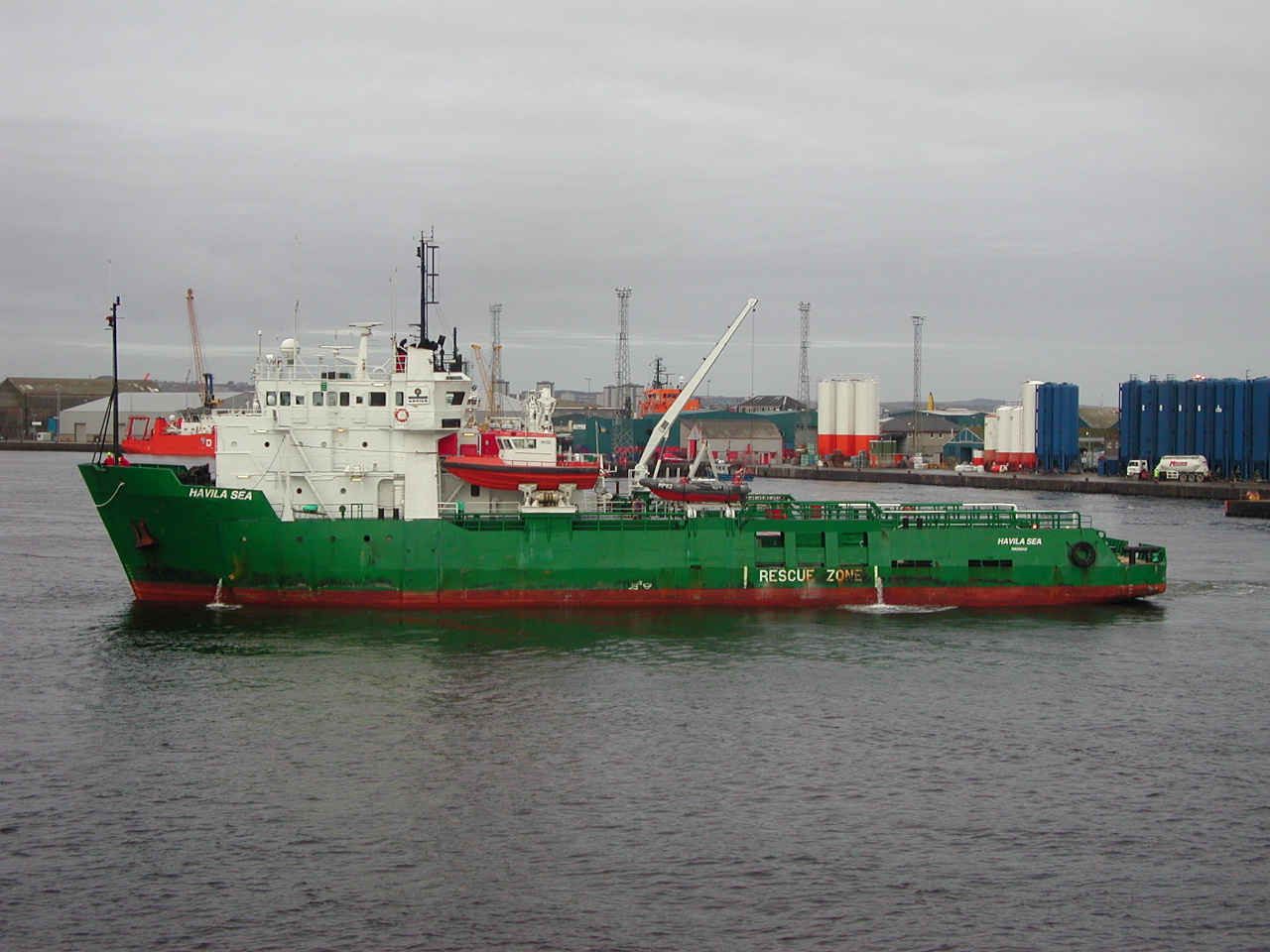

TYPE: BH 75 nAME: Havila Sea PHOTO: Vic Gibson
General Propulsion Cargo Capacity
Length OA 61.2m Engines 2 X Mak 6M 453 AK Fuel 730m3
Breadth 13.8m BHP 4800 Pot water 200m3
DWT 1930t For'd Thrusters 1 Ulstein CPP Mud 262m3
Deck area 451m2 Aft Thrusters   Base oil
    Joystick Poscon Brine
Year built 1975 DP   Dry bulk 255m3
Shipyard James Brown, SA Tank Cleaning
Previous names Edda Sprite, Sprite, Emerald Sprite, Emerald Bas
Comments -

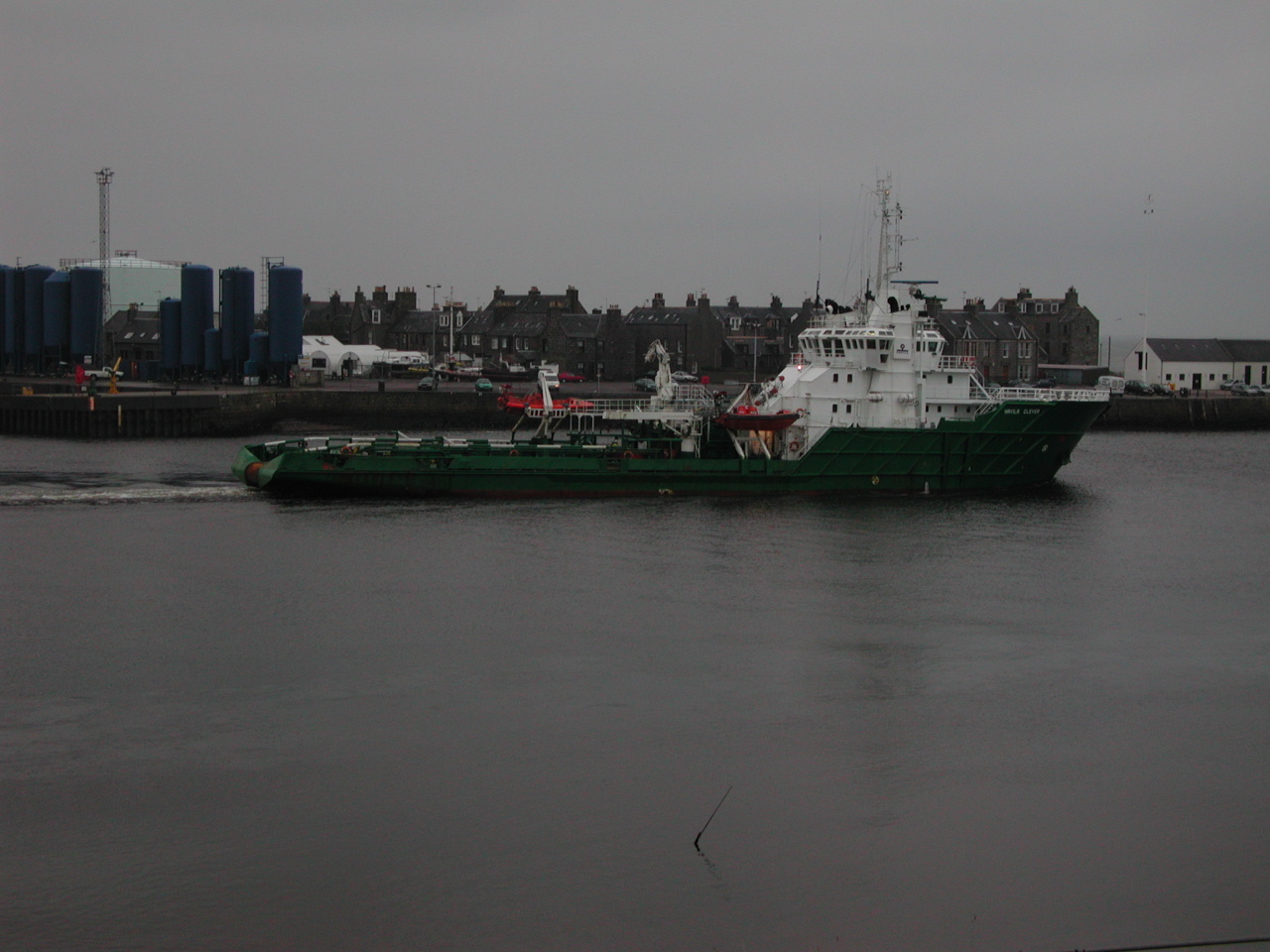

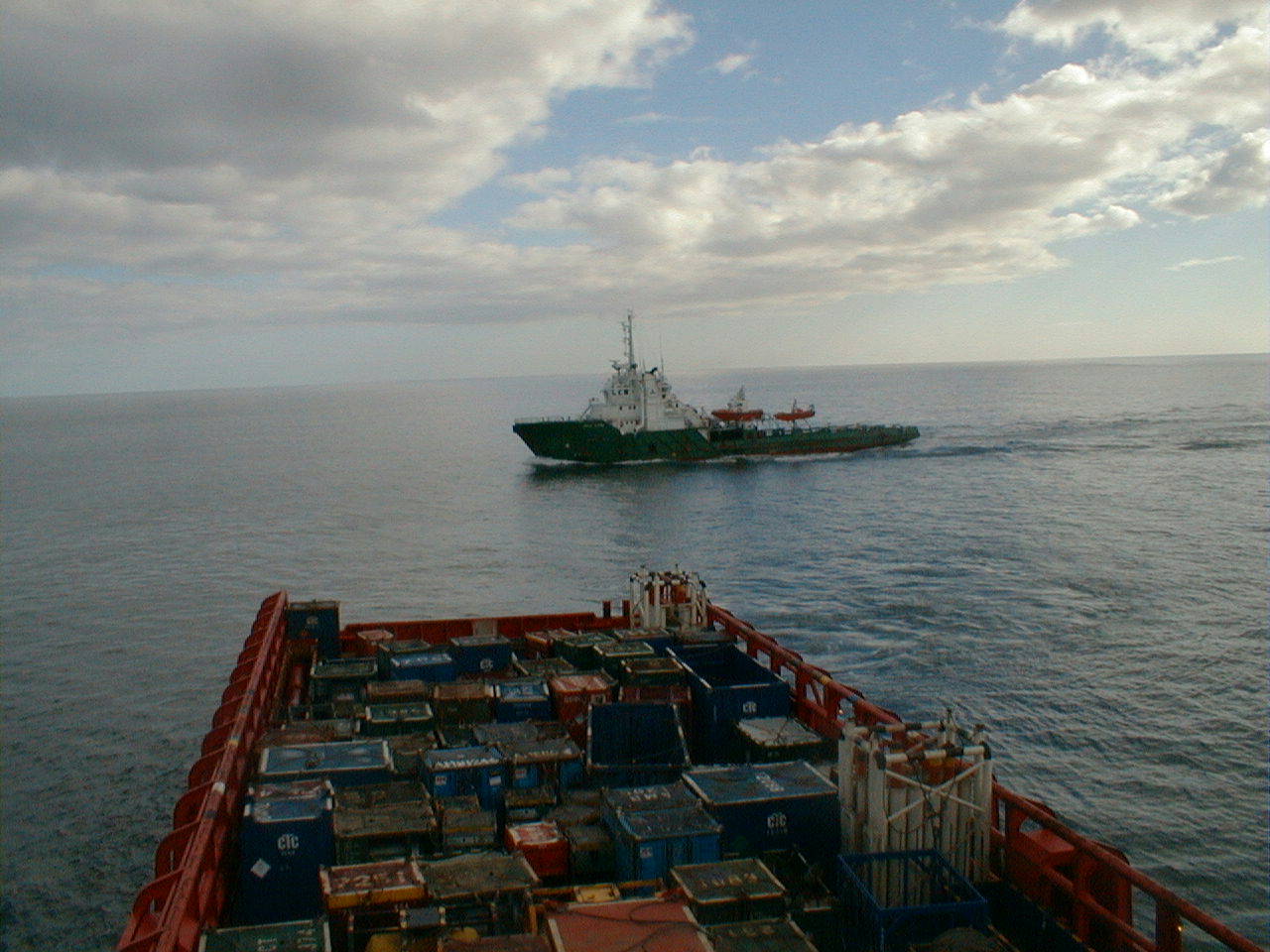

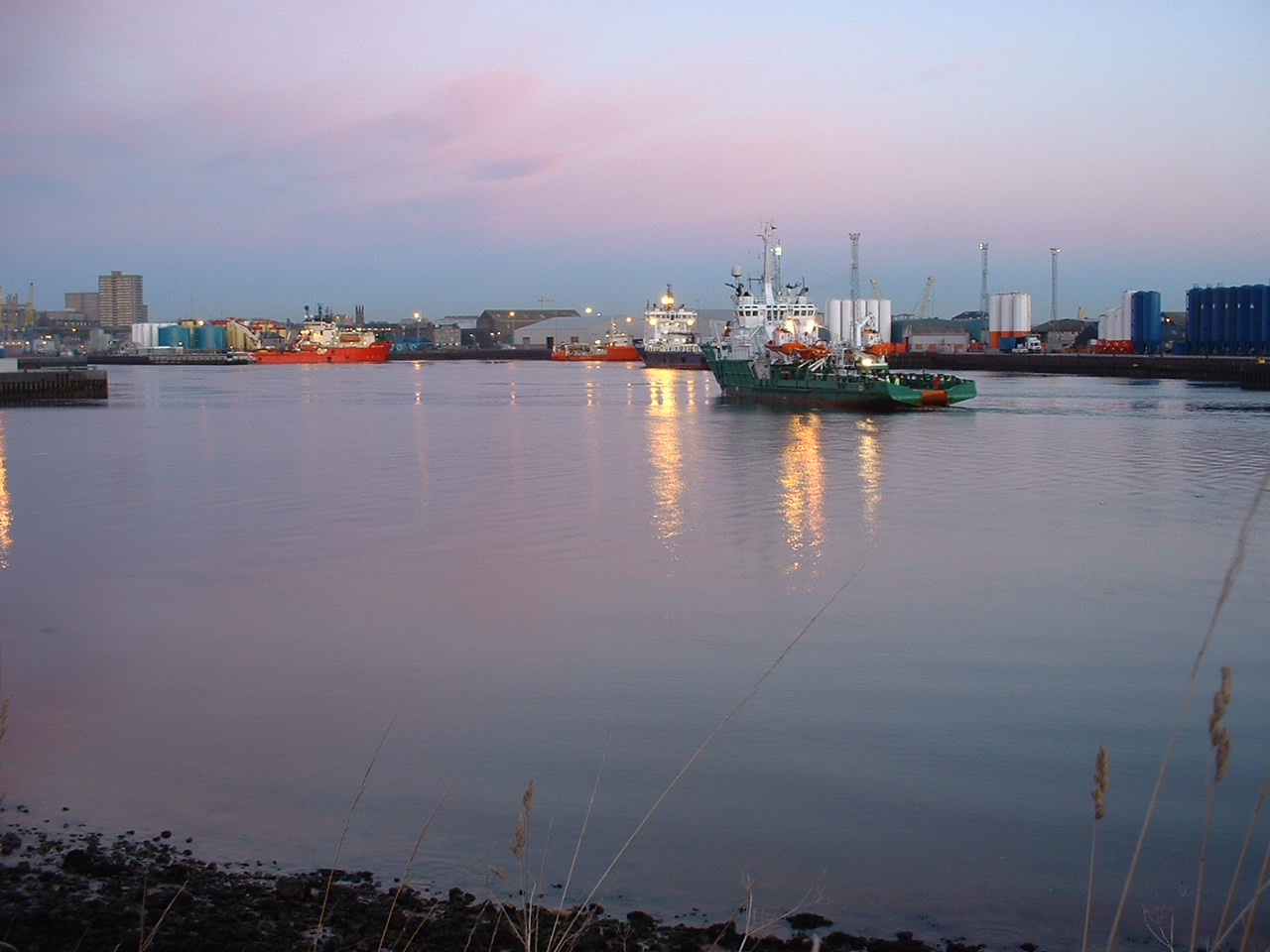

TYPE: BOL 75 NAME: Havila Clever PHOTO: Skandi Falcon, Vic Gibson
General Propulsion Deck EquipMENT
Length OA 71.4m Engines 2 x AB Nohab Workdrum pull 150 t
Breadth 12.35m BHP 11040 Capacity 1
DWT 975t For'd Thruster 1 brunvoll Capacity 2
Deck area 324.95m2 Az Thruster   Towdrum pull 150 t
Fuel 525m3 Aft Thrusters   Capacity 1
Pot water 221m3 Bollard pull 135t Capacity 2
Mud 230m3     Sharks Jaw
Base oil   DP   Cranes
Brine   Joystick
Dry bulk 212m3 Year built 1975 Shipyard Storvik MV
Previous names Edda Atlantic, Atlantic Fosna, West Penguin, Kronbas
Comments -



TYPE: ME 303 name: Havila Chieftain photo:

General Propulsion Deck Equip
Length OA 68.3m Engines 2  x B&W Alpha Workdrum pull 300t
Breadth 15.6m BHP 12728 Capacity 1 1200m x 64mm
DWT 2209t For'd Thruster 2 x Lips Capacity 2 1200m x 64mm
Deck area 473.6m2 Az Thruster   Towdrum pull 350 t
Fuel 1035m3 Aft Thrusters 1  x Lips Capacity 1
Pot water 598m3 Bollard pull 136t Capacity 2
Mud       Sharks Jaw
Base oil   DP   Cranes 1 x deck crane
Brine   Joystick Lips
Dry bulk 339m3 Year built 1983 Shipyard Hermann Surken
Previous names Solfonn, Strilborg, Rembas
Comments -

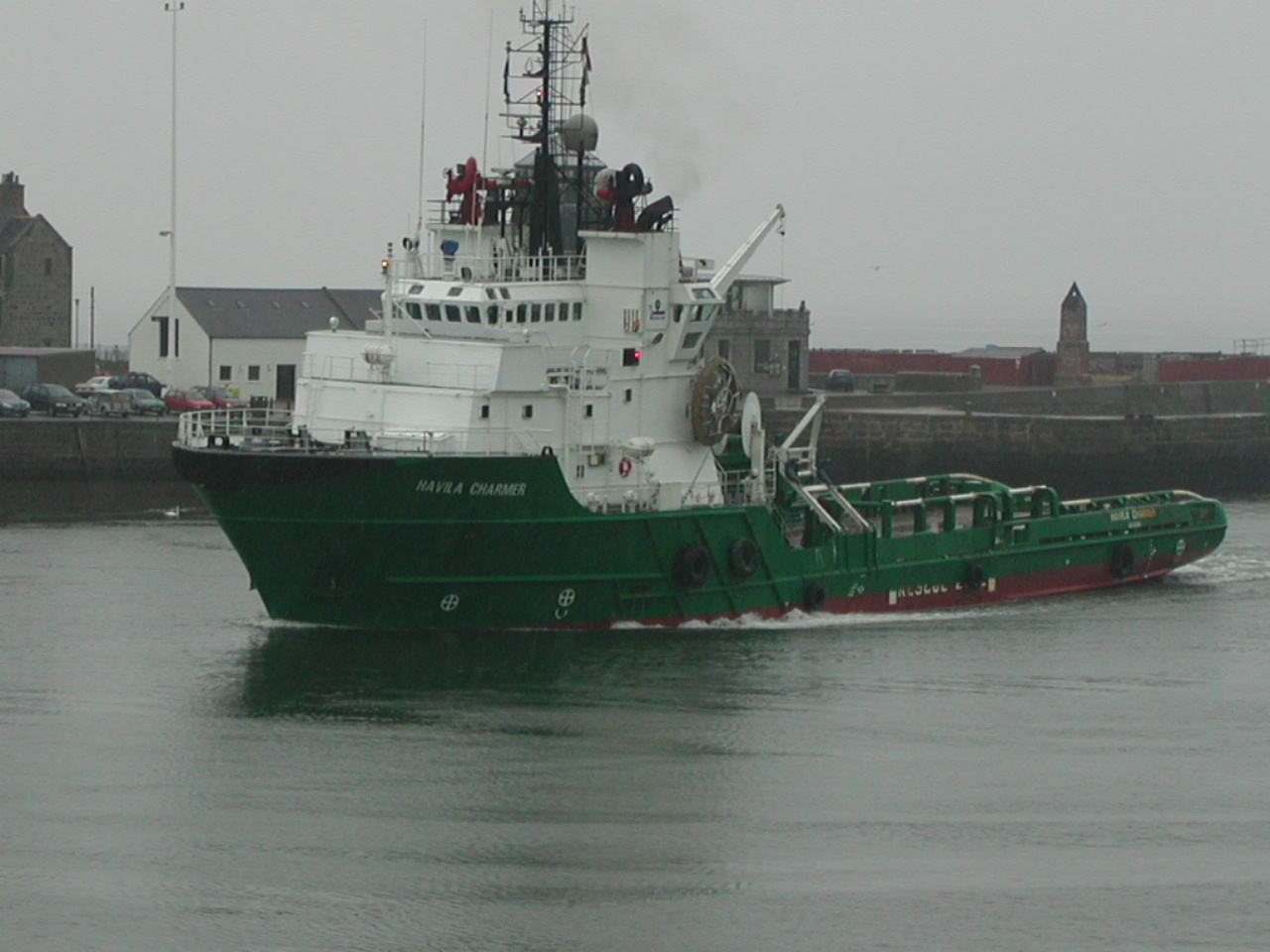

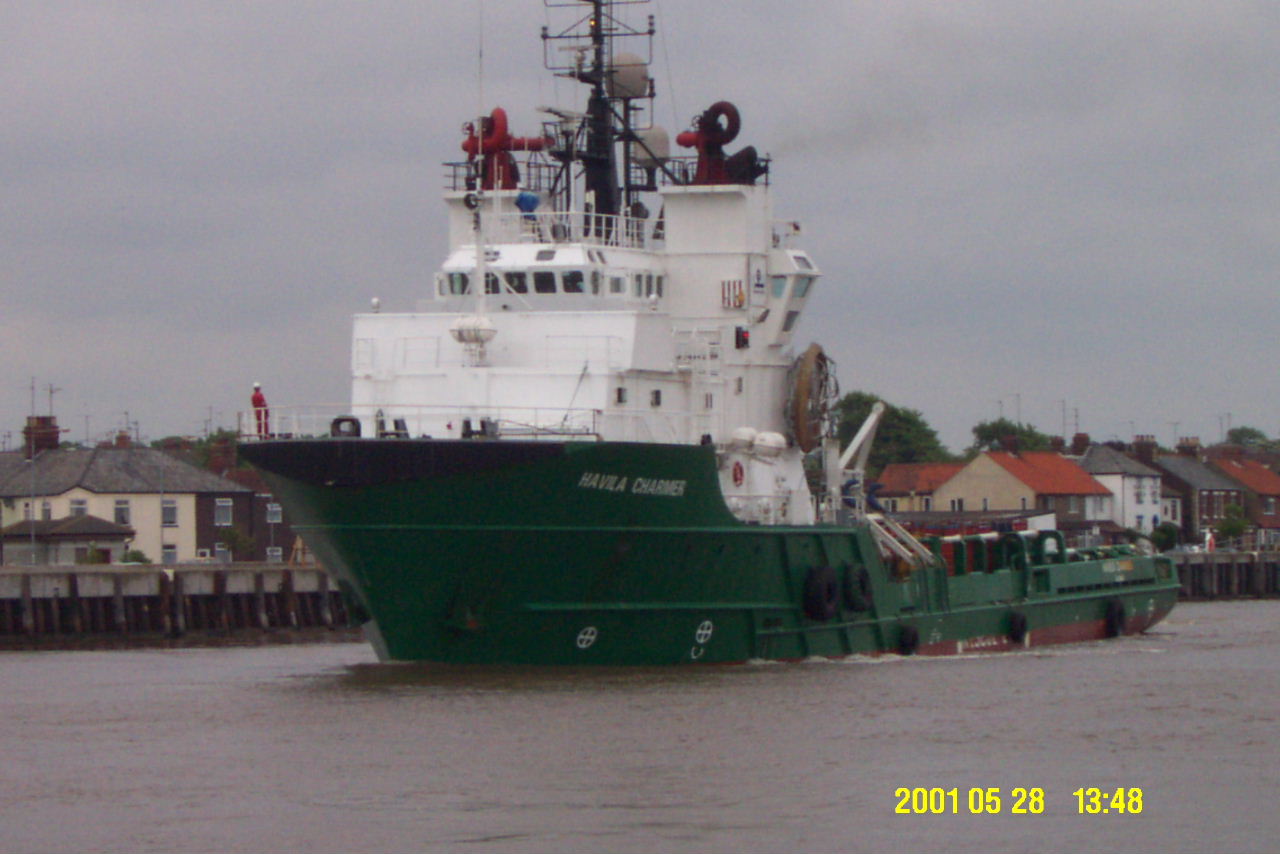

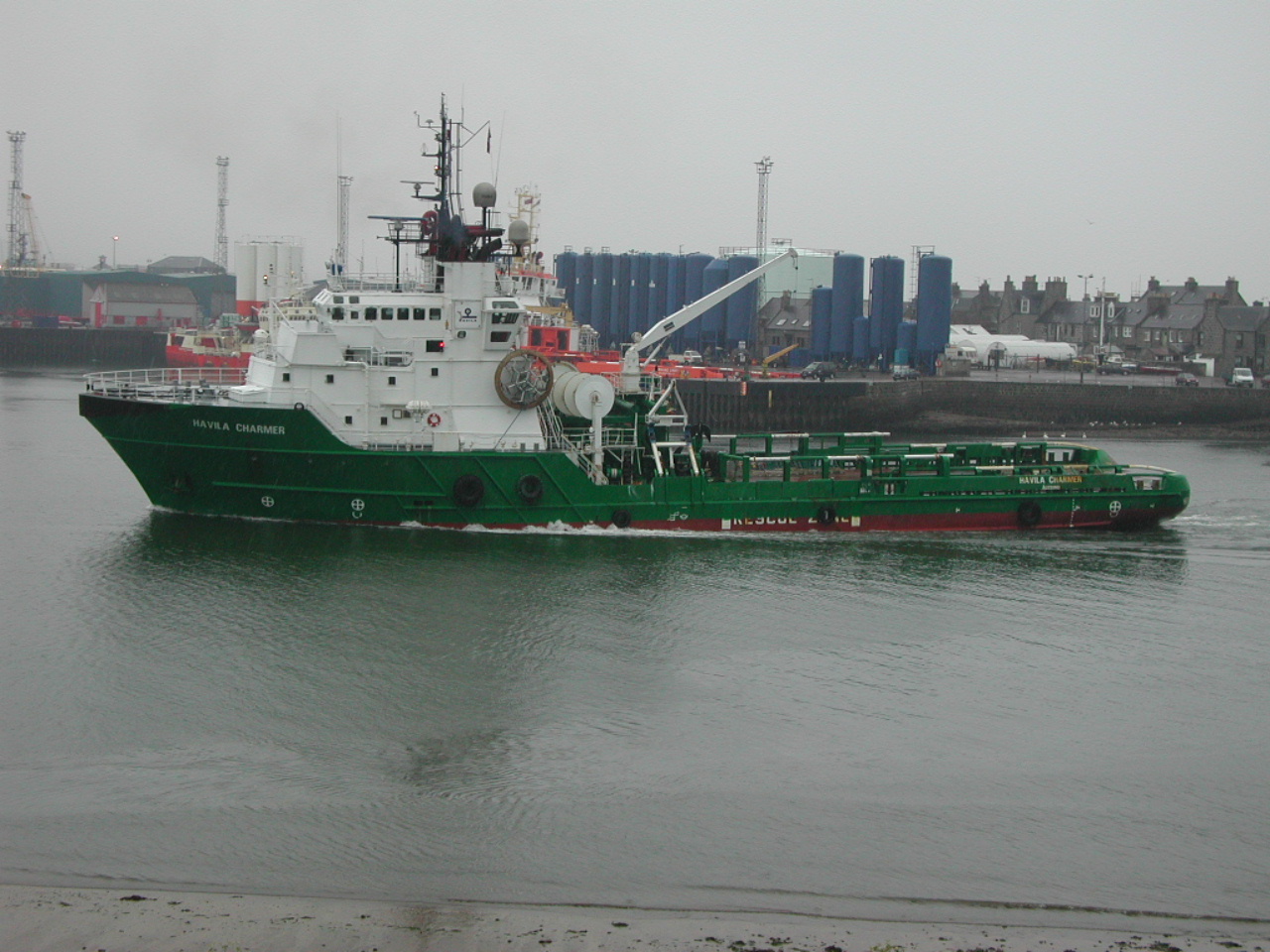

NAME: UT 704 NAME: Havila Charmer PHOTO:George Craigen, Peter Taylor
General Propulsion Deck EquipMENT
Length OA 65.5 m Engines 2 x Wartsila Workdrum pull 250 tonnes
Breadth 13.8 m BHP 11200 Capacity 1 1200 m x 64 mm
DWT 1700 tonnes For'd Thruster 1 x 800 bhp Capacity 2 1200 m x 64 mm
Deck area 385 m2 Az Thruster 1 x 1500 bhp Towdrum pull 250 tonnes
Fuel 585 m3 Aft Thrusters 2 x 800 bhp Capacity 1 1200 m x 64 mm
Pot water 280 m3 Bollard pull   Capacity 2
Mud 147 m3     Sharks Jaw Karmfork
Base oil   DP Simrad Albatross Cranes 2 x 4 tonnes
Brine   Joystick
Dry bulk   Year built 1993 Shipyard Husumer
Previous names Torbas, Lancelot Rover, Ballantine
Comments

This vessel was briefly famous when it sprayed the Greenpeace protestors on Brent Spar with its water cannon. It is also possibly the last UT704 ever constructed. See article on the subject of 704s. -



TYPE: UT 706 NAME: Havila Fortune PHOTO: Vic Gibson

General Propulsion Cargo Capacity
Length OA 68.83m Engines Bergen Deisel Fuel 643m3
Breadth 17.5m BHP 6610 Pot water 630m3
DWT 3100t For'd Thrusters 2 Mud 474m3
Deck area 615m2 Aft Thrusters 2 Base oil
    Joystick Ulstein Poscon Brine
Year built 1992 DP   Dry bulk 255m3
Shipyard Ferguson Bros Tank Cleaning
Previous names Star Pegasus, Stirling Pegasus
Comments -

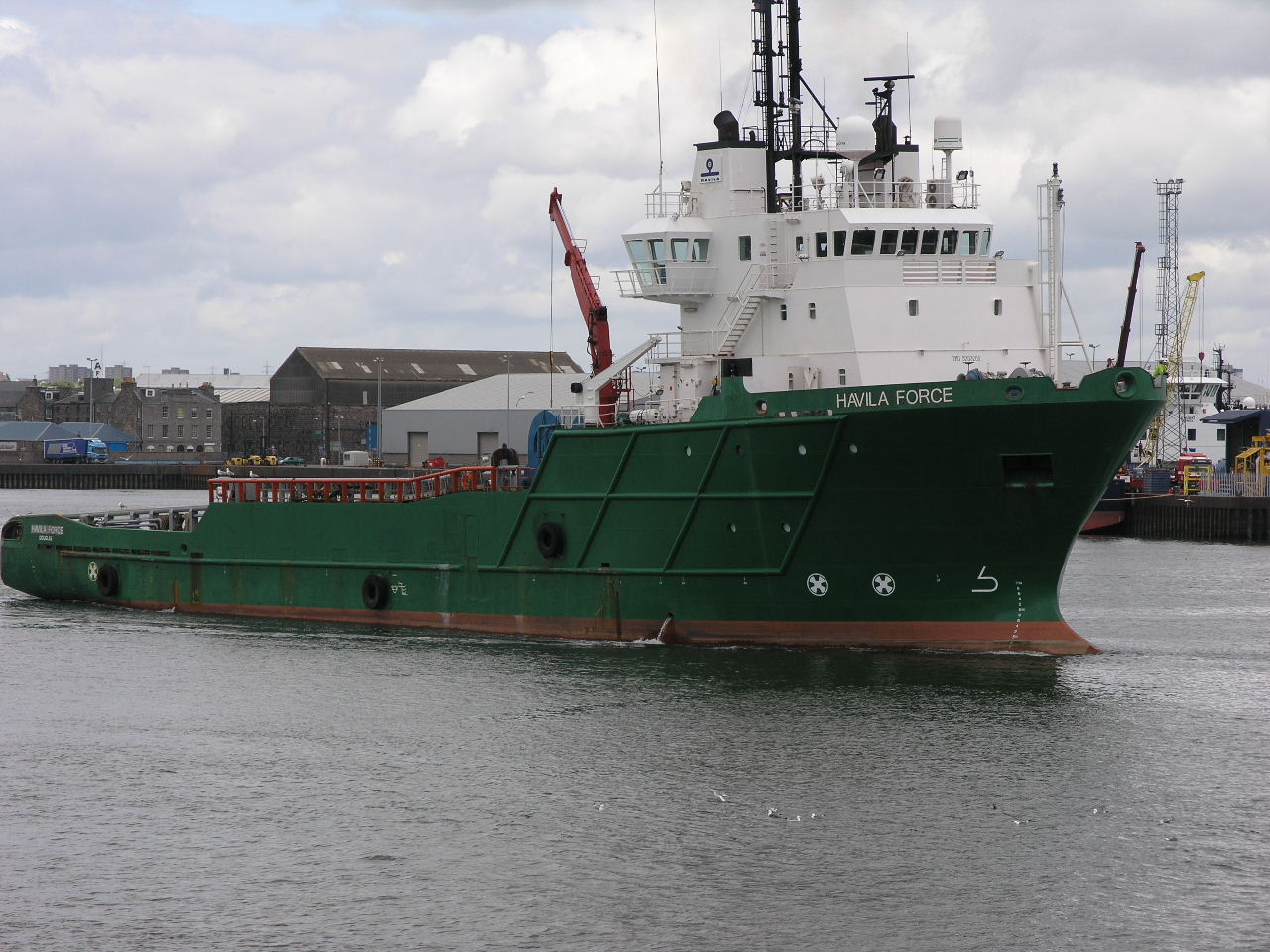

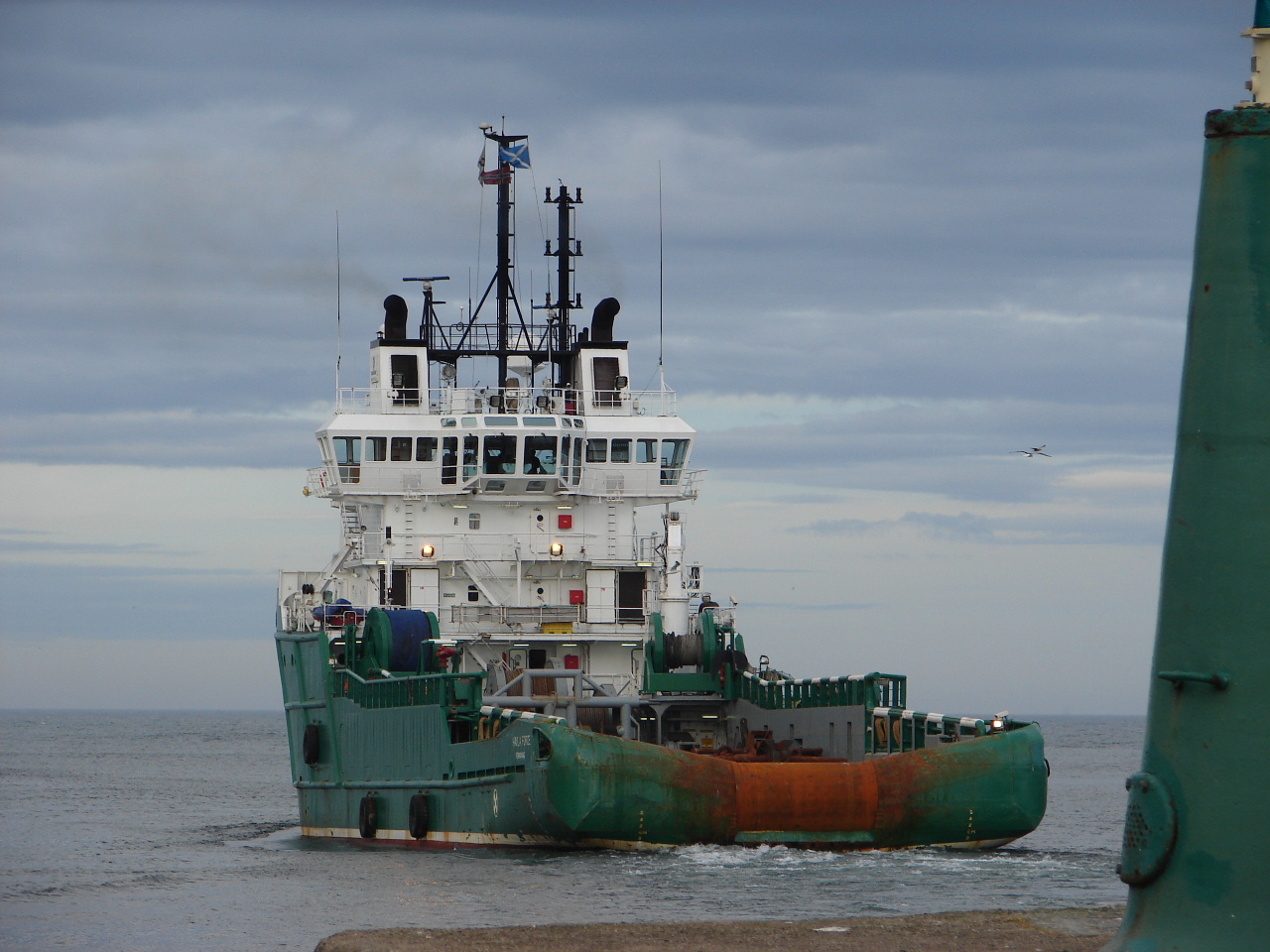

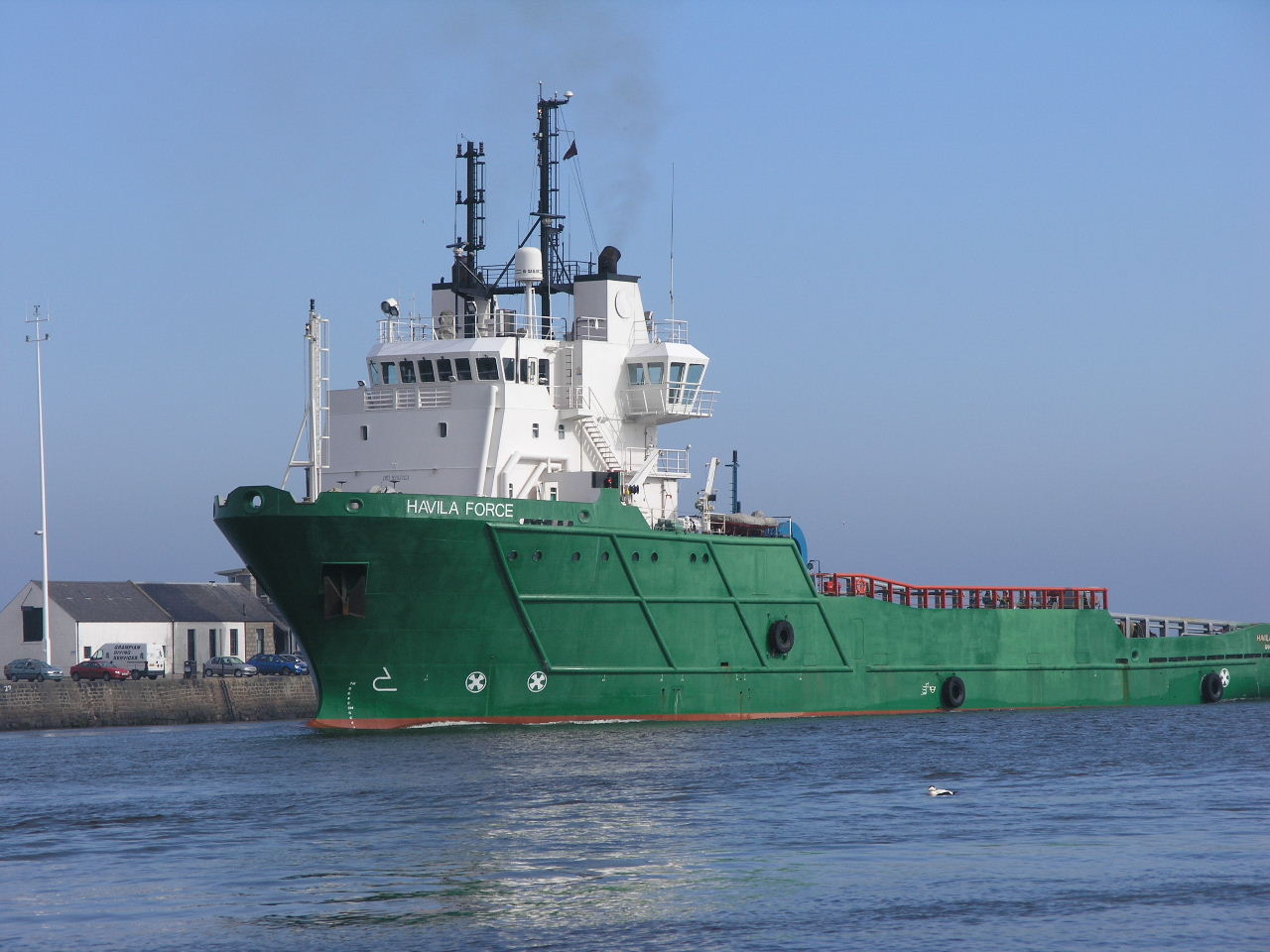

TYPE: VS 473 AHTS NAME: Havila Force photo: Vic Gibson, Holger Ketschau
General Propulsion Deck Equipment
Length OA 73.8 m Engines 2 x Wartsila Workdrum pull 300 tonnes
Breadth 16 m BHP 15000 Capacity 1 1390m x 76mm
DWT 2881 T For'd Thrusters 2 Capacity 2 1390m x 76mm
Deck area 555 m2 Aft Thrusters 1 Towdrum pull 300 tonnes
Fuel 891 m3 Bollard pull 178 tonnes Capacity 1 1560 x 76mm
Pot water 564 m3     Capacity 2
Mud 427 m3 DP   Sharks Jaw 2 x Karmfork
Base oil 128 m3 Joystick Kongsberg SJ01 Cranes
Brine 534 m3     Tank Cleaning
Dry bulk 242 m3 Year built 2000 Shipyard Fergusons
Previous names Stirling Iona
Comments

The Stirling Iona is a sensible ship in a world populated by exotica, and it is possibly a move back towards those basic requirements which motivated the British ship-owners in the 1970s. They wanted to provide ships which would carry out all the tasks which might be required of them by the fledgling North Sea oil industry. And since most of the objects out there were floating, anchor handling and towing was the first requirement followed by an ever increasing supply capability.

The progress of the floating objects out into the deeps has encouraged numerous ship-owners to built larger and more powerful vessels with the capacity to store thousands of meters of large diameter wire on their work drums; or in some cases sufficient rope to tie said objects to the seabed with a variety of unusual anchors. However there is still a need for medium sized ships capable of moving semi-submersibles from one point to another in water depths of less than 700 meters and capable of towing and supplying both semi-submersibles and jack-ups in areas less well served with marine support than the Shetland Basin. Presumably this the market that the Stirling Iona is intended to serve, and even though the winch appears to take up little space on the deck, the work drums are sized for 1390 meters of 76mm wire.

In a style which reflects the earliest anchor-handlers the winch is completely exposed, allowing those at the controls of the ship and the winch to see exactly what is happening down there.

Although the VS473 first appeared in about 1983 this ship is only a little like the original. The design benefits from the developments in engines, and the prime movers are shoe-horned in under the accommodation with long shafts to the gearboxes and the screws. In what seems to be accepted as the British approach, mud and brine tanks are ranged down either side of the underdeck space aft of the engine room - designed to avoid internal framing, and the dry bulk tanks are set down the centre. Fuel and water are mainly contained with the double hull and the forward and aft tanks.

The two Wartsila 12V32 engines develop 15,000 bhp between them giving the ship a maximum bollard pull of 172 tonnes and a maximum speed free running of 16 knots.

The wheelhouse is particularly impressive, and it is obvious that some-one within either Stirling or Fergusons or both have taken the trouble to think out the layout of the controls so as to provide the ship driver and the winch driver with the means of carrying out their function without having to have arm extensions fitted. The design of the forward controls is particularly interesting, grouping the dials and levers on two consoles to allow the driver to step forward to see what is happening outside.

Extract from article in Offshore Support Journal May 2000.

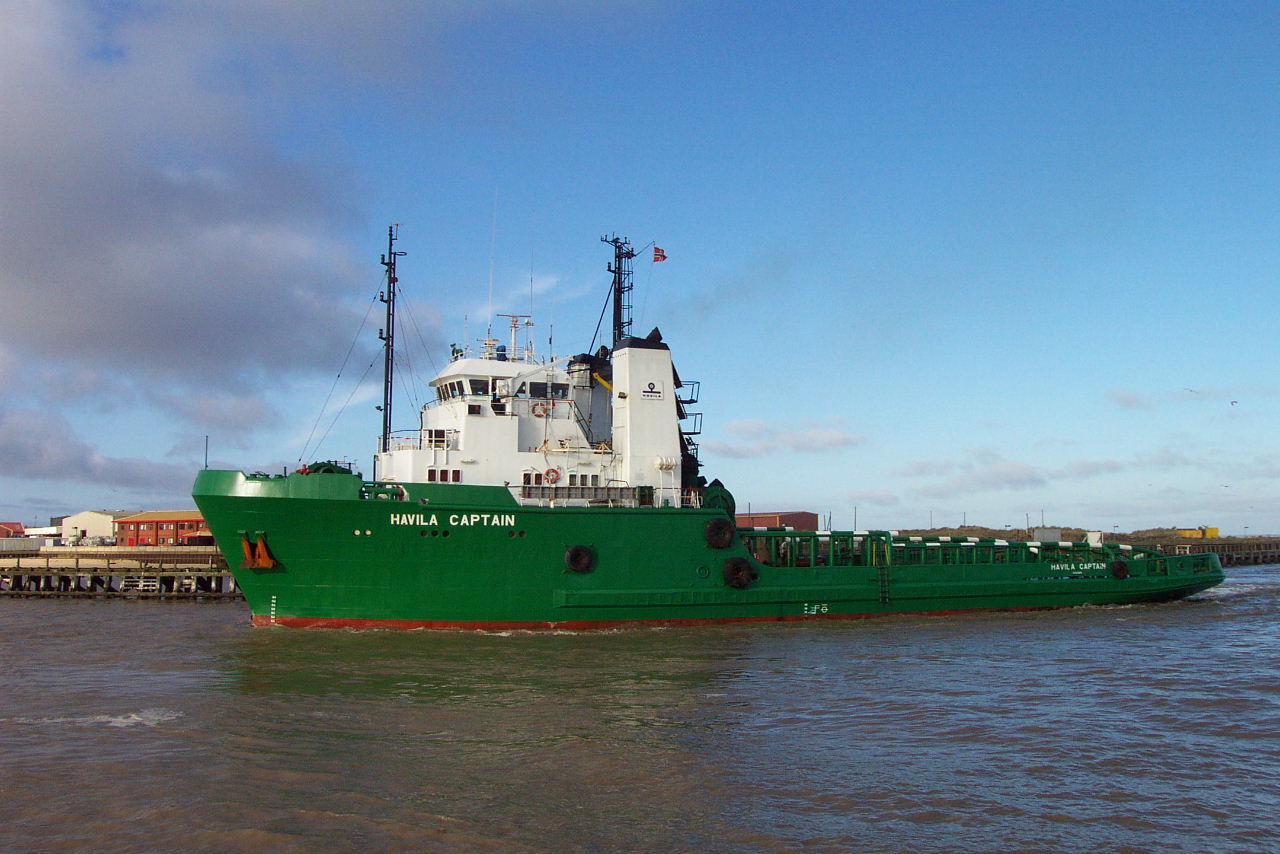

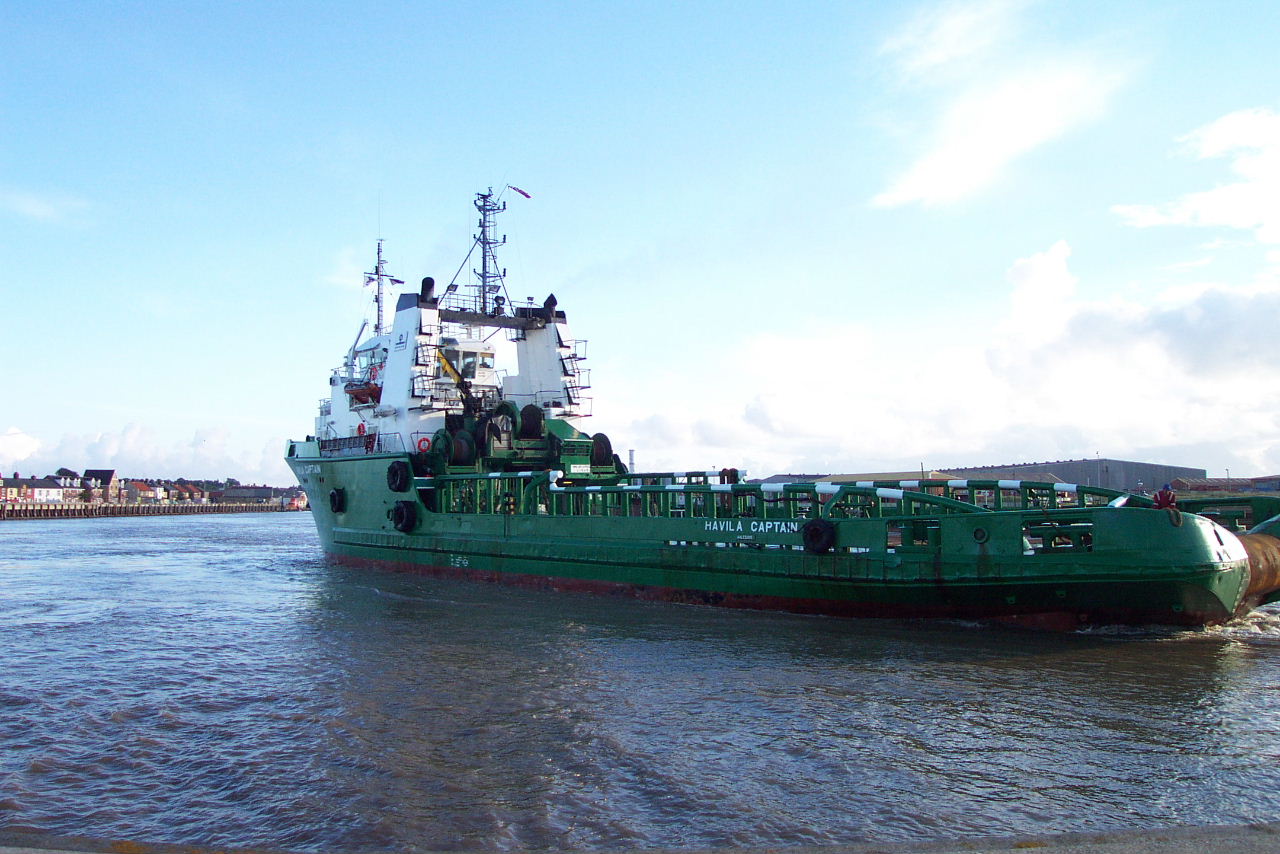

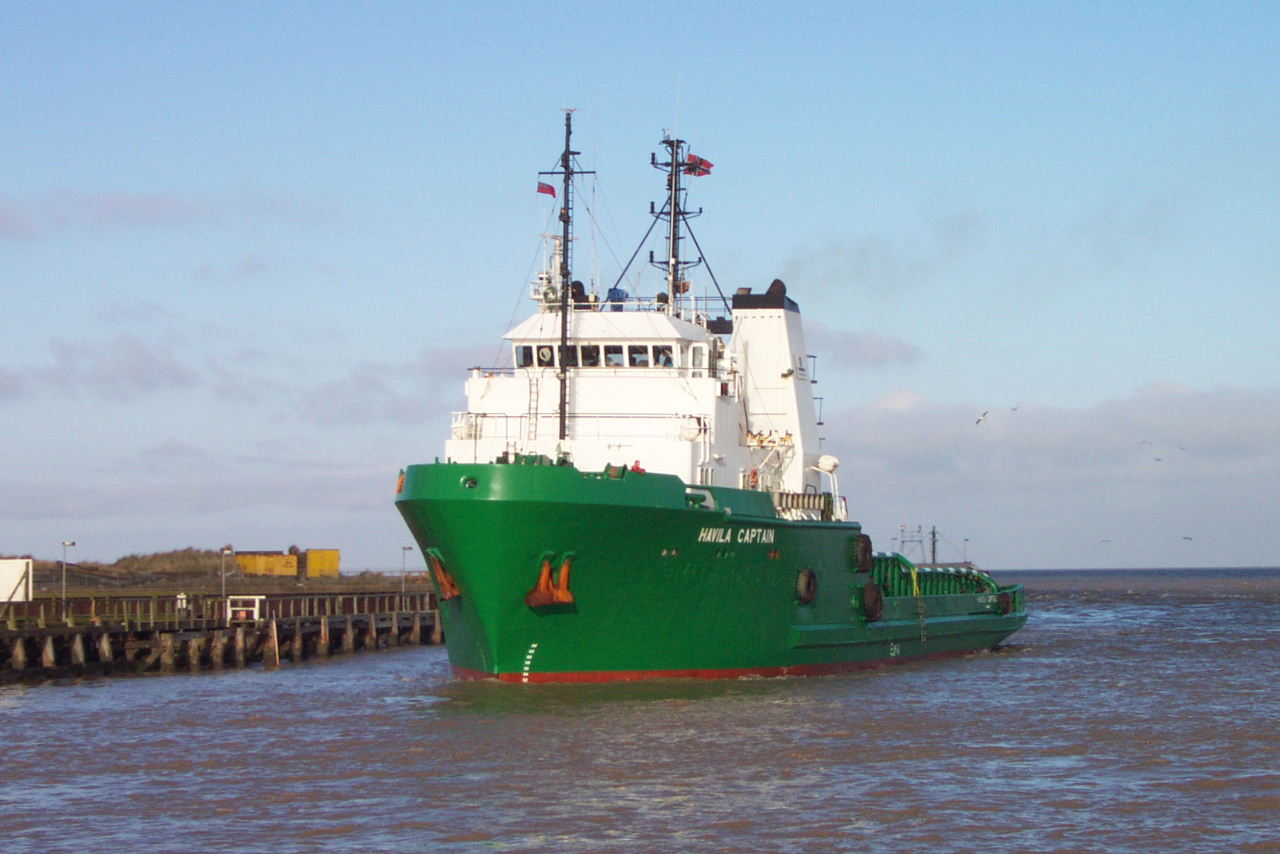

  TYPE: Smit-Lloyd NAME: Havila Captain   PHOTO: Peter Taylor

GENERAL

PROPULSION

EQUIPMENT

Length OA 63.4 m Engines 2 x Stork-Werksp'l Workdrum pull 250 t
Breadth 14.7 m BHP 10000 Capacity 1 1300 m x 70 mm
DWT 1450 t kW 7350 Capacity 2 -
Deck area 402.5 m2 For'd Thruster 1 x 1010 bhp Towdrum pull 250 t
Fuel 841 m3 Az Thruster - Capacity 1 1150 m x 68 mm
Pot water 217 m3 Aft Thrusters - Capacity 2 -
Mud 228 m3 Bollard pull 120 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 198 m3 Joystick - Tank cleaning -
Year built 1984     Shipyard Merwede BV
Previous names Smit-Lloyd 122, Salviceroy, Boa Captain
Comments -

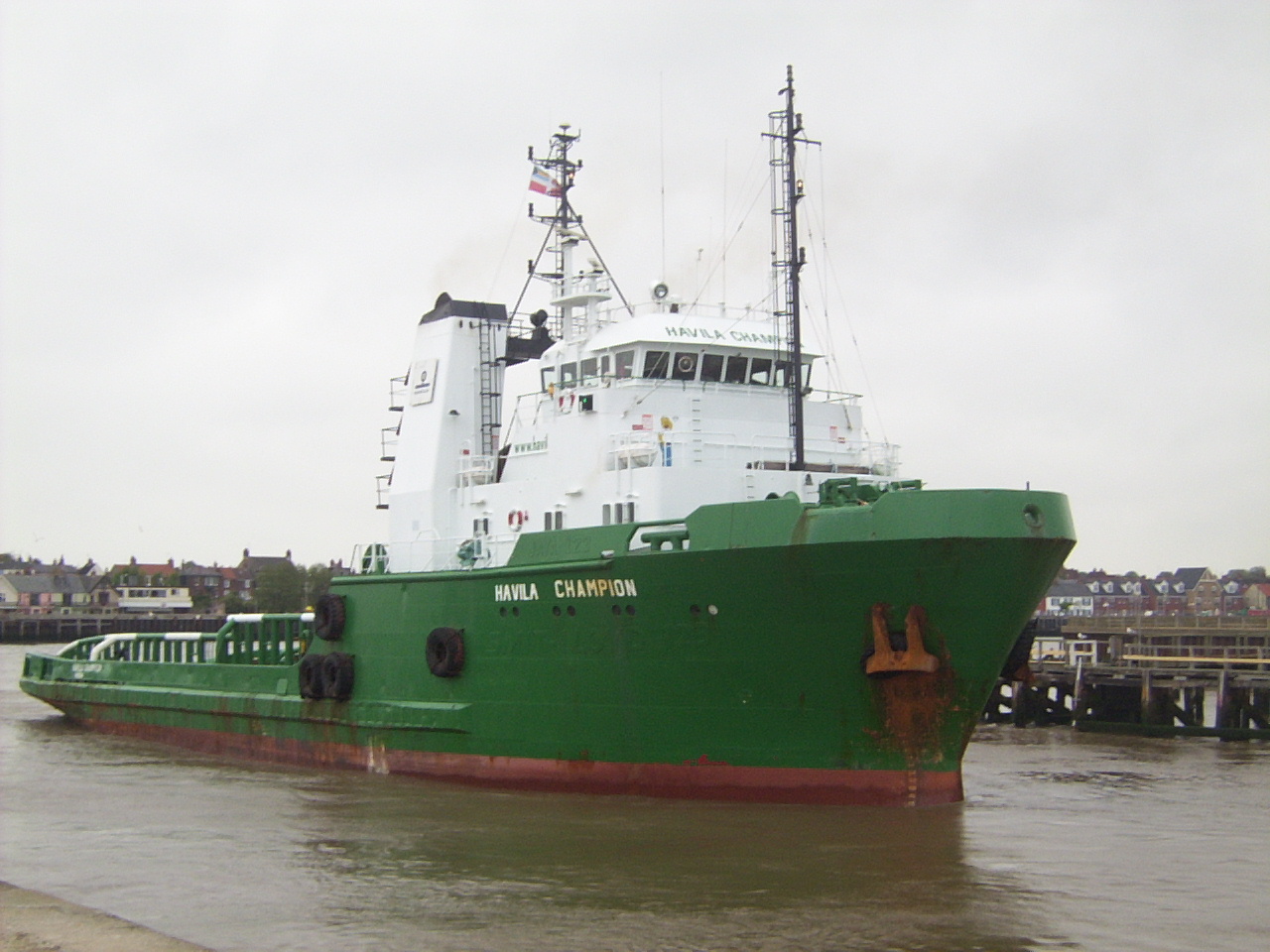

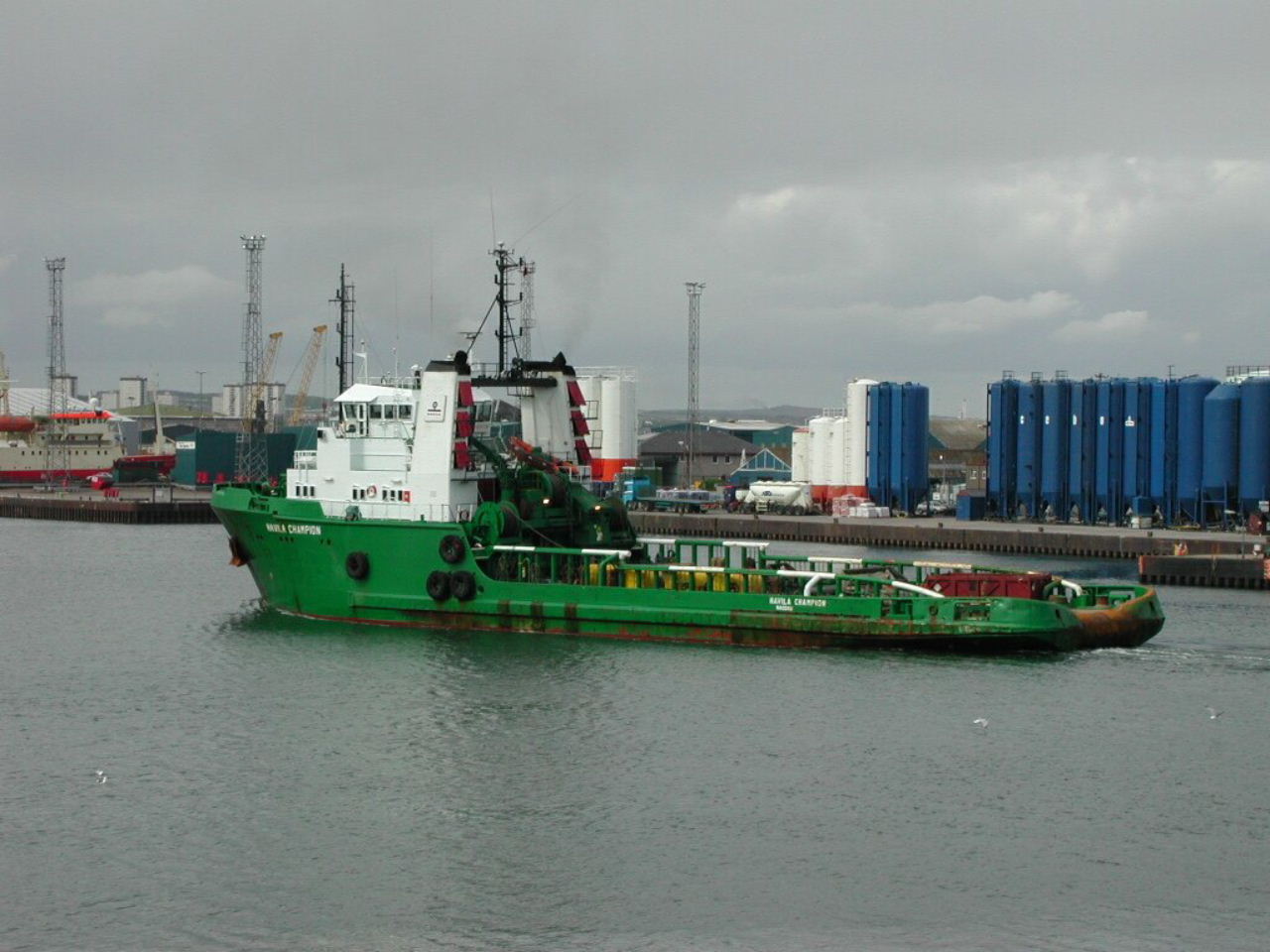

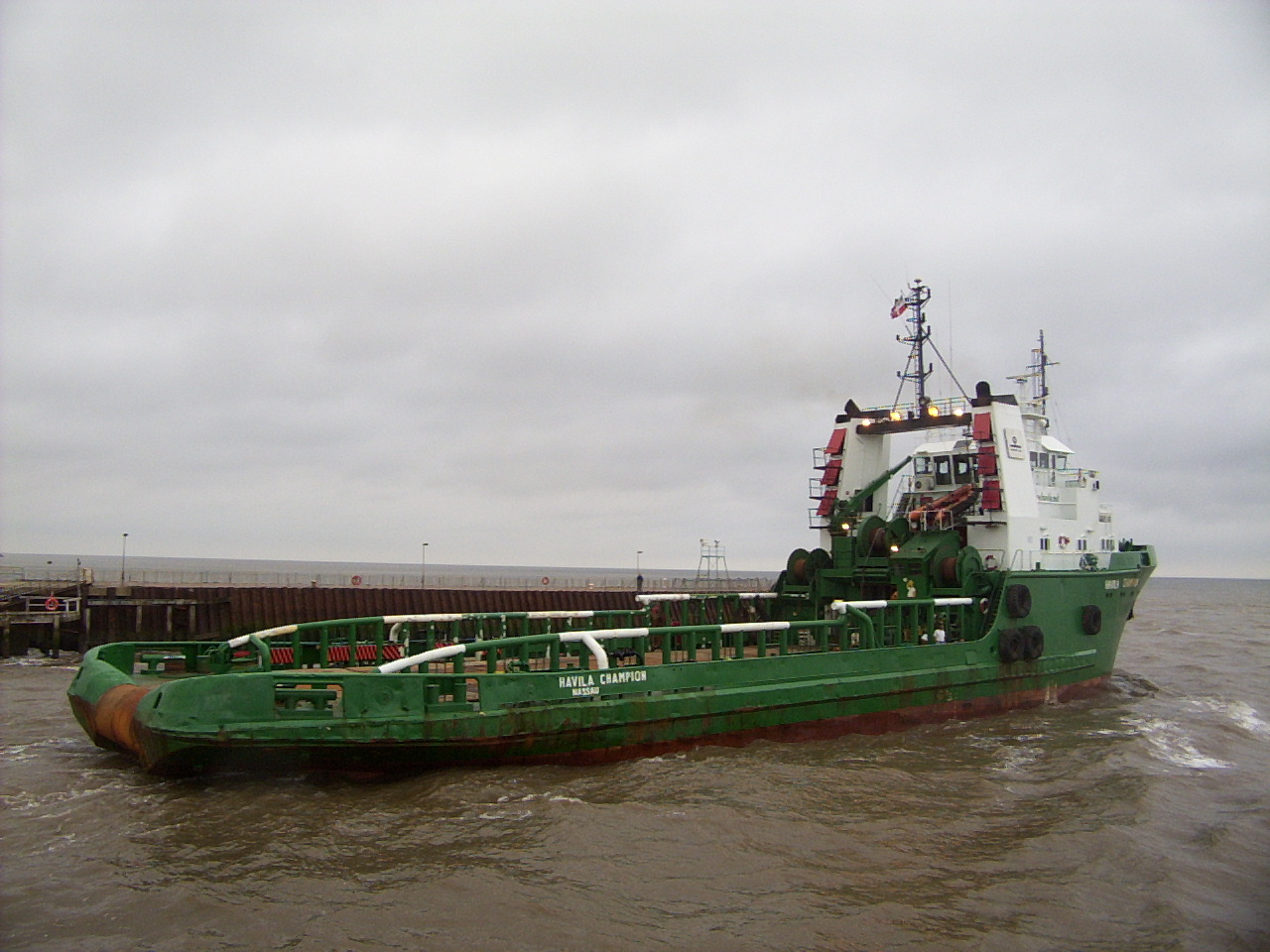

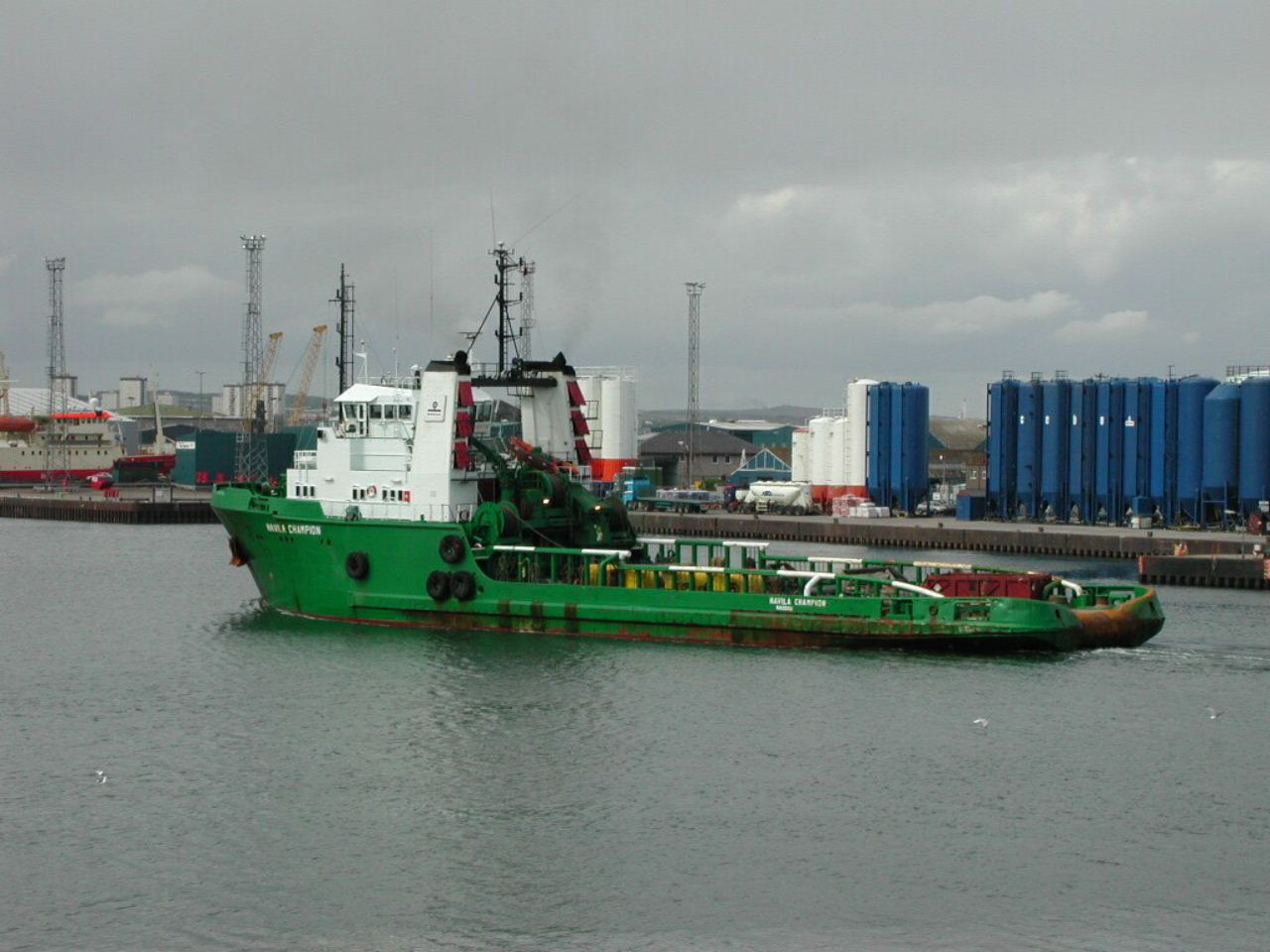

  TYPE: Smit-Lloyd NAME: Havila Champion   PHOTO: George Craigen, Peter Taylor

GENERAL

PROPULSION

EQUIPMENT

Length OA 63.4 m Engines 2 x Stork-Werksp'l Workdrum pull 250 t
Breadth 14.7 m BHP 10000 Capacity 1 1300 m x 70 mm
DWT 1450 t kW 7350 Capacity 2 -
Deck area 402.5 m2 For'd Thruster 1 x 1010 bhp Towdrum pull 250 t
Fuel 841 m3 Az Thruster - Capacity 1 1150 m x 68 mm
Pot water 217 m3 Aft Thrusters - Capacity 2 -
Mud 228 m3 Bollard pull 120 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 198 m3 Joystick - Tank cleaning -
Year built 1984     Shipyard Merwede BV
Previous names Smit-Lloyd 123, Jaya 123, Boa Champion
Comments -

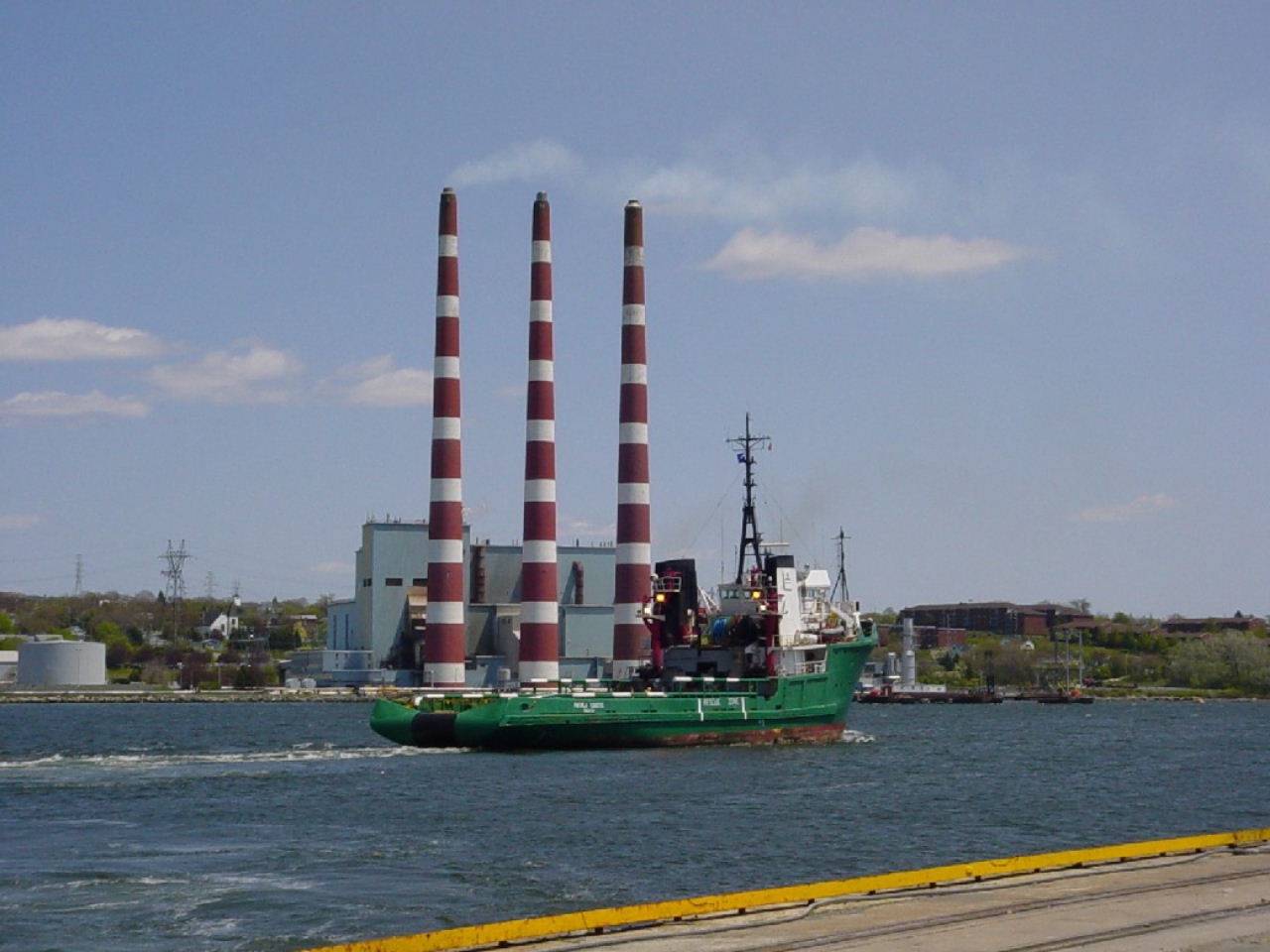

  TYPE: Wimpey NAME: Havila Castle   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 69.32 m Engines 4 x B&W Alpha Workdrum pull 350 t
Breadth 15.51 m BHP 12720 Capacity 1 1000m x 56mm
DWT 2085 t kW 9353 Capacity 2 1000m x 56mm
Deck area 495.3 m2 For'd Thruster 2 x 650 bhp Towdrum pull 350 t
Fuel 590 m3 Az Thruster - Capacity 1 1150m x 70mm
Pot water 256 m3 Aft Thrusters 1 x 500 bhp Capacity 2 -
Mud 262 m3 Bollard pull 120 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 278 m3 Joystick Albatross Tank cleaning -
Year built 1982     Shipyard Appledore
Previous names Wimpey Seahunter, Highland Light, Far Sword, Boa Sword
Comments -

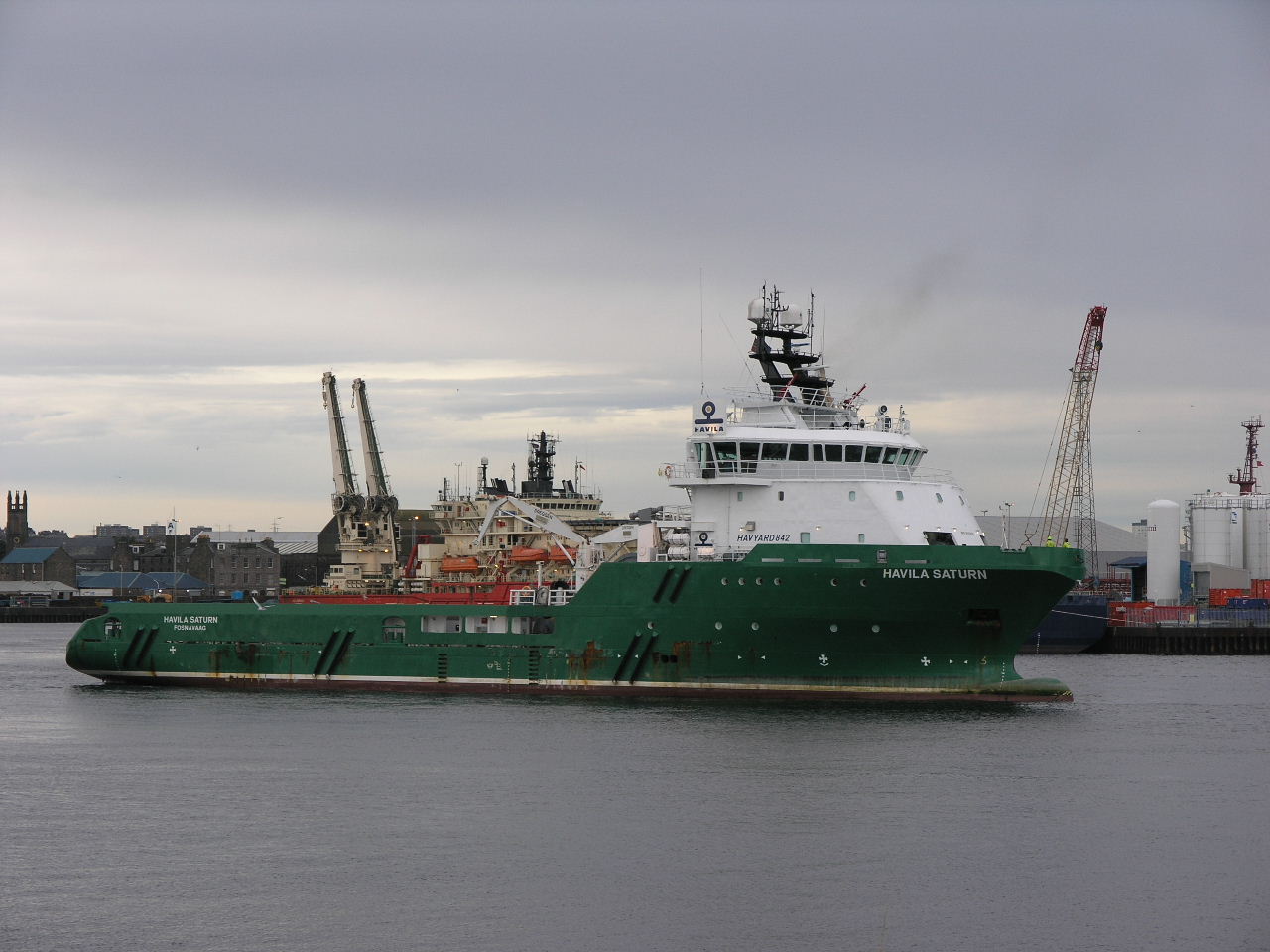

  TYPE: HAVYARD 842 NAME: Havila Saturn   PHOTO: Vic Gibson


GENERAL

PROPULSION

EQUIPMENT

Length OA 74.5 m Engines 2 x MAK 12VM32C Workdrum pull 350 t
Breadth 17.2 m BHP 16320 Capacity 1 5500m x 77mm
DWT 5828 t kW 12000 Capacity 2 -
Deck area 520 m2 For'd Thruster 1 x 883 kW Towdrum pull 350 t
Fuel 1100 m3 Az Thruster 1 x 883 kW Capacity 1 5500m x 77mm
Pot water 725 m3 Aft Thrusters 1 x 883 kW Capacity 2
Mud 540 m3 Bollard pull 194 t Sharks Jaw Karmforks
Brine 515 m3 DPI RRM Icon Cranes
Dry bulk 220 m3 Joystick Yes Tank cleaning
Year built/due 2008     Shipyard Havyard Leirvik
Previous names -
Comments Sold in February 2011 to un-named buyers.



  TYPE: HAVYARD 858 DSV NAME: Seven Havila   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 120 m Engines 8 x Cat 3516C Workdrum pull -
Breadth 23 m BHP 23800 Capacity 1 -
DWT 7250 mt kW 17504 Capacity 2 -
Deck area 1050 m2 For'd Thruster 2 x 1500 kW Accomm berths 120
Fuel 1335 m3 Az Thruster 3 x 1500 kW Storage capacity

-

Pot water 800 m3 Aft Az Props 2 x 1750 kW ROV 1 x OBS
Mud - Bollard pull - Diving Capability 24 divers
Brine - DP III Kongberg Kpos21 Cranes 1 x 250t
Dry bulk - Joystick - Tank cleaning -
Year built 2011     Shipyard Havyard Leirvik
Previous names Acergy Havila
Comments This ship has been sold to Subsea 7 and has been renamed Seven Falcon



  TYPE: KVAERNER NAME: Havila Runde   PHOTO:


GENERAL

PROPULSION

RESCUE EQUIPMENT

Length OA 69.0 m Engines 2 x Cats Survivors Capacity 250
Breadth 16.0 m BHP/Kw 7000/5140 FRCs 2
DWT 2700 t For'd Thruster 1 x 800 bhp Daughter Craft 2
Deck area 663 m2 Az Thruster 1 x 1200 bhp Dacon Scoop 1
Fuel 748 m3 Aft Thrusters 1 x 600 bhp - -
Pot water 597 m3 DP - -
Year built/due 1997 Joystick - Shipyard Kvaerner Kleven
Previous names -
Comments This ship sold to Secunda of Canada









SHIPPING COMPANY INFORMATION UPDATED IN 2014

Abeille Bourbon
Acergy
Acomarit
Active Offshore
Aker Solutions
Allseas
ALP Maritime
Arctia Shipping
Arendal Offshore
Aries Offshore
Arktikmor
Atlantic Offshore
Axis Offshore
Bergen Offshore
Bibby Offshore
Blue Star Line
Boa Offshore
Boston Putford
Bourbon Norway
Bourbon Offshore
BP
Branding Offshore
British Antarctic Survey (New)
Brovig Offshore
BUE Marine
BUE Viking
Bukser og Bergung
Deep Sea Supply
Deepocean
DOF
DOF Subsea
Eide Offshore
Eidesvik
ER Schiffahrt
Esvagt
Fairmount
Fairplay Towage
Farstad
Femco Management
FS Shipping
Fugro
Gardline
Geoships
Golden Energy

GulfOffshore Norg
Gulf Offshore UK
Hanzevast Capital
Harms Bergung
Harrisons
Hartmann Offshore
Havila Shipping
Heerema
Irish Mainport

Island Offshore
JPKnight
K Line Offshore
Maersk Supply
Marine Carrier AB

Marine Subsea
Myklebusthaug
Chornomornaftogaz
NAO
N-Sea
Nomis
Nordic American
Nordane Shipping
North Sea Shipping
North Star
O.H.Meling
OIL
Olympic Shipping

OOC
OSA
Ostenjo Rederi
PetroBaltic
Portosalvo
Rem Offshore
Remoy Managment
Rovde Shipping
SBS
SeaMar Shipping
Sealion
Seaworx
Siem Offshore
Simon Mokster
Smit Lloyd
Smitwijs
SMS
Solstad
Subsea7
Stirling
Surf
Technip
Trico Offshore
Tschudi Offshore
Troms Offshore
URAG
URS
Varada Marine
Vestland Marine
Viking Supply
Volstad Shipping
Vroon
Vroon Standby
World Wide Supply
Zafiro Marine














ALL CONTENT OF THIS SITE REMAINS THE PROPERTY OF THE WRITERS AND THE PHOTOGRAPHERS AND MUST NOT BE REPRODUCED WITHOUT PERMISSION
