ØSTENSJØ REDERI AS

Edda are well known for developing and operating advanced platform ships, and have had two ships on charter to Shell out of Aberdeen for as long as anyone can remember, by 2009 Shell had chartered the new Edda Fram, which has a revolutionary bulk handling system, and is powered by a Voith Schneider system.

They operate escort tugs in Southampton and in Norway.

During the latter part of the first decade of the 21st century they provided a ship on which was installed a set of portacabins, and this "passenger ship" operated in support of the Bonga project in West Africa. This has caused the company to take steps in the direction of accommodation vessels, and now have an accommodation vessel about to enter service (April 2010).

Edda have continued to improve their fleet, and have two vessel with Voith Schneider propulsion, and the propulsion system seems accidentally to have improved the seakeeping qualities of the vessels. The Edda Fides is also in service, and has a safety case compiled by Marex Marine Services of Aberdeen.

At the 2014 review there appear to have been no increases to the fleet, however the now venerable Edda Sprint has departed. Another accommodation has been ordered and is being built in Hayundai.

Updated 10/10/14

SHIP TYPE

NOW

ORDERED



AHTS Under 10000 bhp 1 -
AHTS 10000bhp to 20000bhp - -
AHTS 20000 bhp and over - -
Accommodation ships 1 1
Heavy lift ships - -
Pipelayers - -
IMR ships 4 -
PSVs deck less than 1000 m2 3 -
PSVs deck 1000 m2 + 1 -
SBSs/ERRVs - -

ANCHOR-HANDLING TUGS

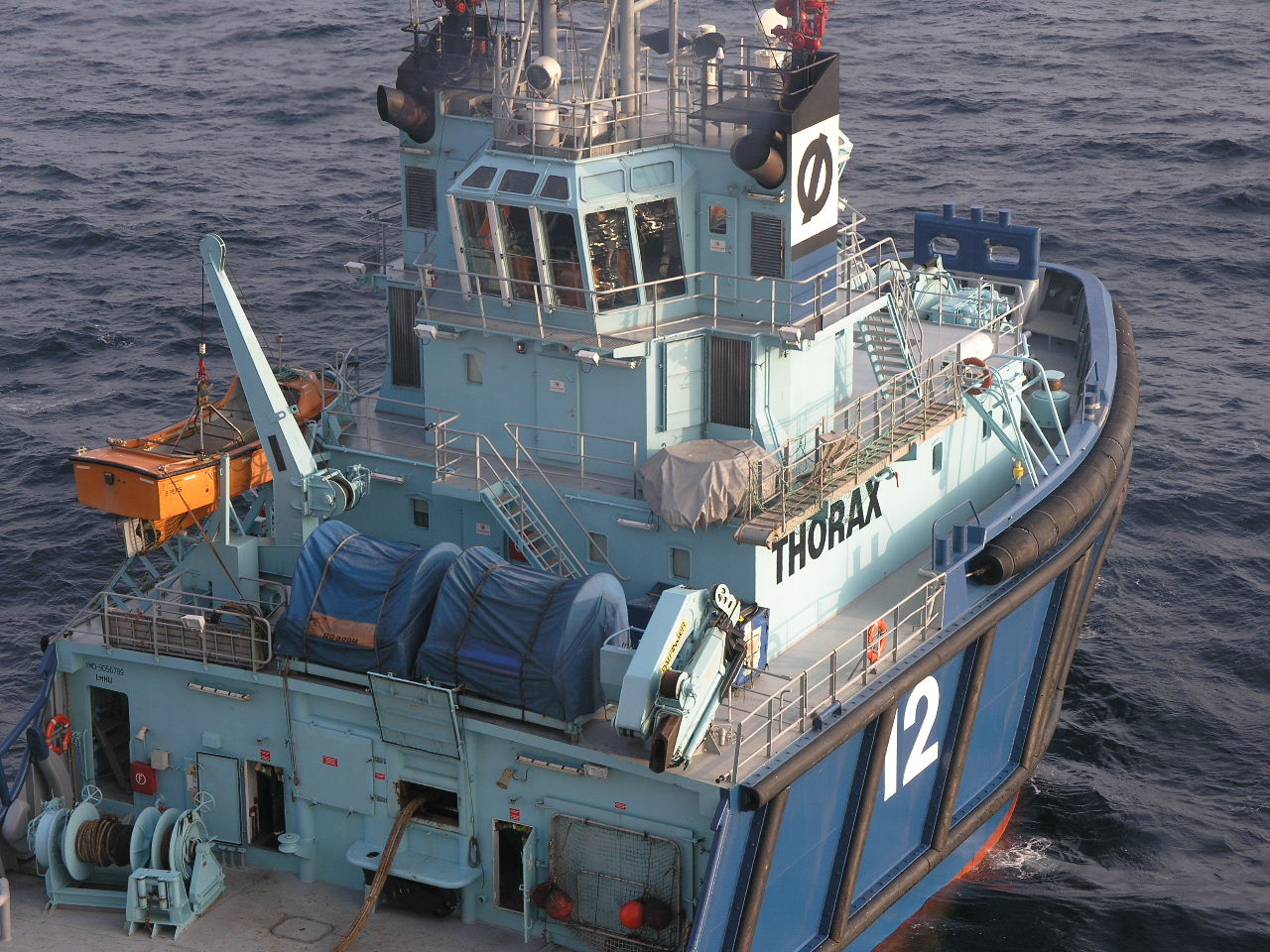

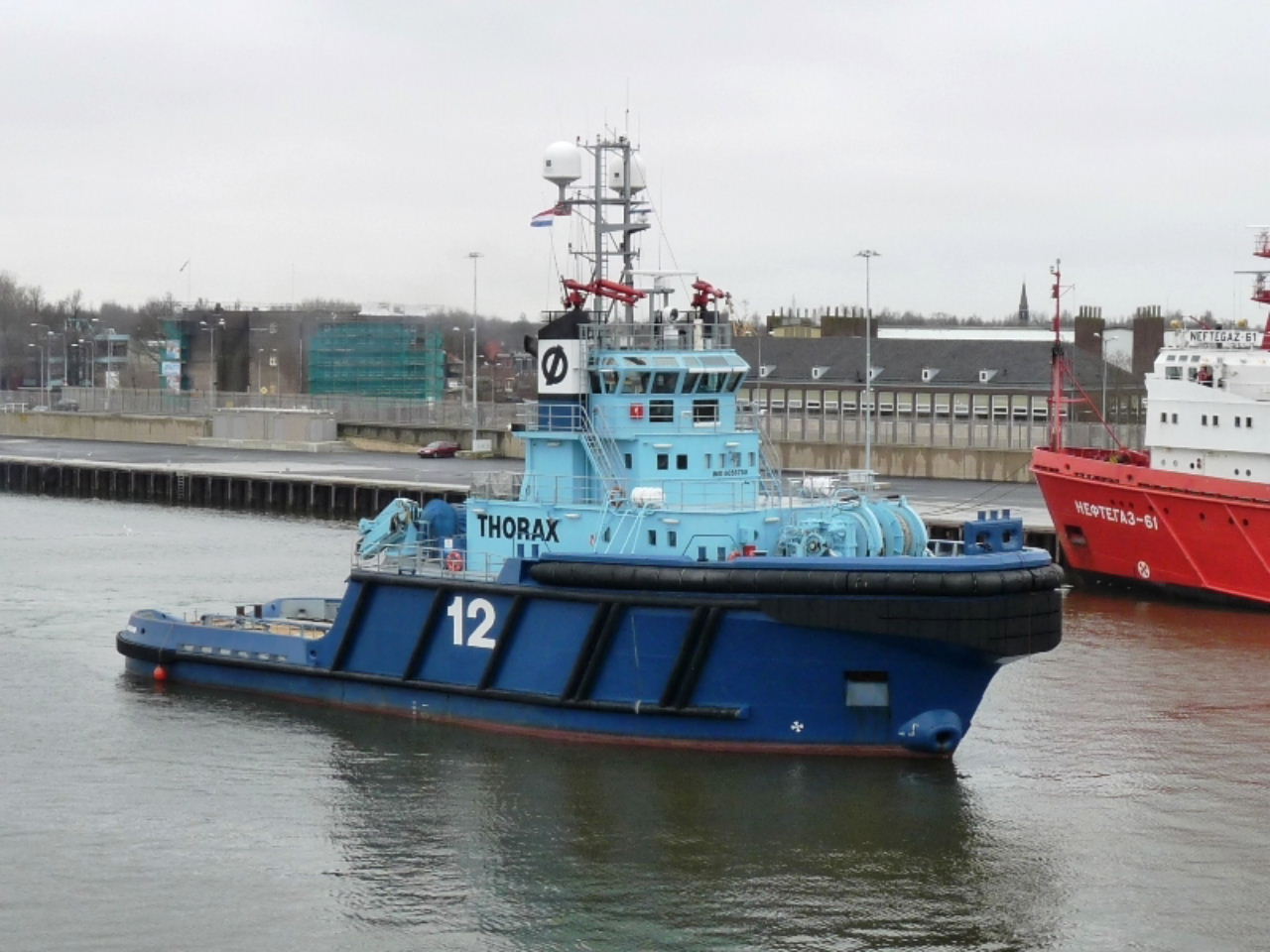

TYPE: NAME: thorax PHOTO: Vic Gibson, Pat McCardle
General Propulsion Deck Equip
Length OA 45.5 m Engines 2 x Wartsila For'd winch pull 100 tones
Breadth 13.8 m BHP 7200 Capacity 1 350m x 64mm
DWT   For'd Thrusters 1 x Brunvoll Capacity 2 250m x 80mm
Deck area   Aft Thrusters   Aft Winch pull 175 tonnes
Fuel 420 m3 Bollard pull ahead 90 tonnes Capacity 1 1200m x 64mm
Pot water 54 m3 Ditto astern 85 tonnes Capacity 2 1100m x 64mm
Mud   DP   Sharks Jaw Karmforks
Base oil   Joystick   Cranes
Brine       Tank Cleaning
Dry bulk   Year built 1993 Shipyard Simek
Previous names
Comments I'm not quite sure how things stand with Edda tugs. Thorax if it is still owned may be the largest of their fleet. 2014 this tug still appears to be part of the fleet.

CONSTRUCTION AND OTHER VESSELS

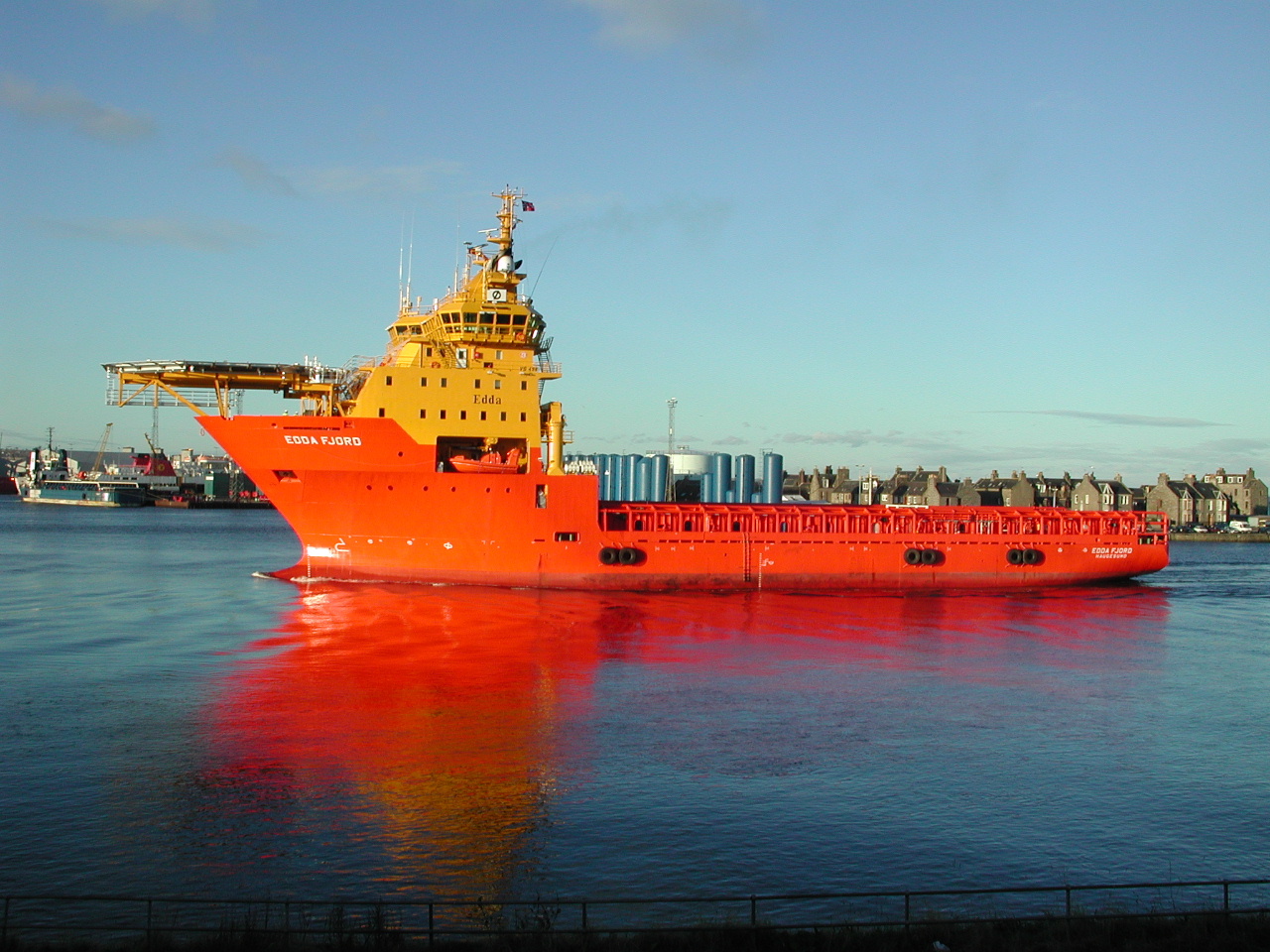

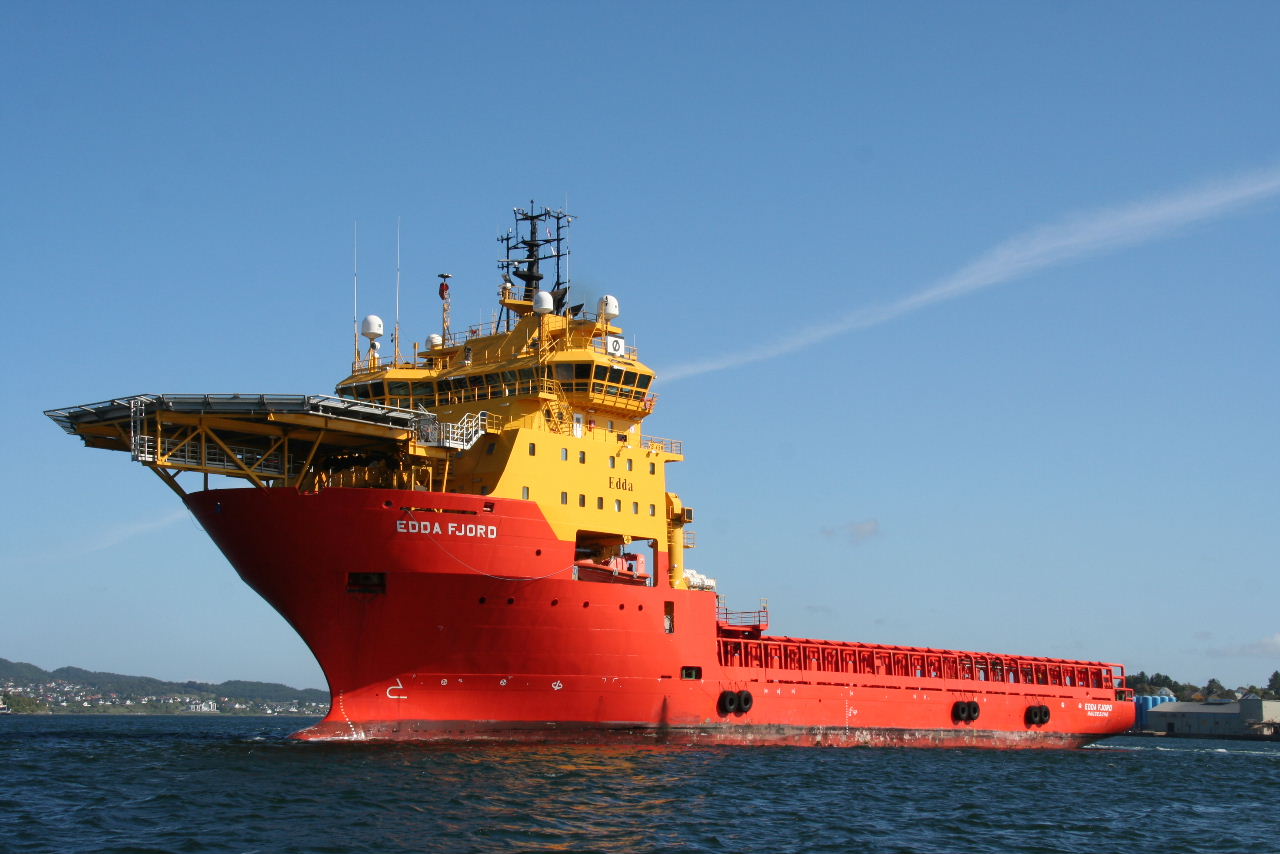

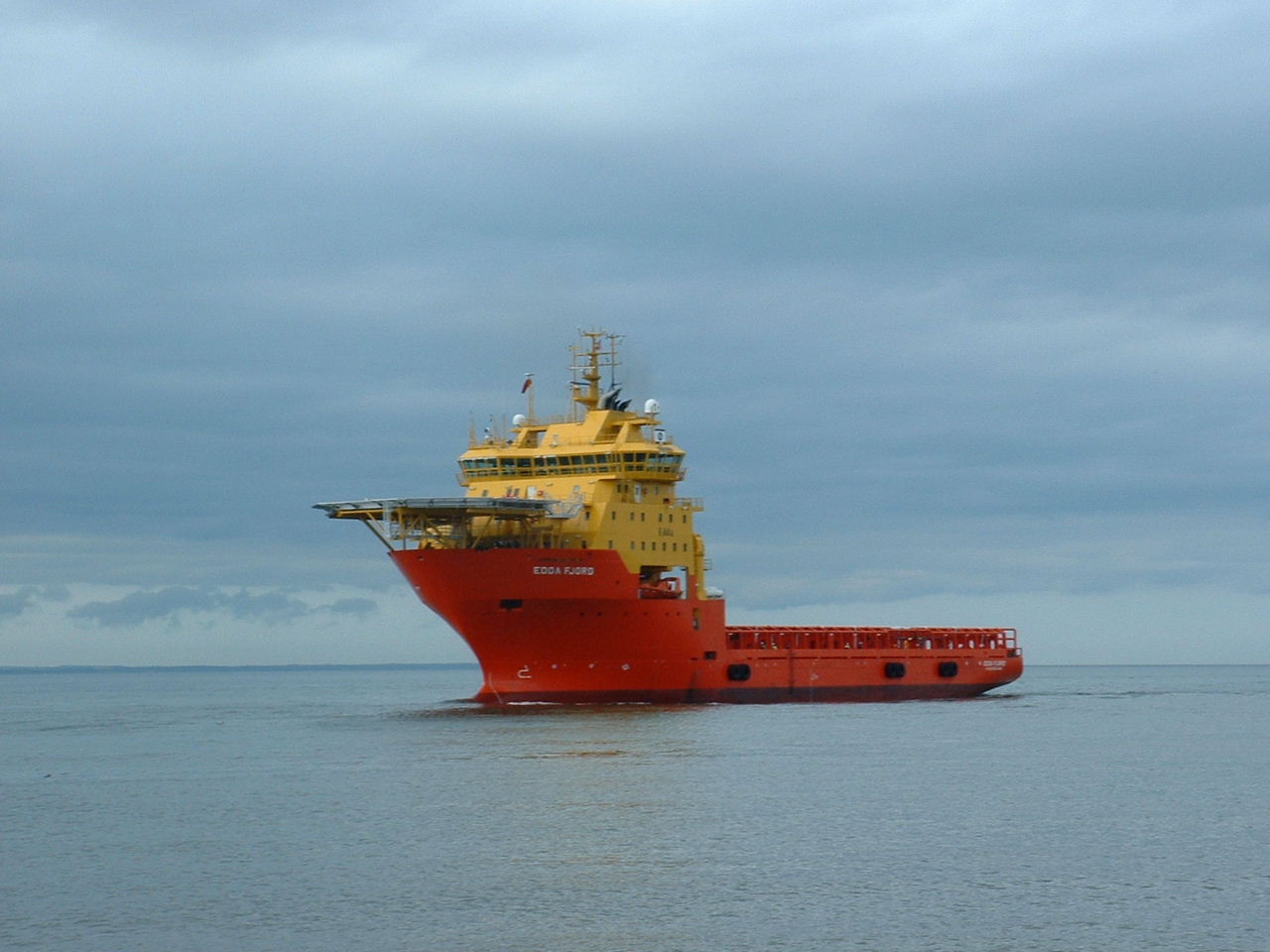

TYPE: VS 498 name: Edda Fjord PHOTO: Vic Gibson, Jan Plug
General Propulsion Cargo Capacity
Length OA 104.85 m Engines 2 x 3600 kW, 1 x 5400 kW Fuel 2000 m3
Breadth 22.0 m BHP/kW 9264/12600 Pot water 1400 m3
DWT 6600 t For'd Thrusters 2 x 1200 kW Mud 1160 m3
Deck area 1270 m2 Az Thrusters 1 x 1500 kW Base oil -
    Aft Thrusters 2 x 1000 kW Brine 1160? m3
Year built 2002 DPII Kongsberg DP22 Dry bulk 408 m3
Shipyard Flekkefjord Slip Joystick Yes Tank Cleaning
Previous names
Comments This vessel was billed as being the largest PSV in the world when it entered service. In 2004 it was modified to become an accommodation vessel, and went to work initially in West Africa.



TYPE: name: Edda Fonn PHOTO:
  Picture Required
General Propulsion Cargo Capacity
Length OA 84.7 m Engines 4 x 1920 kW Fuel 1113 m3
Breadth 18.0 m BHP/kW 10455/12600 Pot water 429 m3
DWT 2354 t For'd Thrusters 2 x 1150 kW Mud -
Deck area 700 m2 Az Thrusters 1 x 1350 kW Base oil -
    AZ Props - Brine -
Year built 2003 DPII Kongsberg DP22 Dry bulk -
Shipyard Myklebust Joystick Yes Tank Cleaning
Previous names
Comments This is a large vessel fitted with ROVs and a 100 tonne crane+ helideck.

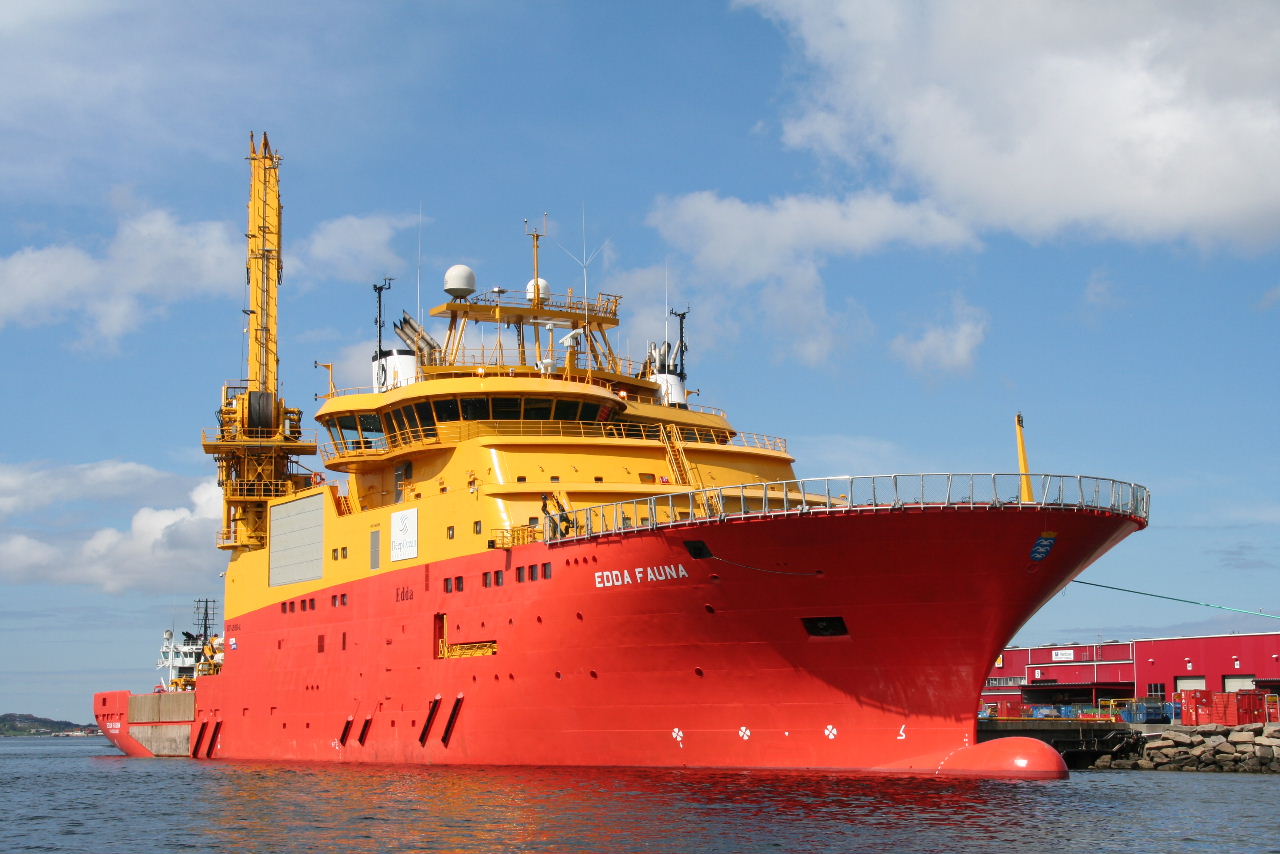

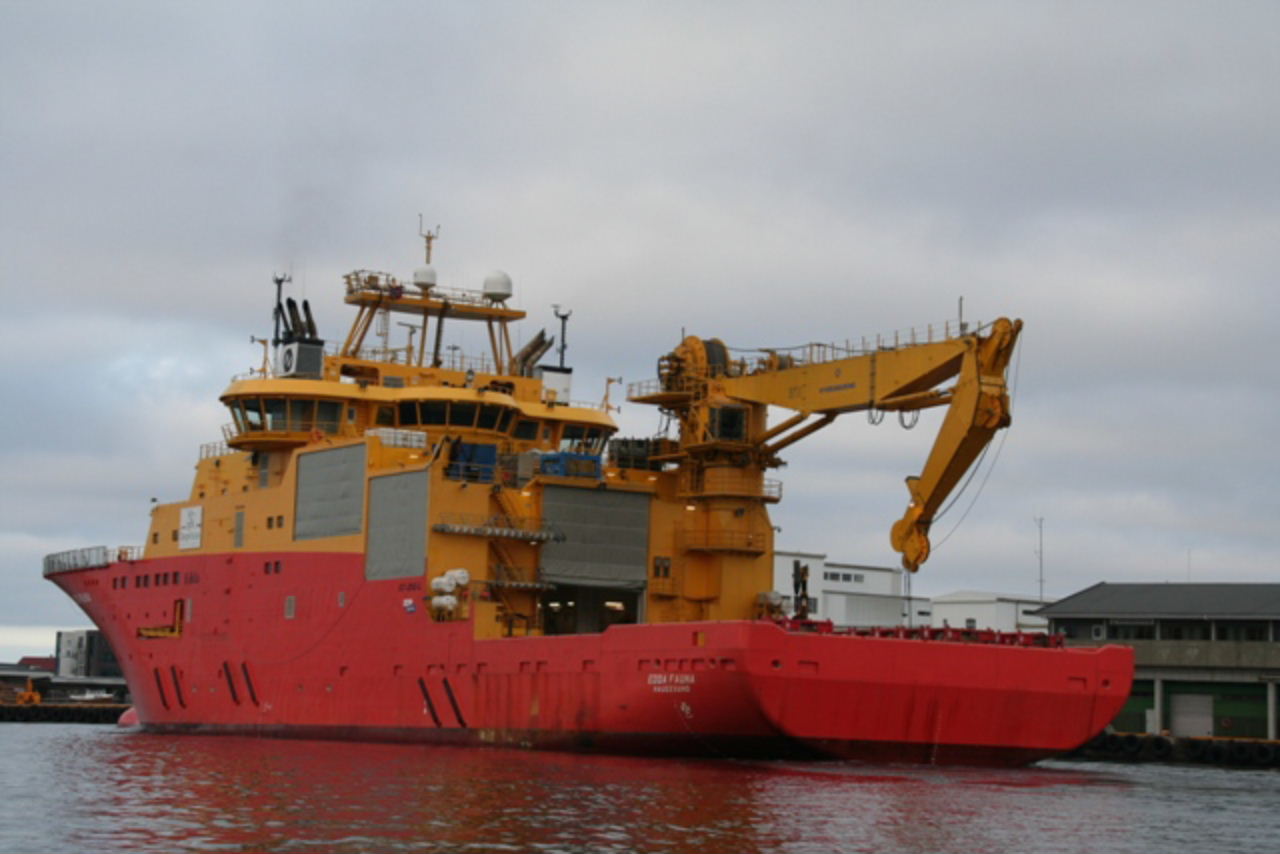

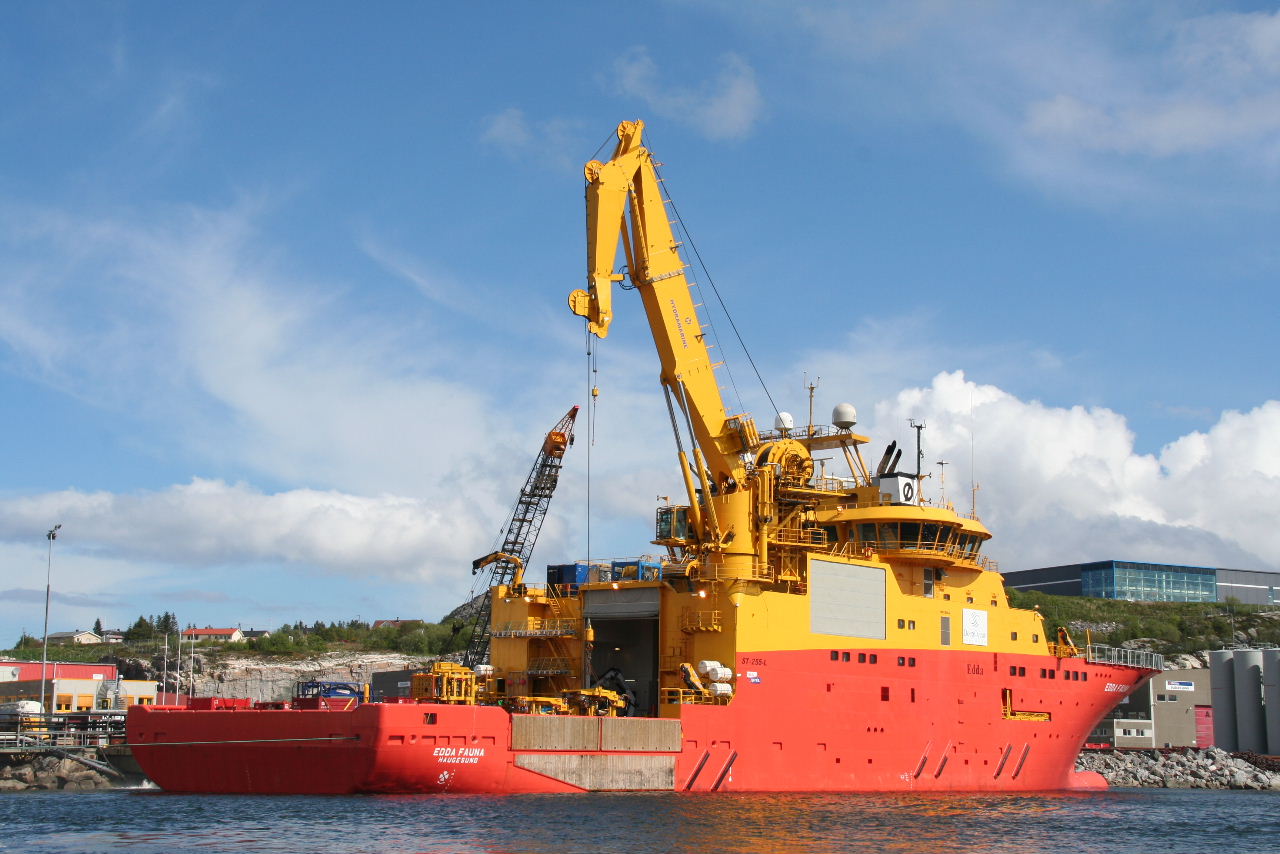

TYPE: ST 255 name: Edda Fauna PHOTO: Jan Plug
General Propulsion Cargo Capacity
Length OA 108.7 m Engines 6 x Cat 3516C Fuel 1670 m3
Breadth 23.0 m BHP/kW 17394/13380 Pot water 1252 m3
DWT 6200 t For'd Thrusters 2 x 1500 kW Mud -
Deck area 610 m2 Az Thrusters 1 x 1500 kW Base oil 305 m3
    AZ Props 2 x 3500 kW Brine 483 m3
Year built 2008 DPII Kongsberg Dry bulk -
Shipyard Aker Brattvaag Joystick Yes Tank Cleaning
Previous names
Comments This vessel has 2 x ROV moonpools, one large moonpool, a 100 t crane and a helideck.

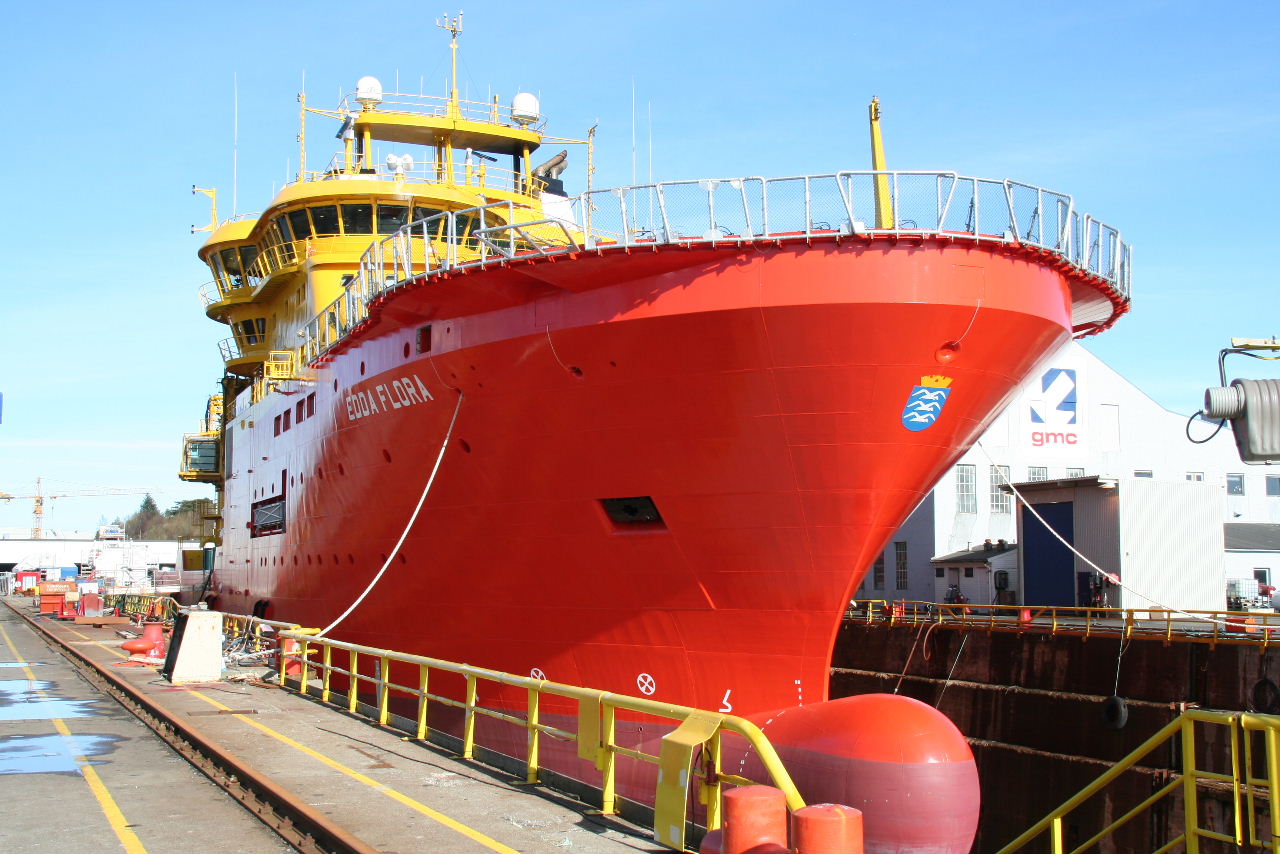

TYPE: ST 254 CD name: Edda Flora PHOTO: Jan Plug

General Propulsion Cargo Capacity
Length OA 95.0 m Engines 5 x Cat 3516CTA Fuel 1140 m3
Breadth 20.0 m BHP/kW 15096/11100 Pot water 1187 m3
DWT 4900 t For'd Thrusters 2 x 1400 kW Mud -
Deck area 750 m2 Az Thrusters 1 x 1400 kW Base oil -
    Voith Props 2 x 3800 kW Brine -
Year built 2008 DPII Kongsberg Dry bulk -
Shipyard Karmsund Joystick Yes Tank Cleaning
Previous names
Comments This vessel has 2 ROVs a 100 t crane and a helideck.

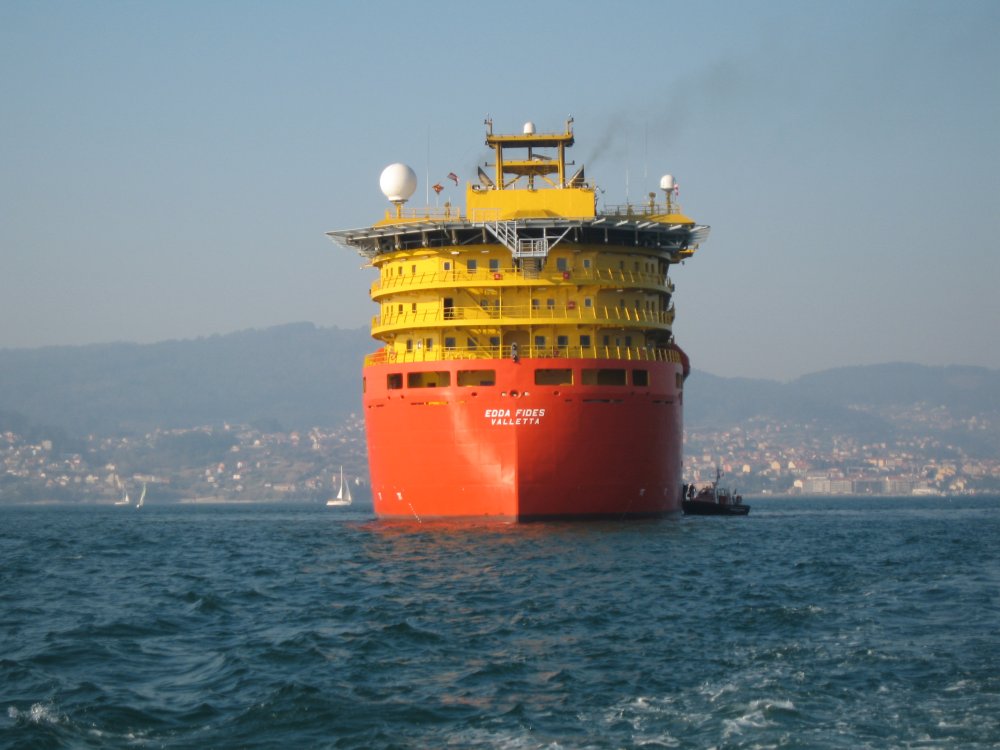

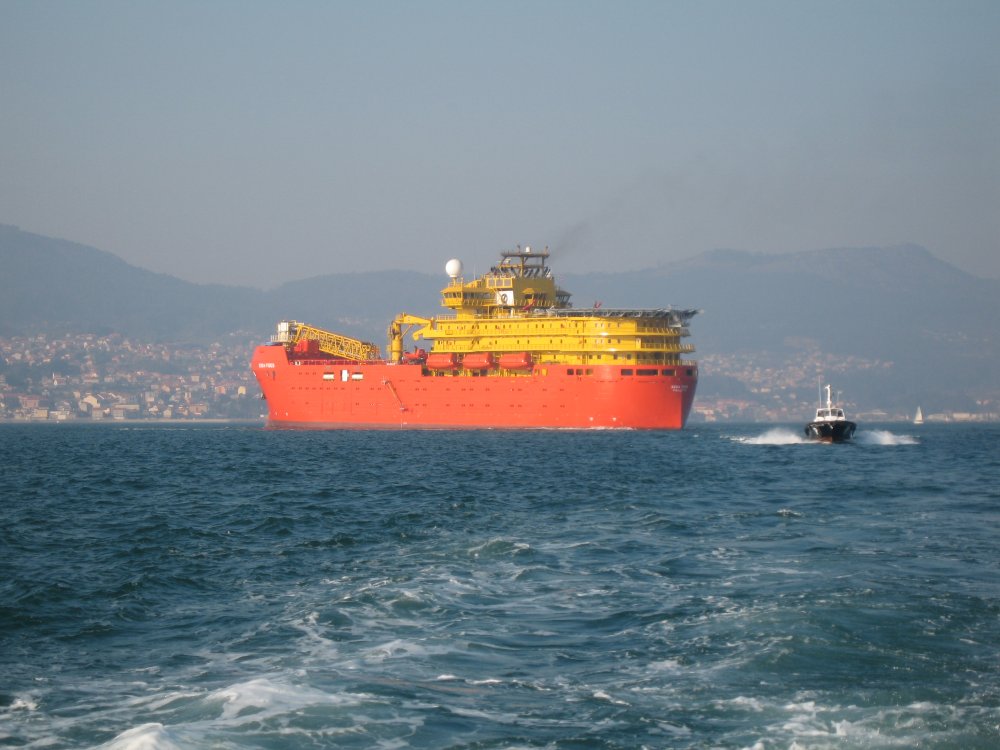

  TYPE: NAME: EDDA FIDES   PHOTO:

GENERAL

PROPULSION

EQUIPMENT

Length OA 130 m Engines  6 Workdrum pull -
Breadth 27 m BHP 23860 Capacity 1 -
DWT 7500 mt kW 17550 Capacity 2 -
Deck area 1400 m2 For'd Thruster 2 x 1400 kW Accomm berths 600
Fuel - Az Thruster 2 x 2500 kW Storage capacity

-

Pot water - Aft Az Props 3 x 2500 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Yes Cranes 1 x 60t
Dry bulk - Joystick - Tank cleaning -
Year built 2011     Shipyard HJ Barreras
Previous names -
Comments This is one of the few monohull accommodation vessels in the world. All the azimuthing thrusters are Voith.

PLATFORM SHIPS


TYPE: NAME: Edda Ferd PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 92.6 m Engines 4 x MAK Fuel 1100 m3
Breadth 20.6 m BHP/kW 13600/10000 Pot water 1000 m3
DWT 5122 mt

For'd Thrusters

2 x 1400 kW
1 x 800 kW
Mud 513 m3
Deck area 1038 m2 Voith Propulsion 2 x 2700 kW Base oil 702 m3
Year built 2013 - - Brine 513 m3
Shipyard Gondan Spain Joystick - Dry bulk 260 m3
Berths 40 DPII Kongsberg Kpos Tank Cleaning -
Previous names -
Comments -

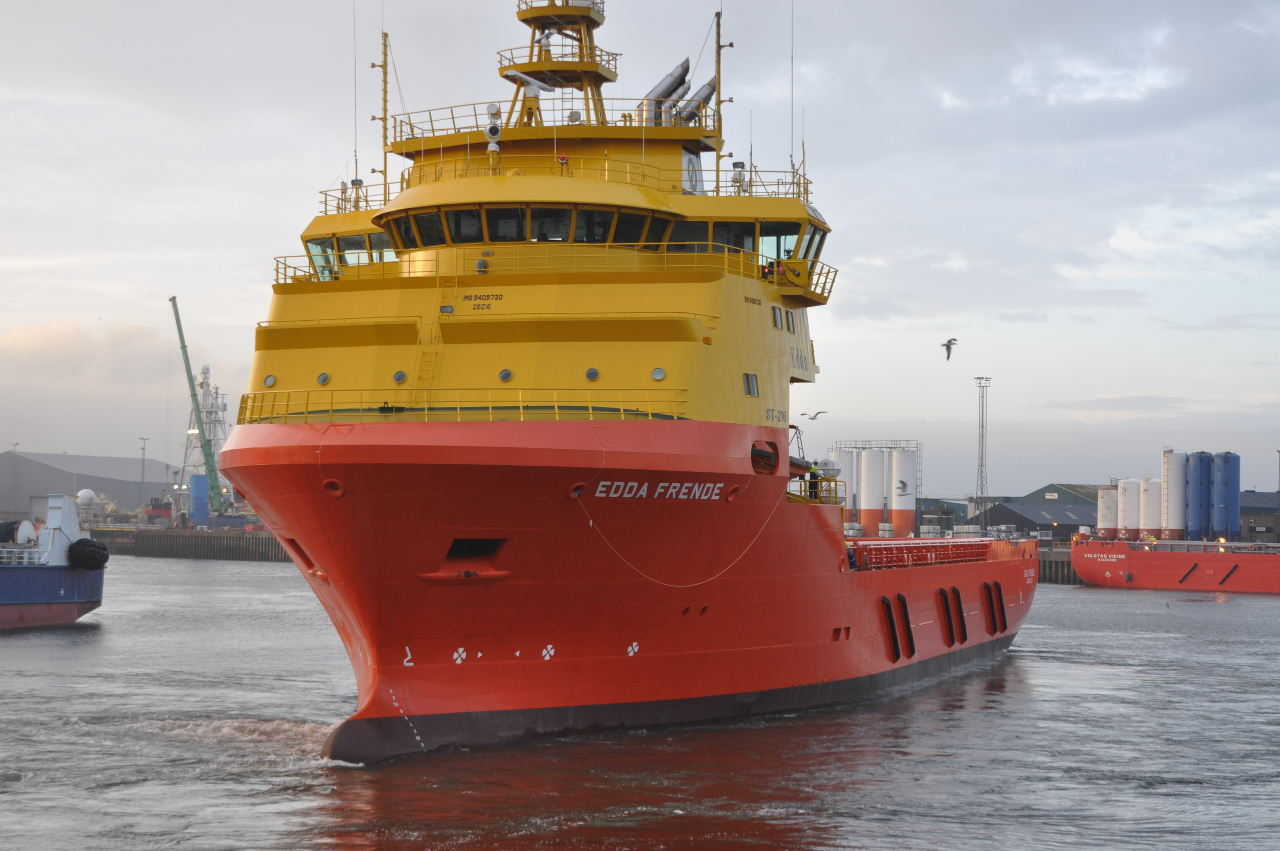

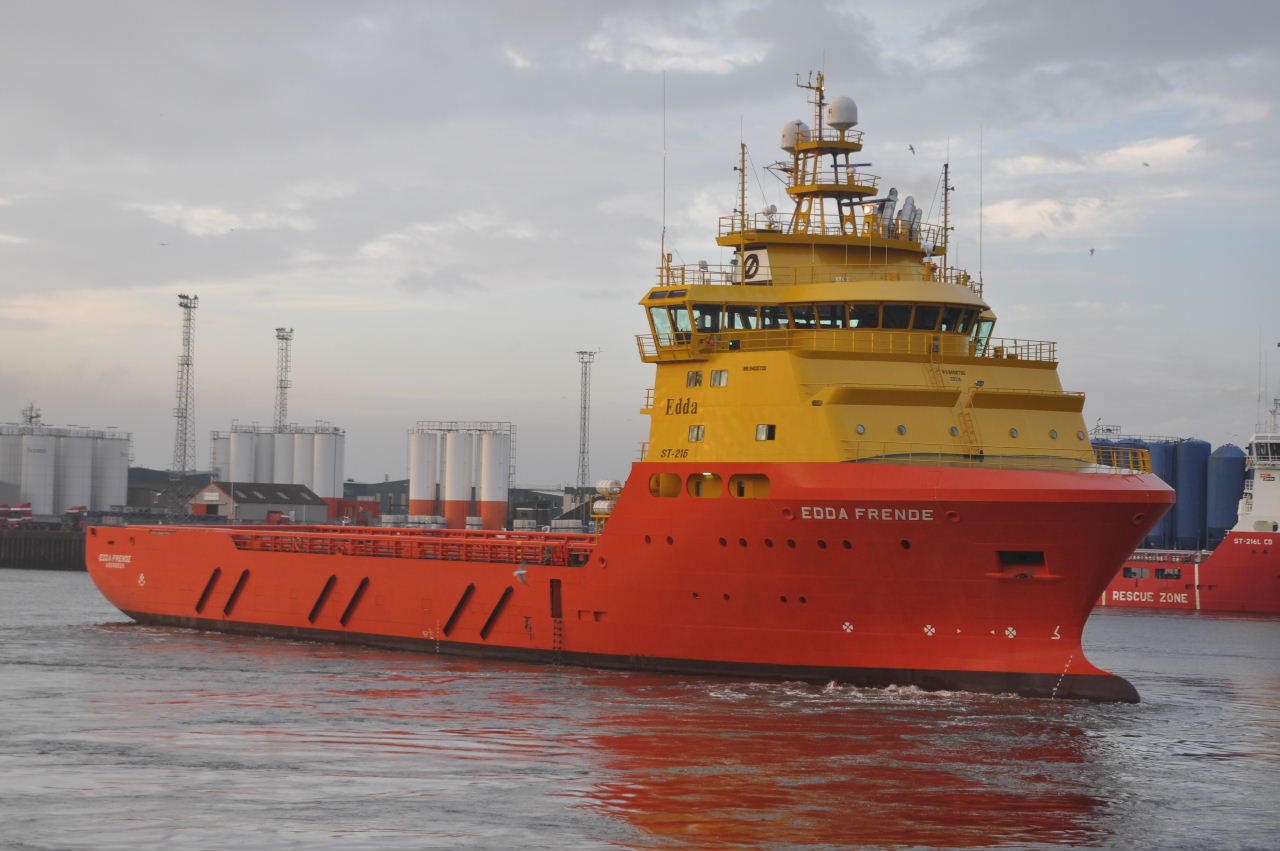

TYPE: ST-216 name: Edda Frende PHOTO:  Vic Gibson
General Propulsion Cargo Capacity
Length OA 85.8 m Engines 2 x 1920 kW Fuel 1190 m3
Breadth 19.2 m BHP/kW 10450/7680 Pot water 670 m3
DWT 4100 t For'd Thrusters 2 x 1400 kW Mud 720 m3
Deck area 910 m2 Az Thrusters   Base oil 230 m3
    Aft Voith Props 2 x 2800 kW Brine 720 m3
Year built 2009 DP II Kongsberg DP21 Dry bulk 365 m3
Shipyard Astilleros Gondan Joystick   Tank Cleaning
Previous names
Comments This vessel is provided with the first "flexible" bulk system installed in a supply vessel and the first Voith Schneider propulsion fitted to a supply vessel.

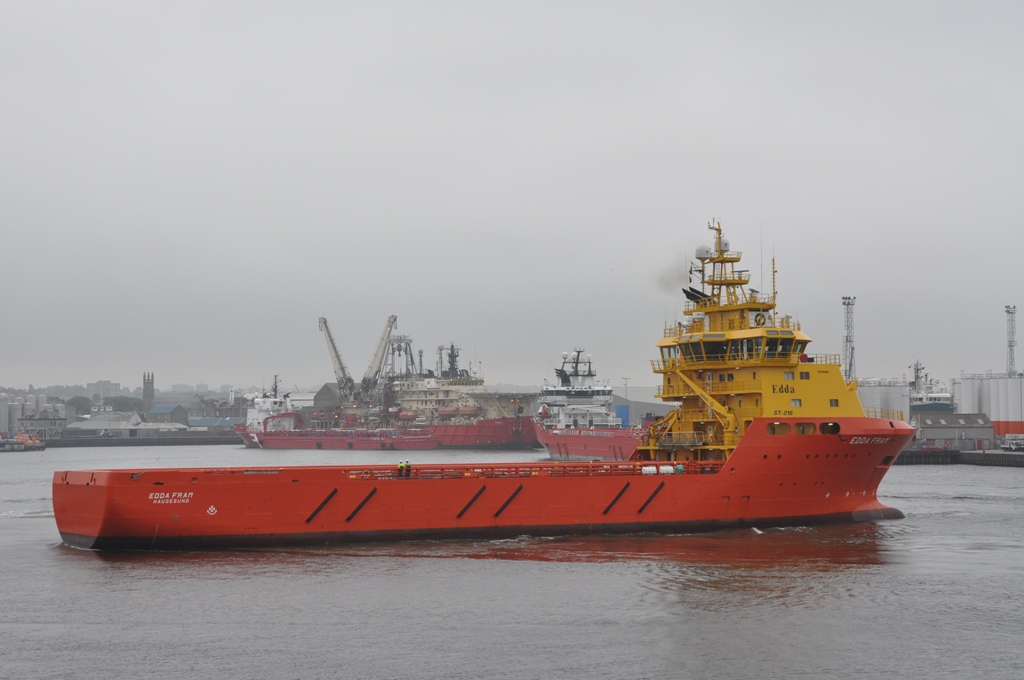

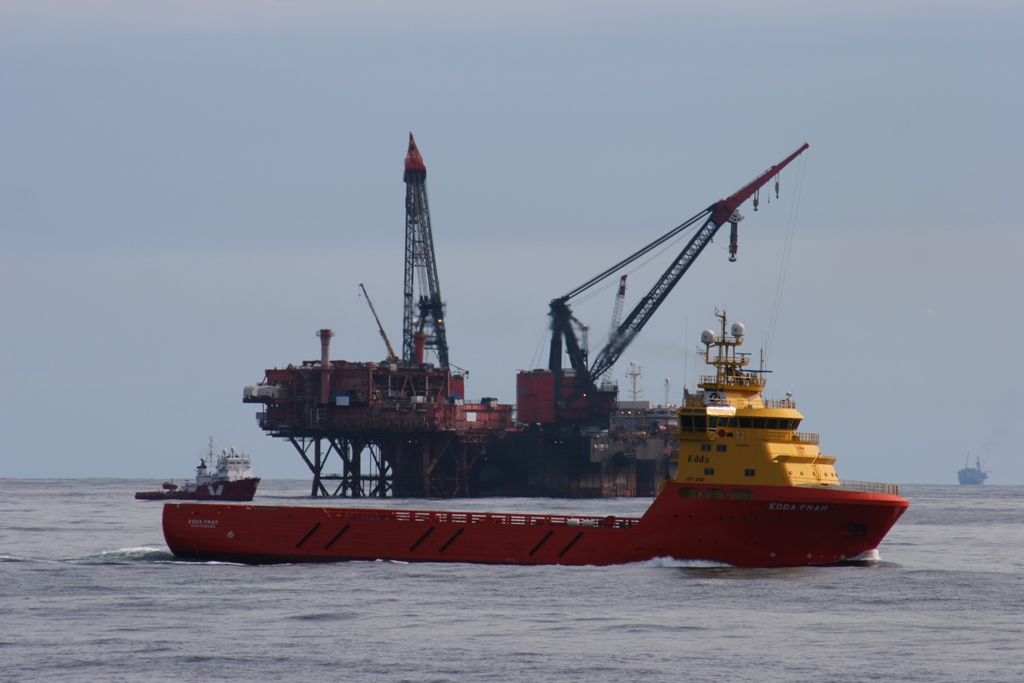

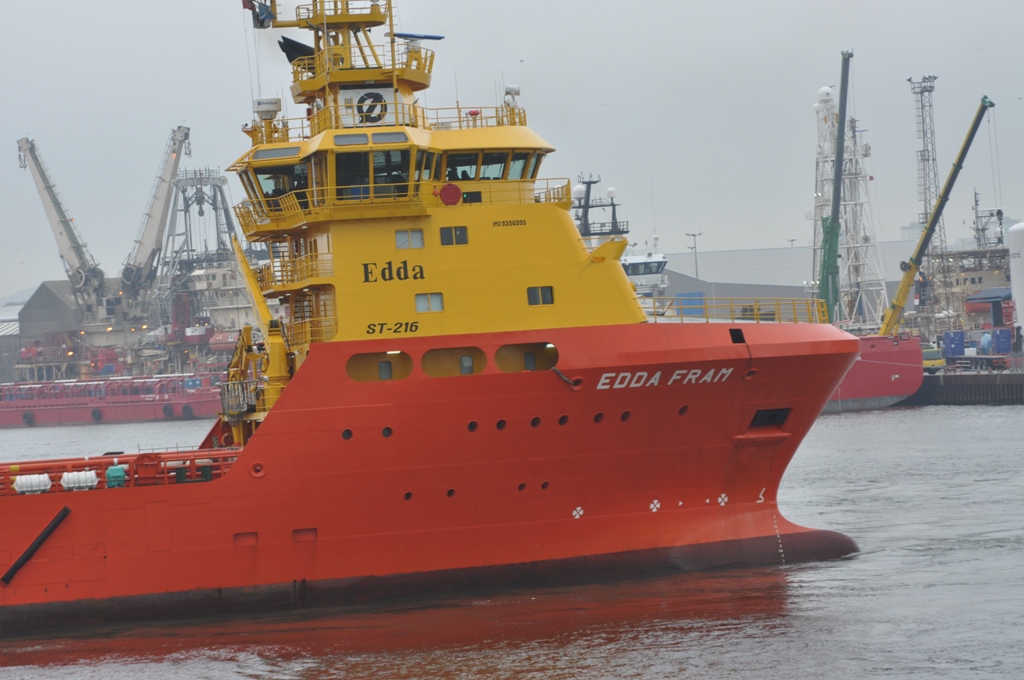

TYPE: ST-216 name: Edda Fram PHOTO: Stefaan Janssen,Vic Gibson
General Propulsion Cargo Capacity
Length OA 85.8 m Engines 2 x 1920 kW Fuel 1190 m3
Breadth 19.2 m BHP/kW 10450/7680 Pot water 670 m3
DWT 4100 t For'd Thrusters 2 x 1400 kW Mud 720 m3
Deck area 910 m2 Az Thrusters   Base oil 230 m3
    Aft Voith Props 2 x 2800 kW Brine 720 m3
Year built 2007 DP II Kongsberg DP21 Dry bulk 365 m3
Shipyard Astilleros Gondan Joystick   Tank Cleaning
Previous names
Comments This vessel is provided with the first "flexible" bulk system installed in a supply vessel and the first Voith Schneider propulsion fitted to a supply vessel.

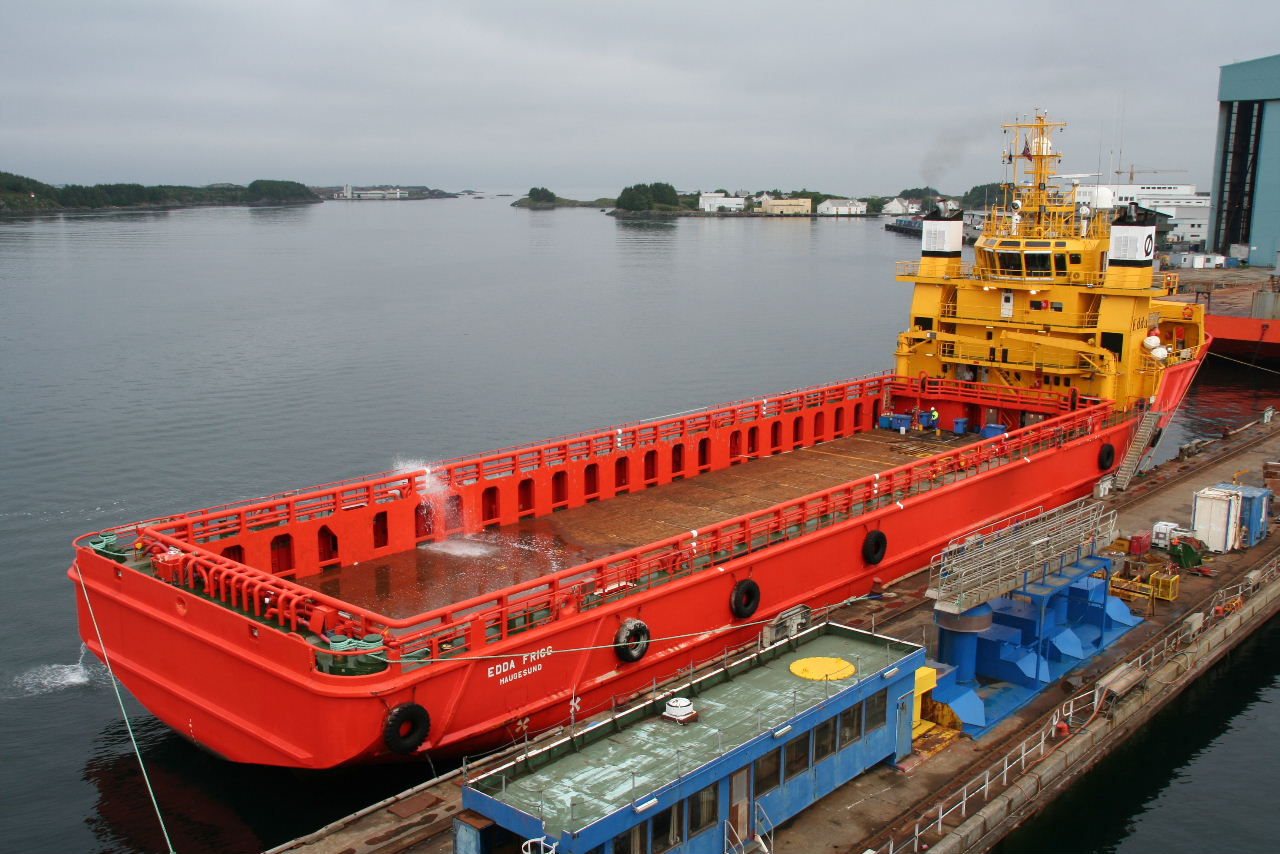

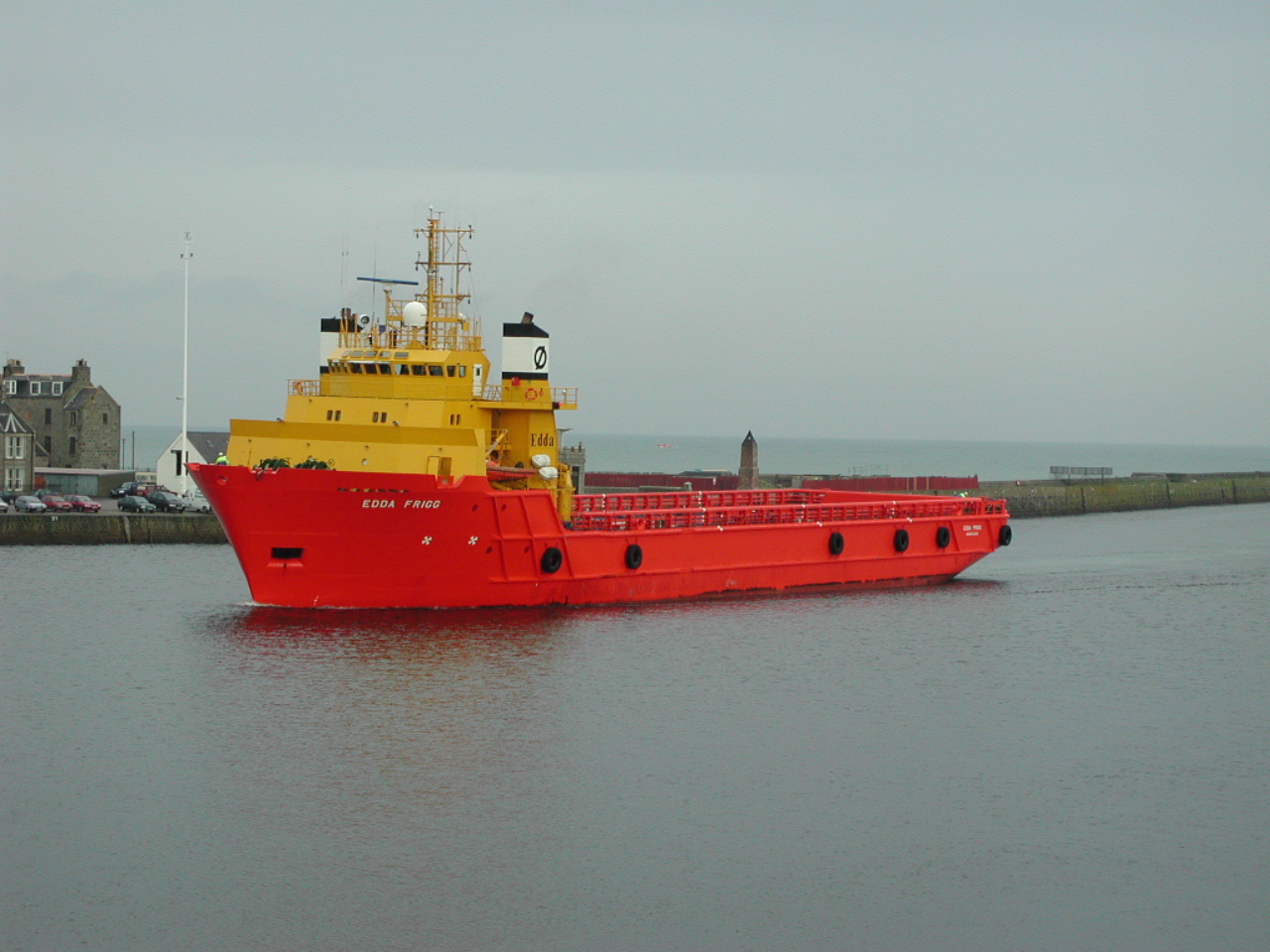

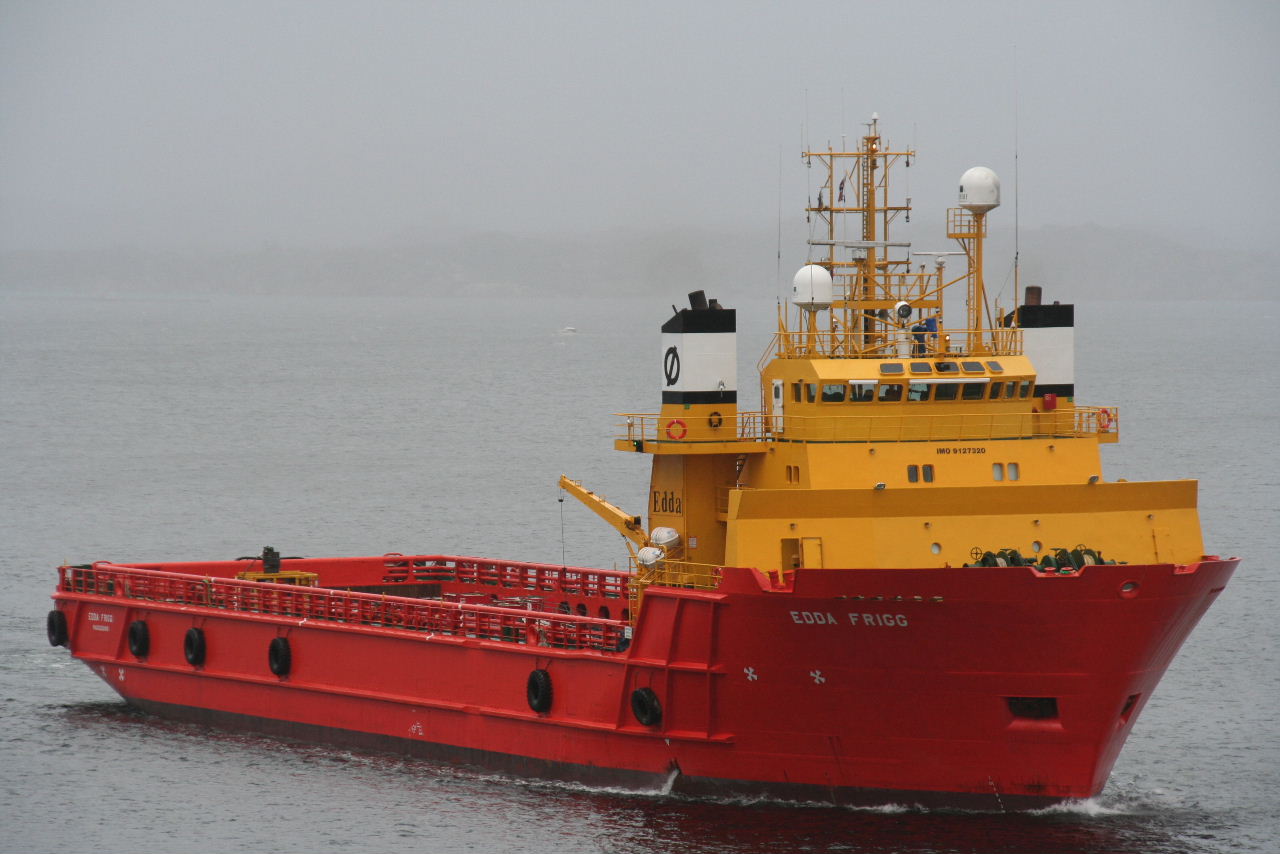

TYPE: name: Edda Frigg PHOTO: George Craigen, Jan Plug
General Propulsion Cargo Capacity
Length OA 84.0 m Engines 2 x Wartsila 8L32 Fuel 1048 m3
Breadth 18.7 m BHP/kW 9600/7060 Pot water 1005 m3
DWT 4200 t For'd Thrusters 2 x 1200 bhp Mud 703 m3
Deck area 906 m2 Az Thrusters - Base oil 164 m3
    Aft Thrusters 2 x 1000 bhp Brine 719 m3
Year built 1997 DPII Yes Dry bulk 283 m3
Shipyard Brattvaag Joystick Yes Tank Cleaning
Previous names
Comments

DISPOSALS

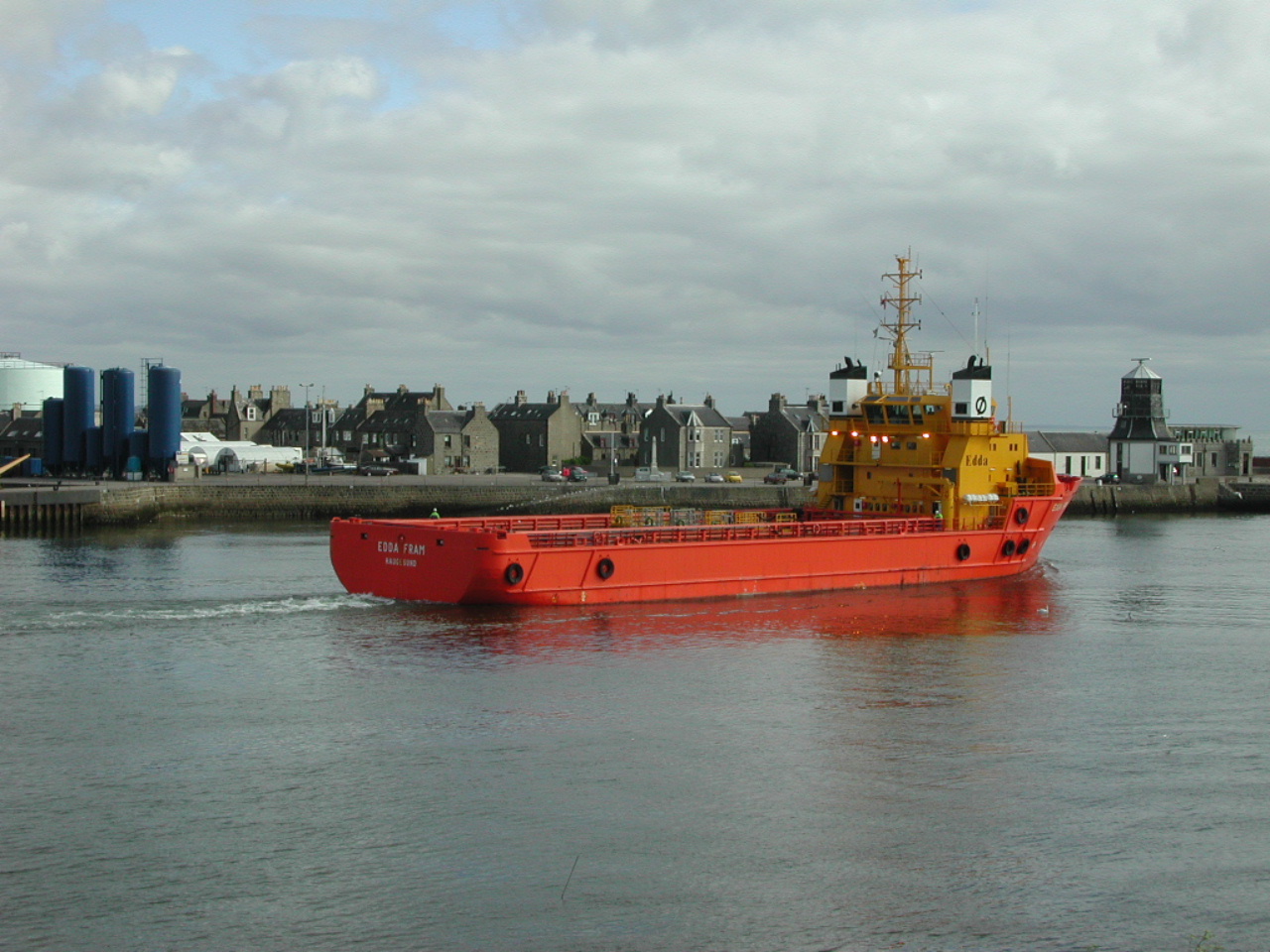

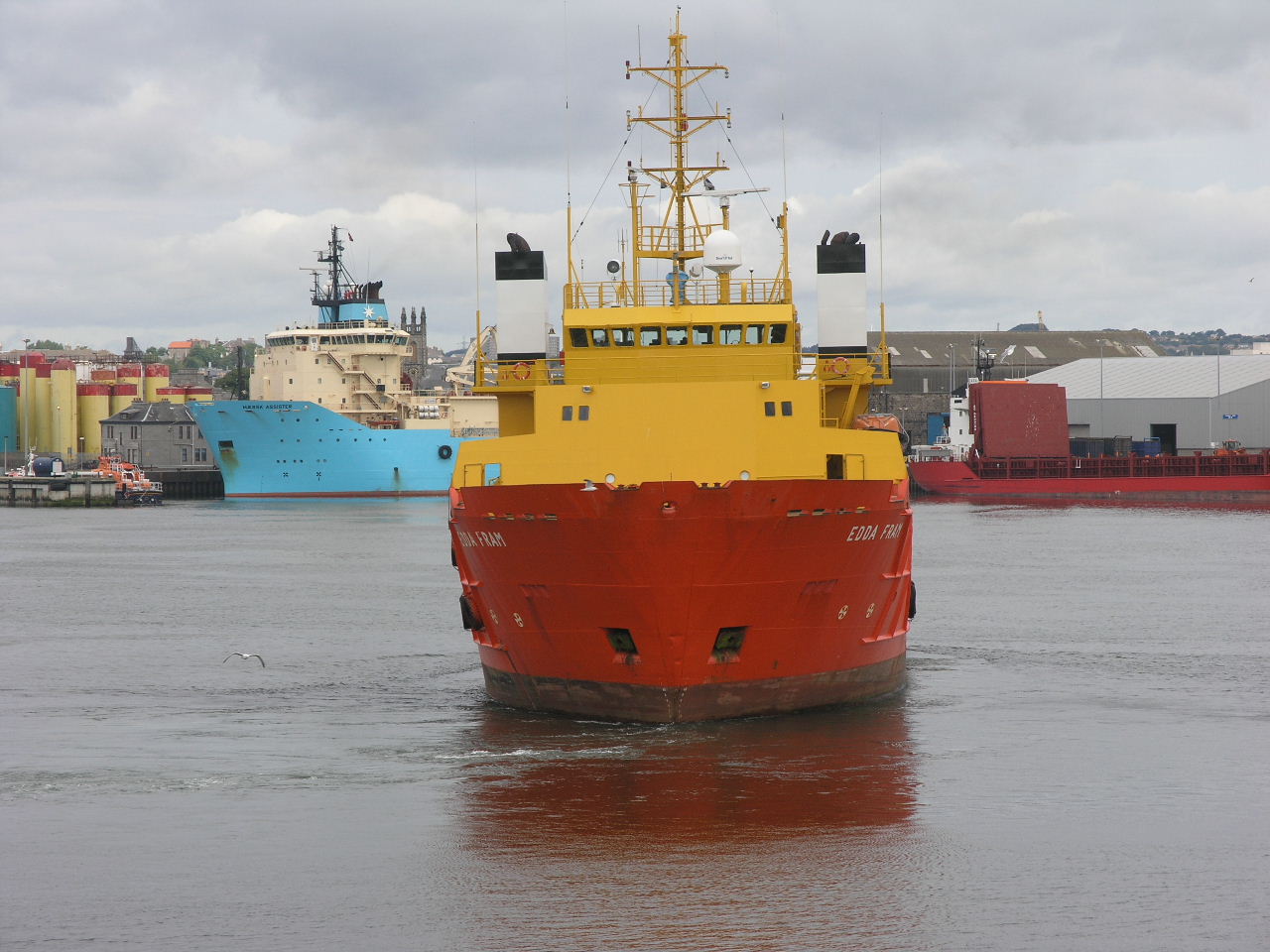

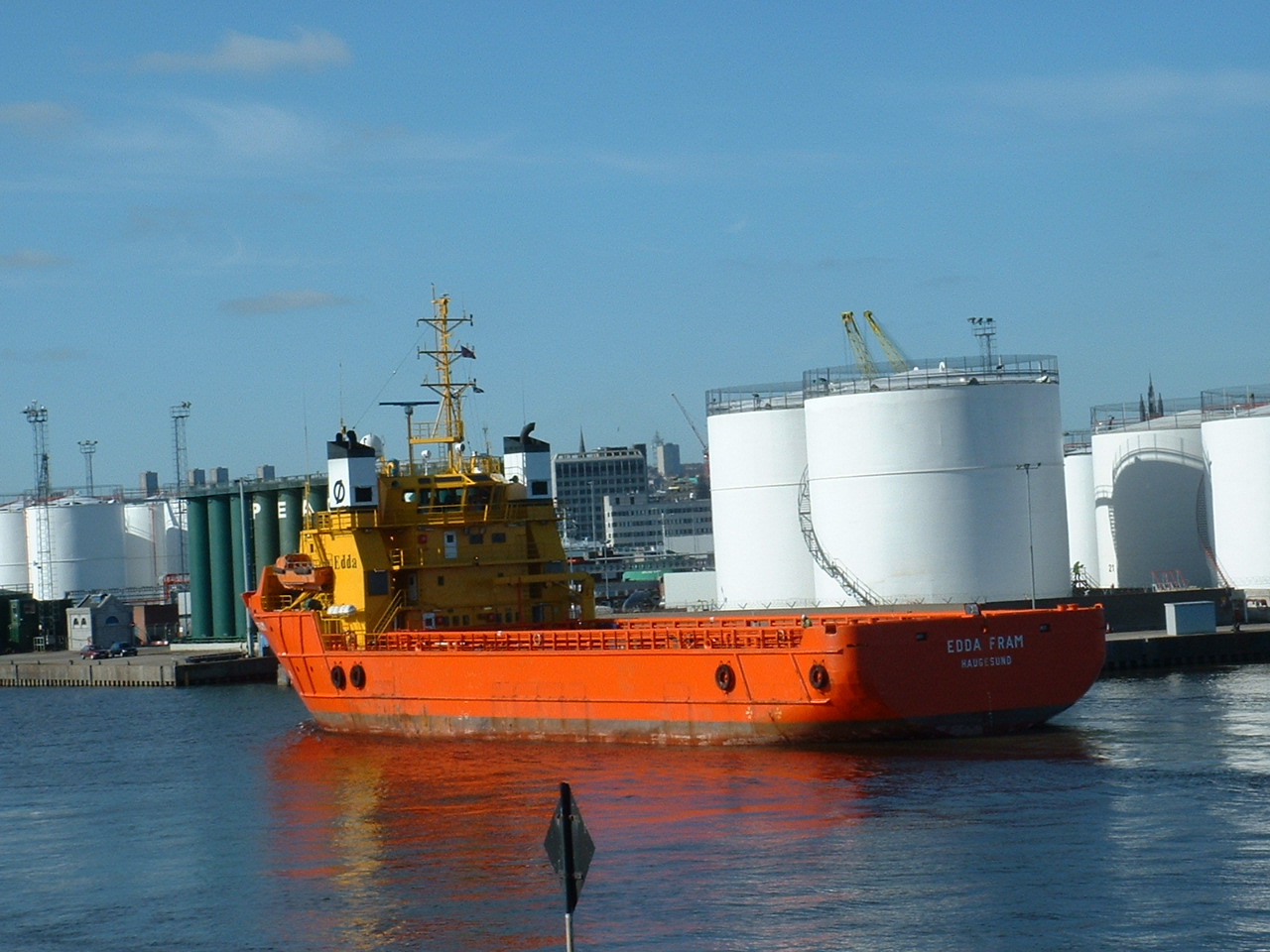

TYPE: name: EDDA FRAM PHOTO: George Craigen, Vic Gibson
General Propulsion Cargo Capacity
Length OA 71.3 m Engines 2 x Wartsila Fuel 1084 m3
Breadth 17.5 m BHP 6115 Pot water
DWT 3200 t For'd Thrusters 2 x Liaaen Mud 371 m3
Deck area 609 m2 Aft Thrusters 2 x Liaaen Base oil
    Joystick Simrad ADP100 Brine
Year built 1987 DP   Dry bulk 283 m3
Shipyard Liaaen Tank Cleaning
Previous names
Comments Sold to Astrea Shipping, managed by Assodivers.

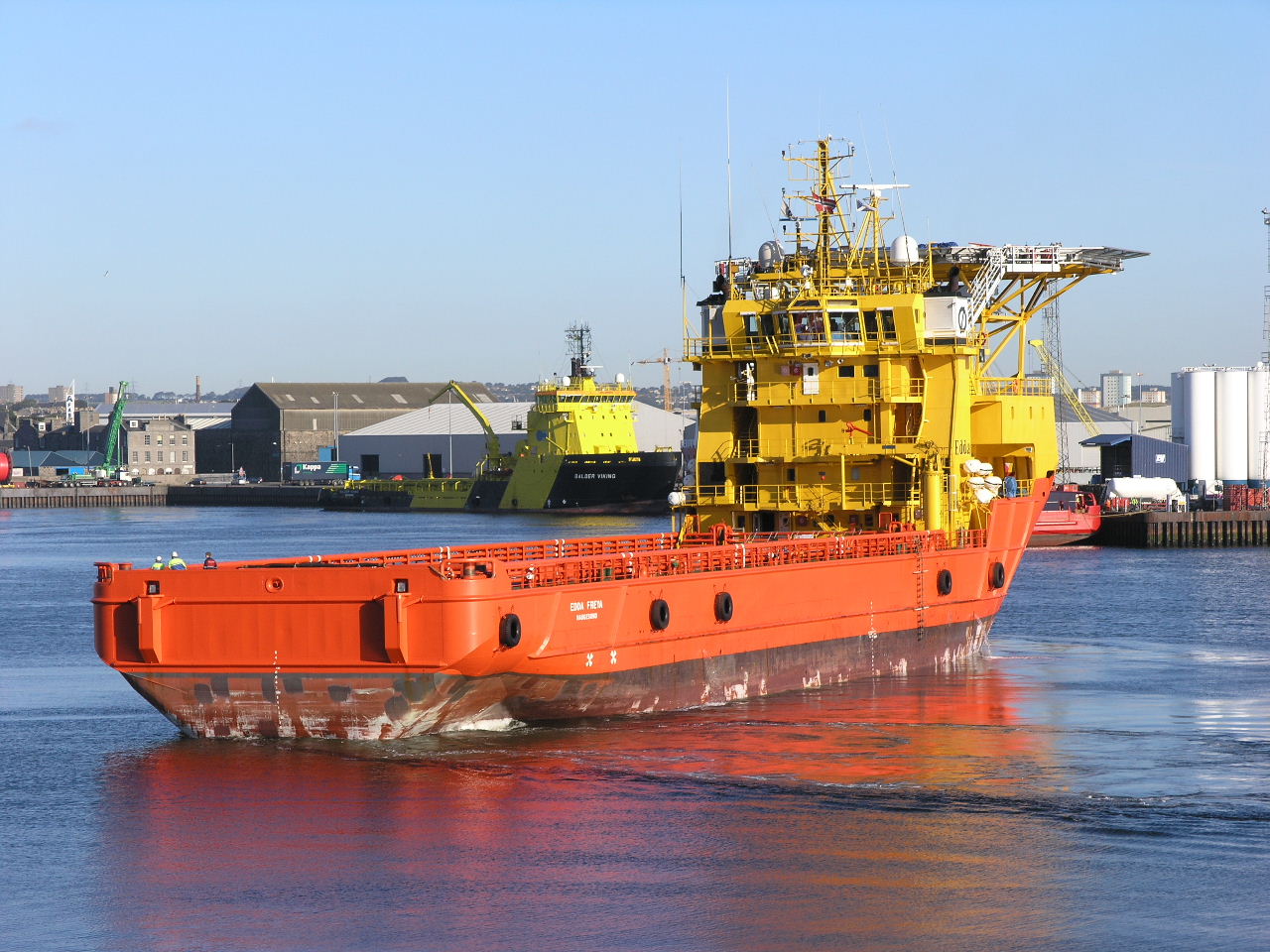

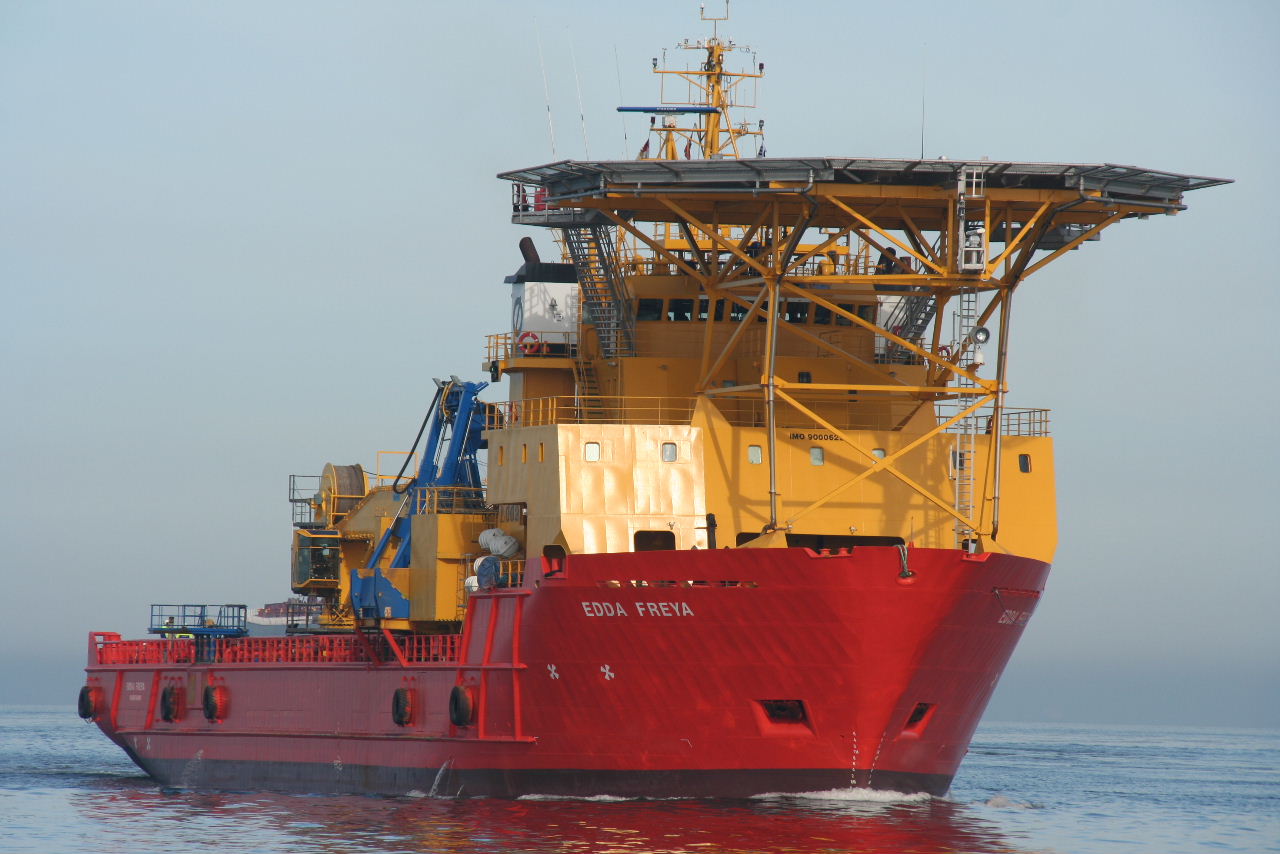

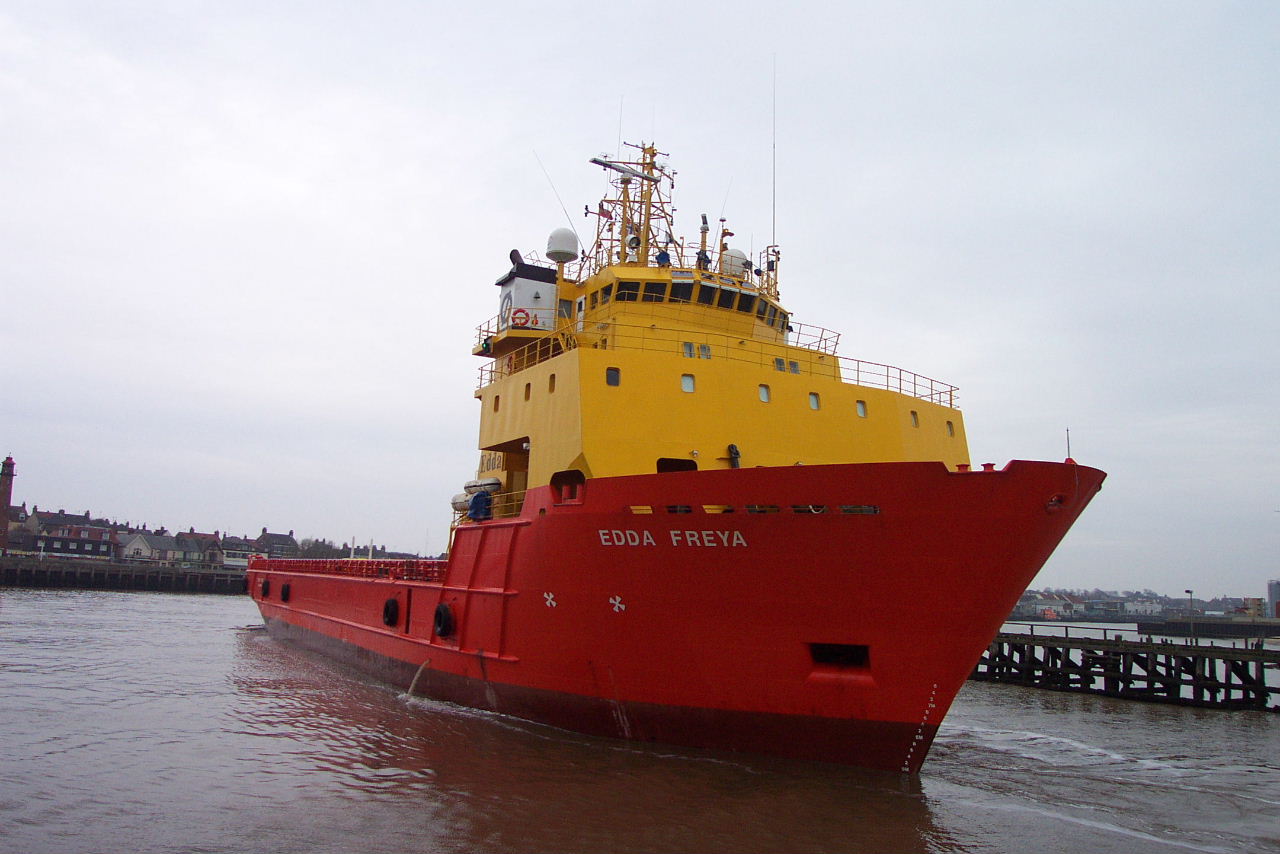

TYPE: name: Edda Freya PHOTO: Peter Taylor, Jan Plug, George Craigen
General Propulsion Cargo Capacity
Length OA 87.1 m Engines 2 x Bergen BRM6 Fuel 811 m3
Breadth 17.5 m BHP/kW 6600/4850 Pot water 1235 m3
DWT 3493 t For'd Thrusters 2 x 1000 bhp Mud 603 m3
Deck area 818 m2 Az Thrusters - Base oil -
    Aft Thrusters 2 x 800 bhp Brine 561 m3
Year built 1991 DPII Kongsberg SD21 Dry bulk 286 m3
Shipyard Ulstein Verft Joystick Yes Tank Cleaning
Previous names
Comments This vessel involved in construction and fitted with an ROV and a 40 t crane, also a helideck. Obviously is can revert to being a PSV if necessary.
At the end of March 2013 this vessel reported as being sold to the BARD group for $20 million.



TYPE: name: Edda Sprint PHOTO: Jan Plug

General Propulsion Cargo Capacity
Length OA 87.1 m Engines 2 x Bergen BRM6 Fuel 811 m3
Breadth 17.5 m BHP/kW 6600/4850 Pot water 1235 m3
DWT 3750 t For'd Thrusters 2 x 1000 bhp Mud 603 m3
Deck area 818 m2 Az Thrusters - Base oil -
    Aft Thrusters 2 x 800 bhp Brine 606 m3
Year built 1991 DPI Simrad ADP 700 Dry bulk 286 m3
Shipyard Ulstein Verft Joystick Yes Tank Cleaning
Previous names Edda Frende
Comments According to the DNV site this ship is still owned by Ostenjo but it does not appear on their fleet list. 2014 sold to Gippsland Marine Holdings and renamed Tek-Ocean Spirit
