VIKING SUPPLY SHIPS

This company was set up by B&N a Swedish Company and Viking, a Norwegian Company to build and market three sisterships as icebreakers and support vessels. They are intended to break ice in the winter and handle anchors in the summer.

We are going to update this site into the new format if B&N Viking build any more ships. No sign so far.

The company took on the AH San Fruttuoso in Dec 2004 with an option to purchase in March 2006. This ship became Odin Viking

As of February 2007 B&N Viking had become Viking Supply Ships, but we are not quite sure when. However they had also spawned an offshore company "Trans Viking" which has ordered a ship.

In November 2006 SBS became a subsidiary of Viking Supply Ships, but we will keep then separate until they appear in stripes.

In late 2010 a Swedish shipping company called "TransAtlantic" acquired all the shares in Trans Viking, but the commercial name of the offshore company appears to remain as "Viking Supply Ships", so that's what we will continue to call them.

Despite some internal differences on the Viking Website, it appears that they have now absorbed SBS and so this group of platform ships are shown here as well. May 2012.

At the time of the 2013 review it could be seen that there had been no changes to the fleet. Nor were there any at the 2014 review although the names of all but one of the ex SBS ships had been changed.

Updated 23rd October 2014.

SHIP TYPE

NOW

ORDERED



AHTS Under 10000 bhp - -
AHTS 10000bhp to 20000bhp 8 -
AHTS 20000 bhp and over - -
Seismic ships - -
Heavy lift ships - -
Pipelayers - -
IMR ships - -
PSVs deck less than 1000 m2 5 -
PSVs deck 1000 m2 + - -
SBSs/ERRVs - -

ANCHOR HANDLERS

TYPE: KMAR 808 NAME: TOR VIKING II PHOTO: Vic Gibson, James Pottinger
General Propulsion Deck Equip
Length OA 83.7 m Engines 4 x MAK Workdrum pull 400 tonnes
Breadth 18 m BHP 18300 bhp Capacity 1 4100m x 83mm
DWT 3000 tonnes For'd Thruster 1 x 1200 bhp Capacity 2
Deck area 603 m2 Az Thruster 1 x 1200 bhp Towdrum pull 400 tonnes
Fuel 1190 m3 Aft Thrusters 1 x 1200 bhp Capacity 1 1900m x 77mm
Pot water 724 m3 Bollard pull 200 tonnes Capacity 2 1900m x 77mm
Mud 657 m3 DP   Sharks Jaw 2 x Karmfork
Base oil 242 m3 Joystick yes Cranes 2 cranes
Brine 400 m3 Year built 2000 Tank Cleaning Toftjorge
Dry bulk 283 m3 Berths - Shipyard Kvaerner Leirvik
Previous names
Comments
Charter ENL Available 15.6.15 Location Port Kholmsk

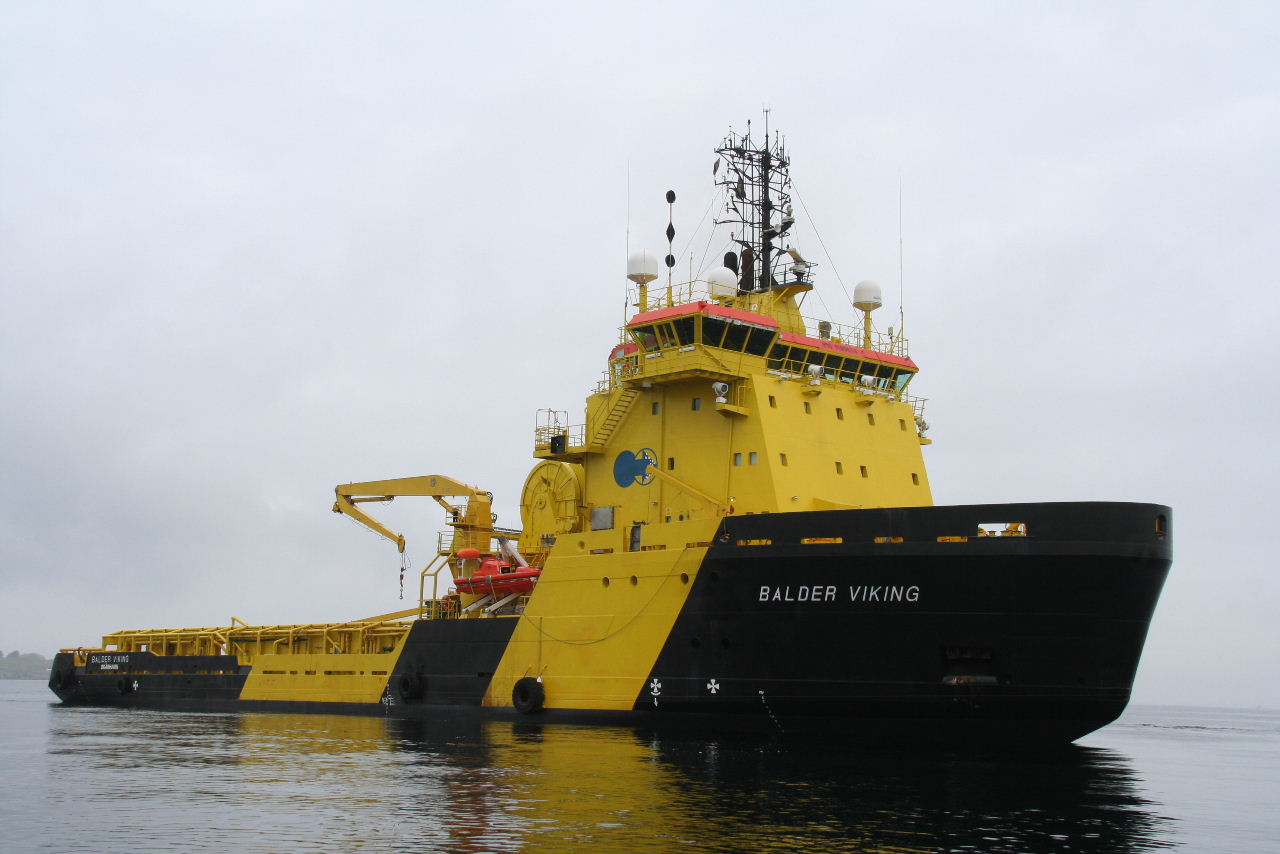

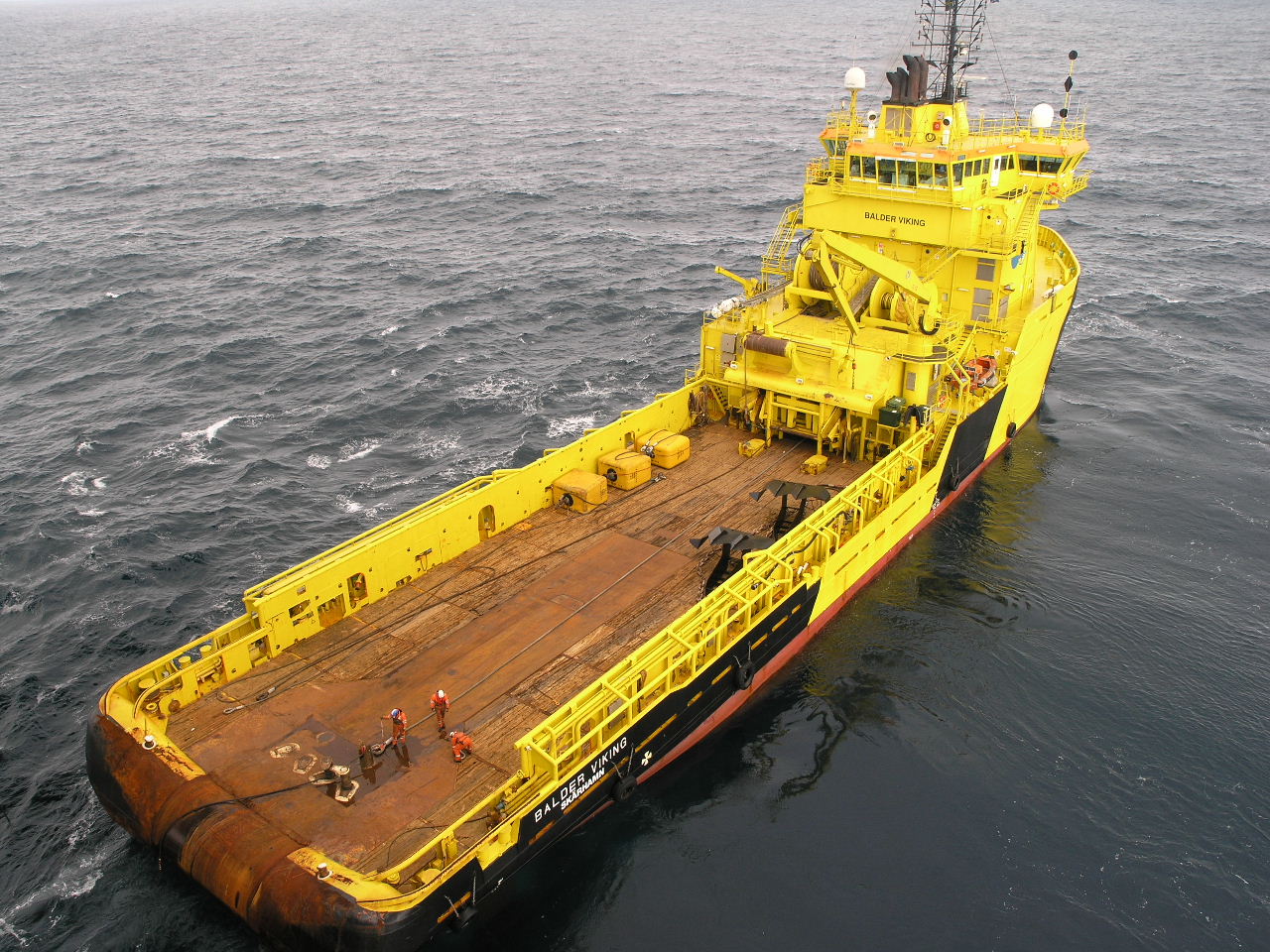

TYPE: KMAR808 NAME: BALDER VIKING PHOTO: Jan Plug, Bart Trondsen, Vic Gibson
General Propulsion Deck Equip
Length OA 83.7 m Engines 4 x MAK Workdrum pull 400 tonnes
Breadth 18 m BHP 18300 bhp Capacity 1 4100m x 83mm
DWT 3000 tonnes For'd Thruster 1 x 1200 bhp Capacity 2
Deck area 603 m2 Az Thruster 1 x 1200 bhp Towdrum pull 400 tonnes
Fuel 1190 m3 Aft Thrusters 1 x 1200 bhp Capacity 1 1900m x 77mm
Pot water 724 m3 Bollard pull 200 tonnes Capacity 2 1900m x 77mm
Mud 657 m3 DP   Sharks Jaw 2 x Karmfork
Base oil 242 m3 Joystick yes Cranes 2 cranes
Brine 400 m3 Year built 2000 Tank Cleaning Toftjorge
Dry bulk 283 m3 Berths - Shipyard Kvaerner Leirvik
Previous names
Comments
Charter Karmorneftegaz Available 21.10.14 Location Egersund

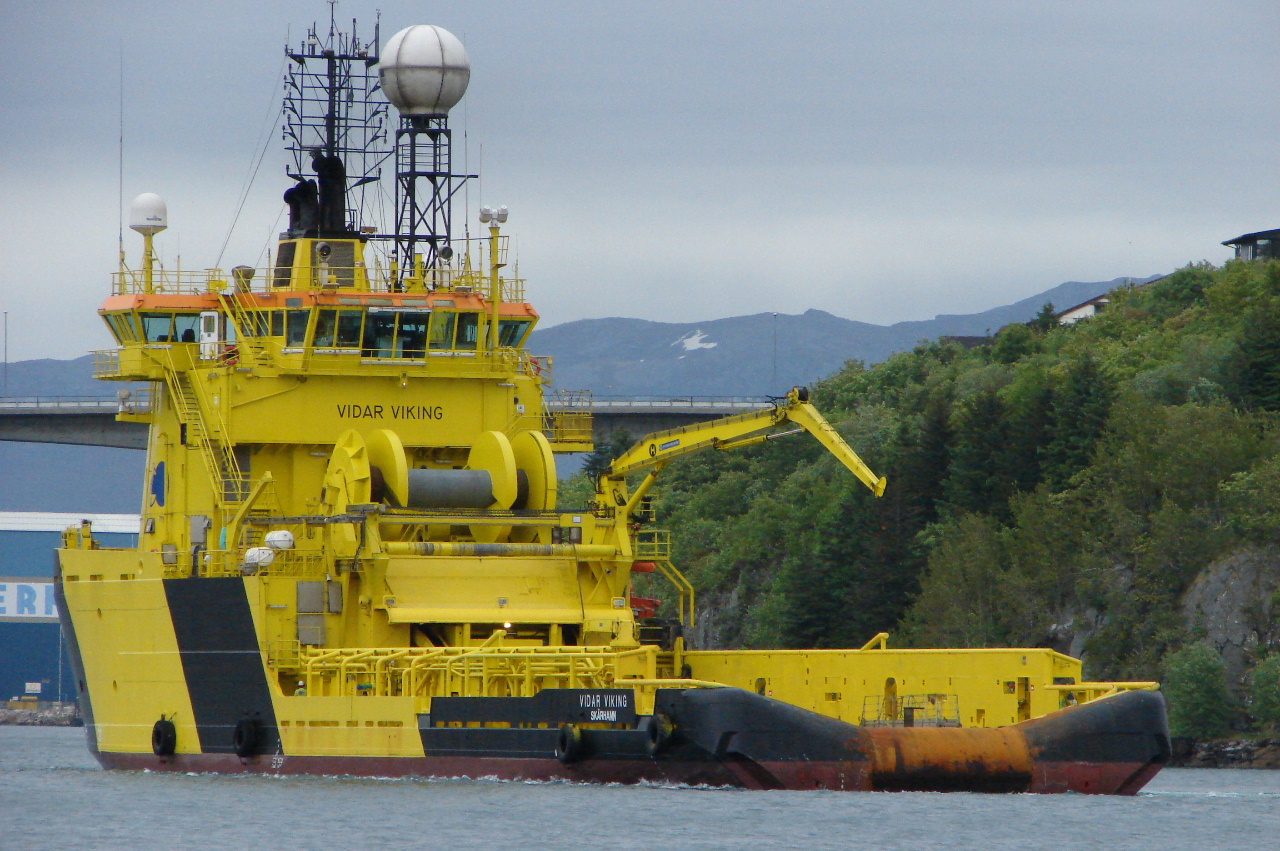

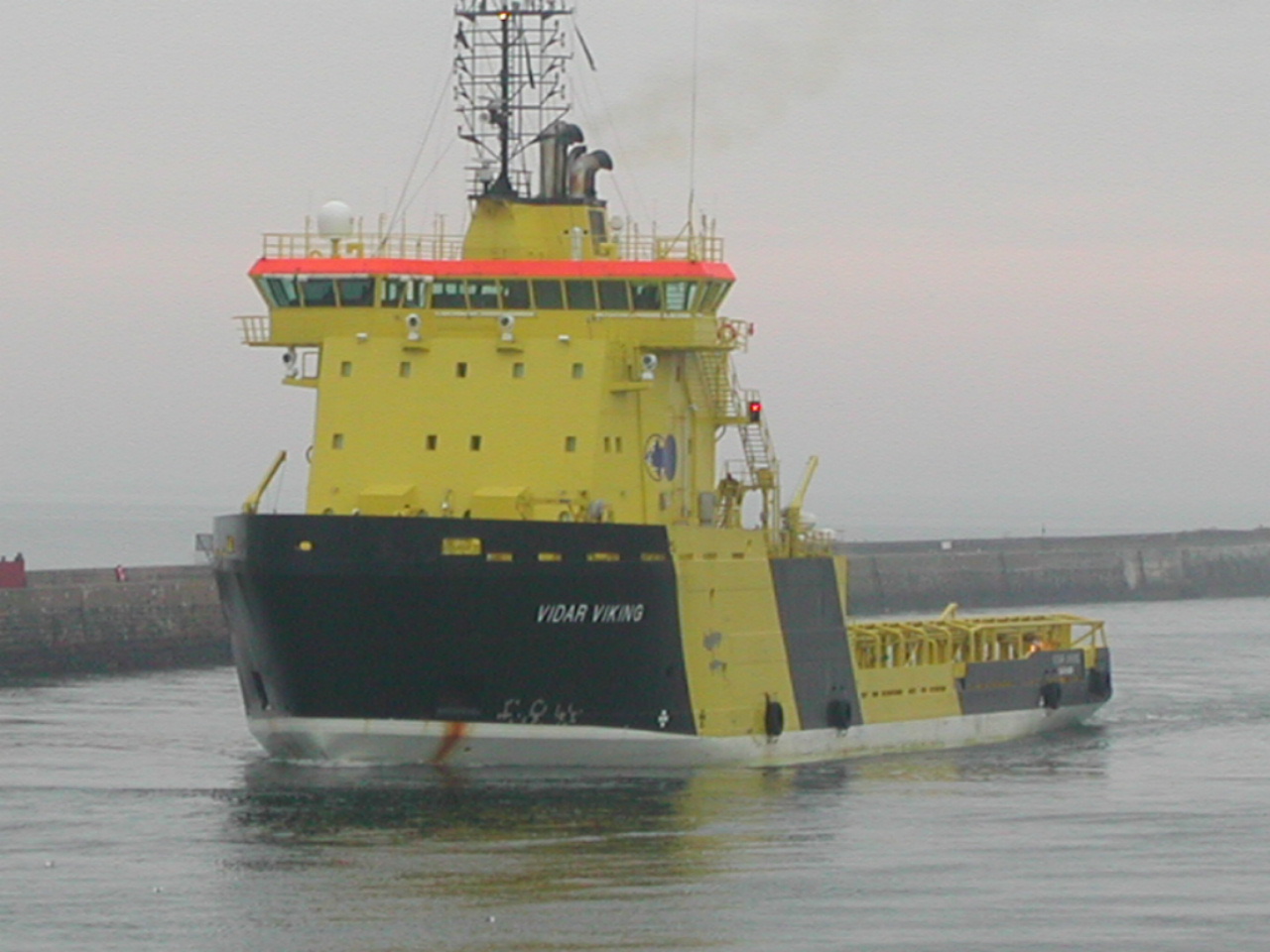

TYPE: KMAR808 NAME: VIDAR VIKING PHOTO: Jan Plug, Vic Gibson, George Craigen
General Propulsion Deck Equip
Length OA 83.7 m Engines 4 x MAK Workdrum pull 400 tonnes
Breadth 18 m BHP 18300 bhp Capacity 1 4100m x 83mm
DWT 3000 tonnes For'd Thruster 1 x 1200 bhp Capacity 2
Deck area 603 m2 Az Thruster 1 x 1200 bhp Towdrum pull 400 tonnes
Fuel 1190 m3 Aft Thrusters 1 x 1200 bhp Capacity 1 1900m x 77mm
Pot water 724 m3 Bollard pull 200 tonnes Capacity 2 1900m x 77mm
Mud 657 m3 DP   Sharks Jaw 2 x Karmfork
Base oil 242 m3 Joystick yes Cranes 2 cranes
Brine 400 m3 Year built 2001 Tank Cleaning Toftjorge
Dry bulk 283 m3 Berths - Shipyard Kvaerner Leirvik
Previous names
Comments
Charter Sakhalin Energy Available 1.4.15 Location Port Kholmsk

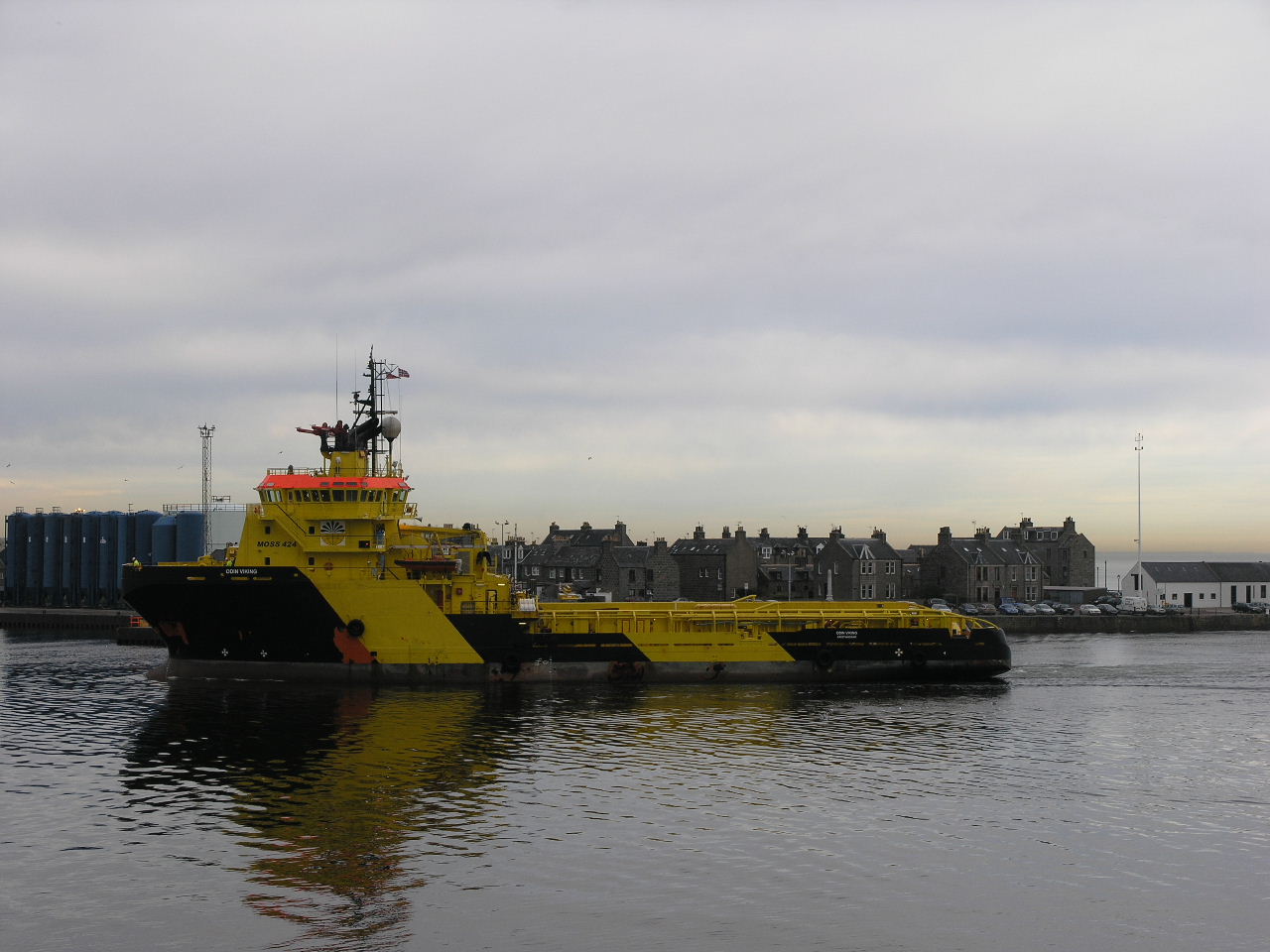

TYPE: MOSS 424 NAME: ODIN VIKING PHOTO: George Craigen, Vic Gibson

General Propulsion Deck Equip
Length OA 73.85m Engines 4 x MAK Workdrum pull
Breadth 16.9m BHP 15,560 Capacity 1 5490m x 77mm
DWT 2869t For'd Thruster 1 x 1200 bhp Capacity 2
Deck area 560m2 Az Thruster 1 x 1200 bhp Towdrum pull 550t
Fuel 1131m3 Aft Thrusters 1 x 1200 bhp Capacity 1 1900m x 77mm
Pot water 796m3 Bollard pull 180t Capacity 2 1900m x 77mm
Mud 587m3     Sharks Jaw
Base oil   DP Simrad Cranes 1 x 8.3t, 1 x 1.5t
Brine   Joystick Simrad Tank Cleaning Toftjorge
Dry bulk 220m3 Year built 2003 Shipyard Kvaerner Leirvik
Previous names AH San Fruttuoso
Comments
Charter Prosafe Available 29.10.14 Location Aberdeen

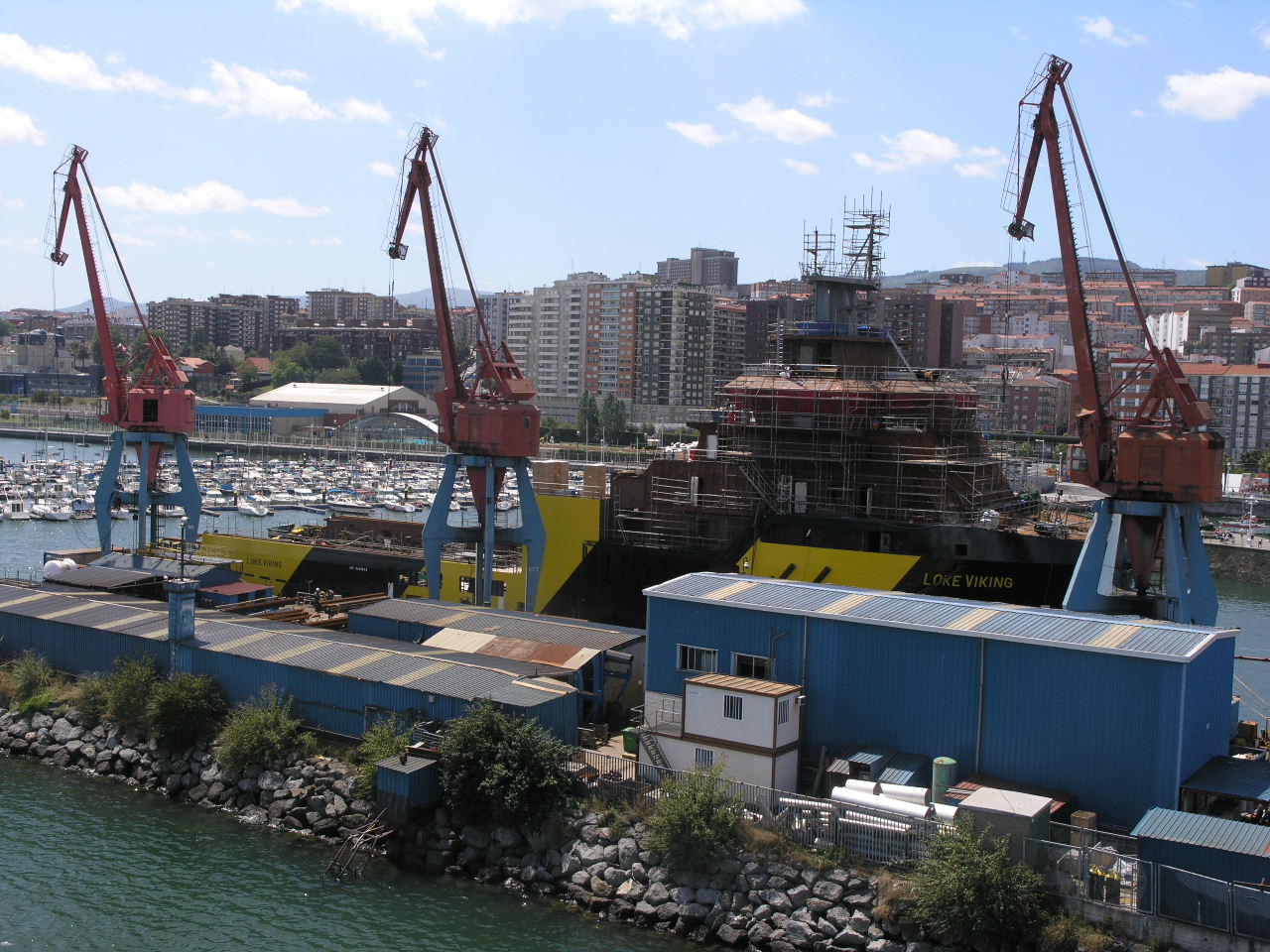

  TYPE: VS 4622 NAME: LOKE VIKING   PHOTO: Vic Gibson


GENERAL

PROPULSION

EQUIPMENT

Length OA 85.2 m Engines 4 x MAK Workdrum pull 400 t
Breadth 22.0 m BHP 19040 Capacity 1 4500m x 84mm
DWT 4500 t kW 14000 Capacity 2 -
Deck area 750 m2 For'd Thruster 2 x 830 kW Towdrum pull 400 t
Fuel 1960 m3 Az Thruster 1 x 830 kW Capacity 1 1732m x 84mm
Pot water 1250 m3 Aft Thrusters 2 x 830 kW Capacity 2 2760m x 84mm
Mud 965 m3 Bollard pull 210 t Sharks Jaw -
Brine 821 m3 DP - Cranes -
Dry bulk 240 m3 Joystick - Tank cleaning -
Year built 2010 Shipyard Ast. Zamakona Berths -
Previous names -
Comments -
Charter Prosafe Available 27.10.14 Location Aberdeen



  TYPE: VS 4622 NAME: NJORD VIKING   PHOTO: Vic Gibson


GENERAL

PROPULSION

EQUIPMENT

Length OA 85.2 m Engines 4 x MAK Workdrum pull 400 t
Breadth 22.0 m BHP 19040 Capacity 1 4500m x 84mm
DWT 4500 t kW 14000 Capacity 2 -
Deck area 750 m2 For'd Thruster 2 x 830 kW Towdrum pull 400 t
Fuel 1960 m3 Az Thruster 1 x 830 kW Capacity 1 1732m x 84mm
Pot water 1250 m3 Aft Thrusters 2 x 830 kW Capacity 2 2760m x 84mm
Mud 965 m3 Bollard pull 210 t Sharks Jaw -
Brine 821 m3 DP - Cranes -
Dry bulk 240 m3 Joystick - Tank cleaning -
Year built 2011 Shipyard Ast. Zamakona Berths -
Previous names -
Comments -
Charter ENI N Available 1.8.15 Location Stavanger

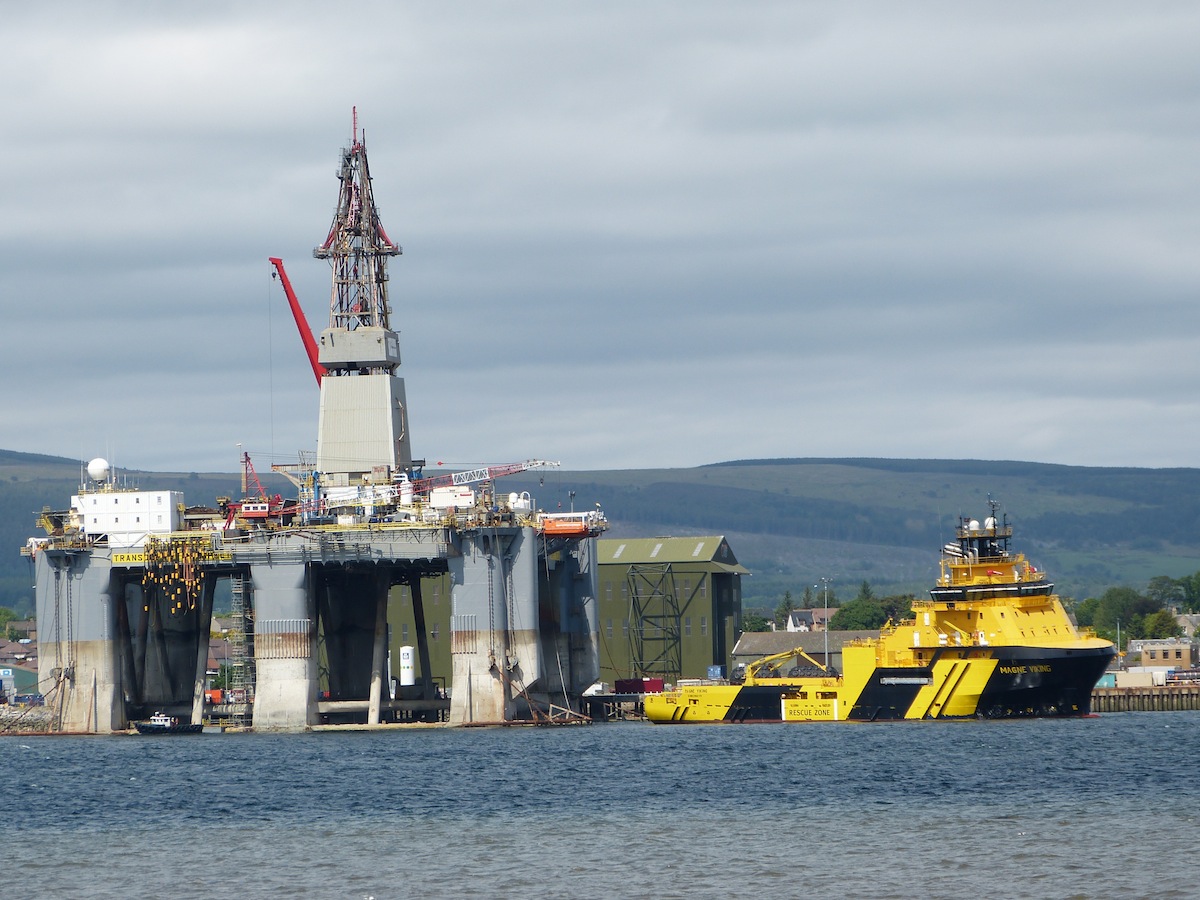

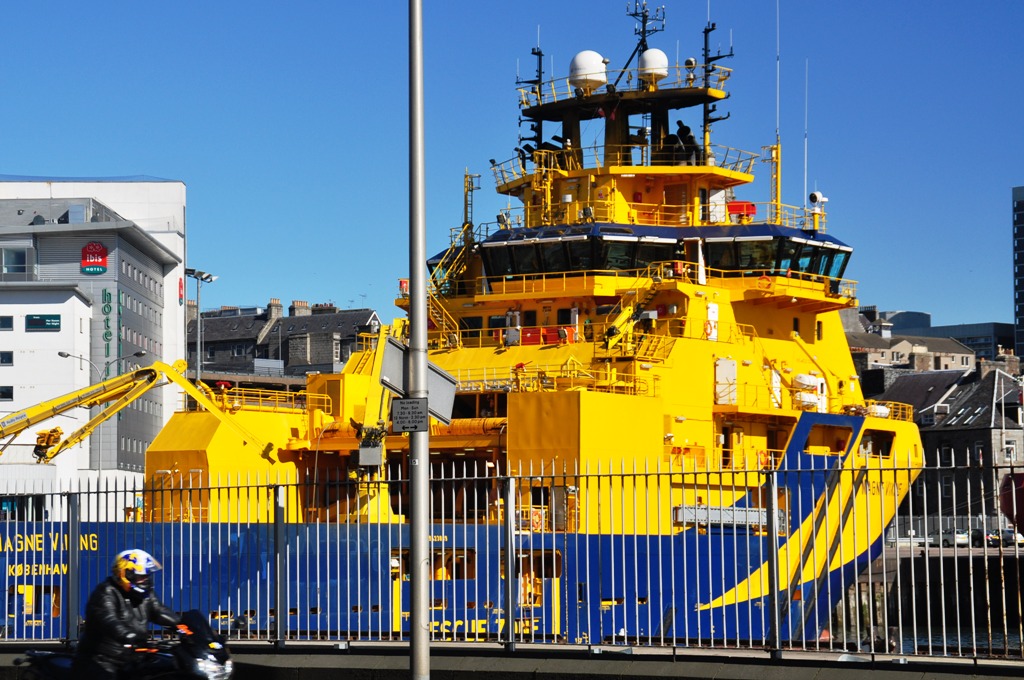

  TYPE: VS 4622 NAME: MAGNE VIKING   PHOTO: Vic Gibson, Alistair Morton

GENERAL

PROPULSION

EQUIPMENT

Length OA 85.2 m Engines 4 x MAK Workdrum pull 400 t
Breadth 22.0 m BHP 19040 Capacity 1 4500m x 84mm
DWT 4500 t kW 14000 Capacity 2 -
Deck area 750 m2 For'd Thruster 2 x 830 kW Towdrum pull 400 t
Fuel 1960 m3 Az Thruster 1 x 830 kW Capacity 1 1732m x 84mm
Pot water 1250 m3 Aft Thrusters 2 x 830 kW Capacity 2 2760m x 84mm
Mud 965 m3 Bollard pull 210 t Sharks Jaw -
Brine 821 m3 DP - Cranes -
Dry bulk 240 m3 Joystick - Tank cleaning -
Year built 2011 Shipyard Ast. Zamakona Berths -
Previous names -
Comments -
Charter karmorneftegaz Available 21.10.14 Location Stavanger



  TYPE: VS 4622 NAME: BRAGE VIKING   PHOTO: Glenn Thomas


GENERAL

PROPULSION

EQUIPMENT

Length OA 85.2 m Engines 4 x MAK Workdrum pull 400 t
Breadth 22.0 m BHP 19040 Capacity 1 4500m x 84mm
DWT 4500 t kW 14000 Capacity 2 -
Deck area 750 m2 For'd Thruster 2 x 830 kW Towdrum pull 400 t
Fuel 1960 m3 Az Thruster 1 x 830 kW Capacity 1 1732m x 84mm
Pot water 1250 m3 Aft Thrusters 2 x 830 kW Capacity 2 2760m x 84mm
Mud 965 m3 Bollard pull 210 t Sharks Jaw -
Brine 821 m3 DP - Cranes -
Dry bulk 240 m3 Joystick - Tank cleaning -
Year built 2012 Shipyard Ast. Zamakona Berths -
Previous names -
Comments -
Charter Prosafe Available 27.10.14 Location Aberdeen



PLATFORM SHIPS

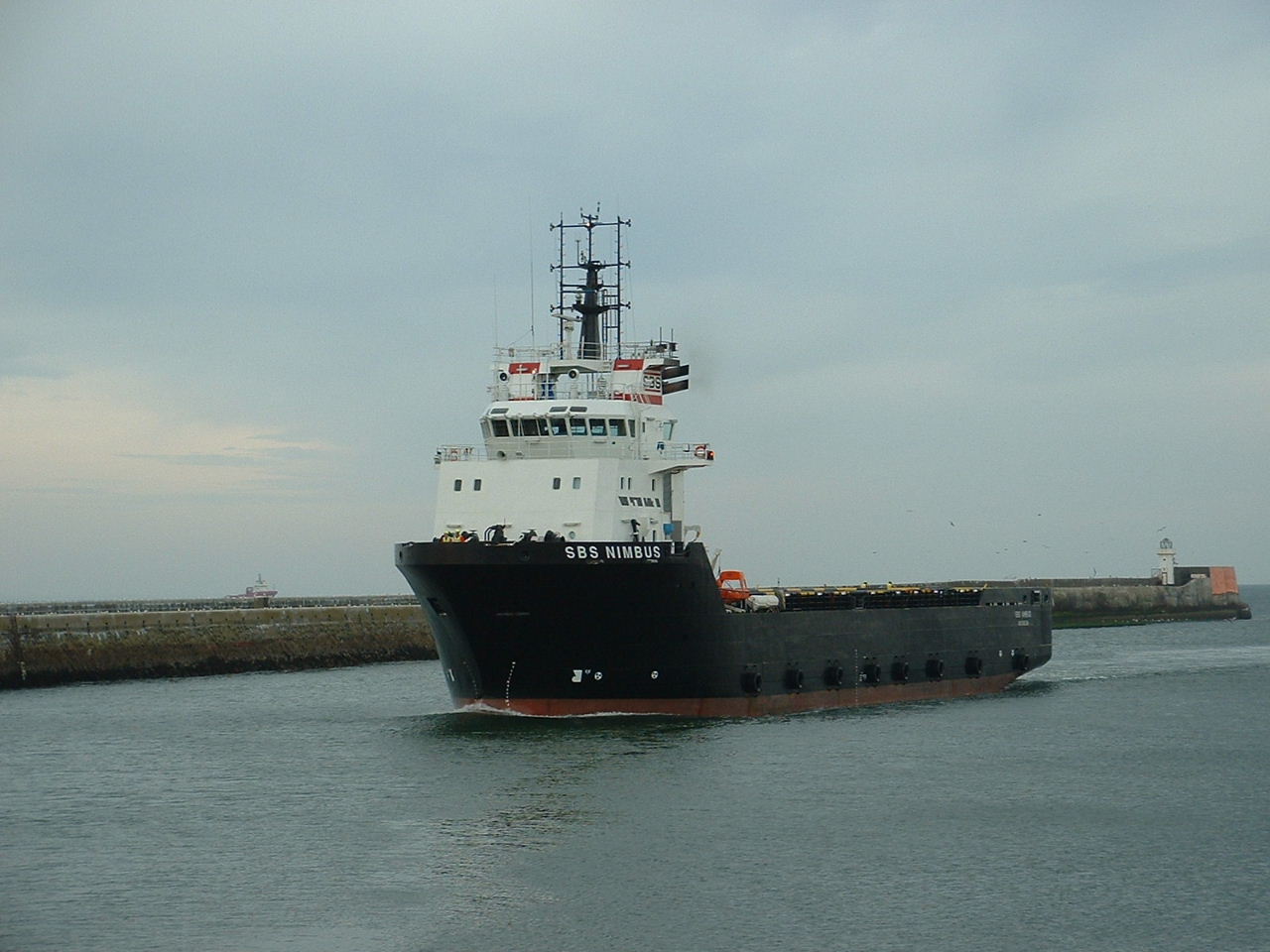

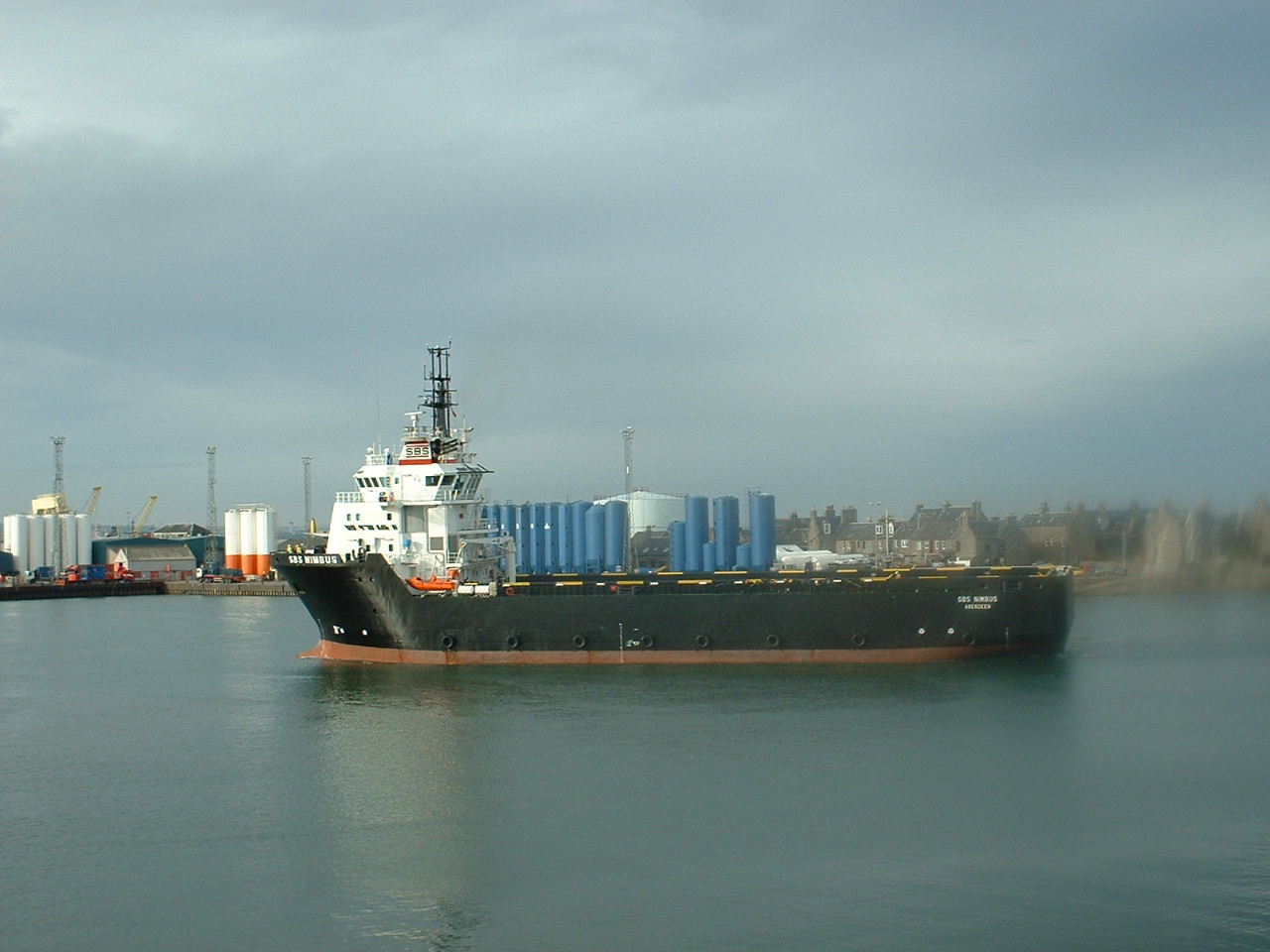

TYPE: VS 470 Mk II NAME: Frigg Viking Photo: Vic Gibson
GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines 2 X Cat 3606 Fuel   1109 mt
Breadth 16.6 m BHP/kW 5460/4014 Pot water   912 mt
DWT 3800 tonnes For'd Thrusters 2 x 800 bhp Mud   1071 m3
Deck area 710 m3 Az Thruster   Base oil   214 m3
    Aft Thrusters 2 x 800 bhp Brine
Year built 2005 Joystick Yes Dry bulk   371 m3
Shipyard  Karmsund DP No Tank Cleaning   ?
Previous names SBS Nimbus
Comments -
Charter Premier Available 23.10.14 Location Aberdeen

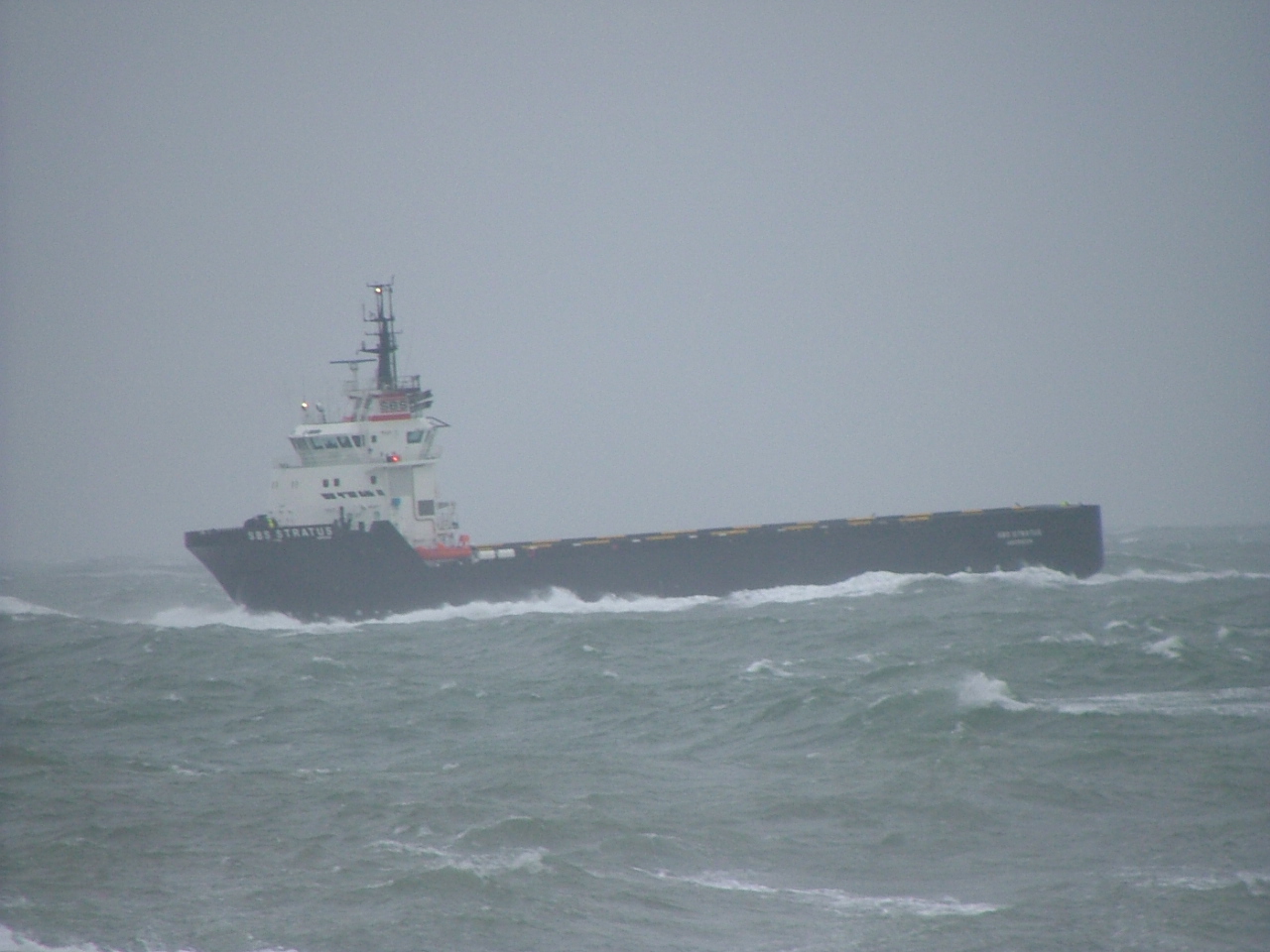

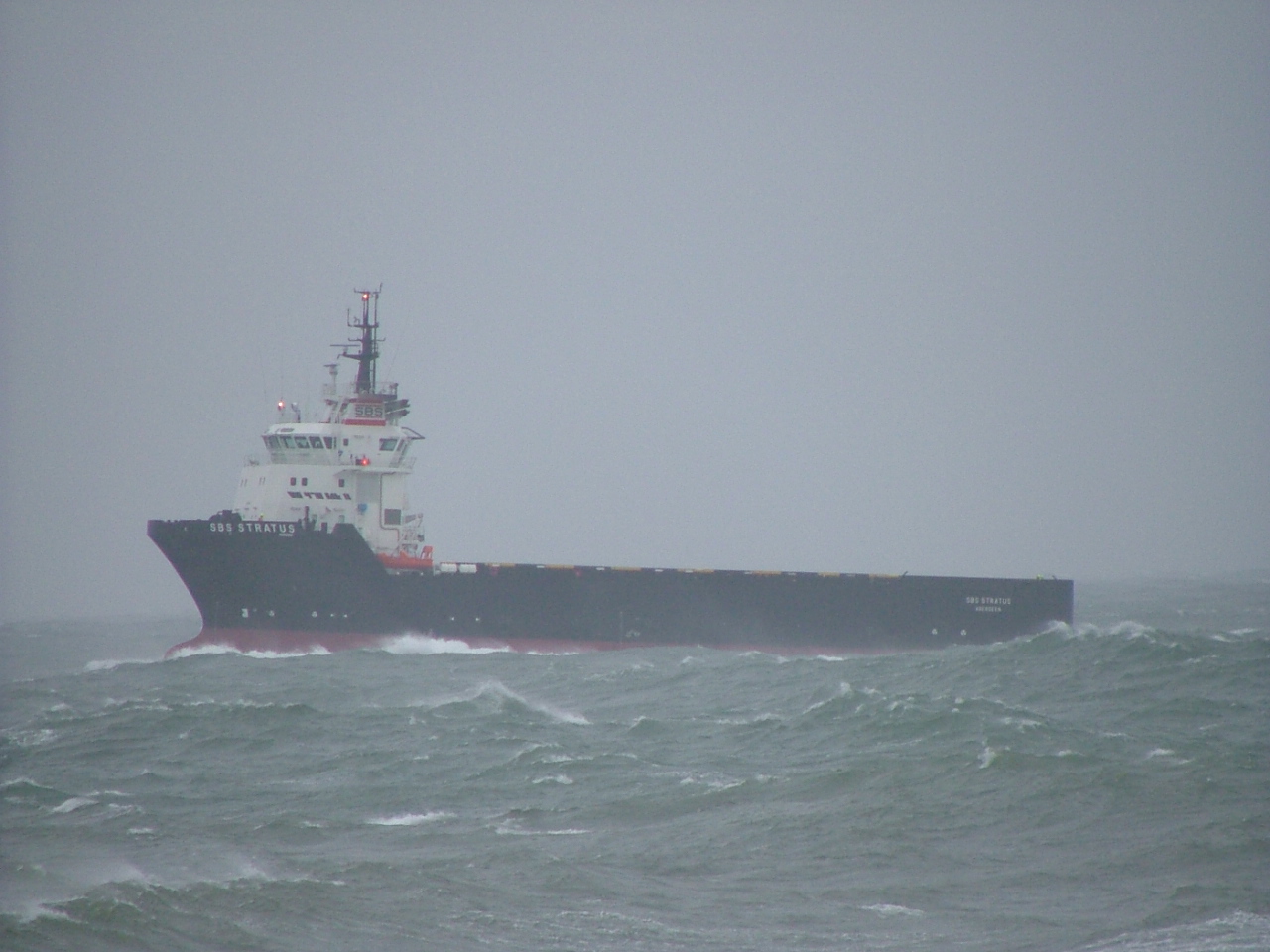

TYPE: VS 470 Mk II NAME: Idun Viking Photo: ??

GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines 2 X Cat 3606 Fuel   1109 mt
Breadth 16.6 m BHP/kW 5460/4014 Pot water   912 mt
DWT 3800 tonnes For'd Thrusters 2 x 800 bhp Mud   1071 m3
Deck area 710 m3 Az Thruster   Base oil   214 m3
    Aft Thrusters 2 x 800 bhp Brine
Year built 2005 Joystick Yes Dry bulk   371 m3
Shipyard  Karmsund DP No Tank Cleaning   ?
Previous names SBS Stratus
Comments -
Charter GDF Available 24/10/14 Location Aberdeen

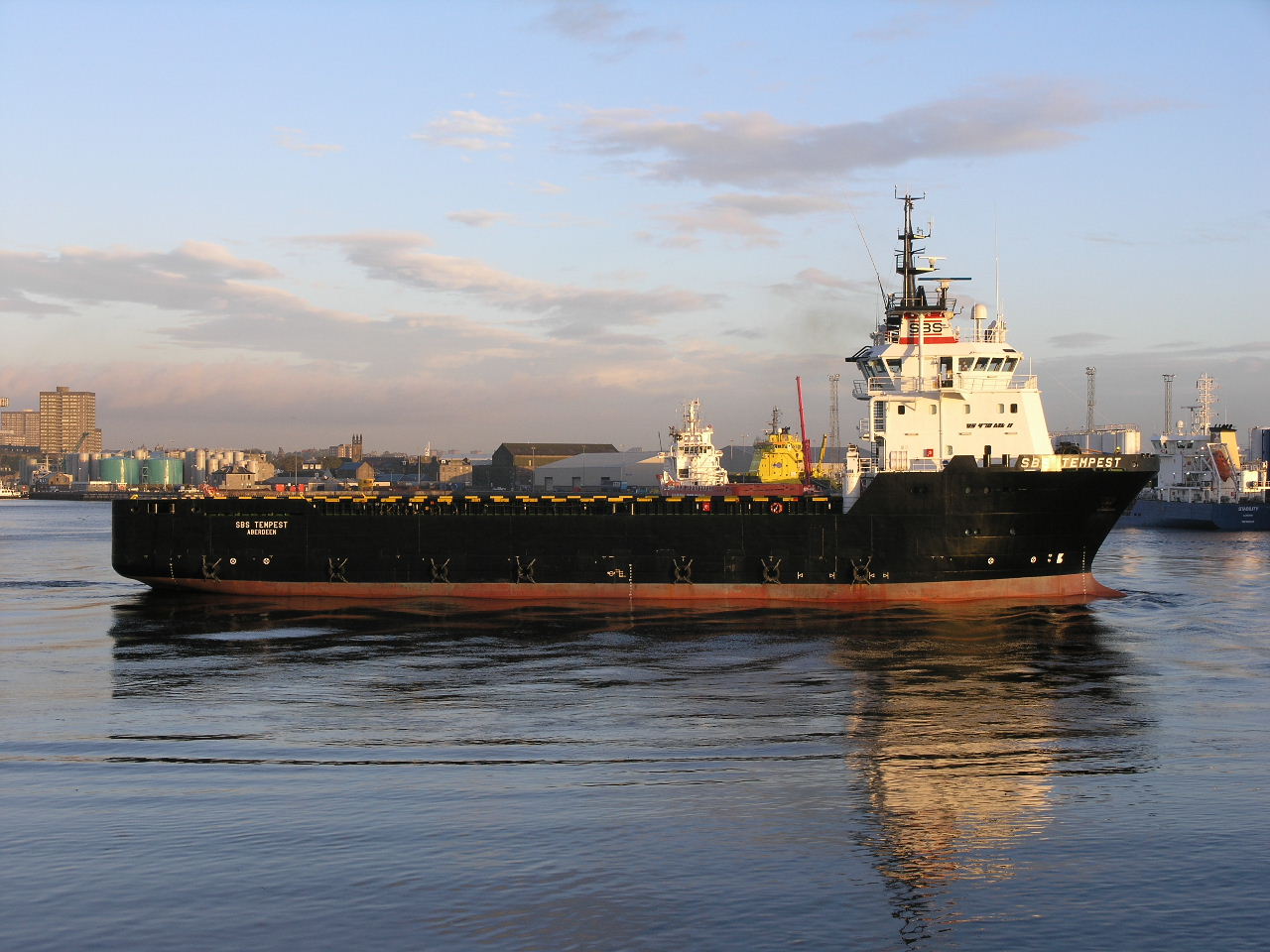

TYPE: VS 470 Mk II NAME: Nanna Viking Photo: Vic Gibson
GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines 2 X Cat 3606 Fuel   1109 mt
Breadth 16.6 m BHP/kW 5460/4014 Pot water   912 mt
DWT 3800 tonnes For'd Thrusters 2 x 800 bhp Mud   1071 m3
Deck area 710 m3 Az Thruster   Base oil   214 m3
    Aft Thrusters 2 x 800 bhp Brine
Year built 2005 Joystick Yes Dry bulk   371 m3
Shipyard  Karmsund DP No Tank Cleaning   ?
Previous names SBS Tempest
Comments -
Charter Enquest Available 26/10/14 Location Aberdeen

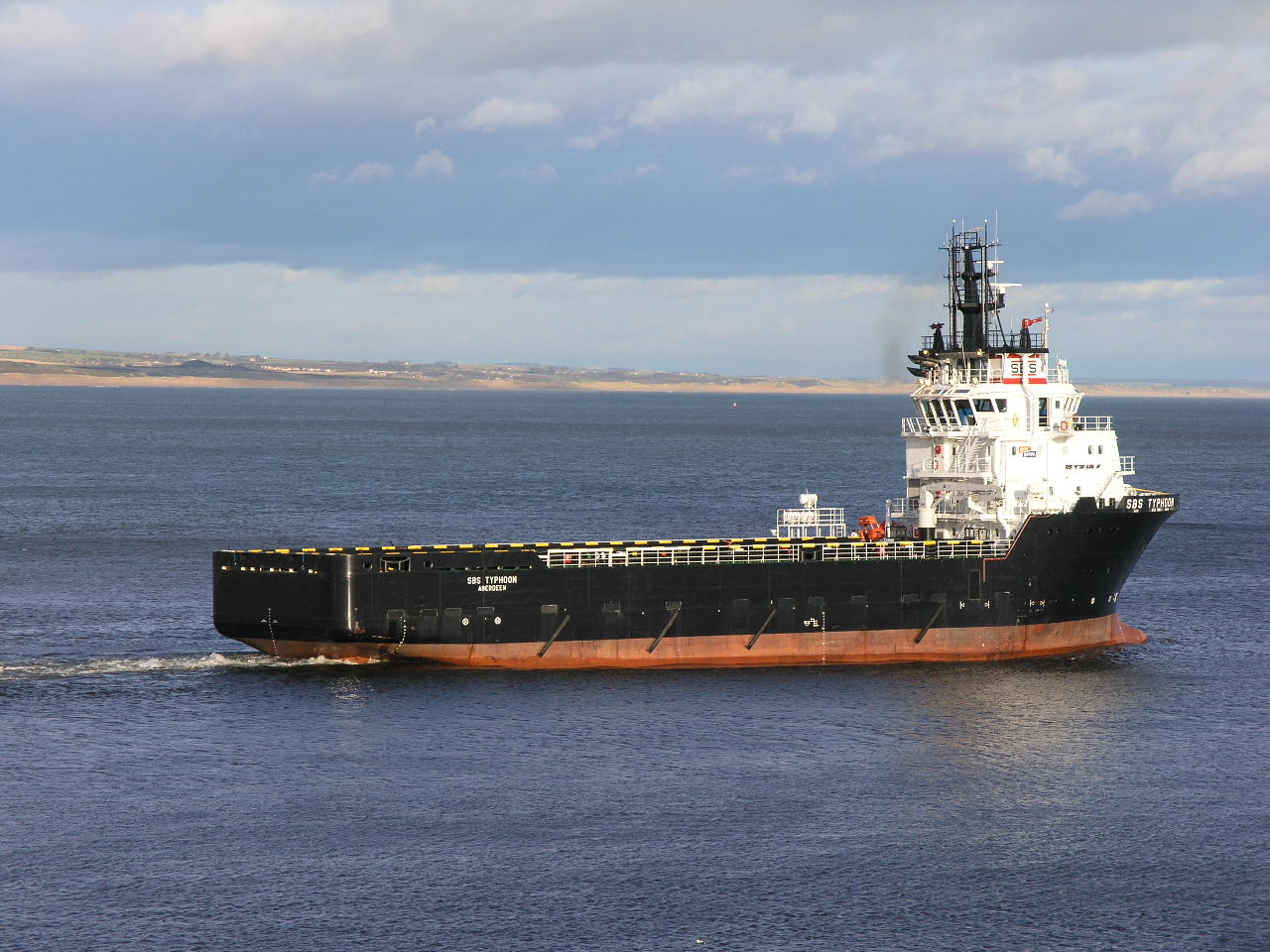

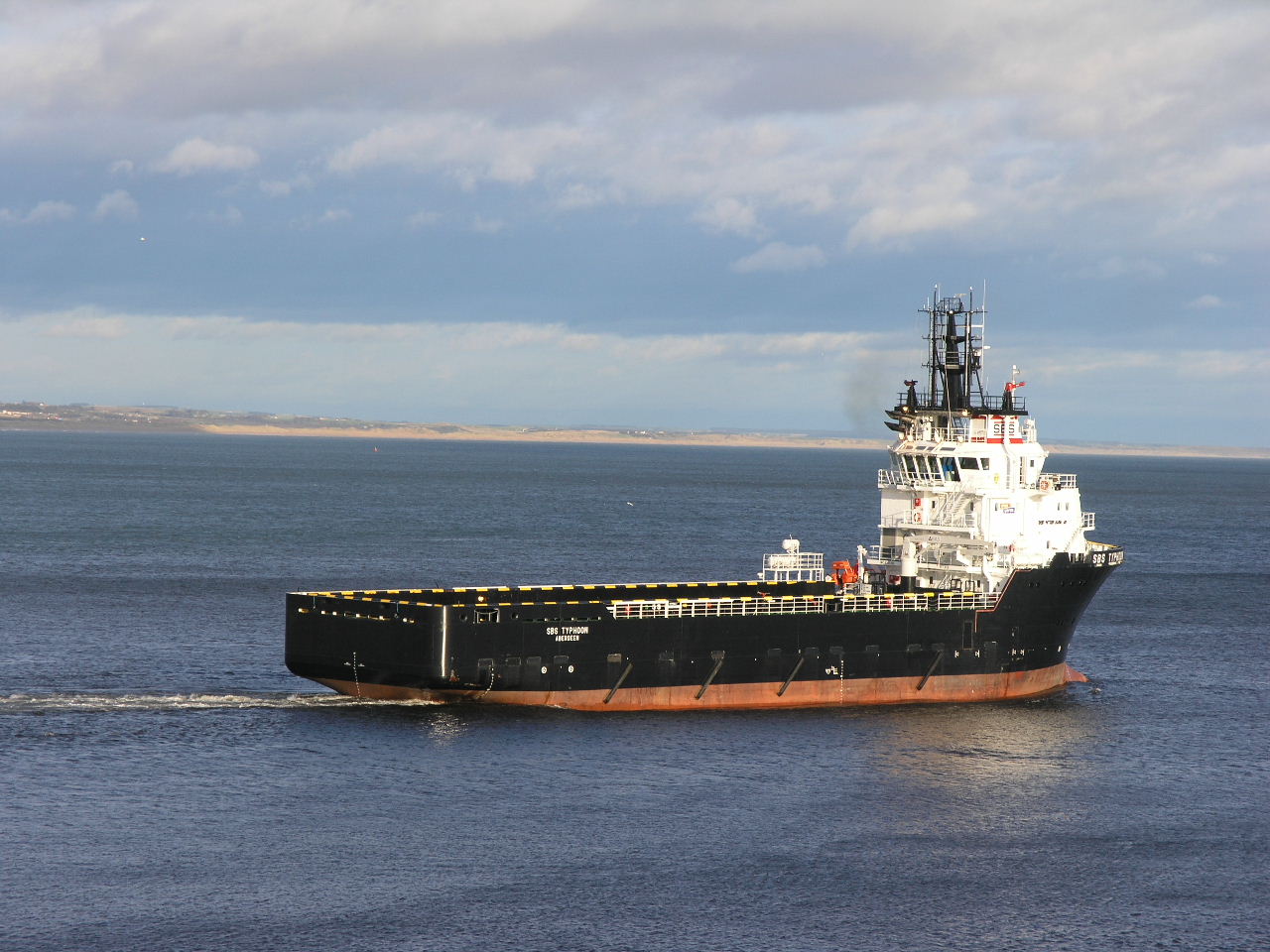

TYPE: VS 470 Mk II NAME: SBS Typhoon Photo: Vic Gibson, David Dodds
GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines 2 X Cat 3606 Fuel   1109 mt
Breadth 16.6 m BHP/kW 5460/4014 Pot water   912 mt
DWT 3800 tonnes For'd Thrusters 2 x 800 bhp Mud   1071 m3
Deck area 710 m3 Az Thruster   Base oil   214 m3
    Aft Thrusters 2 x 800 bhp Brine
Year built 2006 Joystick Yes Dry bulk   371 m3
Shipyard  Karmsund DP No Tank Cleaning   ?
Previous names -
Comments -
Charter None Available 23/10/14 Location Aberdeen



TYPE: VS 470 Mk II NAME: Freyja Viking Photo: Olaf Haga

GENERAL PROPULSION CARGO CAPACITY
Length OA 73.4 m Engines 2 X Cat 3606 Fuel   1109 mt
Breadth 16.6 m BHP/kW 5460/4014 Pot water   912 mt
DWT 3800 tonnes For'd Thrusters 2 x 800 bhp Mud   1071 m3
Deck area 710 m3 Az Thruster   Base oil   214 m3
    Aft Thrusters 2 x 800 bhp Brine
Year built 2007 Joystick Yes Dry bulk   371 m3
Shipyard  Karmsund DP No Tank Cleaning   ?
Previous names SBS Torrent
Comments -
Charter Centrica Available 26/10/14 Location Aberdeen



DISPOSALS

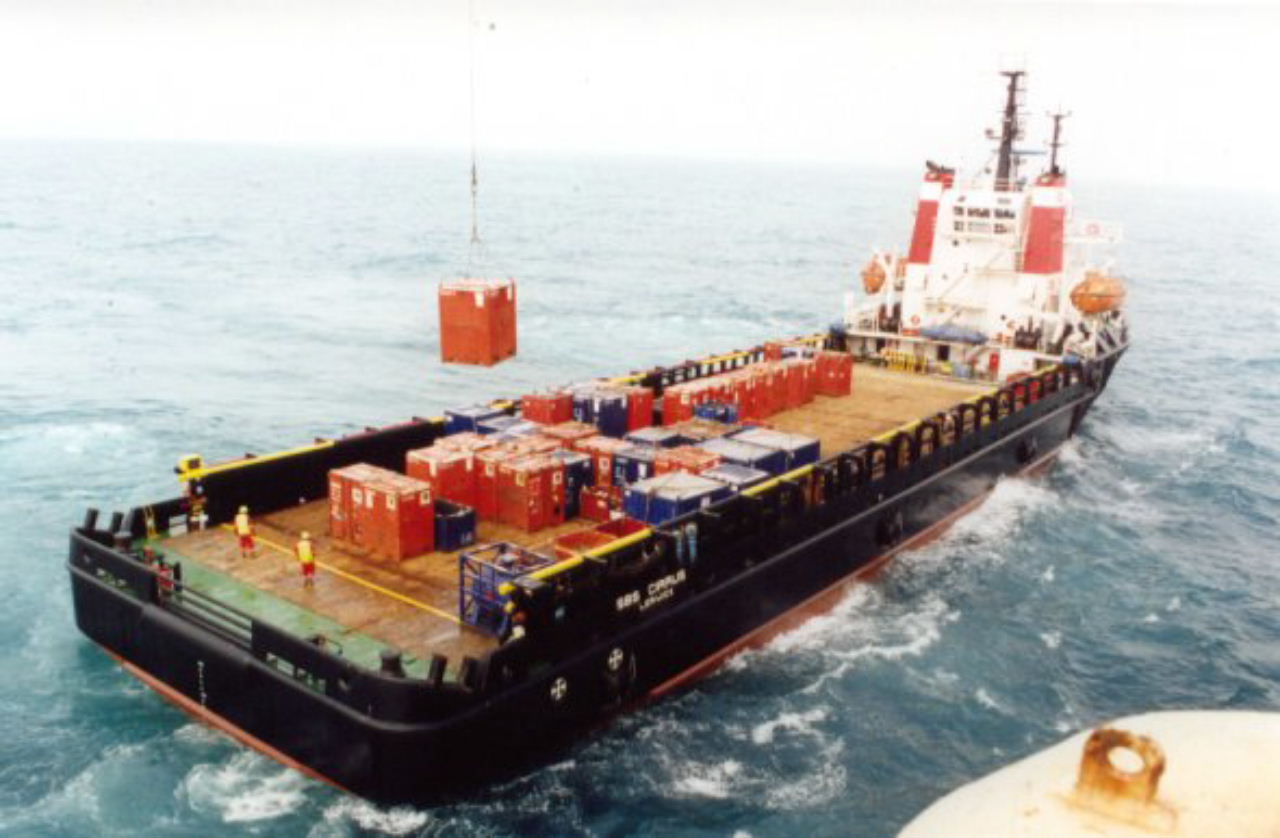

TYPE: UT 705 NAME: SBS Cirrus Photos : Vic Gibson, Derek Mackay
GENERAL PROPULSION CARGO CAPACITY
Length OA 80.77 m Engines 2 x Warsila 6R32 Fuel   500 mt
Breadth 18 m BHP/kW 6120/4500 Pot water   960 mt
DWT 3250 tonnes For'd Thrusters 2 x 1000 bhp Mud   390 m3
Deck area 795.6 m3 Az Thruster   Base oil
    Aft Thrusters 2 x 1000 bhp Brine
Year built 1985 Joystick Yes Dry bulk   336 m3
Shipyard  Liaaen AM DP No Tank Cleaning   ?
Previous names Active Duke
Comments Sold to Diamar Spa but not renamed.
Charter - Available - Location -
