TIDEWATER INC

Tidewater are the largest supply ship operators in the world. The company was founded by Alden J. "Doc" LaBorde, then President of ODECO, the Ocean Drilling and Exploration Company. Doc LaBorde had recently invented the submersible drilling barge which took to the water a year previously, and was developed to enable ODECO to drill in deeper water than had previously been possible. Their first ship the Ebb Tide, was built in Louisiana in 1955.

Tidewater has been through some ups and downs and elsewhere in the world would have been bankrupted at least once, although it was saved in the United States by Chapter 11. Only at the turn of the century did it wake up to the need for larger vessels to work in deeper water under more adverse conditions than are generally found in the shallows off the Mississippi delta, at which time it took swift action, purchasing numbers of European supply vessels and starting a building programme which continues to this day (December 2004).

Even if all the Tidewater vessel information was available on the internet, which it is not, it is unlikely that we would feature all the company vessels. Tidewater have over the years routinely bought other companies and almost randomly sold and laid up ships, and since they do not choose to provide anyone with any information we can only work on what is made available to us from other sources.

We have chosen to feature Tidewater ships for which people have provided us with pictures and maybe one or two others if we know about them. There are wholly owned subsidiaries which include OIL/OSA which has its own page, and Zapata Gulf Marine which also has its own page. Also despite the world wide distribution of the Tidewater fleet the vessels are grouped on the company pages, and the fleet list is confined to the North American presentation.

There is of course much more about Tidewater in "The History of the Supply Ship". For sale on this website.

Because Tidewater do not choose to tell us anything about their vessels, everything here is collected from third party sources, and while the information about new ships could well be valid we are not sure what is happening to the older tonnage, since the company chooses to lay up numerous vessels all over the place. In the bayous they drag them up onto the bank and in the creeks of South America and the Caribbean islands they just raft them up.

In May 2013 Tidewater bought Troms Offshore complete, however it will be left where it is for the time being.

At the 2013 review it was decided to try to sort the fleet out into ship types rather than in alphabetical order, but once more it is pretty well only possible to provide info from other sources and to feature the ships for which we have received photographs.

At the 2015 update we have information and/or photographs of about 80 vessels. It is realised that there are a lot more ships in the fleet, and some of the ones listed are no longer in service, probably. But it is the best we can do, and propbably the best collective information about the Tidewater fleet there is available.

Updated as far as possible 3rd March 2015.

ANCHOR HANDLERS
CONSTRUCTION AND OTHER VESSELS
PLATFORM SHIPS

DISPOSALS

CLICK HERE FOR FLEET LIST AND AVAILAB ILITY





ANCHOR HANDLERS

VS 486

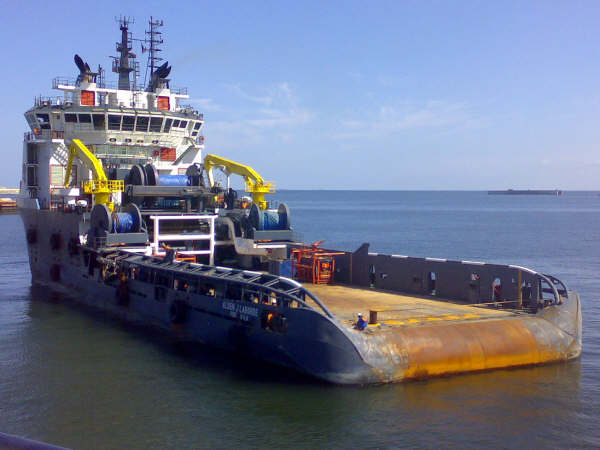

  TYPE: VS 486 NAME: Alden J Laborde   PHOTO: Tim Roberts





GENERAL

PROPULSION

EQUIPMENT

Length OA 85.3 m3 Engines 4 x EMD 16-265H Workdrum pull 600 t
Breadth 21.0 m BHP 24000 Capacity 1 5800m x 83mm
DWT   kW 17650 Capacity 2
Deck area   For'd Thruster   Towdrum pull 600 t
Fuel 1527 m3 Az Thruster   Capacity 1
Pot water 437 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 200 t Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built 2004 Shipyard Yantai Raffles Berths -
Previous names
Comments

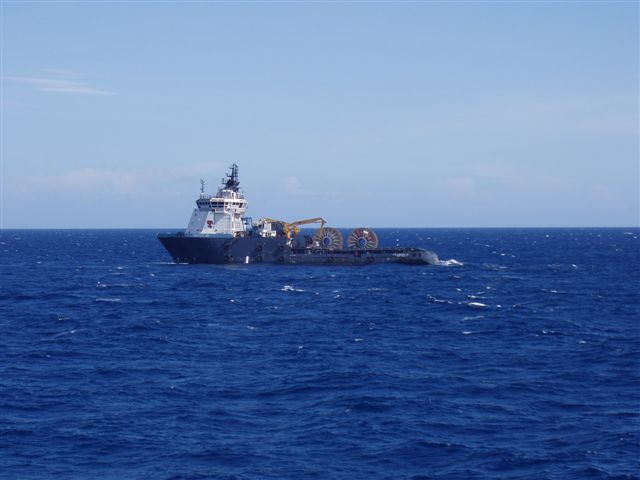

  TYPE: VS 486 NAME: C E Laborde Jr   PHOTO: Calum Bannatyne, Erik Azevedo

GENERAL

PROPULSION

EQUIPMENT

Length OA 85.3 m3 Engines 4 x EMD 16-265H Workdrum pull 600 t
Breadth 21.0 m BHP 24000 Capacity 1 5800m x 83mm
DWT   kW 17650 Capacity 2
Deck area   For'd Thruster   Towdrum pull 600 t
Fuel 1527 m3 Az Thruster   Capacity 1
Pot water 437 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 200 t Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built 2004 Shipyard Yantai Raffles Berths -
Previous names
Comments

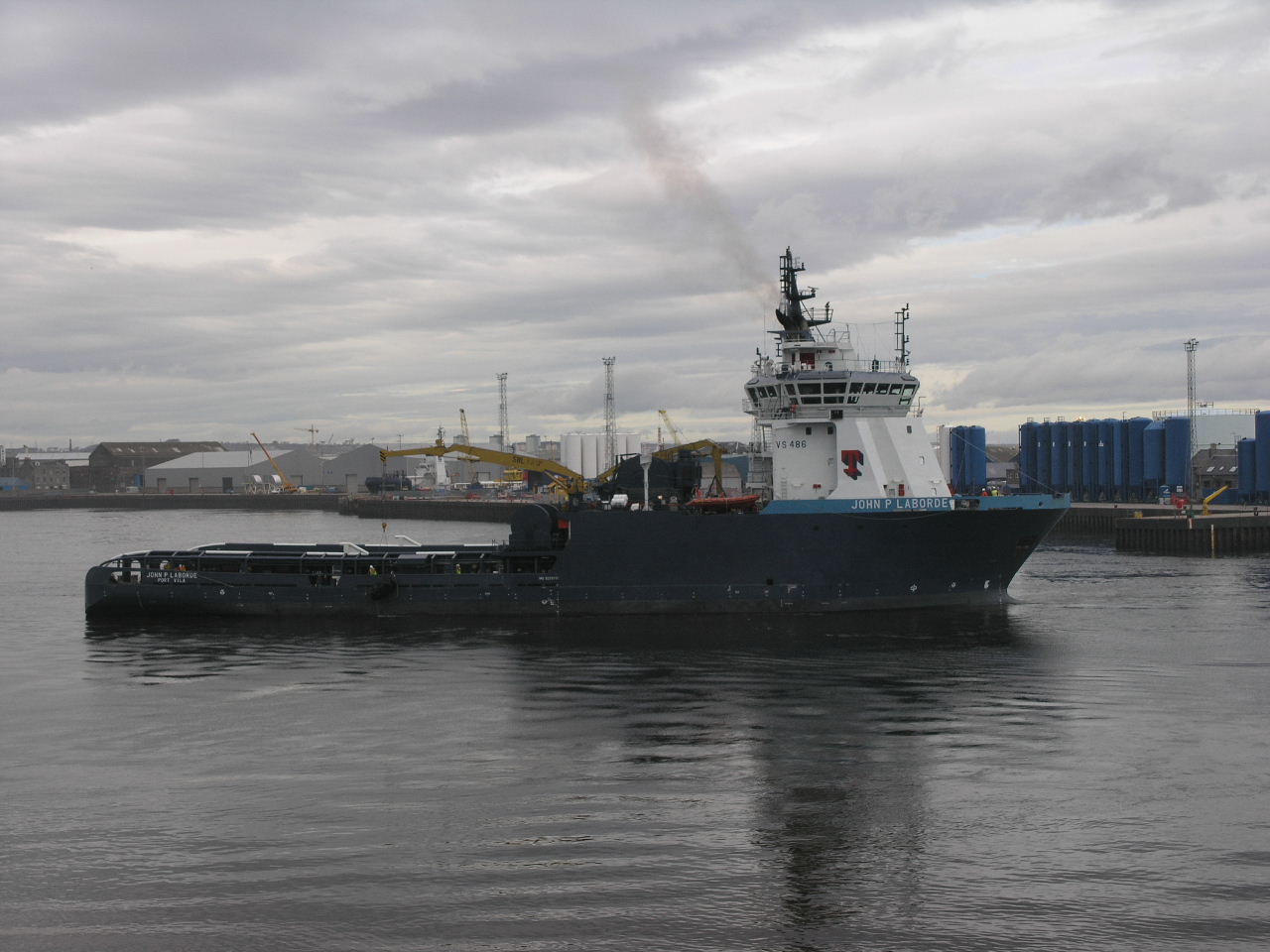

  TYPE: VS 486 NAME: John P Laborde   PHOTO: Vic Gibson

GENERAL

PROPULSION

EQUIPMENT

Length OA 85.34 m Engines 4 x EMDs Workdrum pull 600 t
Breadth 21.0 m BHP 24000 Capacity 1 5800m x 83mm
DWT   kW 17650 Capacity 2
Deck area   For'd Thruster   Towdrum pull 600 t
Fuel 1527 m3 Az Thruster   Capacity 1
Pot water 437 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 200 t Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built/due 2004     Shipyard Yantai Raffles
Previous names
Comments

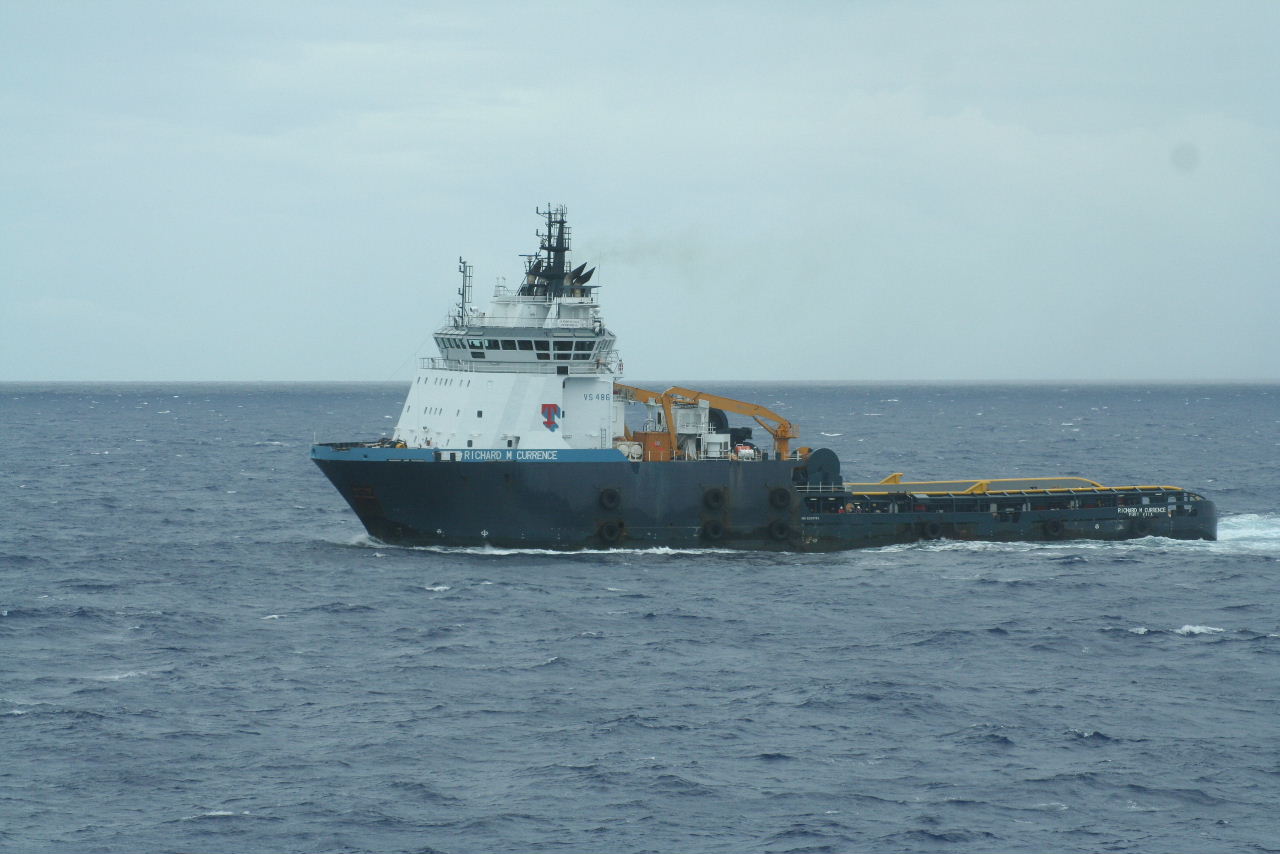

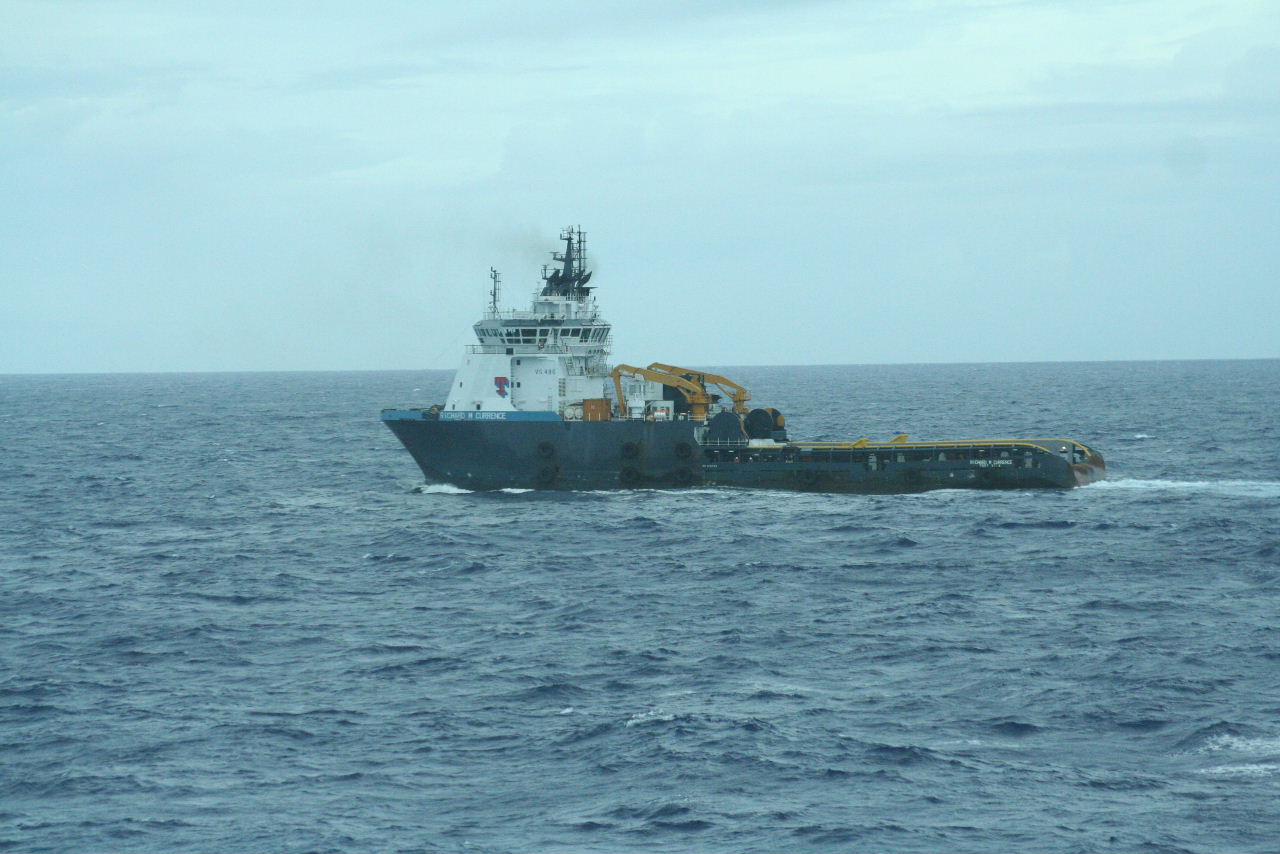

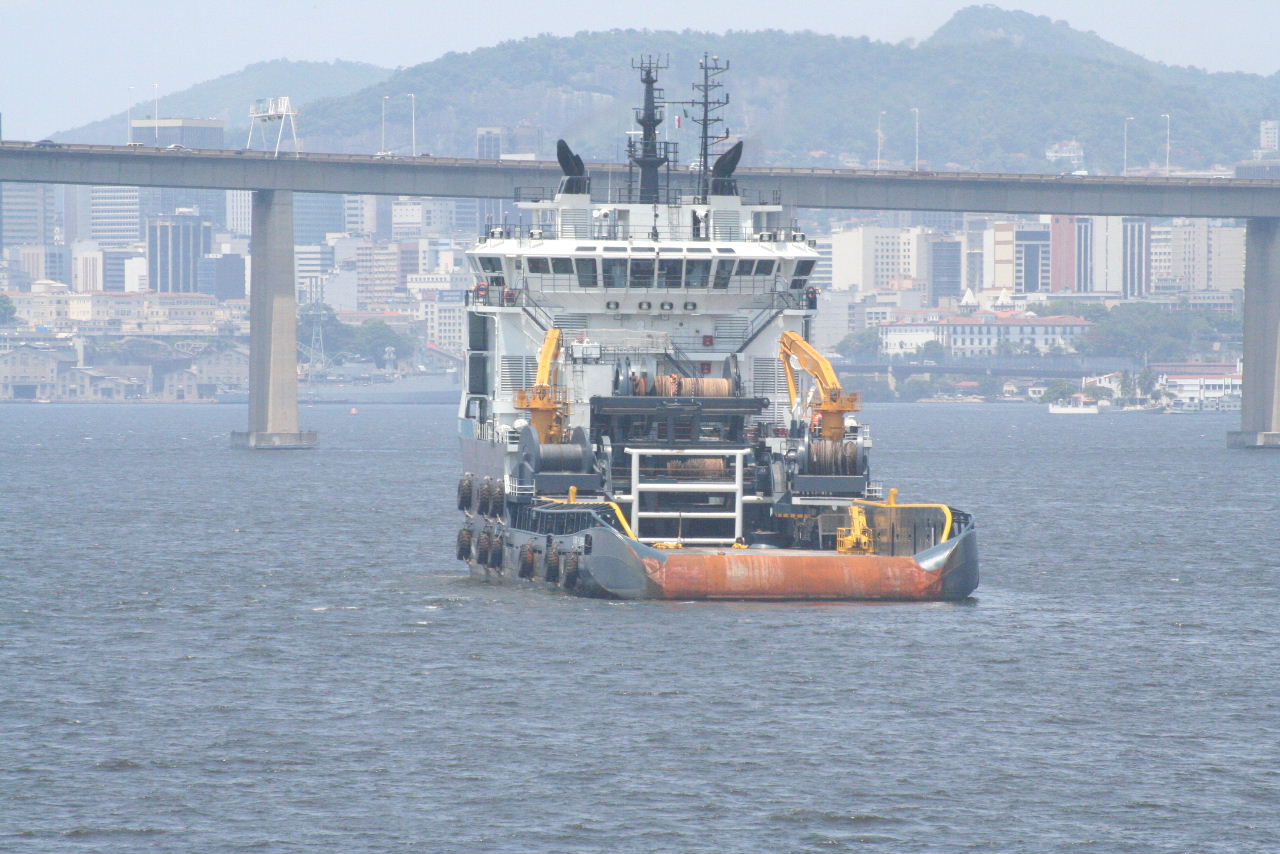

  TYPE: VS 486 NAME: Richard M Currance   PHOTO: Tony Poll

GENERAL

PROPULSION

EQUIPMENT

Length OA 85.34 m Engines 4 x EMD 16-265H Workdrum pull 600 t
Breadth 21.0 m BHP 24000 Capacity 1 5800m x 83mm
DWT   kW 17650 Capacity 2
Deck area   For'd Thruster   Towdrum pull 600 t
Fuel 1527 m3 Az Thruster   Capacity 1
Pot water 437 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 200 t Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built/due 2003     Shipyard Yantai Raffles
Previous names
Comments

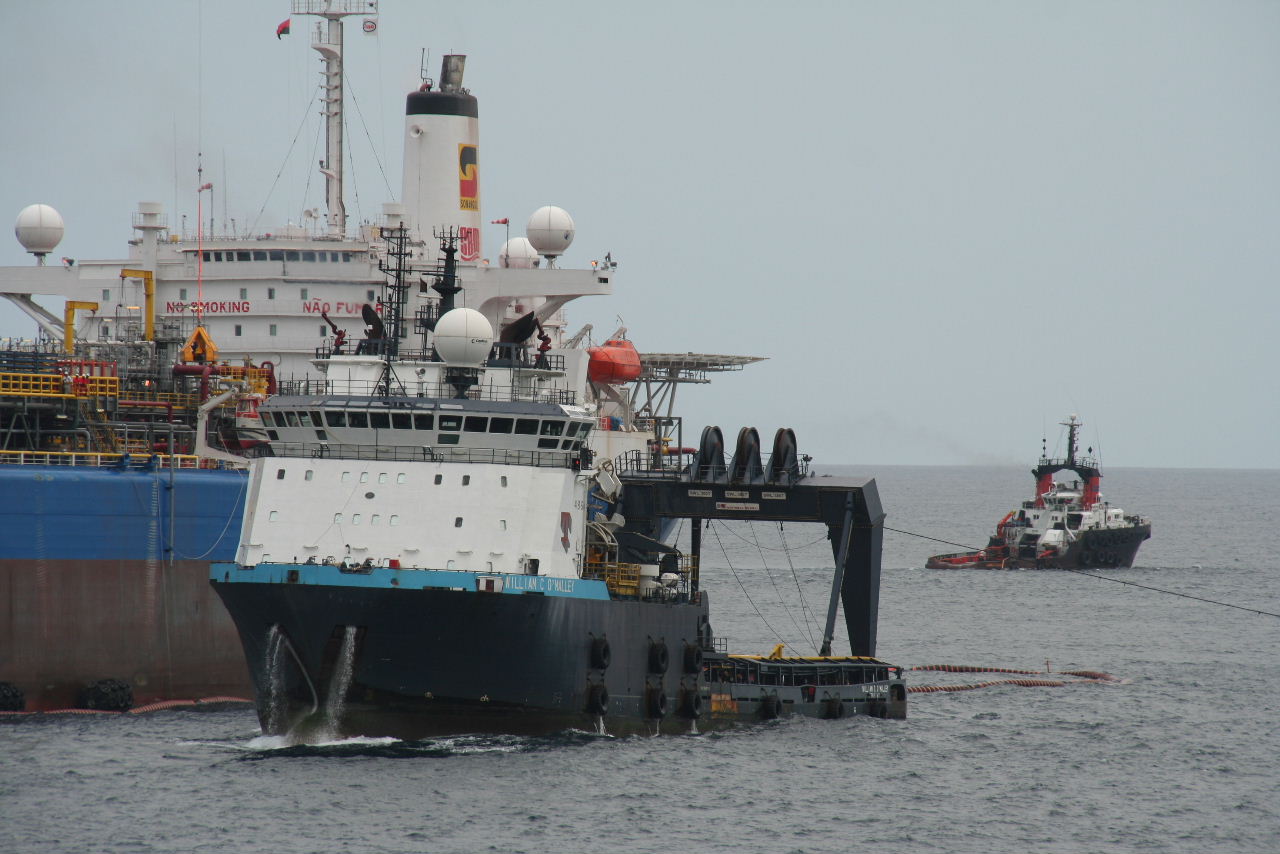

  TYPE: VS 486 NAME: William C O'Mally   PHOTO: Tony Poll, Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length OA 85.3 m3 Engines 4 x EMD 16-265H Workdrum pull 600 t
Breadth 21.0 m BHP 24000 Capacity 1 5800m x 83mm
DWT   kW 17650 Capacity 2
Deck area   For'd Thruster   Towdrum pull 600 t
Fuel 1527 m3 Az Thruster   Capacity 1
Pot water 437 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 200 t Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built 2004 Shipyard Yantai Raffles Berths -
Previous names
Comments



AH 03



  TYPE: AH 03 NAME: Donnelly Tide   PHOTO: Vic Gibson




GENERAL

PROPULSION

EQUIPMENT

Length OA 65.2 m Engines 2 x RR Bergen Workdrum pull
Breadth 16.0 m BHP 8080 Capacity 1
DWT   kW 5940 Capacity 2
Deck area   For'd Thruster   Towdrum pull
Fuel   Az Thruster   Capacity 1
Pot water   Aft Thrusters   Capacity 2
Mud   Bollard pull 101 t Sharks Jaw
Brine   DPI Nautronix Cranes
Dry bulk   Joystick   Tank cleaning
Year built/due 2004 Shipyard Aker Tulcea Berths 24
Previous names
Comments



  TYPE: AH 03 NAME: Platt Tide   PHOTO: Vic Gibson




GENERAL

PROPULSION

EQUIPMENT

Length OA 65.2 m Engines   Workdrum pull
Breadth 16.0 m BHP   Capacity 1
DWT   kW   Capacity 2
Deck area   For'd Thruster   Towdrum pull
Fuel   Az Thruster   Capacity 1
Pot water   Aft Thrusters   Capacity 2
Mud   Bollard pull   Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built/due 2004 Shipyard Aker Tulcea Berths 24
Previous names
Comments



NED 8167L



  TYPE: NED 8167L NAME: DU MOULIN TIDE   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built - Shipyard Remontowa Berths 28
Previous names -
Comments -



  TYPE: NED 8167L NAME: DALACA TIDE   PHOTO: Mark Badkin


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built - Shipyard Remontowa Berths 28
Previous names -
Comments -



  TYPE: NED 8167L NAME: DAY TIDE   PHOTO: Mike Prendergast


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built - Shipyard Remontowa Berths 28
Previous names -
Comments -

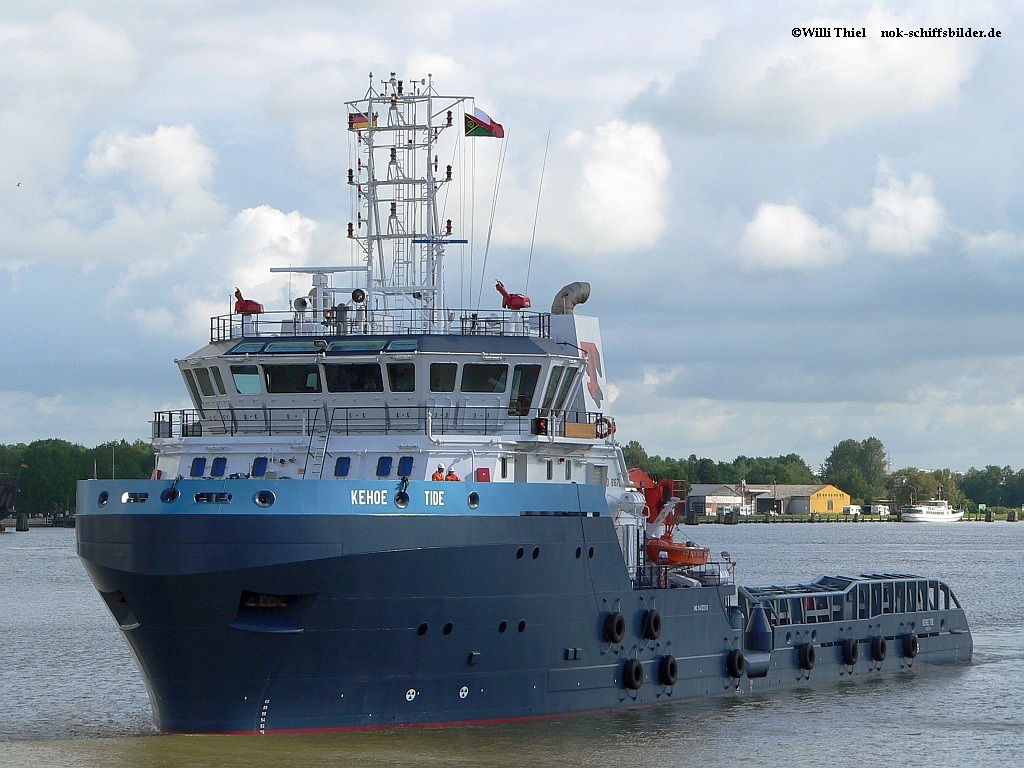

  TYPE: NED 8167L NAME: KEHOE TIDE   PHOTO: Willi Thiel-


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built - Shipyard Remontowa Berths 28
Previous names -
Comments -

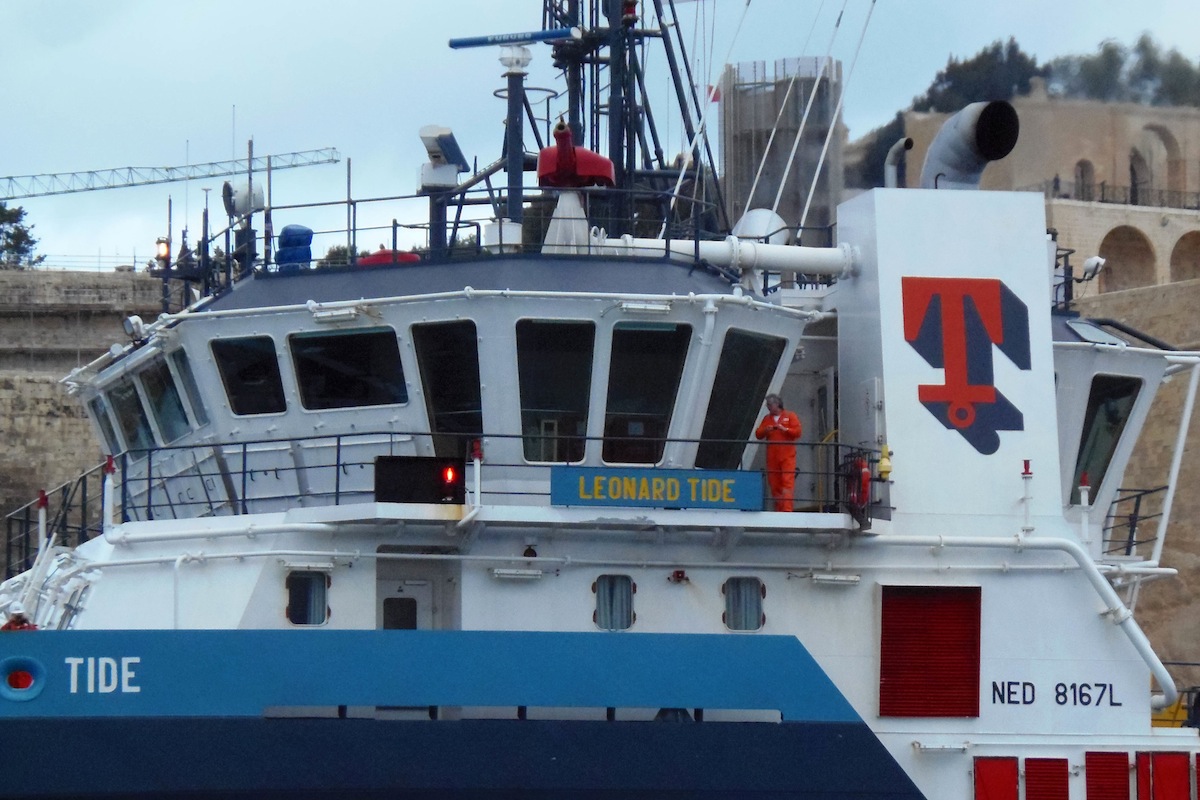

  TYPE: NED 8167L NAME: Leonard Tide   PHOTO: Gaetano Spiteri

GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built - Shipyard Remontowa Berths 28
Previous names -
Comments -



  TYPE: NED 8167L NAME: MARTY QUIST TIDE   PHOTO: Vic Gibson


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built 2010 Shipyard Remontowa Berths 28
Previous names -
Comments -

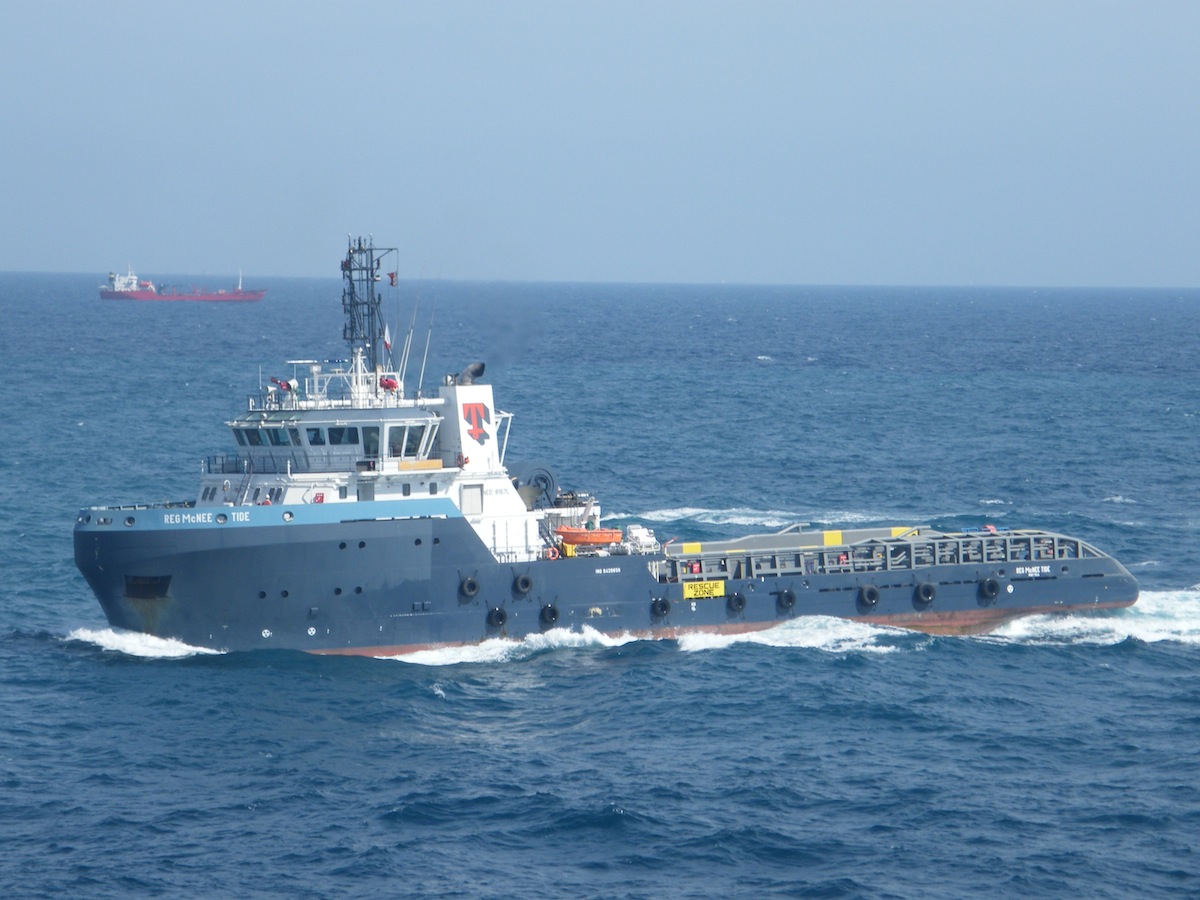

  TYPE: NED 8167L NAME: Reg McNee Tide   PHOTO: Gaetano Spiteri

GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built - Shipyard Remontowa Berths 28
Previous names -
Comments -

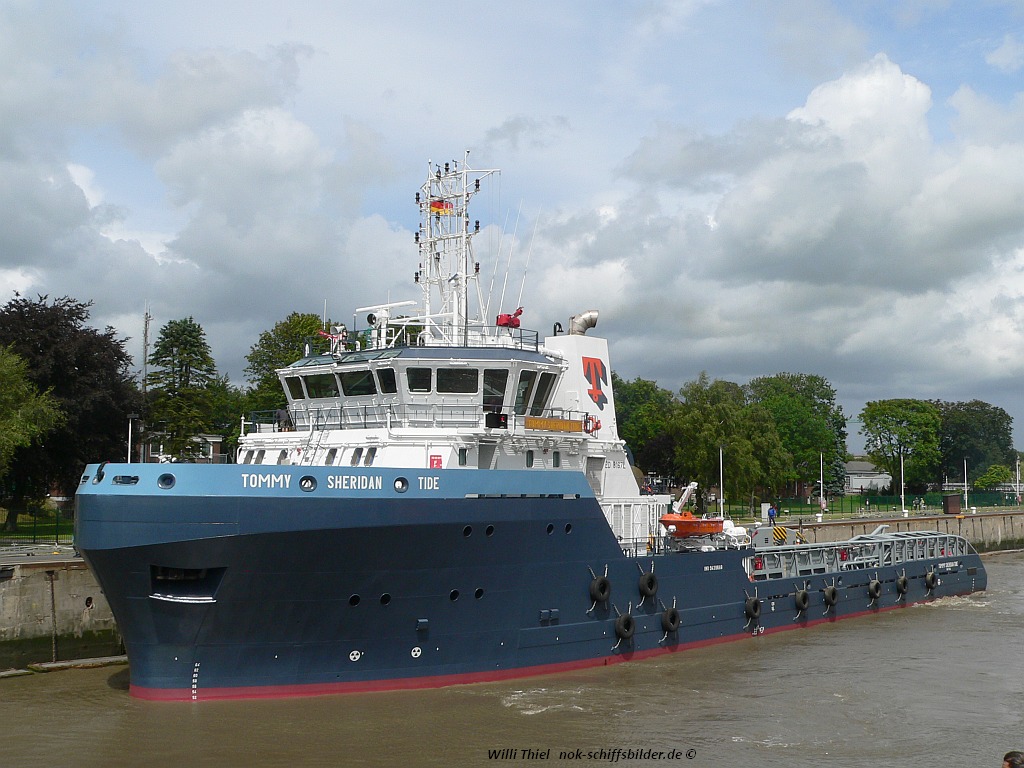

  TYPE: NED 8167L NAME: TOMMY SHERIDAN TIDE   PHOTO: Willi Thiel


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.0 m Engines 2 x Cat C280-16 Workdrum pull 350 t
Breadth 15.5 m BHP 13760 Capacity 1 1500m x 76mm
DWT 1970 t kW 10120 Capacity 2 -
Deck area 437 m2 For'd Thruster 2 x 800 bhp Towdrum pull 350 t
Fuel 821 m3 Az Thruster - Capacity 1 1500m x 76mm
Pot water 509 m3 Aft Thrusters 1 x 800 bhp Capacity 2 -
Mud 475 m3 Bollard pull 155 t Sharks Jaw -
Brine - DPIi Yes Cranes -
Dry bulk 190 m3 Joystick - Tank cleaning -
Year built 2009 Shipyard Remontowa Berths 28
Previous names -
Comments -



UT 704



  TYPE: UT 704 NAME: Invincible Tide   PHOTO:James McLellan


GENERAL

PROPULSION

EQUIPMENT

Length OA 64.4 m Engines 2 x Nohab F316V Workdrum pull 180 tonnes
Breadth 13.8 m BHP 8160 Capacity 1 1200m x 64mm
DWT 1858 tonnes kW   Capacity 2
Deck area 423 m2 For'd Thruster 1 x 840 bhp Towdrum pull
Fuel 900 m3 Az Thruster   Capacity 1 1000 x 64mm
Pot water 255 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 113 tonnes Sharks Jaw Karmfork
Brine   DP   Cranes
Dry bulk 170 m3 Joystick Ulstein Tank cleaning
Year built/due 1981 Shipyard Storvik MV Berths 23
Previous names Atlantic Nor, Safe Anglia, Bergen Anglia, Queen Supplier, Tom Viking, CHH Invincible
Comments



  TYPE: UT 704 NAME: Majestic Tide   PHOTO: Igor Koslov


GENERAL

PROPULSION

EQUIPMENT

Length OA 64.4 m Engines 2 x Nohab F316V Workdrum pull 150 tonnes
Breadth 13.8 m BHP 8160 Capacity 1 1000m x 54mm
DWT 1931 tonnes kW 6000 Capacity 2
Deck area 423 m2 For'd Thruster 1 x 815 bhp Towdrum pull
Fuel 730 m3 Az Thruster   Capacity 1 1000 x 54mm
Pot water 94 m3 Aft Thrusters   Capacity 2
Mud 286 m3 Bollard pull 126 tonnes Sharks Jaw Ulstein
Brine   DP   Cranes
Dry bulk 170 m3 Joystick Robertson RMP Tank cleaning
Year built/due 1982     Shipyard Sterkoder MV
Previous names
Comments



  TYPE: UT 704 NAME: MASSIVE TIDE   PHOTO: Kenny Polson


GENERAL

PROPULSION

EQUIPMENT

Length OA 64.4 m Engines 2 x Bergen KVMB Workdrum pull 180 tonnes
Breadth 13.8 m BHP 8160 Capacity 1 1200m x 64mm
DWT 1858 tonnes kW 6002 Capacity 2
Deck area 423 m2 For'd Thruster 1 x 840 bhp Towdrum pull
Fuel 900 m3 Az Thruster   Capacity 1 1000 x 64mm
Pot water 255 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 113 tonnes Sharks Jaw Karmfork
Brine   DP   Cranes
Dry bulk 170 m3 Joystick Ulstein Tank cleaning
Year built/due 1982 Shipyard Aker Vindholmen Berths 23
Previous names -
Comments



  TYPE: UT 704 NAME: MIGHTY TIDE   PHOTO: Mike Prendergast


GENERAL

PROPULSION

EQUIPMENT

Length OA 64.4 m Engines 2 x Polar SF116V Workdrum pull 180 tonnes
Breadth 13.8 m BHP 9163 Capacity 1 1200m x 64mm
DWT 1858 tonnes kW 6738 Capacity 2
Deck area 423 m2 For'd Thruster 1 x 840 bhp Towdrum pull
Fuel 900 m3 Az Thruster   Capacity 1 1000 x 64mm
Pot water 255 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 113 tonnes Sharks Jaw Karmfork
Brine   DP   Cranes
Dry bulk 170 m3 Joystick Ulstein Tank cleaning
Year built/due 1983 Shipyard Sterkoder MK Berths 23
Previous names -
Comments



MISCELLANEOUS

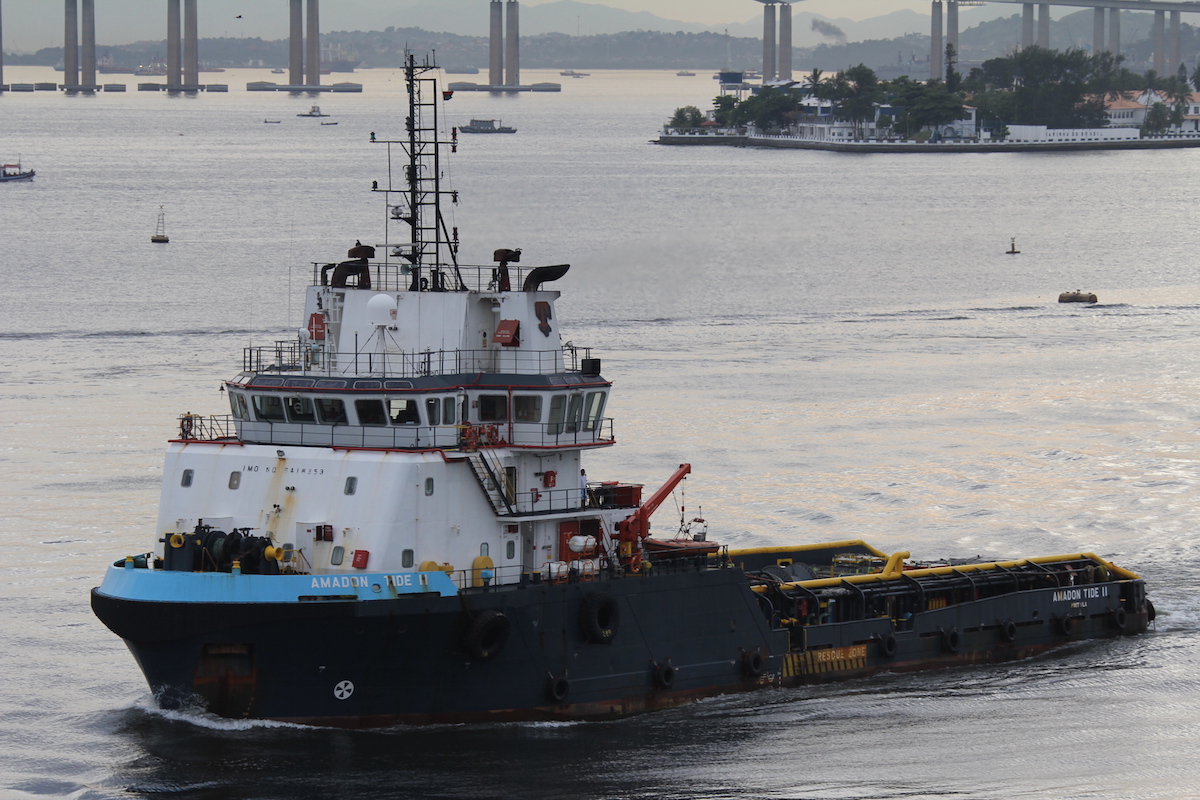

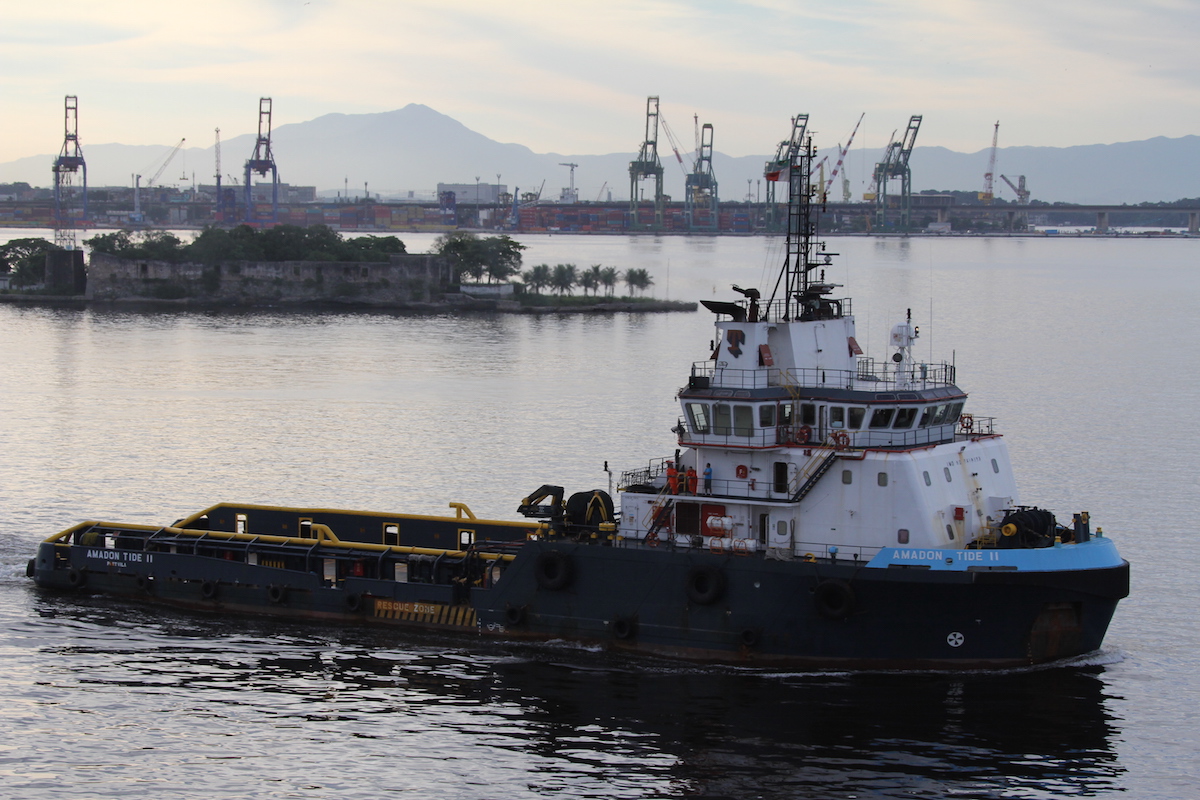

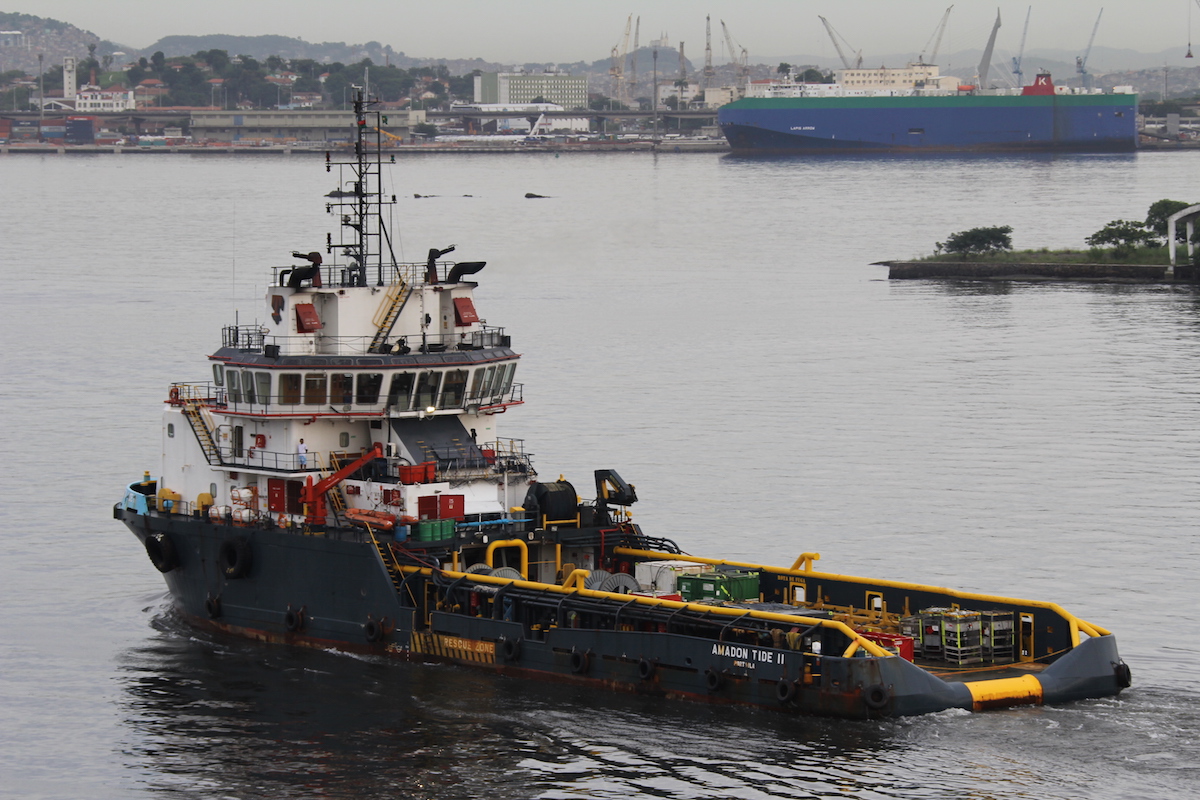

  TYPE: NAME: Amadon Tide II   PHOTO: Jan Plug

GENERAL

PROPULSION

EQUIPMENT

Length 64 m Engines 2 x MAK Workdrum pull -
Breadth 16 m BHP 7178 Capacity 1 -
DWT 1831 mt kW 5279 Capacity 2 -
Deck area - For'd Thruster - Towdrum pull -
Fuel - Az Thruster - Capacity 1 -
Pot water - Aft Thrusters - Capacity 2 -
Mud - Bollard pull - Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2007 Shipyard Yuexin Guangzhou Berths -
Current Charter - Available - - -
Previous names -
Comments -
Charter - Available - Location -



  TYPE: NAME: El Leon Grande II   PHOTO: Ron Jansen


GENERAL

PROPULSION

EQUIPMENT

Length OA 41.18 m Engines 2 x Nohab F216V Workdrum pull -
Breadth 11.59 m BHP 7040 Capacity 1 -
DWT 500 mt kW 5176 Capacity 2 -
Deck area - For'd Thruster - Towdrum pull -
Fuel - Az Thruster - Capacity 1 -
Pot water - Aft Thrusters - Capacity 2 -
Mud - Bollard pull - Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 1975 Shipyard Ast. del Atlantico Berths -
Previous names Asay D Guidry
Comments -

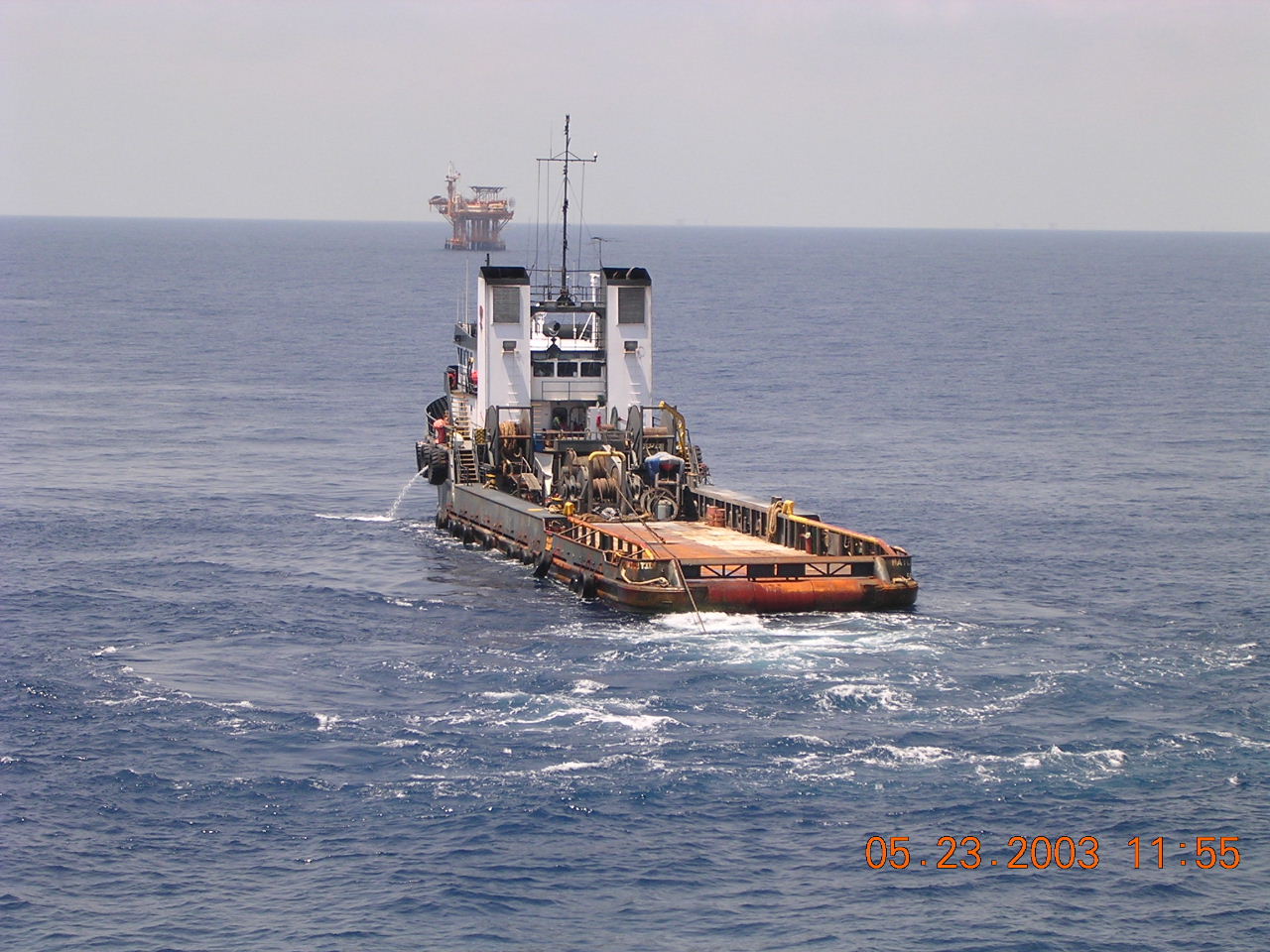

  TYPE: NAME: Hatch Tide   PHOTO: Ron Jansen




GENERAL

PROPULSION

EQUIPMENT

Length OA 67 m Engines EMD 16v Workdrum pull 200 t
Breadth 12.8 m BHP 6140 Capacity 1 Not much!
DWT 1150 t kW   Capacity 2
Deck area 321 m2 For'd Thruster  1 x 535 bhp Towdrum pull
Fuel 635 m3 Az Thruster   Capacity 1 1500m x 50mm
Pot water 55 m3 Aft Thrusters   Capacity 2
Mud 353 m3 Bollard pull 79 t Sharks Jaw
Brine   DP   Cranes
Dry bulk 170 m3 Joystick   Tank cleaning
Year built/due 1982 Shipyard Halter Marine Berths 24
Previous names TBX Radix
Comments

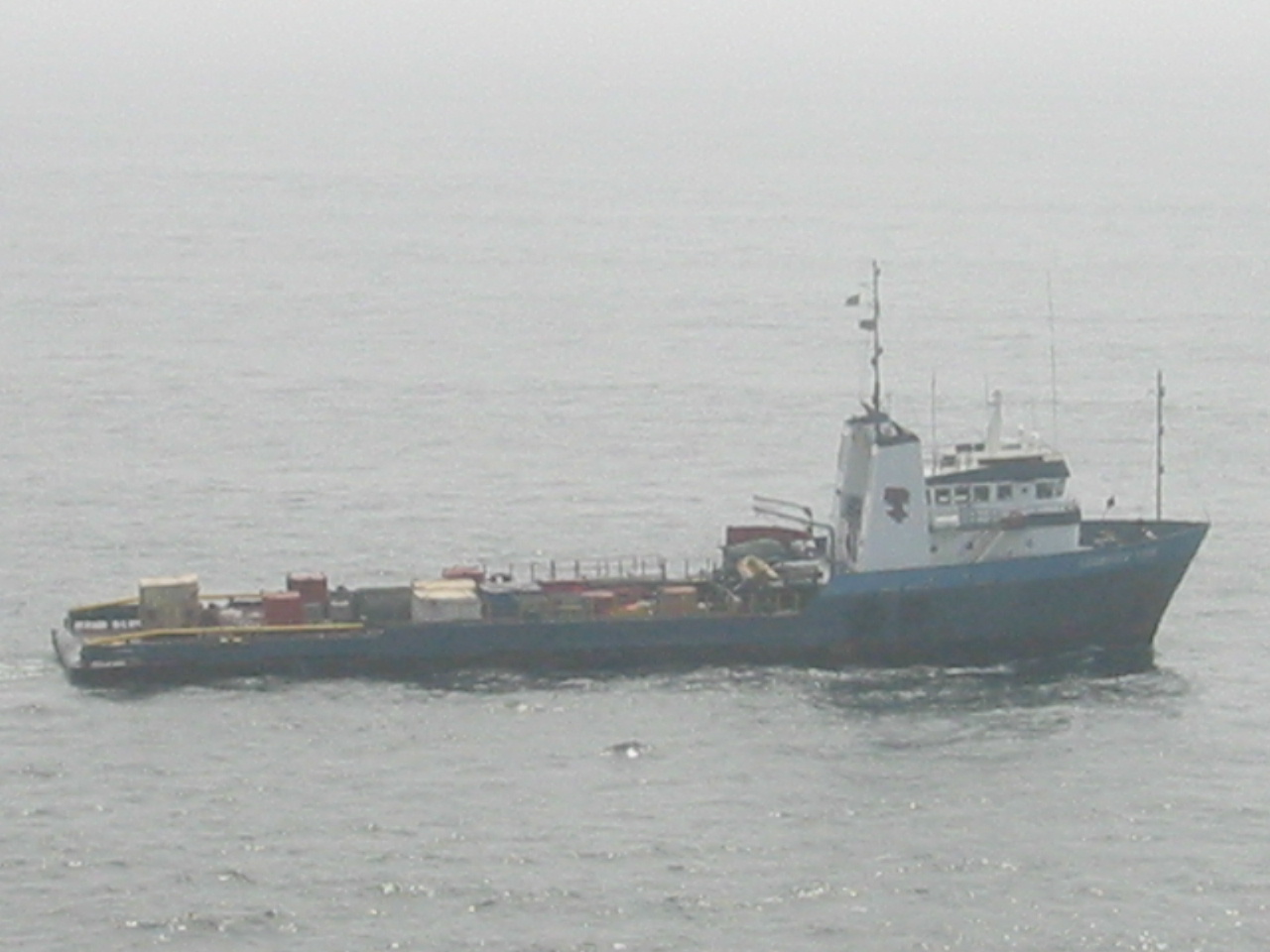

  TYPE: NAME: Lodrique Tide   PHOTO: Ron Jansen


GENERAL

PROPULSION

EQUIPMENT

Length OA 58.7 m Engines 2 x EMD 12V-645 Workdrum pull -
Breadth 12.2 m BHP 4610 Capacity 1 -
DWT 1200 mt kW 3390 Capacity 2 -
Deck area 320 m2 For'd Thruster 1 x 300 bhp Towdrum pull 136 t
Fuel 177 m3 Az Thruster - Capacity 1 1100m x 50mm
Pot water 44 m3 Aft Thrusters - Capacity 2 -
Mud 230 m3 Bollard pull 38 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 142 m3 Joystick - Tank cleaning -
Year built 1983 Shipyard Halter Marine Berths 16
Previous names -
Comments -

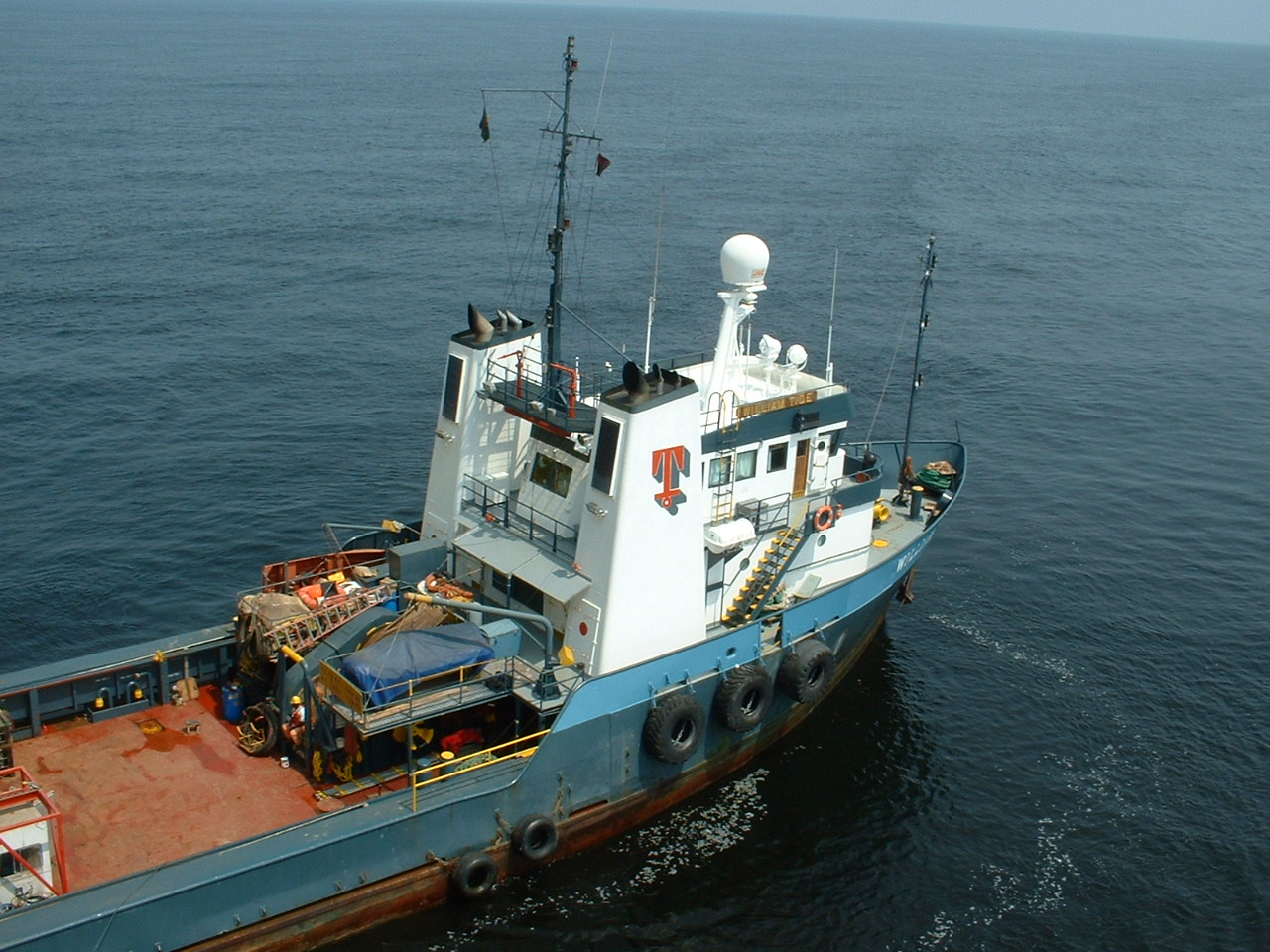

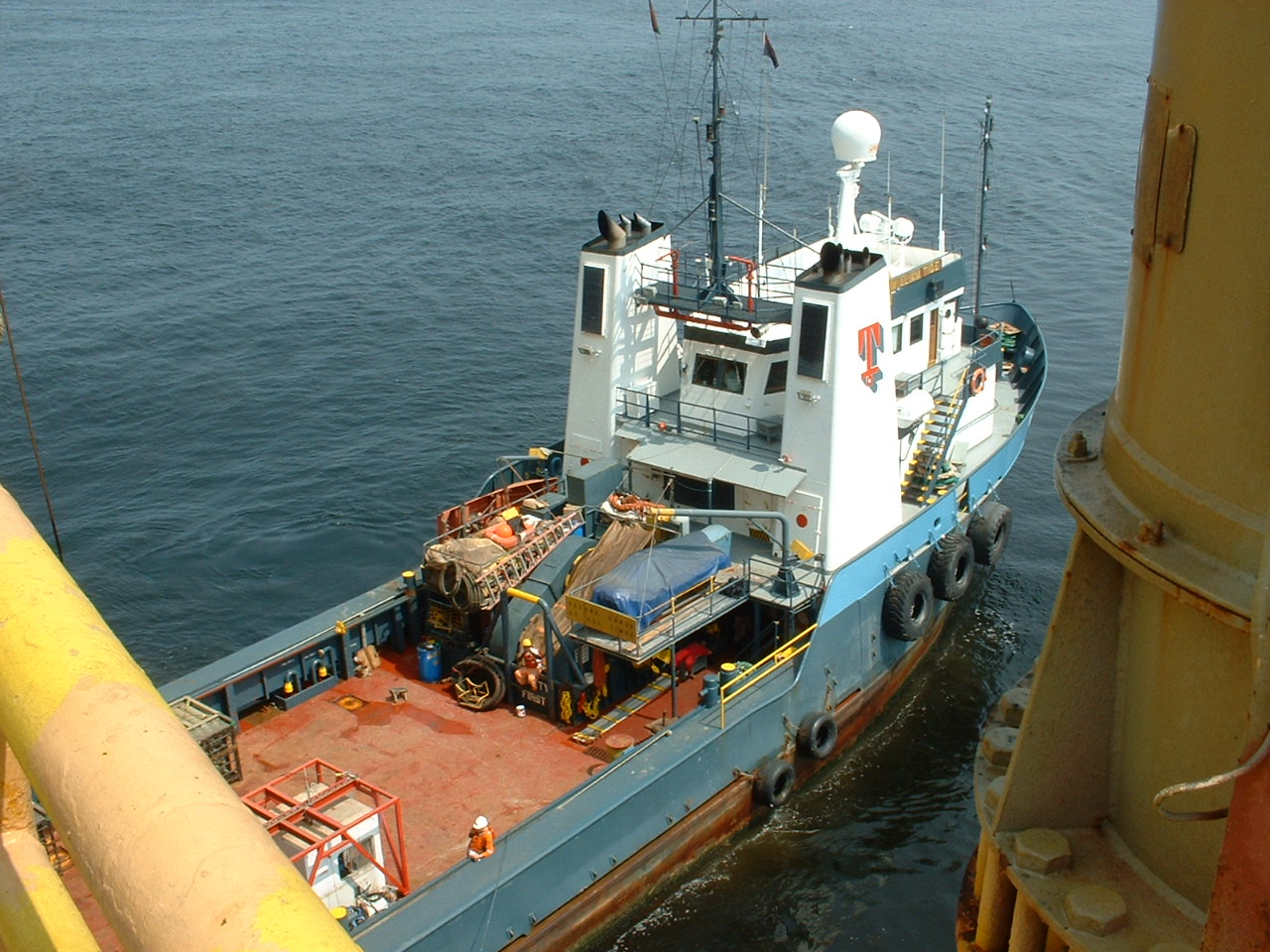

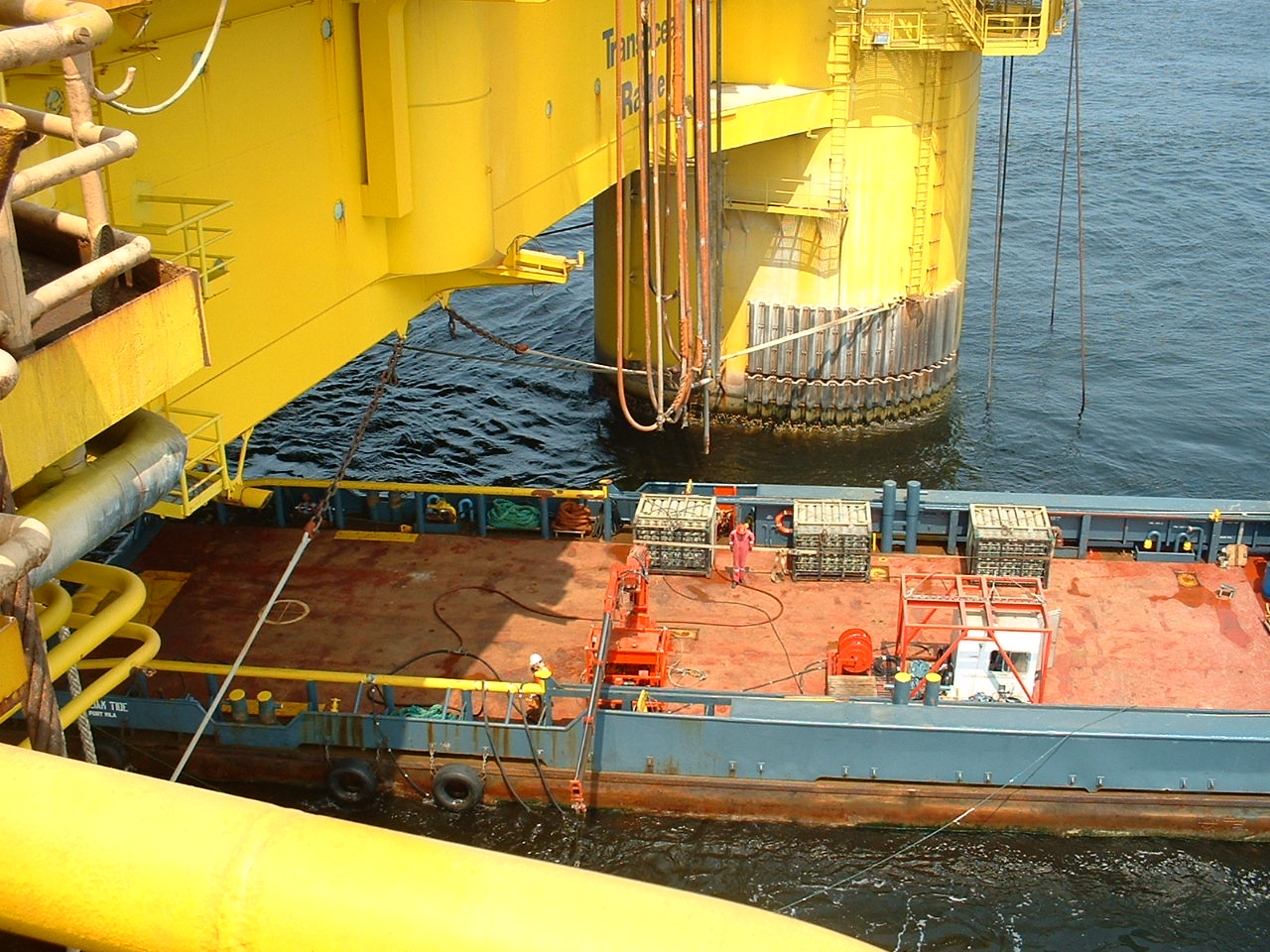

  TYPE: HM 192 NAME: William Tide   PHOTO: Sandy Stewart

GENERAL

PROPULSION

EQUIPMENT

Length OA 58.67 m Engines  2 x EMD 12V Workdrum pull 136t
Breadth 12.19 m BHP 4610 Capacity 1 1100m x50mm
DWT 1012 t kW   Capacity 2
Deck area 318.18 m2 For'd Thruster 1 x 300t Towdrum pull
Fuel 358m3 Az Thruster   Capacity 1 1100m x 50mm
Pot water 37m3 Aft Thrusters   Capacity 2
Mud 230m3 Bollard pull 38 t Sharks Jaw
Brine   DP   Cranes
Dry bulk   Joystick   Tank cleaning
Year built/due 1982     Shipyard Halter Marine
Previous names Petromar Titan
Comments

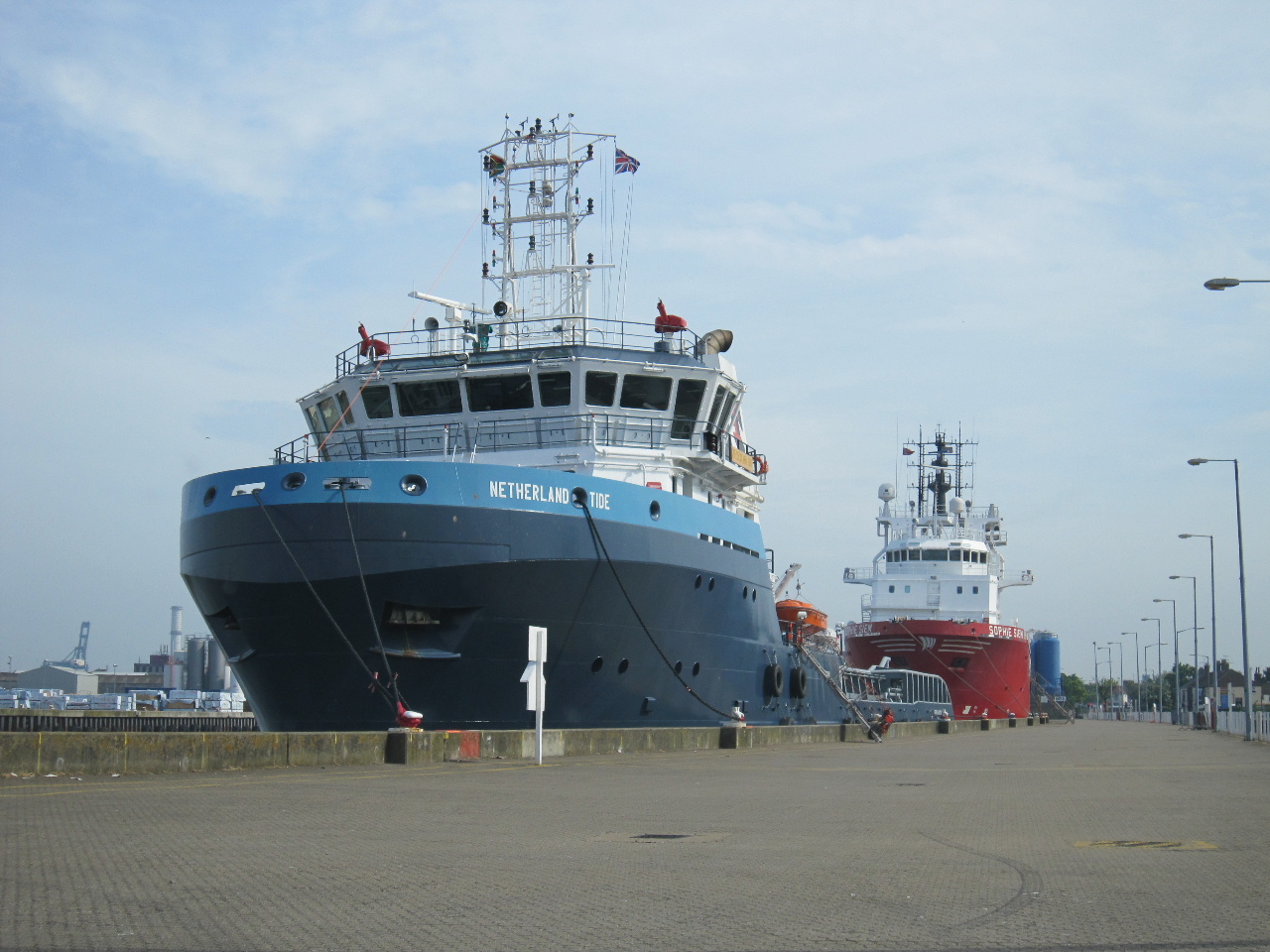

  TYPE: NAME: Netherland Tide   PHOTO: Tony Poll


GENERAL

PROPULSION

EQUIPMENT

Length OA - Engines - Workdrum pull -
Breadth - BHP 11700 Capacity 1 -
DWT - kW 8600 Capacity 2 -
Deck area 393 m2 For'd Thruster - Towdrum pull -
Fuel - Az Thruster - Capacity 1 -
Pot water - Aft Thrusters - Capacity 2 -
Mud - Bollard pull - Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2010 Shipyard Remontowa Pld Berths -
Previous names -
Comments -



  TYPE: NAME: Rozo Tide   PHOTO: Mike Prendergast


GENERAL

PROPULSION

EQUIPMENT

Length OA - Engines - Workdrum pull -
Breadth - BHP - Capacity 1 -
DWT 3252 mt kW - Capacity 2 -
Deck area - For'd Thruster - Towdrum pull -
Fuel - Az Thruster - Capacity 1 -
Pot water - Aft Thrusters - Capacity 2 -
Mud - Bollard pull - Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2012 Shipyard Fuijian Berths -
Current Charter - Available - - -
Previous names -
Comments Not much info about this ship at present.
Charter - Available - Location -

CONSTRUCTION AND OTHER VESSELS

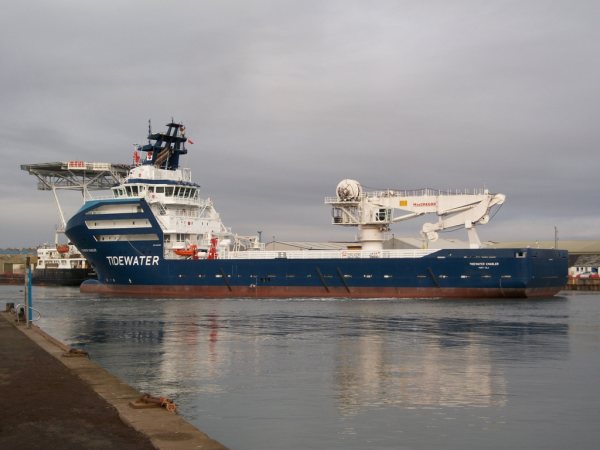

  TYPE: NAME: Tidewater Enabler   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 96.25 m Engines 4 x Workdrum pull -
Breadth 20.0 m BHP 11968 Capacity 1 -
DWT 4400 mt kW 8800 Capacity 2 -
Deck area - For'd Thruster - Accomm berths 69
Fuel - Az Thruster - Storage capacity

-

Pot water - Aft Az Props 4400 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP II Yes Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2010     Shipyard STX Brevik
Previous names -
Comments Originally ordered by Aquanos but bought of the stocks by Tidewater for $63 million

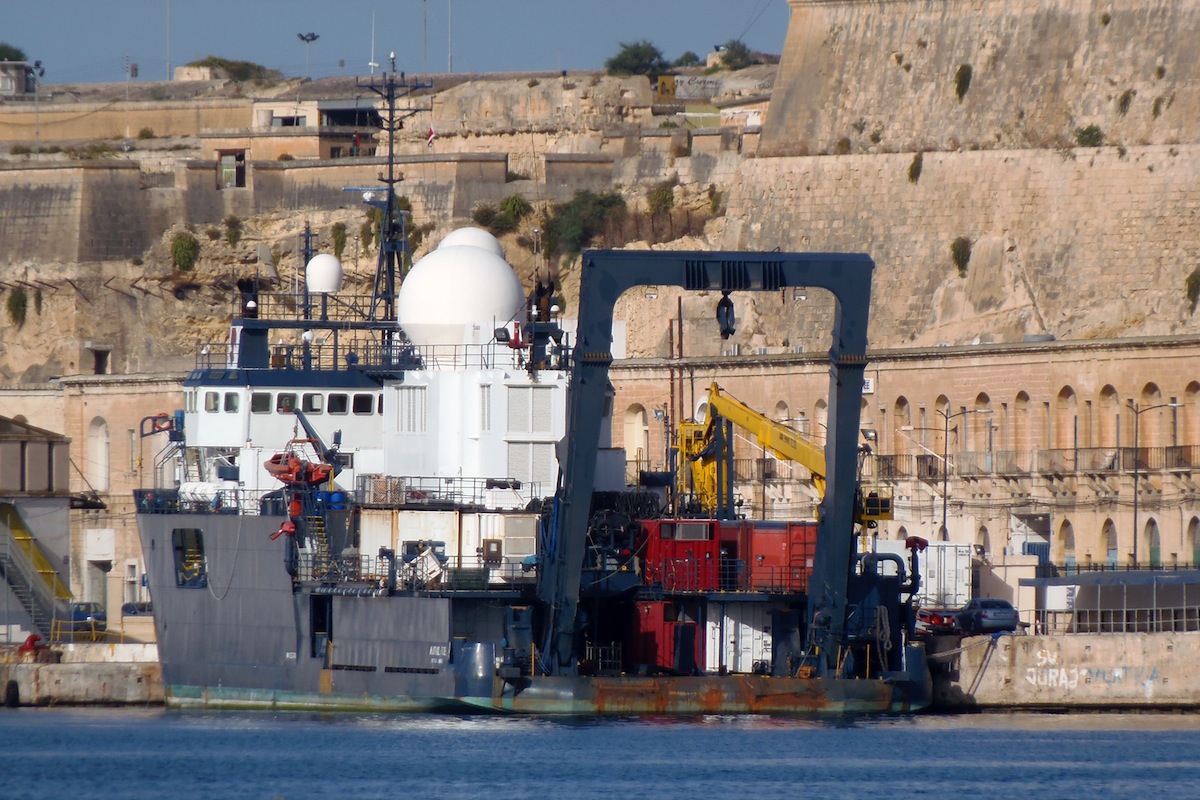

  TYPE: NAME: Nautical Tide   PHOTO: Gaetano Spiteri

GENERAL

PROPULSION

EQUIPMENT

Length OA - Engines - Workdrum pull -
Breadth - BHP - Capacity 1 -
DWT - kW - Capacity 2 -
Deck area - For'd Thruster - Accomm berths -
Fuel - Az Thruster - Storage capacity

-

Pot water - Aft Az Props - ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP II - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built -     Shipyard -
Previous names -
Comments Don't know what the hell this ship does, but maybe we will find out.



PLATFORM SHIPS

HLX 2205

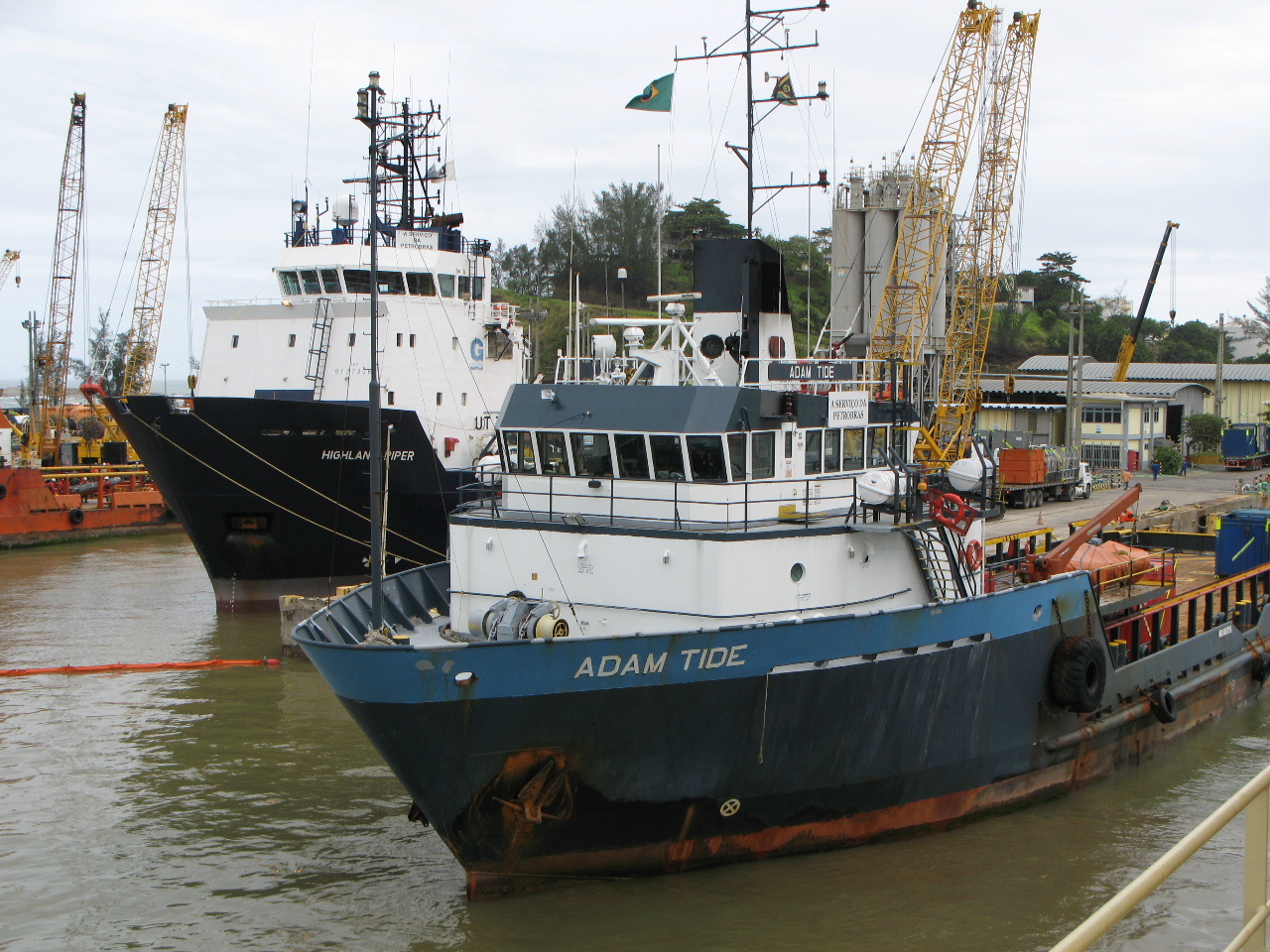

TYPE: HLX 2205 NAME: Adam Tide PHOTO: Tony Poll

GENERAL PROPULSION CARGO CAPACITY
Length OA 62.3 m Engines 2 x Cat 3516TA Fuel 473 m3
Breadth 14.0 m BHP/kW 4200/3090 Pot water 123 m3
DWT 1710 mt

For'd Thrusters

1 x 750 bhp Mud -
Deck area 494 m2 Az Thruster - Base oil -
Year built 1998 Aft Thrusters - Brine -
Shipyard Halter Marine Joystick Simrad Dry bulk 196 m3
Berths 16 DPI? Simrad Tank Cleaning -
Previous names Seabulk Oklahoma
Comments -

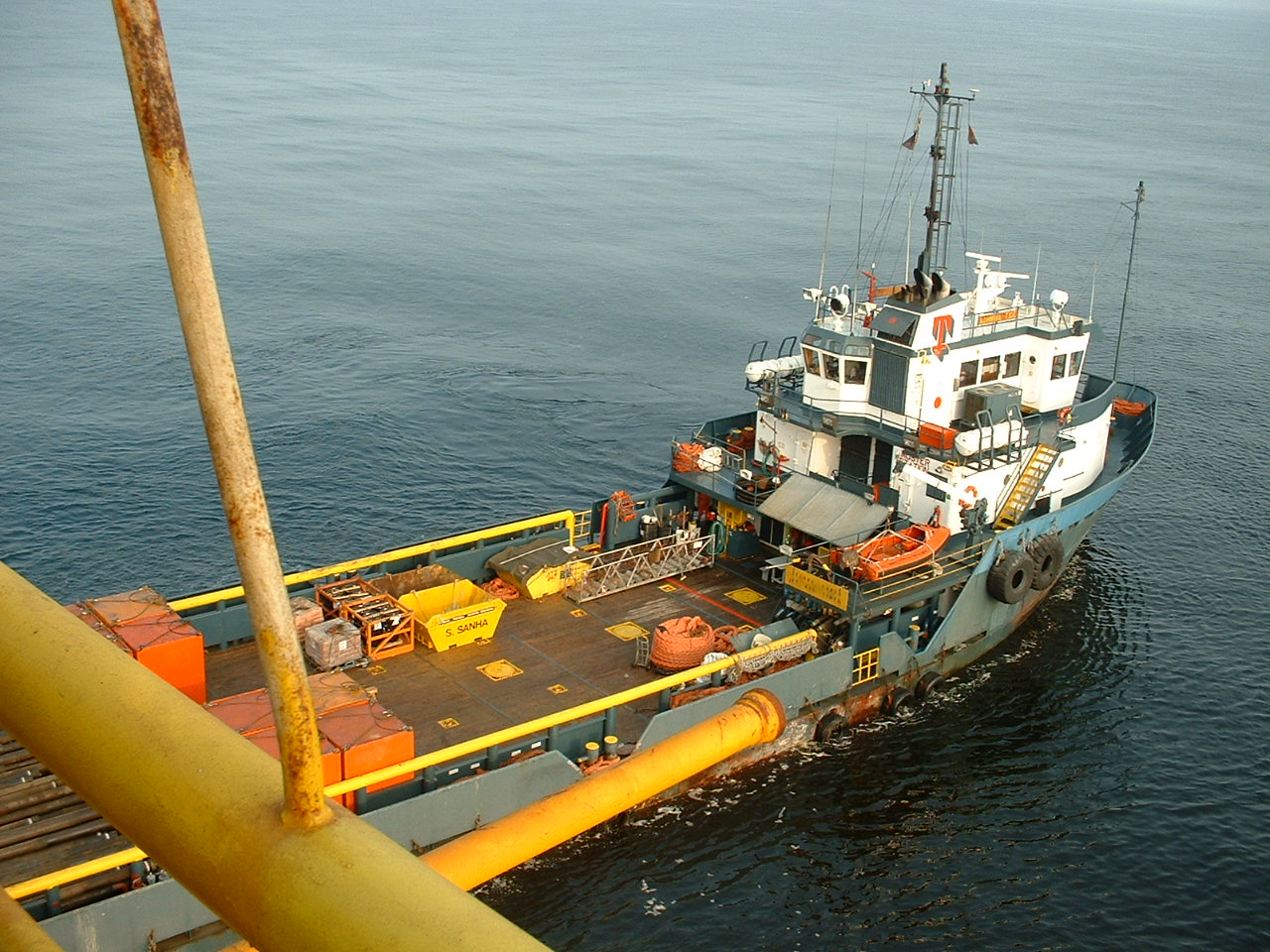

TYPE: HLX 2205 NAME: Admiral Tide PHOTO: Sandy Stewart
GENERAL PROPULSION CARGO CAPACITY
Length OA 62.3 m Engines 2 x Cat 3516TA Fuel 430 m3
Breadth 14.0 m BHP/kW 4200/3090 Pot water 144 m3
DWT 1710 mt

For'd Thrusters

1 x 750 bhp Mud 516 m3
Deck area 494 m2 Az Thruster - Base oil -
Year built 1997 Aft Thrusters - Brine -
Shipyard Halter Moss Pt Joystick Simrad Dry bulk 239 m3
Berths 27 DPI? Simrad Tank Cleaning -
Previous names -
Comments -



VS 480

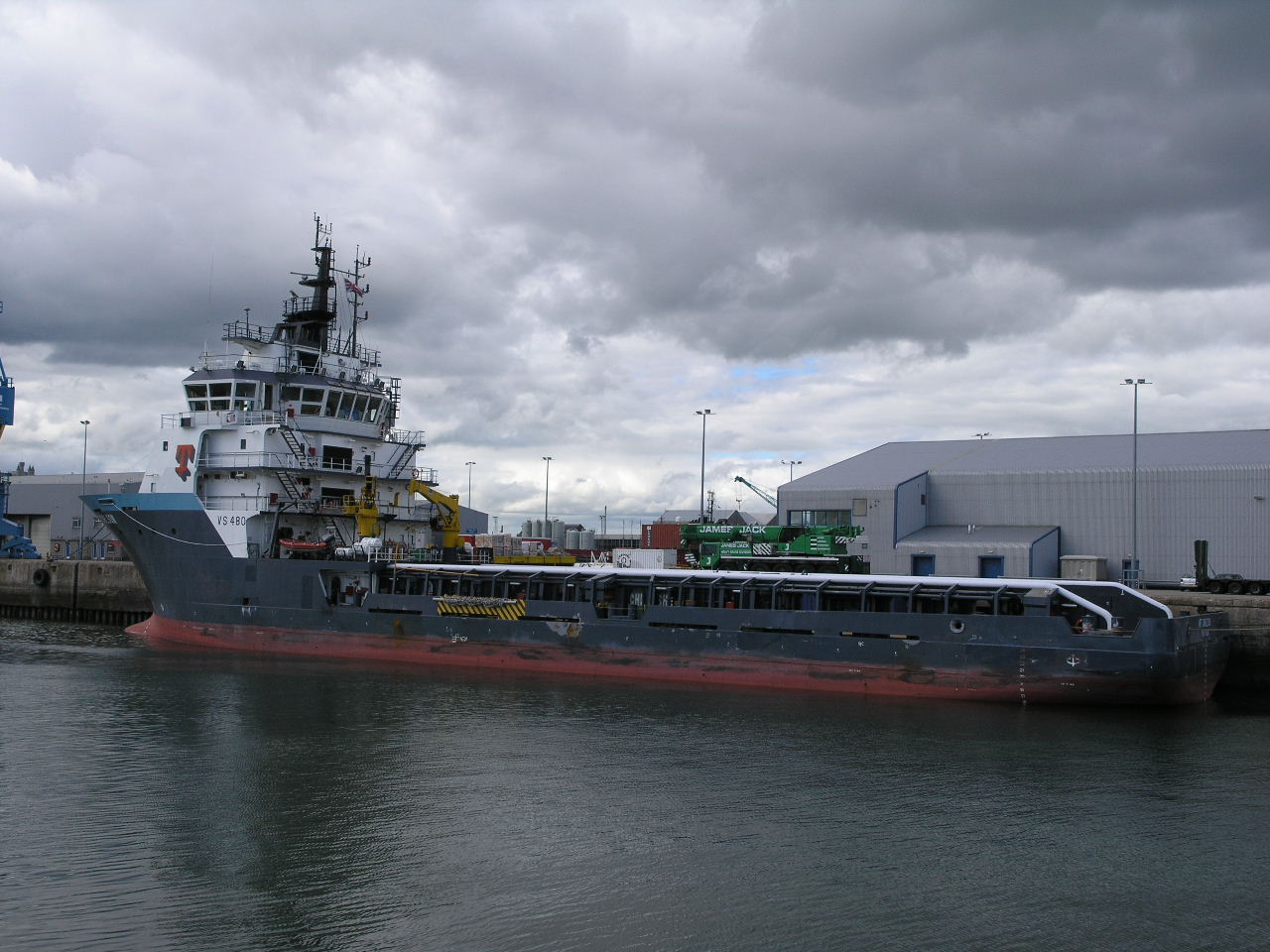

  TYPE: VS 480 NAME: Art Carlson   PHOTO: Vic Gibson
General Propulsion Cargo Capacity
Length OA 79.5 m Engines 2 x ? Fuel 1300 m3
Breadth 18.3 m BHP 5940  Pot water 600 m3
DWT 2750 tonnes For'd Thrusters 1 x 1130 bhp Mud 1290 m3
Deck area 720 m2 Az Thruster 1 x1130 bhp Base oil
    Aft Thrusters only 2 x 2970 bhp Brine
Year built 2002 Joystick yes- Dry bulk 300 m3
Shipyard Quality Shipyard  DP DP II Tank Cleaning None
Previous names
Comments



  TYPE: VS 480 NAME: Damon B Bankston   PHOTO: Oddgeir Refvik
General Propulsion Cargo Capacity
Length OA 79.5 m Engines 4 x ? Fuel 1300 m3
Breadth 18.3 m BHP/kW 9790/7200  Pot water 600 m3
DWT 2750 tonnes For'd Thrusters 1 x 1130 bhp Mud 1290 m3
Deck area 720 m2 Az Thruster 1 x1130 bhp Base oil
Year built 2002 Aft Aziprops 2 x 2970 bhp Brine
Shipyard Quality Shipyard  Joystick yes- Dry bulk 300 m3
Berths 36 DP DP II Tank Cleaning None
Previous names
Comments

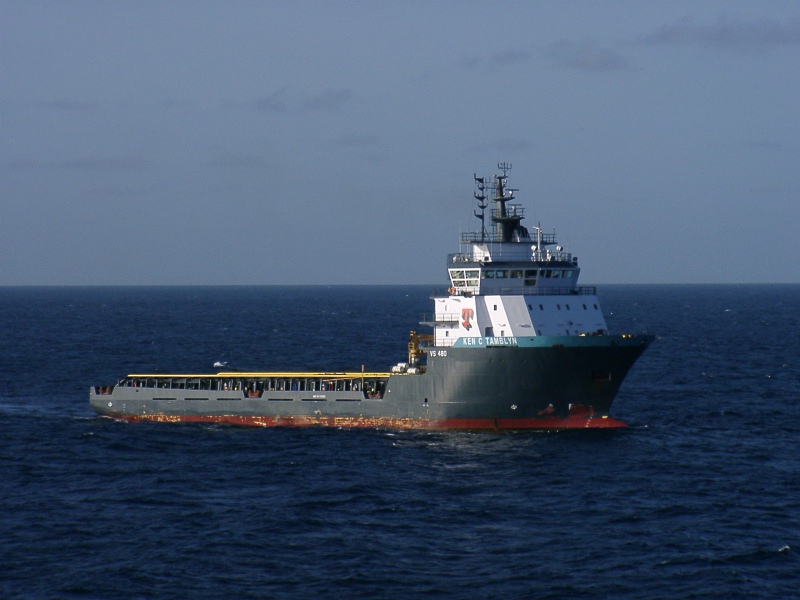

  TYPE: VS 480 NAME: KEN C TAMBLYN   PHOTO: Alan Souter

General Propulsion Cargo Capacity
Length OA 79.5 m Engines 2 x ? Fuel 1300 m3
Breadth 18.3 m BHP 5940  Pot water 600 m3
DWT 2750 tonnes For'd Thrusters 1 x 1130 bhp Mud 1290 m3
Deck area 720 m2 Az Thruster 1 x1130 bhp Base oil
    Aft Thrusters only 2 x 2970 bhp Brine
Year built 2002 Joystick yes- Dry bulk 300 m3
Shipyard Quality Shipyard  DP DP II Tank Cleaning None
Previous names
Comments

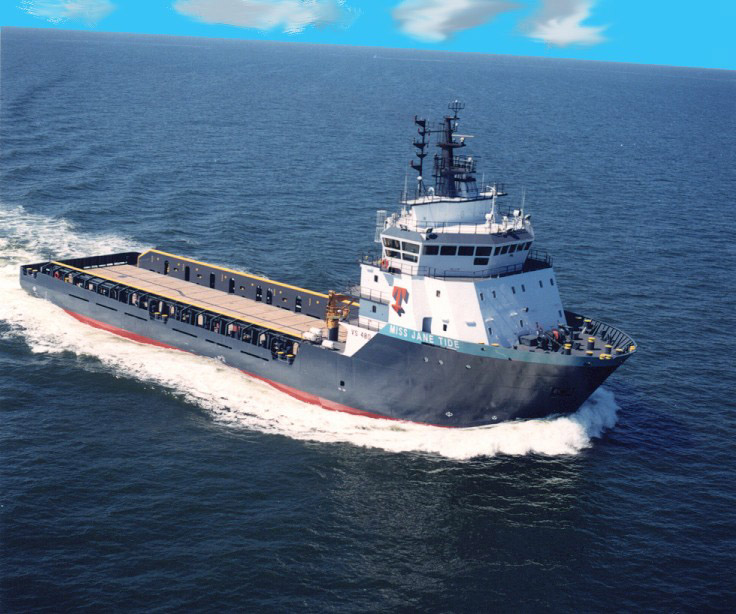

TYPE: vs 480 NAME: Miss Jane Tide PHOTO: Tidewater Publicity

General Propulsion Cargo Capacity
Length OA 79.5 m Engines 2 x ? Fuel 1300 m3
Breadth 18.3 m BHP 5940  Pot water 600 m3
DWT 2750 tonnes For'd Thrusters 1 x 1130 bhp Mud 1290 m3
Deck area 720 m2 Az Thruster 1 x1130 bhp Base oil
Year built 2002 Aft Aziprops 2 x 2970 bhp Brine
Shipyard Quality Shipyard  Joystick Yes Dry bulk 300 m3
Berths 36 DP DP II Tank Cleaning None
Previous names -
Comments -

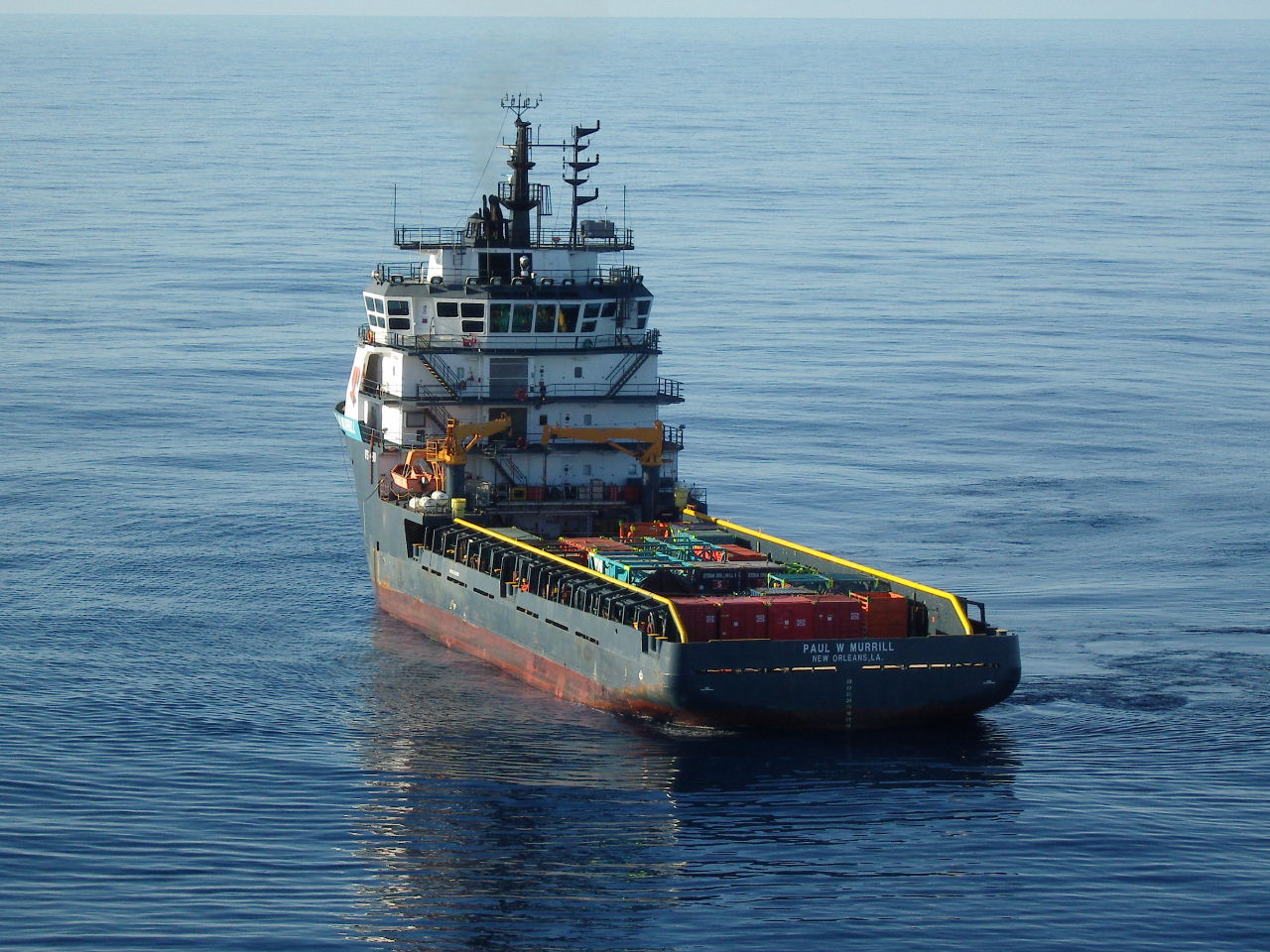

  TYPE: VS 480 NAME: Paul W Murrill   PHOTO: Alan Souter

General Propulsion Cargo Capacity
Length OA 79.5 m Engines 2 x ? Fuel 1300 m3
Breadth 18.3 m BHP 5940  Pot water 600 m3
DWT 2750 tonnes For'd Thrusters 1 x 1130 bhp Mud 1290 m3
Deck area 720 m2 Az Thruster 1 x1130 bhp Base oil
    Aft Thrusters only 2 x 2970 bhp Brine
Year built 2002 Joystick yes- Dry bulk 300 m3
Shipyard Quality Shipyard  DP DP II Tank Cleaning None
Previous names
Comments



  TYPE: VS 480 NAME: Robert H Boh   PHOTO: Ray McEnery

General Propulsion Cargo Capacity
Length OA 79.5 m Engines 2 x ? Fuel 1300 m3
Breadth 18.3 m BHP 5940  Pot water 600 m3
DWT 2750 tonnes For'd Thrusters 1 x 1130 bhp Mud 1290 m3
Deck area 720 m2 Az Thruster 1 x1130 bhp Base oil
    Aft Thrusters only 2 x 2970 bhp Brine
Year built 2002 Joystick yes- Dry bulk 300 m3
Shipyard Quality Shipyard  DP DP II Tank Cleaning None
Previous names
Comments



UT 755

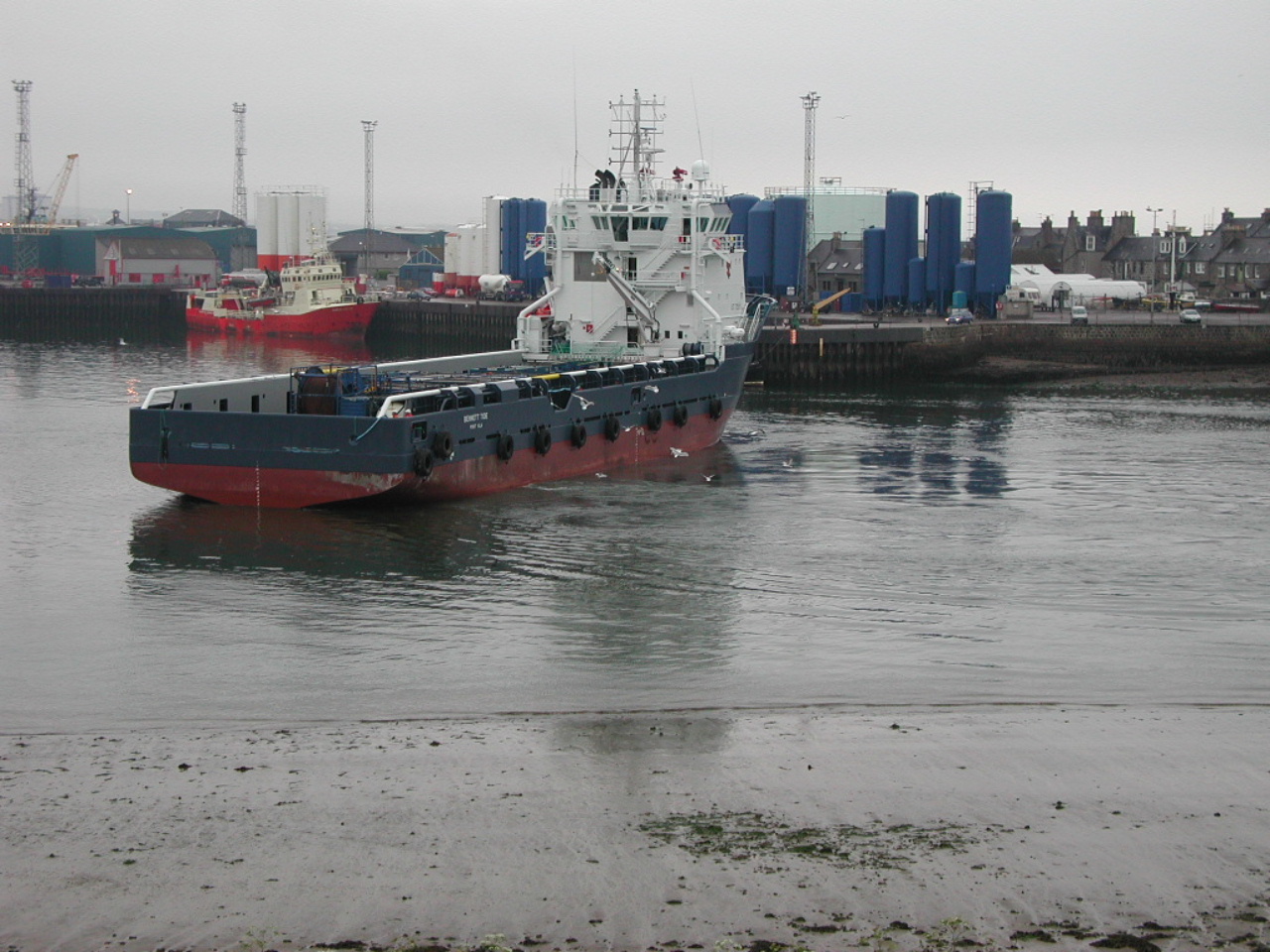

TYPE: UT 755 NAME: Bennett Tide PHOTO: George Craigen, Greg Dalgetty
General Propulsion Cargo Capacity
Length OA 71.9 m Engines Normo KRM-9 Fuel 1108m3
Breadth 16 m BHP/kW 5460/4015 Pot water 924m3
DWT 3350 mt For'd Thrusters 2 x 350 Mud 1200m3
Deck area 680 m2 Aft Thrusters 1 x 800 Base oil
    Joystick Yes Brine
Year built 2000 DP Yes Dry bulk 319m3
Shipyard Brevik Tank Cleaning
Previous names
Comments

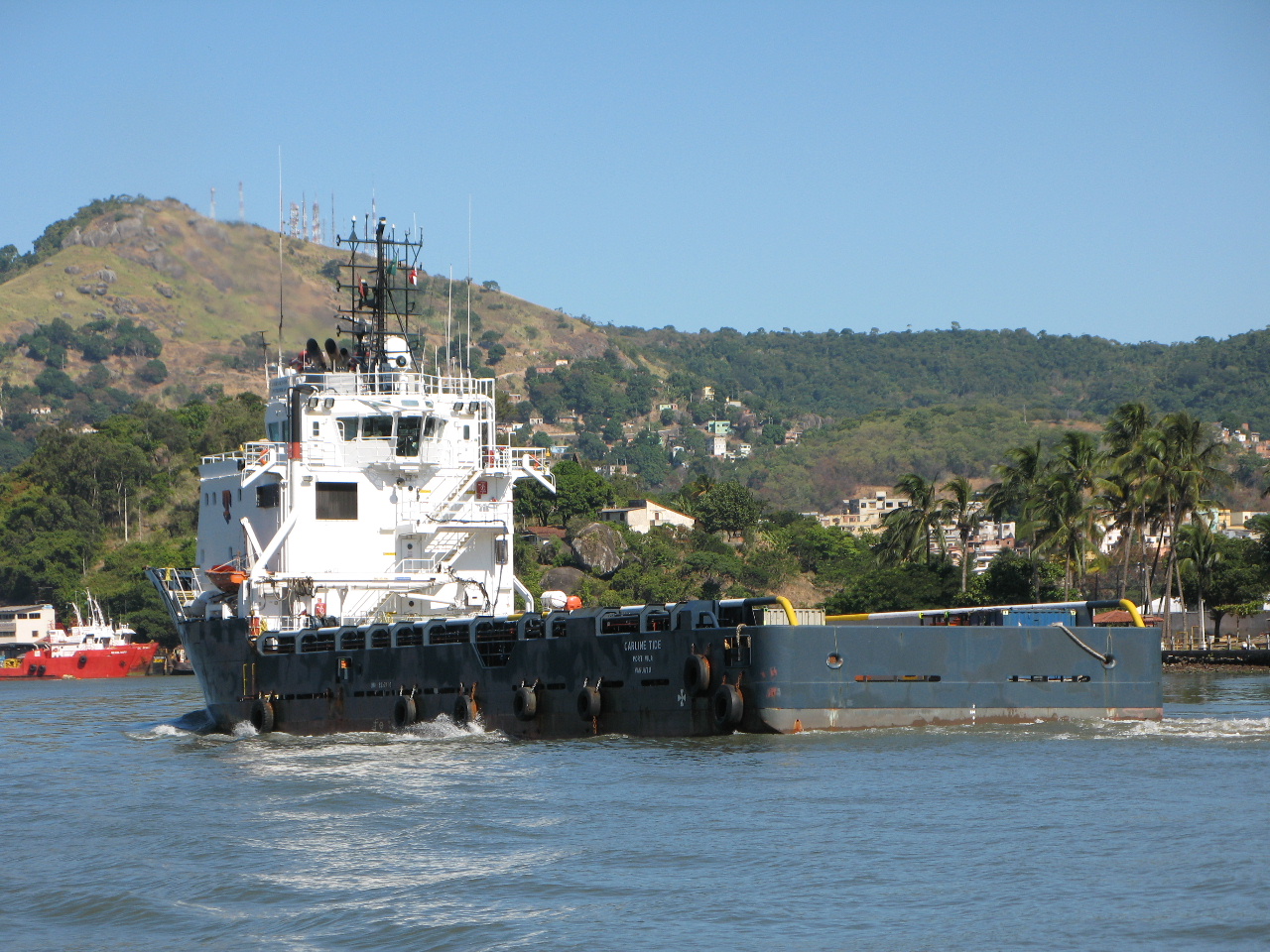

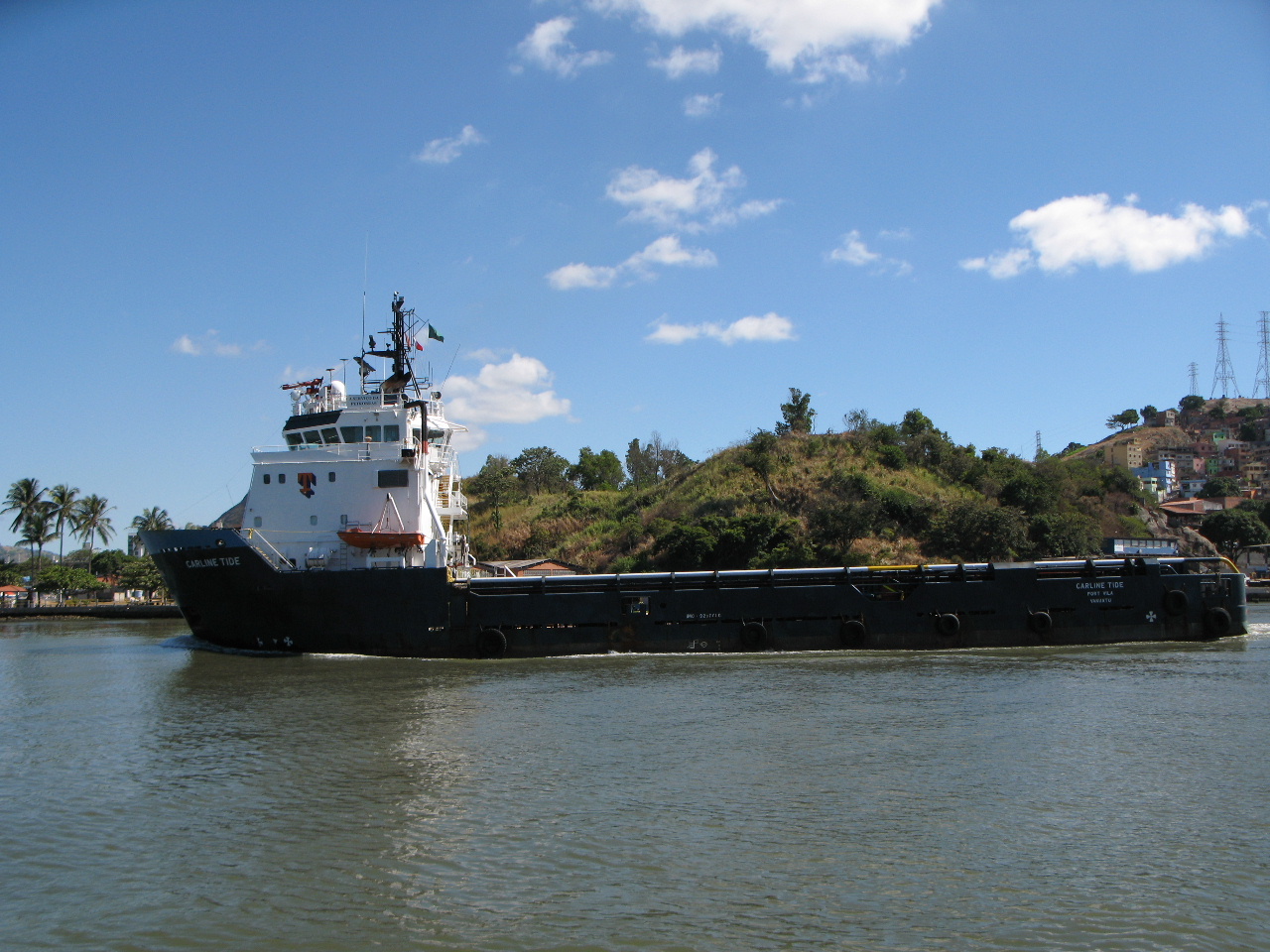

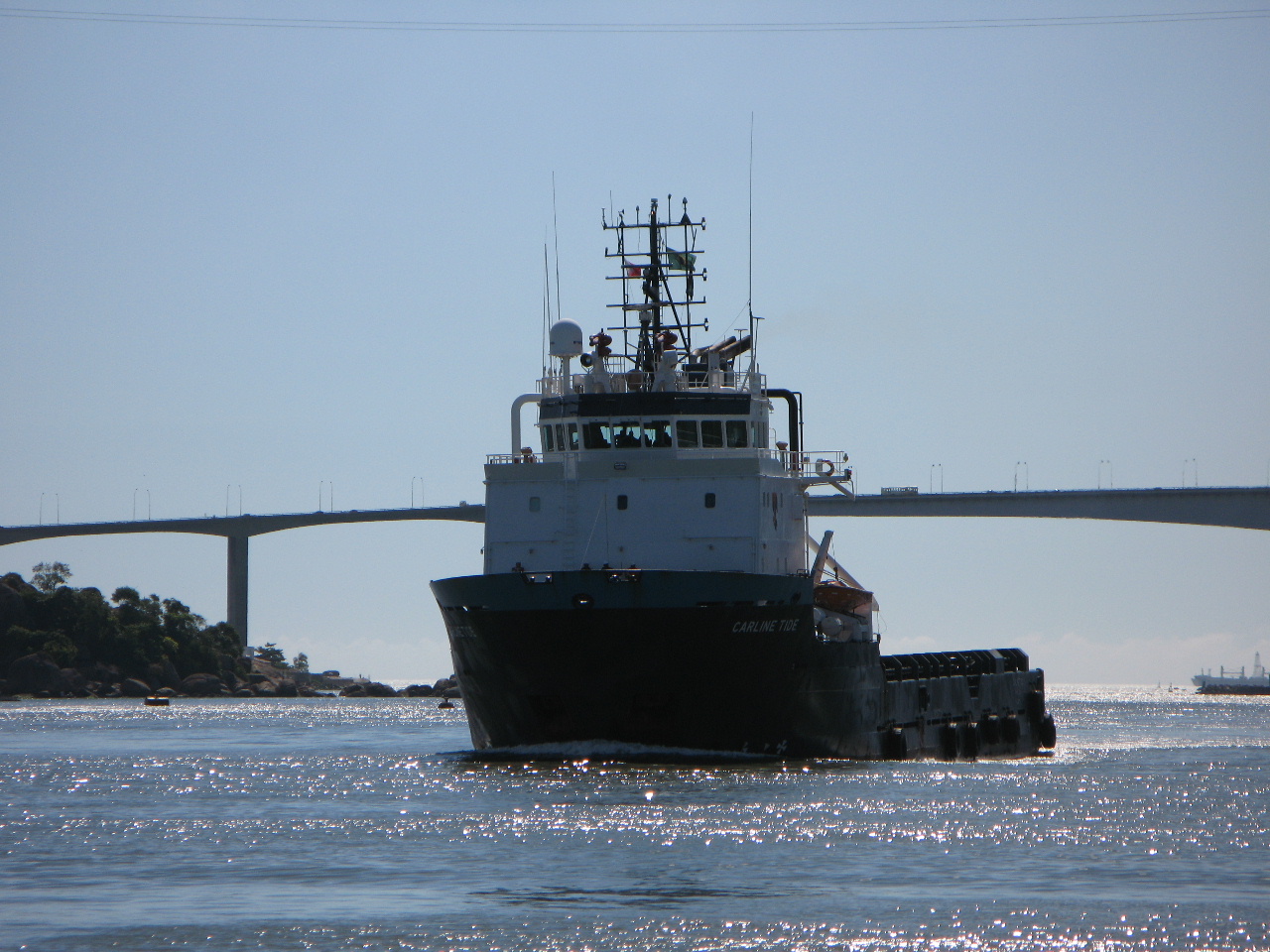

TYPE: UT 755 NAME: Carline Tide PHOTO: Tony Poll
General Propulsion Cargo Capacity
Length OA 71.9 m Engines Normo KRM-9 Fuel 1108m3
Breadth 16 m BHP/kW 5460/4015 Pot water 924m3
DWT 3350 mt For'd Thrusters 2 x 350 Mud 1200m3
Deck area 680 m2 Aft Thrusters 1 x 800 Base oil
    Joystick Yes Brine
Year built 2001 DP Yes Dry bulk 319m3
Shipyard Aker Tulcea Tank Cleaning
Previous names
Comments

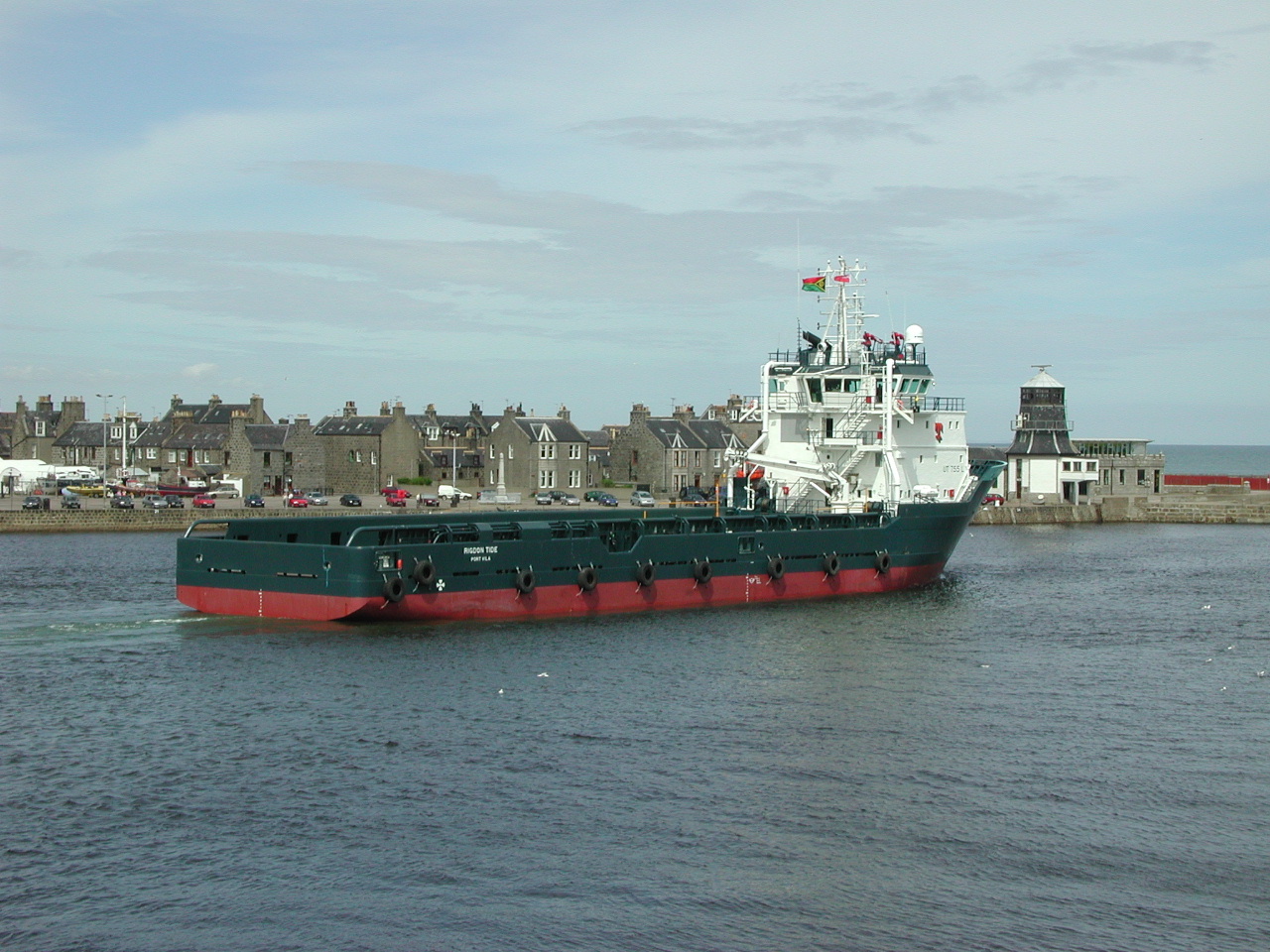

  TYPE: UT 755 NAME: Luanda Tide   PHOTO: Jan Plug, George Craigen

General Propulsion Cargo Capacity
Length OA 71.9 m Engines 2 x Bergen KRMB-9 Fuel 850 m3
Breadth 16 m BHP 5450 Pot water 831 m3
DWT 3350 For'd Thrusters 2 x 700 bhp Mud 800 m3
Deck area 621 m2 Az Thruster   Base oil
Year built 2002 Aft Thrusters 1 x 800 bhp Brine
Shipyard ? Joystick   Dry bulk 200 m3
Berths 22 DP   Tank Cleaning
Previous names Rigdon Tide
Comments -



 type: UT 755 name: Madonna Tide photo: George Craigen, Jan Plug
General Propulsion Cargo Capacity
Length OA 67 m Engines 2 x Bergen KRMB-9 Fuel 865 m3
Breadth 16 m BHP/kW 5460/4014 Pot water 1000 m3
DWT 3049 t For'd Thrusters 2 x 350 bhp Mud 1000 m3
Deck area 621 m2 Az Thruster   Base oil
    Aft Thrusters only 1 x 800 bhp Brine
Year built 2000 Joystick Yes Dry bulk 305m3
Shipyard Brevik DP DP1 Tank Cleaning
Previous names -
Comments -



 type: UT 755 name: Richard A Phillipi photo: Jan Plug

General Propulsion Cargo Capacity
Length OA 67 m Engines 2 x Bergen KRMB-9 Fuel 865 m3
Breadth 16 m BHP/kW 5460/4014 Pot water 1000 m3
DWT 3049 t For'd Thrusters 2 x 350 bhp Mud 1000 m3
Deck area 621 m2 Az Thruster   Base oil
    Aft Thrusters only 1 x 800 bhp Brine
Year built 1998 Joystick Yes Dry bulk 305m3
Shipyard Brattvaag DP DP1 Tank Cleaning
Previous names Monarch Bay, Torm Kestrel
Comments -



  TYPE: UT 755 NAME: Sam S Allgood   PHOTO: Mark Warren

General Propulsion Cargo Capacity
Length OA 67 m Engines 2 x Bergen KRMB-9 Fuel 850 m3
Breadth 16 m BHP 5450 Pot water 831 m3
DWT 3115 For'd Thrusters 2 x 700 bhp Mud 800 m3
Deck area 621 m2 Az Thruster   Base oil
    Aft Thrusters 1 x 800 bhp Brine
Year built 1998 Joystick   Dry bulk 200 m3
Shipyard Brattvaag DP   Tank Cleaning
Previous names Monarch Bay
Comments



UT 755L



  TYPE: UT 755L NAME: Danko Tide   PHOTO: Hugo Aguiar
-
General Propulsion Cargo Capacity
Length OA 71.9 m Engines 2 x Bergen KRMB-9 Fuel 850 m3
Breadth 16 m BHP/kW 5450/4007 Pot water 831 m3
DWT 3350 For'd Thrusters 2 x 700 bhp Mud 800 m3
Deck area 621 m2 Az Thruster   Base oil
Year built 2002 Aft Thrusters 1 x 800 bhp Brine
Shipyard Estaleiro Promar Joystick   Dry bulk 200 m3
Berths 26 DP   Tank Cleaning
Previous names
Comments

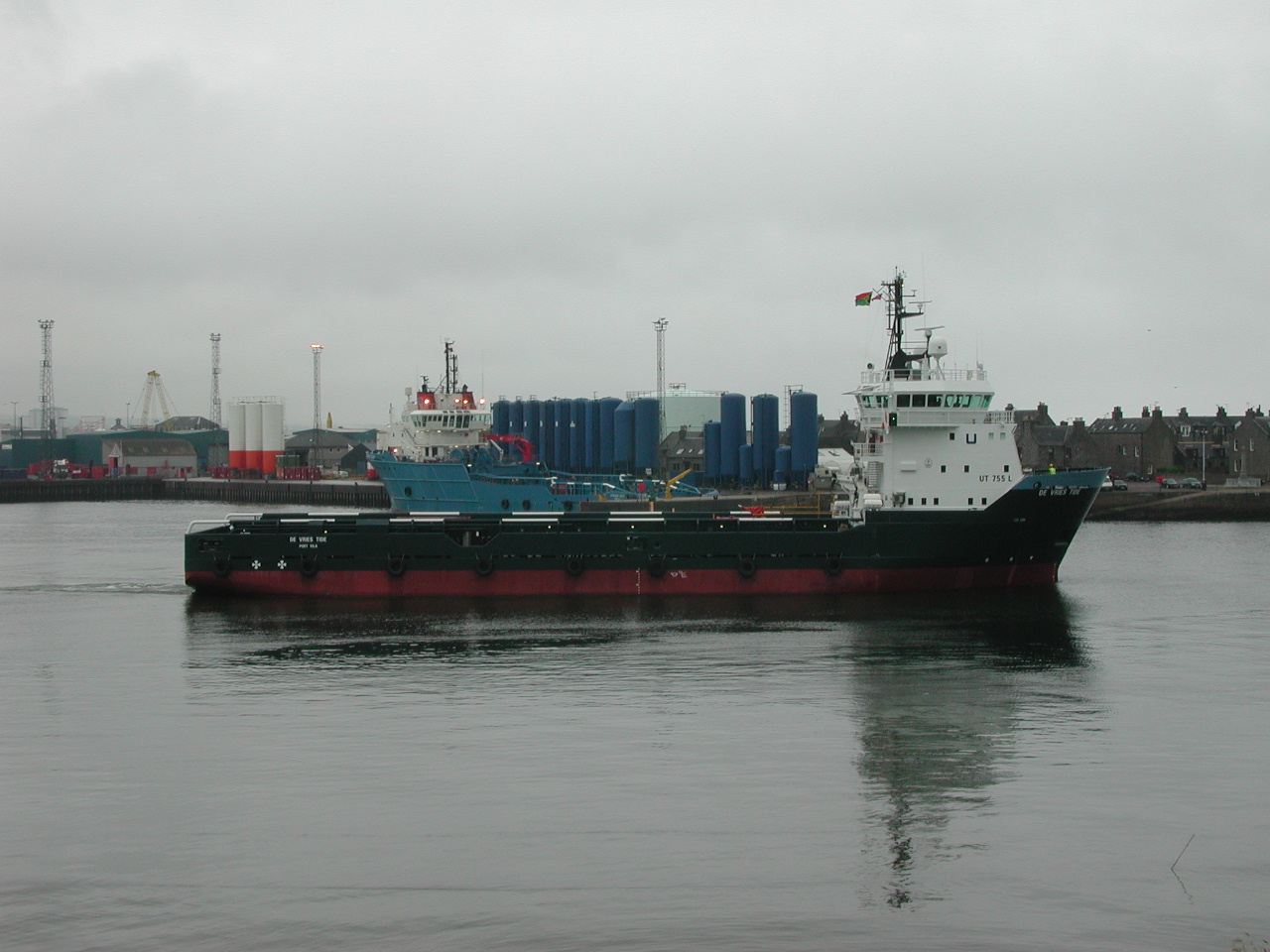

  TYPE: UT 755L NAME: De Vries Tide   PHOTO: George Craigen
General Propulsion Cargo Capacity
Length OA 71.9 m Engines 2 x Bergen KRMB-9 Fuel 850 m3
Breadth 16 m BHP 5450 Pot water 831 m3
DWT 3350 For'd Thrusters 2 x 700 bhp Mud 800 m3
Deck area 621 m2 Az Thruster   Base oil
Year built 2002 Aft Thrusters 1 x 800 bhp Brine
Shipyard Simek Joystick   Dry bulk 200 m3
Berths 22 DP   Tank Cleaning
Previous names Active Rey
Comments Bought off the stocks by Tidewater



TYPE: UT 755L NAME: Melton Tide PHOTO: Jan Plug, Pat McCardle
GENERAL PROPULSION CARGO CAPACITY
Length OA 72 m Engines 2 x Wartsila 9L26A Fuel 931 m3
Breadth 16 m BHP/kW 7482/5500 Pot water 800 m3
DWT 3184 t For'd Thrusters 2 x 885 bhp Mud 1000 m3
Deck area 640 m2 Az Thruster - Base oil 100 m3
    Aft Thrusters 2 x 800 bhp Brine 1000 m3
Year built 2007 Joystick - Dry bulk 320 m3
Shipyard Rosetti Marino DPII Kongsberg SDP 21 Tank Cleaning Marex
Previous names F.D.Incredible
Comments -

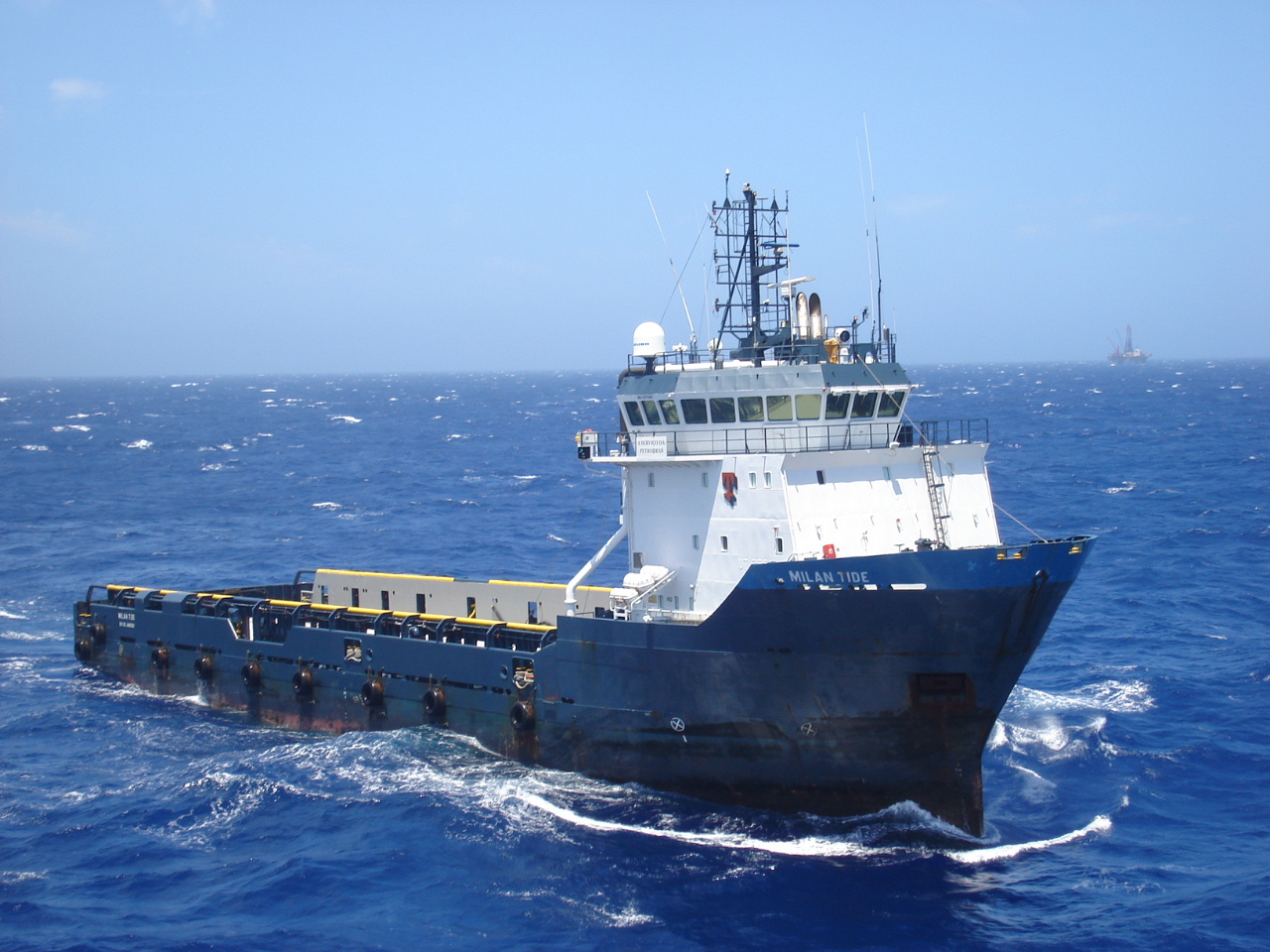

TYPE: UT 755L NAME: Milan Tide PHOTO: Erik Azevedo

GENERAL PROPULSION CARGO CAPACITY
Length OA 71.9 m Engines 2 x RR Bergen Fuel 925 m3
Breadth 16.04 m BHP/kW 5460/4014 Pot water 800 m3
DWT 3250 mt

For'd Thrusters

1 x 800 bhp Mud 1000 m3
Deck area 680 m2 Az Thruster 1 x 800 bhp Base oil -
Year built 2003 Aft Thrusters 1 x 800 bhp Brine -
Shipyard Promar Brazil Joystick - Dry bulk 320 m3
Berths 26 DP - Tank Cleaning -
Previous names -
Comments -

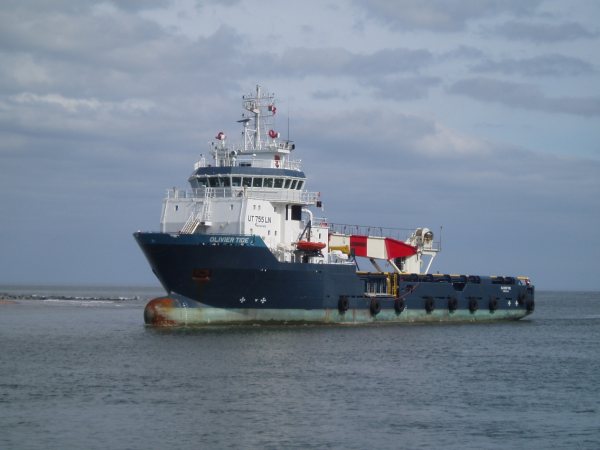

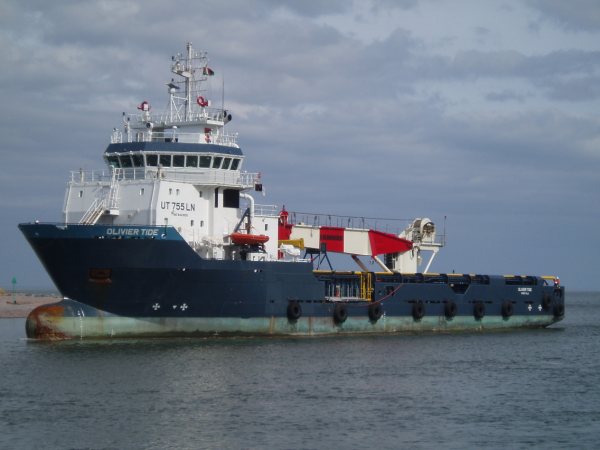

TYPE: UT 755 LN NAME: Olivier Tide PHOTO: Scott Boulter
GENERAL PROPULSION CARGO CAPACITY
Length OA 73.6 m Engines 2 x MAN 6M25 Fuel 990 m3
Breadth 16.0 m BHP/kW 5386/3960 Pot water 830 m3
DWT 3326 t For'd Thrusters 2 x 590 kW Mud 980 m3
Deck area - Az Thruster - Base oil -
    Aft Thrusters 1 x 590 kW Brine 980 m3
Year built 2009 Joystick Yes Dry bulk 320 m3
Shipyard Cochin India DPII Yes Tank Cleaning -
Previous names -
Comments Fitted with a big crane!



TYPE: UT 755L NAME: Skipsey Tide PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 72 m Engines 2 x Wartsila 9L26A Fuel 819 m3
Breadth 16 m BHP/kW 7482/5500 Pot water 785 m3
DWT 3184 t For'd Thrusters 2 x 885 bhp Mud 1000 m3
Deck area 640 m2 Az Thruster - Base oil 100 m3
    Aft Thrusters 2 x 800 bhp Brine 1000 m3
Year built 2007 Joystick - Dry bulk 320 m3
Shipyard Rosetti Marino DPII Kongsberg SDP 21 Tank Cleaning Marex
Previous names F.D.Reliable
Comments -



UT755L McKENNY TIDE BUILT: 1998 SOVIKNES


Photo: Vic Gibson

This UT755 was formerly called Gargano and was managed by Gulf Offshore but sold to Tidewaters at the end of 2000. It is seen here in its old livery

We previously thought that this was the Madonna Tide which made a good story for those in the the North of Scotland since we were close to the place where Madonna married Guy Ritchie, but sadly it was not so. The correct name is stated here.



General Propulsion Cargo Capacity
Length OA 72 m Engines 2 x Bergen Fuel 914 m3
Breadth 16 m BHP 5450 Pot water 800 m3
DWT 3180 tonnes For'd Thrusters 1x590kw/1x736kw Mud 770 m3
Deck area 624 m2 Aft Thrusters 1 x 590 kw Base oil 210 m3
    Joystick   Brine 770 m3
Year built 1998 DP Yes Dry bulk 200 m3
Shipyard Soviknes Verft Tank Cleaning Tofte



UT 745



TYPE: UT 745 NAME: Burch Williams PHOTO: Pat McCardle

GENERAL PROPULSION CARGO CAPACITY
Length OA 84 m Engines 2 x RR BRM Fuel 1150 m3
Breadth 18.8 m BHP/kW 9600/7058 Pot water 1100 m3
Gross Tonnage 3069

For'd Thrusters

3 x 1200 bhp Mud 680 m3
DWT 4320 mt Az Thruster - Base oil 230 m3
Deck area 900 m2 Aft Thrusters 2 x 896 bhp Brine 900 m3
Year built 900 m2 Joystick - Dry bulk 400 m3
Shipyard Loland Verft DP Simrad Albatross Berths -
Previous names Ace Nature
Comments -
Current Charter - Available - Location -

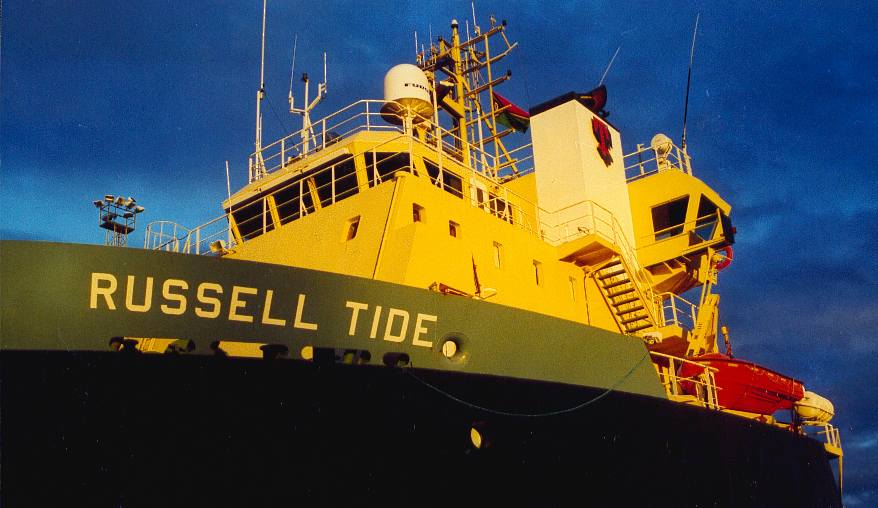

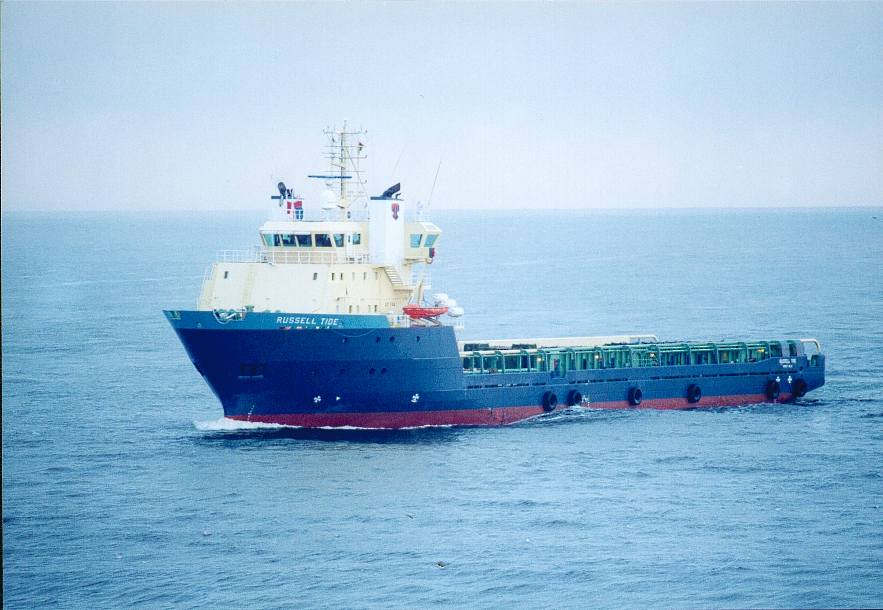

tYPE: uT 745 NAME: Russell Tide PHOTO: Vic Gibson

General Propulsion Cargo Capacity
Length OA 84 m Engines 2 x RR BRM Fuel 1150 m3
Breadth 18.8 m BHP 9600 Pot water 1100 m3
DWT 4320 tonnes- For'd Thrusters 3 x 1200 bhp Mud 680 m3
Deck area 900 m2 Aft Thrusters 2 x 896 bhp Base oil 230 m3
    Joystick   Brine 900 m3
Year built 1999- DP Simrad Albatross Dry bulk 400 m3
Shipyard Soviknes Tank Cleaning

The Russell Tide is a Rolls-Royce Ulstein 745 built at Soviknes in Norway and brought into service during the latter part of 1999 as the Ace Navigator. It was owned by the Japanese shipping company Sanko who used to be well known for their operation of large tankers with European crews. It was sold to Tidewater Inc during the summer of this year, and since then has been operating out of Aberdeen on the spot market.

This ship, and its sister vessel the Ace Nature are probably the ultimate development of the 745, and as usual when describing a modern offshore support vessel it is almost impossible to avoid using superlatives. This ship appears to be provided with more than enough of everything which might be required for it to operate in the North Sea. Vessels working in close proximity to North Sea platforms and rigs need plenty of power. On the Russell Tide the 9600 BHP is provided by two Ulstein Bergen diesels housed in an engine room virtually beneath the accommodation. As well as providing propulsion these engines also power two shaft generators which are situated at the aft end of what used to be called the Cement Room. It is difficult to know what it might be called today. It is a long space containing eight dry bulk tanks, or at least the bottoms of eight dry bulk tanks, the tops of these tanks are one deck up at the same level as the stability tanks in the after part. The cement tanks are so close together at the upper level that even a slim human cannot squeeze between them, the only way to get to the next space is to go back down the ladder to the lower deck and then up the next ladder.

On the periphery of the Cement Room the edges of the mud tanks can be seen. There are eight of these, embedded, Norwegian style in the tanks which form the double skin on the sides of the hull. The mud tanks have a capacity of 4476 barrels (710 m3), which is the sort of quantity required to drill a well in very deep water. Traditionally a well in the central North Sea might require 2000 barrels in total, although vessels such as the Russell Tide might be required to deliver products to several locations.

Apparently the most important single requirement when considering the hiring of a platform ship is deck space, and the delineation between a small platform ship and a large platform ship is 600 m2. The Russell Tide has a deck area of 973.5 m2. The second most important this of course is the day rate.

All platform ships constructed during the last two or three years seem to have their eye on the cable. or ROV market, and this vessel's sister has become an ROV mother ship. In addition to the DP capability of which more later, a large number of berths must be provided. The Russell Tide has eight single berth cabins nine two man cabins and five four man cabins. This is accommodation for 46 persons in all. The accommodation is well constructed but possibly a little more Spartan that offshore personnel have become accustomed to. Apparently this is due to the Japanese influence.

The bridge is comprehensively equipped. In the centre of the wheelhouse is a Kongsberg DP console featuring a duplicated system. It is capable of interfacing with DGPS, Fan beam and HiPAP, which is an interface with acoustic beacons laid on the seabed. In addition there is an Ulstein Tank Tender System which is duplicated in the Engine Control Room. This allows all aspects of loading and discharge of bulk liquids and solids to be controlled from either position. The owners, recognising the difficulties the master or mate might have while manoeuvring the ship and trying to operate the discharge system at the same time, have assigned enough deck officers to allow the peripheral services to be controlled while the driver concentrates on maintaining station alongside oil rigs. Owners of offshore installations might take comfort from this approach. Some operators consider that support vessel collisions with their structures may often be attributed to inadequate supervision of DP systems.

In addition the Russell Tide is carrying six cadets, sponsored by Tidewater and provided by Clyde Marine. Everyone associated with the UK merchant fleet, or indeed the world merchant fleet should be heartened by such a move which might ensure the availability of officers during the next decade. Back in the 1960s it was said that only one in ten deck apprentices who went to sea actually stayed long enough to become masters. In hindsight this hardly seems surprising since a career at sea meant just that. Today conditions are quite different so the percentage might at least double.

The control systems on the bridge which, in addition to the DP system, include a Poscon joystick and a full set of levers and buttons both forward and aft, operate two CP propellers together with flap rudders, two tunnel thrusters aft each of 660 kW, one tunnel thruster forward of 883 kW and an azimuthing thruster also of 883 kW. Despite the disadvantages of the a thruster which must be retracted into the hull before the ship enters port, azimuthing thrusters in the bow continue to be popular possibly because they are less likely to draw air as the ship pitches.

The Russell Tide is shortly to depart in the direction of West Africa where she is to take up a contract supporting the drillship "Saipem 10,000," and there-after will follow that vessel to other parts of the world probably starting with Brazil. One assumes that in more benign waters all that wonderful positioning equipment will become more or less redundant since the vessel will be able to tie up alongside the drillship and switch everything off, however until her departure she will work the Aberdeen spot market and will continue to demonstrate the extraordinary capabilities of the 745 as the North Sea winter approaches.

Originally written for the Offshore Support Journal in Sept 2000.



STX PSV 09 CD



TYPE: STX 09 CD NAME: Demarest Tide PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 86.6 m Engines 4 x Cat 3516 TBA Fuel 1038 m3
Breadth 19 m BHP/kW 10700/7867 Pot water 1175 m3
DWT 4850 t

For'd Thrusters

2 X 1200 bhp Mud 1000 m3
Deck area 1000 m2 Az Thruster - Base oil 318 m3
Year built 2013 Aft Aziprops 5867 bhp Brine 1866 m3
Shipyard Vard Aukra Joystick Kongsberg Dry bulk 264 m3
Berths - DP Kongsberg SDP21 Tank Cleaning Yes
Previous names -
Comments Details taken from another STX 09 CD

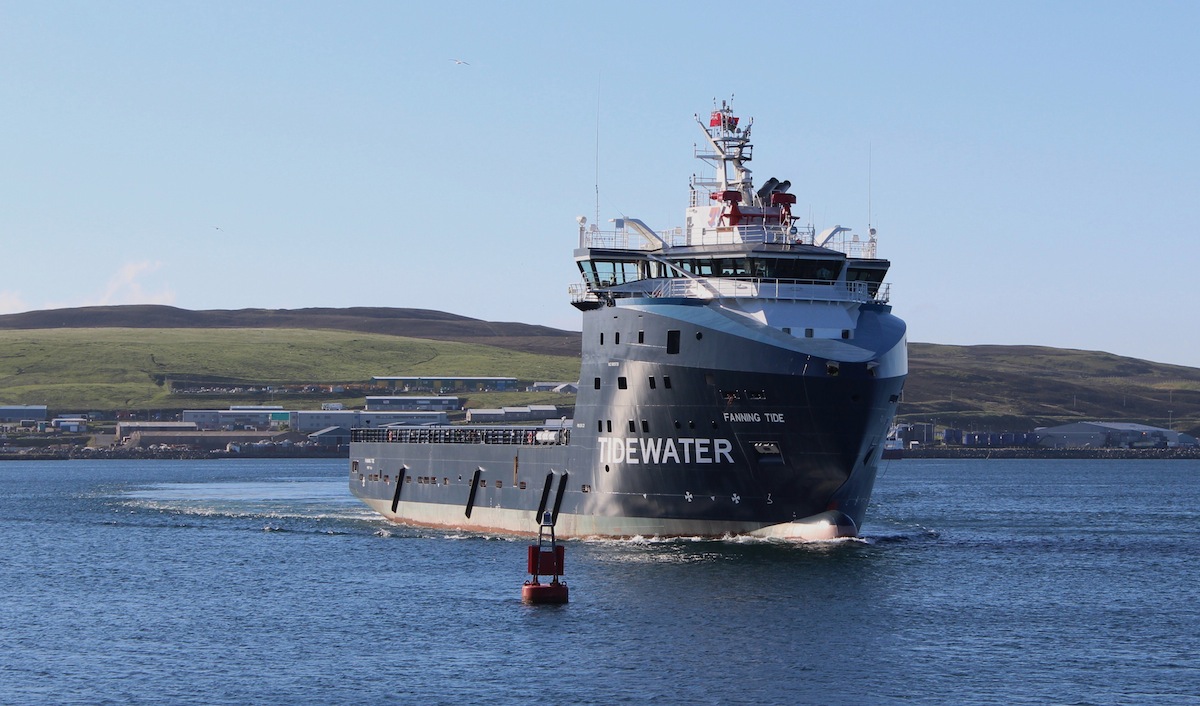

TYPE: STX 09 CD NAME: Fanning Tide PHOTO: Paul Moar
GENERAL PROPULSION CARGO CAPACITY
Length OA 86.6 m Engines 4 x Cat 3516 TBA Fuel 1038 m3
Breadth 19 m BHP/kW 10700/7867 Pot water 1175 m3
DWT 4850 t

For'd Thrusters

2 X 1200 bhp Mud 1000 m3
Deck area 1000 m2 Az Thruster - Base oil 318 m3
Year built 2013 Aft Aziprops 5867 bhp Brine 1866 m3
Shipyard Soviknes Joystick Kongsberg Dry bulk 264 m3
Berths - DP Kongsberg SDP21 Tank Cleaning Yes
Previous names -
Comments Details taken from another STX 09 CD



TYPE: STX 09 CD NAME: Lundstrom Tide PHOTO: Scott Boulter

GENERAL PROPULSION CARGO CAPACITY
Length OA 86.6 m Engines 4 x Cat 3516 TBA Fuel 1038 m3
Breadth 19 m BHP/kW 10700/7867 Pot water 1175 m3
DWT 4850 t

For'd Thrusters

2 X 1200 bhp Mud 1000 m3
Deck area 1000 m2 Az Thruster - Base oil 318 m3
Year built 2013 Aft Aziprops 5867 bhp Brine 1866 m3
Shipyard Soviknes Joystick Kongsberg Dry bulk 264 m3
Berths - DP Kongsberg SDP21 Tank Cleaning Yes
Previous names -
Comments Details taken from another STX 09 CD





MISCELLANEOUS



  TYPE: NAME: Advocator   PHOTO: Oddgeir Refvik

General Propulsion Cargo Capacity

GENERAL

PROPULSION CAPACITIES
Length OA 52 m Engines  2 x Detroit 16V Fuel 415 m3
Breadth 11.59 m BHP 1800 Pot water 165 m3
DWT 859 t For'd Thrusters 1 x 300 t Mud 254 m3
Deck area 312.56 m2 Az Thruster   Base oil
Year built 1977 Aft Thrusters   Brine
Shipyard Halter Marine Joystick   Dry bulk 85 m3
Berths 20 DP   Tank Cleaning
Previous names Ada Lee Fagan, Point Sally, Sally, HOS Advocator
Comments



  TYPE: NAME: Alden Tide   PHOTO: Oddgeir Refvik

General Propulsion Cargo Capacity

GENERAL

PROPULSION CAPACITIES
Length OA   Engines   Fuel
Breadth   BHP   Pot water
DWT   For'd Thrusters   Mud
Deck area   Az Thruster   Base oil
    Aft Thrusters   Brine
Year built   Joystick   Dry bulk
Shipyard   DP   Tank Cleaning
Previous names
Comments



TYPE: NAME: Bourgeois Tide PHOTO: Jan Plug

GENERAL PROPULSION CARGO CAPACITY
Length OA 63.1 m Engines - Fuel -
Breadth 16.1 m BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built 2004 Aft Thrusters - Brine -
Shipyard Bollinger Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -

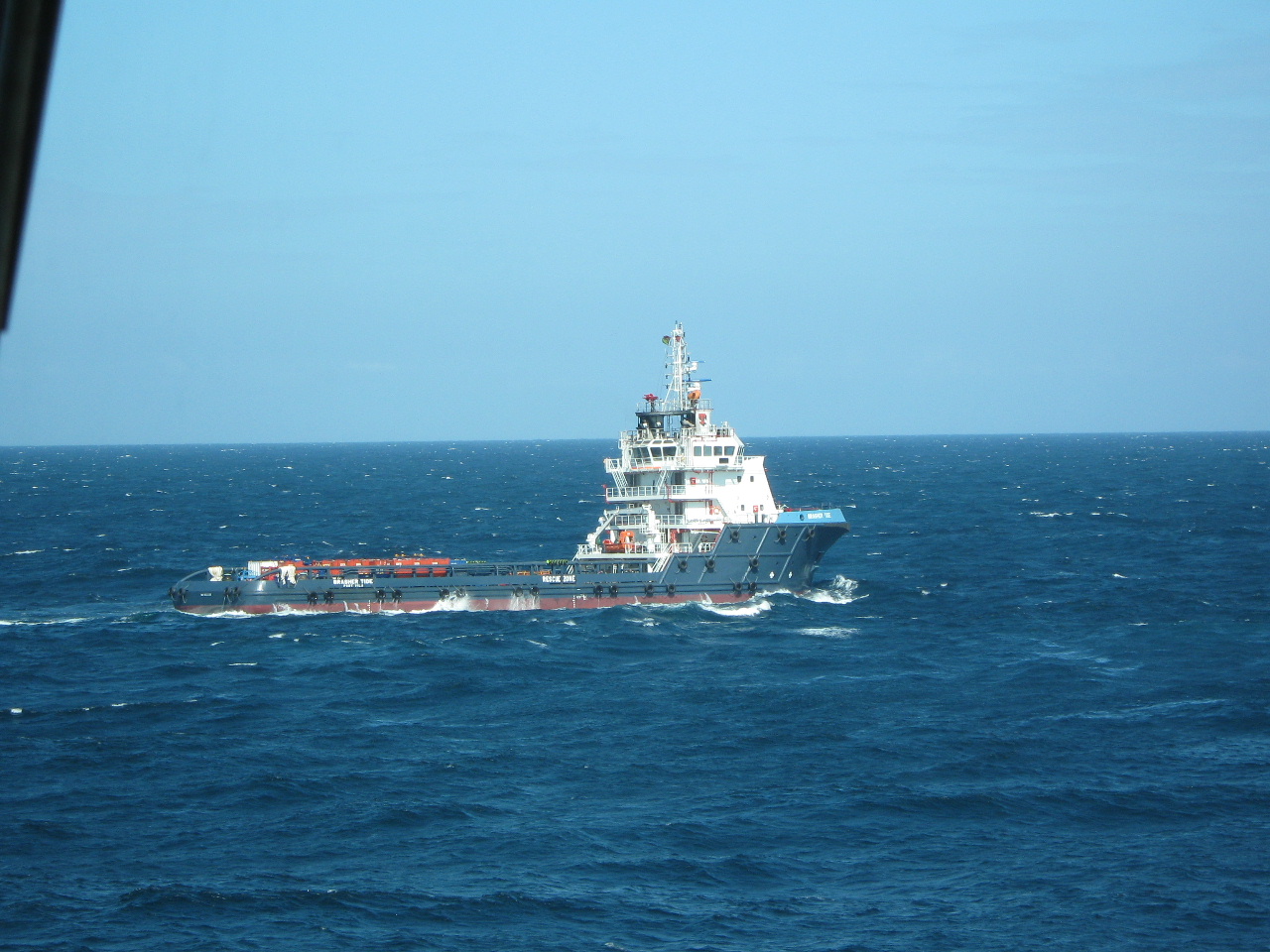

TYPE: NAME: Brasher Tide PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built - Aft Thrusters - Brine -
Shipyard - Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -

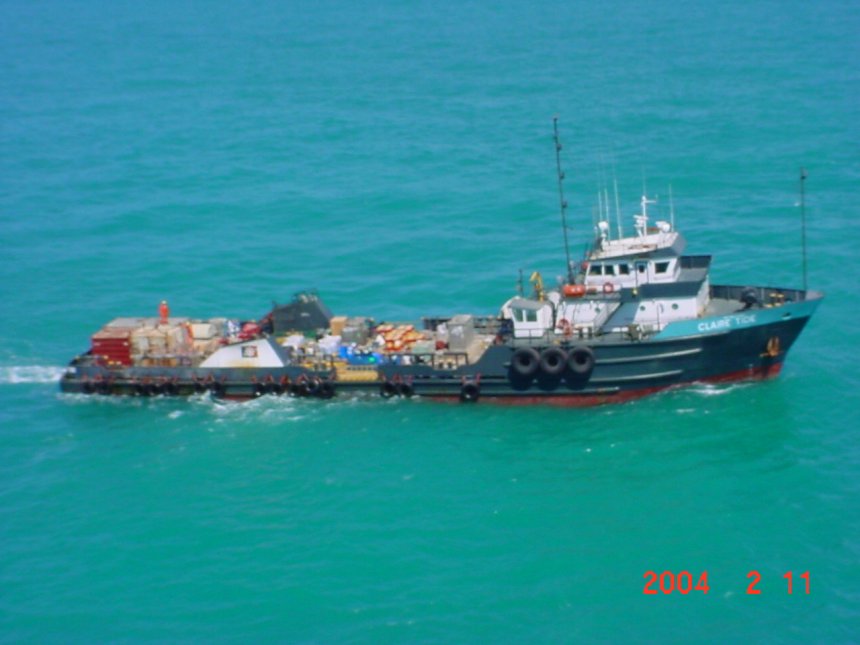

TYPE: NAME: Claire Tide PHOTO: Ron Jansen

GENERAL PROPULSION CARGO CAPACITY
Length OA 54.9 m Engines 2 x Cat D399 Fuel 372 m3
Breadth 12.2 m BHP/kW 2250/1654 Pot water 78 m3
DWT 922 mt

For'd Thrusters

1 x 300 bhp Mud 215 m3
Deck area 297 m2 Az Thruster - Base oil -
Year built 1982 Aft Thrusters - Brine -
Shipyard Atlantic Marine Joystick - Dry bulk 113 m3
Berths 20 DP - Tank Cleaning -
Previous names -
Comments -

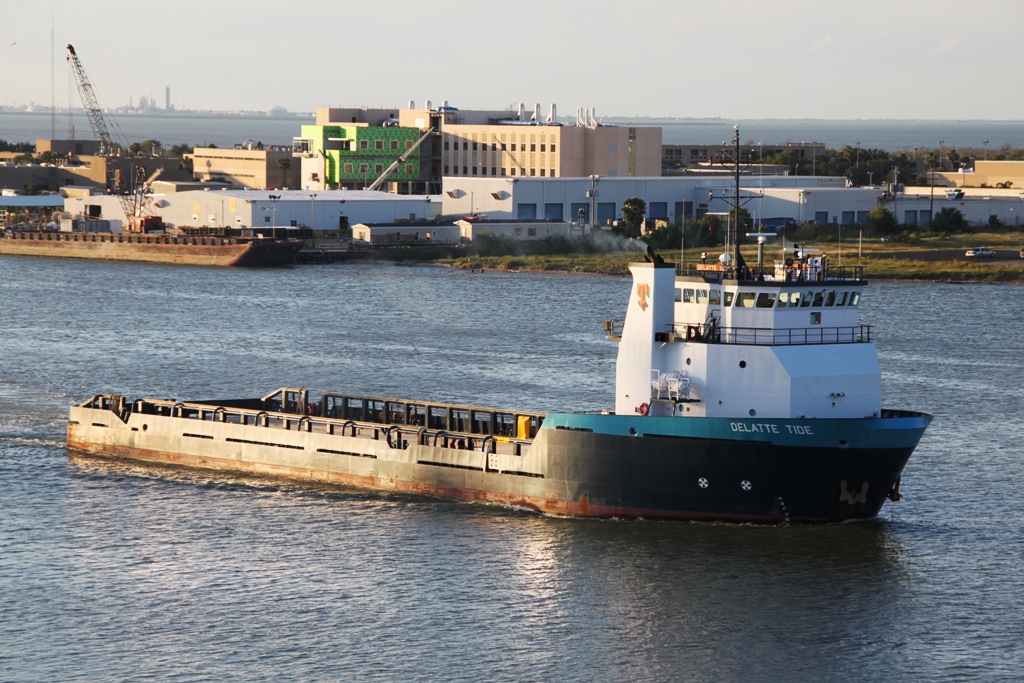

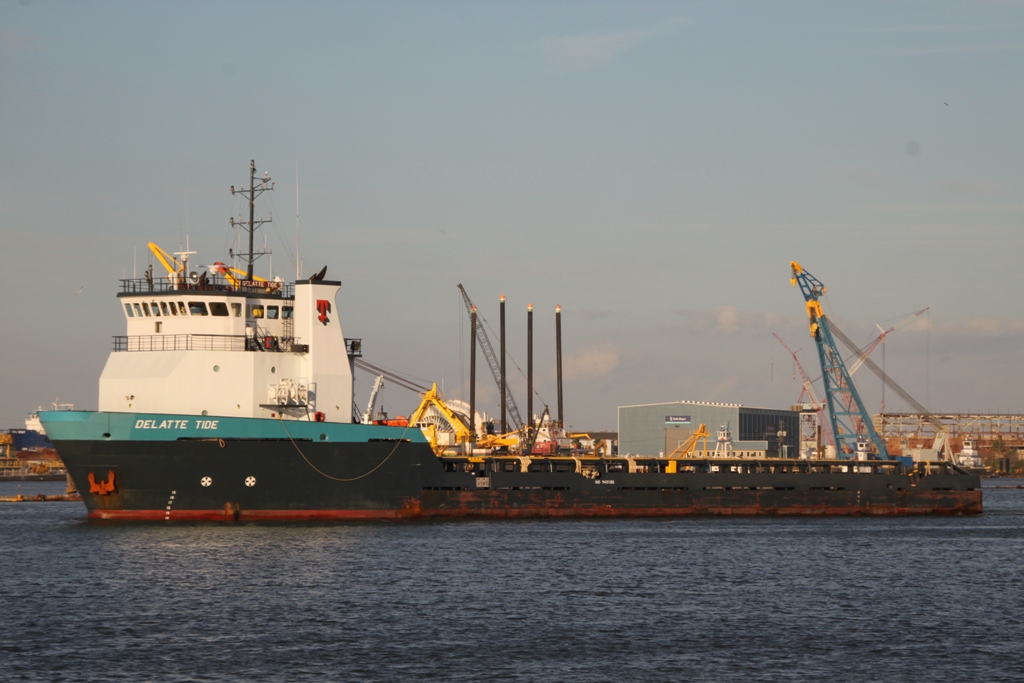

TYPE: NAME: DELATTE TIDE PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built - Aft Thrusters - Brine -
Shipyard - Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -



  TYPE: NAME: Ed Kyle   PHOTO: Oddgeir Refvik

General Propulsion Cargo Capacity
Length OA 67.06 m Engines 2 x Cat 3516B Fuel 1328 m3
Breadth 16.46 m BHP/kW 4749/3490 Pot water 146 m3
DWT 3000 mt For'd Thrusters   Mud
Deck area   Az Thruster   Base oil
    Aft Thrusters   Brine
Year built 2002 Joystick   Dry bulk 511 m3
Shipyard Bender DP   Tank Cleaning
Previous names
Comments

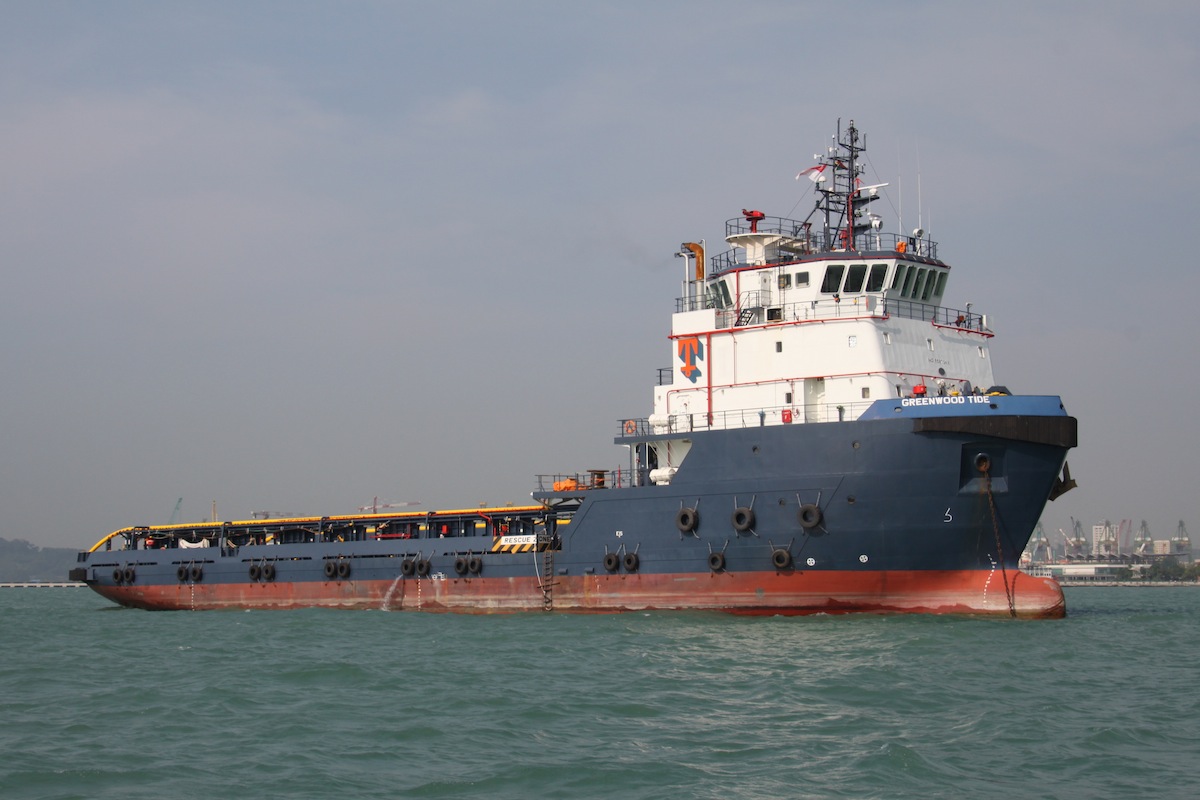

TYPE: NAME: Greenwood Tide PHOTO: Mike Prendergast

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT 3483 t

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built 2010 Aft Thrusters - Brine -
Shipyard Nanyang China Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -

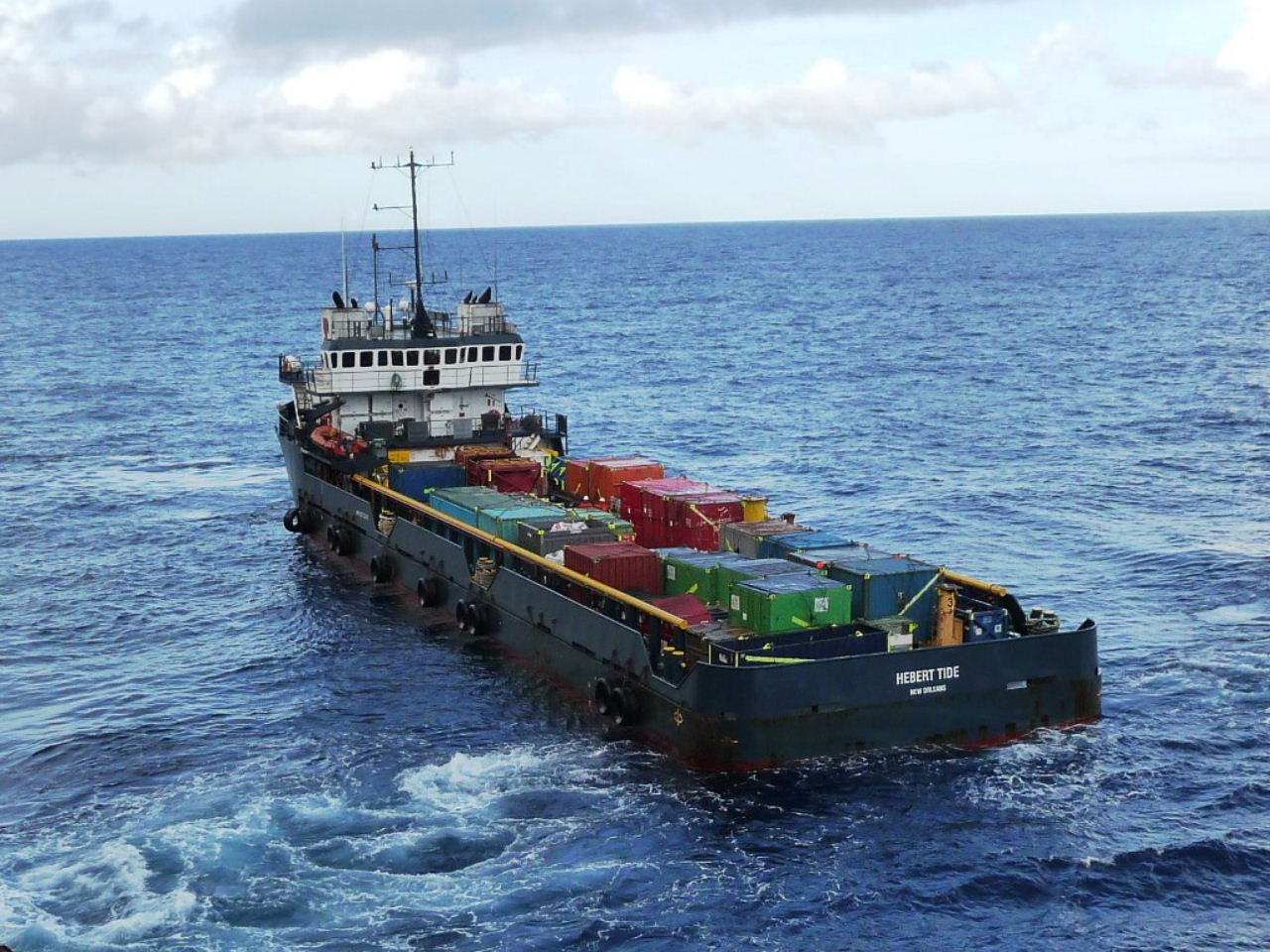

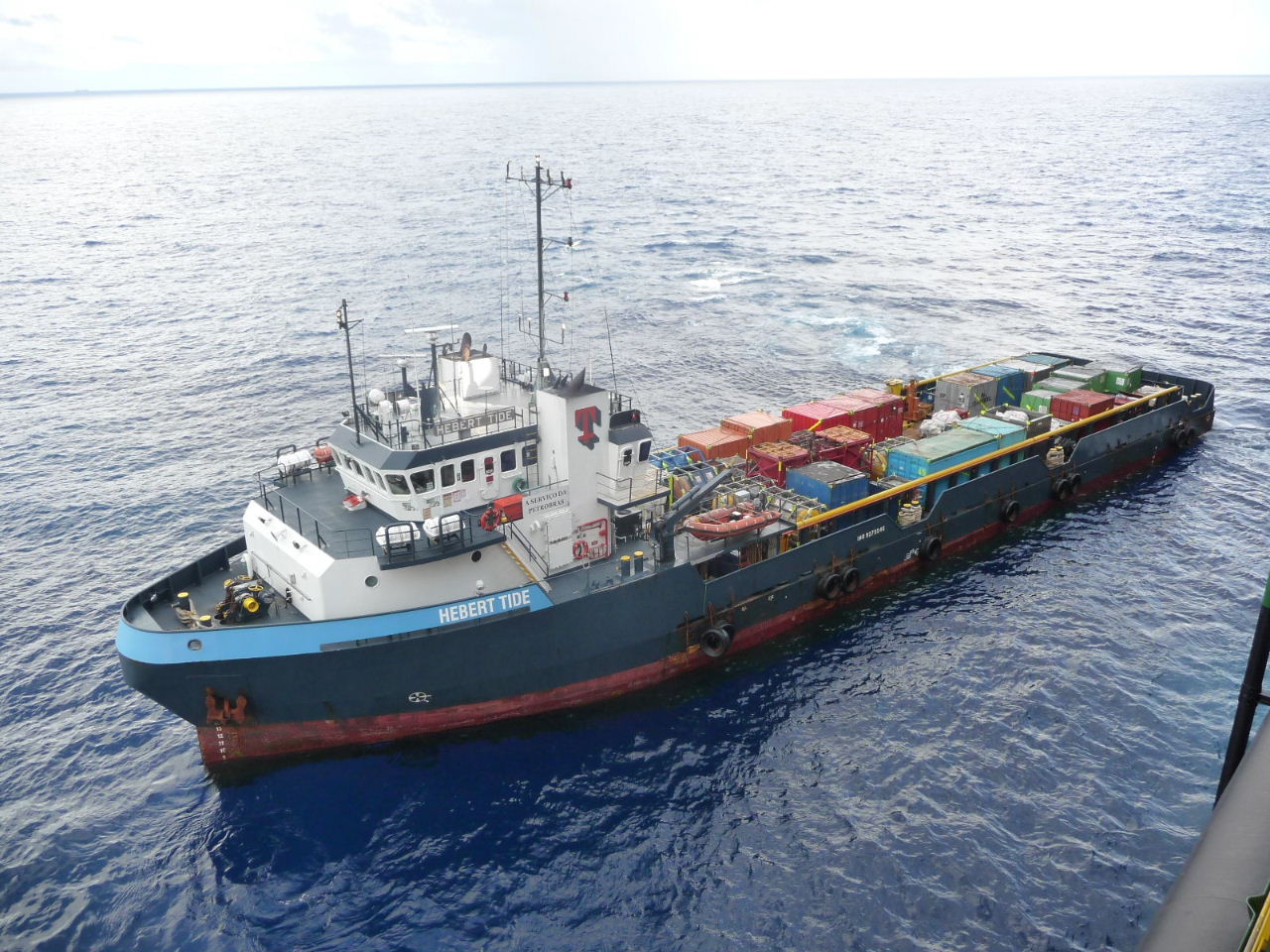

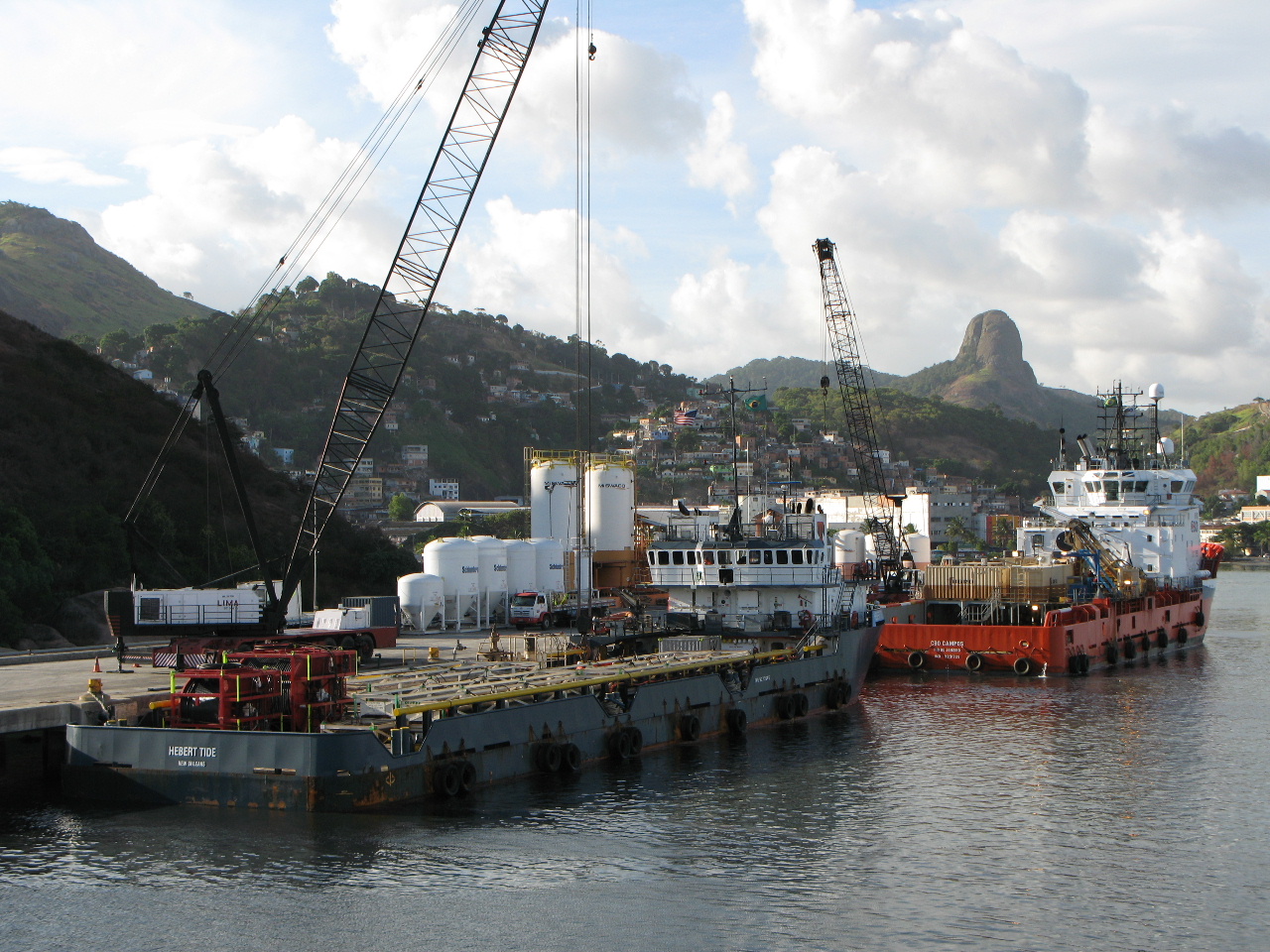

TYPE: NAME: Herbert Tide PHOTO: Tony Poll, Erik Azevedo
GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built - Aft Thrusters - Brine -
Shipyard - Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: High Quest PHOTO: Oddgeir Refvik

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.2 m Engines 2 x EMD 12V Fuel 564 m3
Breadth 12.2 m BHP/kW 3000/2206 Pot water 67 m3
DWT 1200 mt

For'd Thrusters

1 x 300 bhp Mud 202 m3
Deck area 327 m2 Az Thruster - Base oil -
Year built 1980 Aft Thrusters - Brine -
Shipyard Halter Lockport Joystick - Dry bulk 142 m2
Berths 16 DP - Tank Cleaning -
Previous names John Adams, HOS High Quest
Comments -





TYPE: NAME: Laughlin Tide PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 54.9 m Engines 2 x Cat D-399 Fuel 318 m3
Breadth 12.2 m BHP/kW 2250/1650 Pot water 60 m3
DWT 942 mt

For'd Thrusters

1 x 300 bhp Mud 190 m3
Deck area 347 m2 Az Thruster - Base oil -
Year built 1978 Aft Thrusters - Brine -
Shipyard Halter Moss Point Joystick - Dry bulk 113 m3
Berths 20 DP - Tank Cleaning -
Previous names -
Comments -





TYPE: NAME: Anderson Tide PHOTO: Mar Sol

GENERAL PROPULSION CARGO CAPACITY
Length OA 70.0 m Engines 2 x Niigata 8LX Fuel 820 m3
Breadth 16.6 m BHP/kW 5900/4340 Pot water 417 m3
DWT 3000 t For'd Thrusters 2 x 600 bhp Mud 494 m3
Deck area 560 m2 Az Thruster - Base oil 154 m3
    Aft Thrusters - Brine -
Year built 2009 Joystick - Dry bulk -
Shipyard - DP - Tank Cleaning -
Previous names -
Comments Marsol Provider

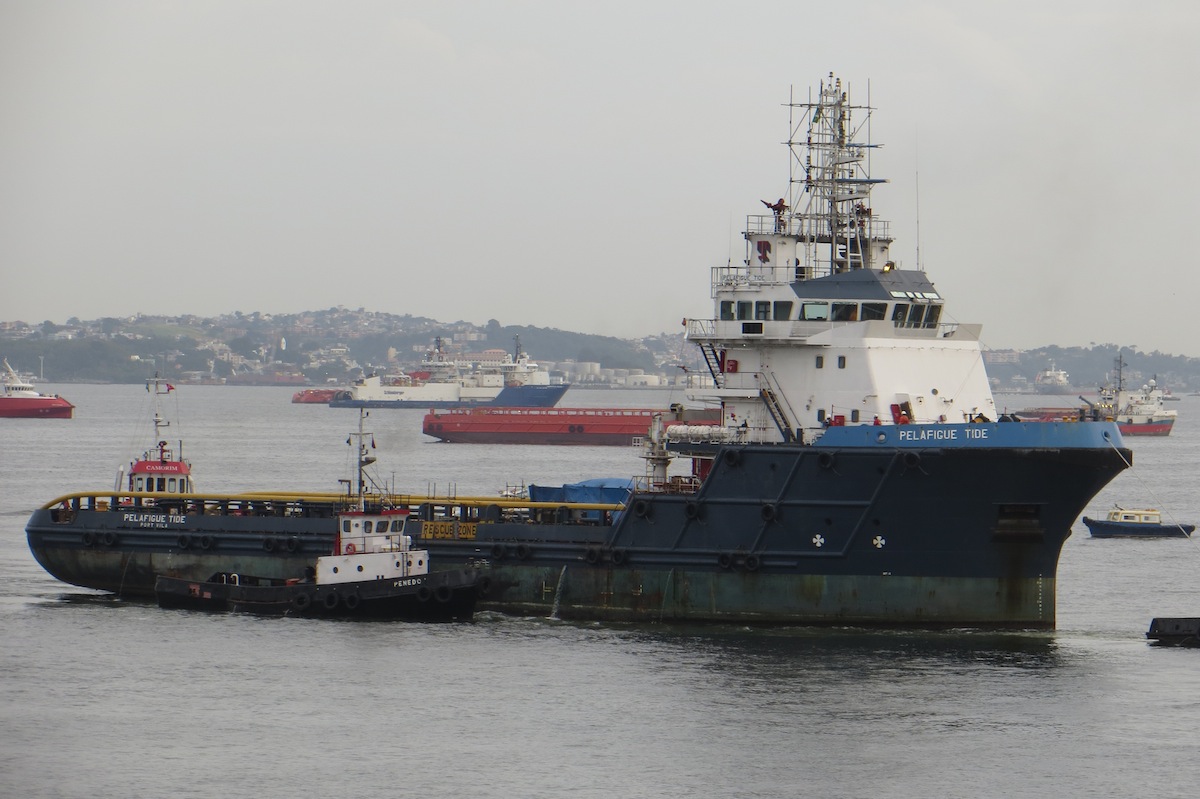

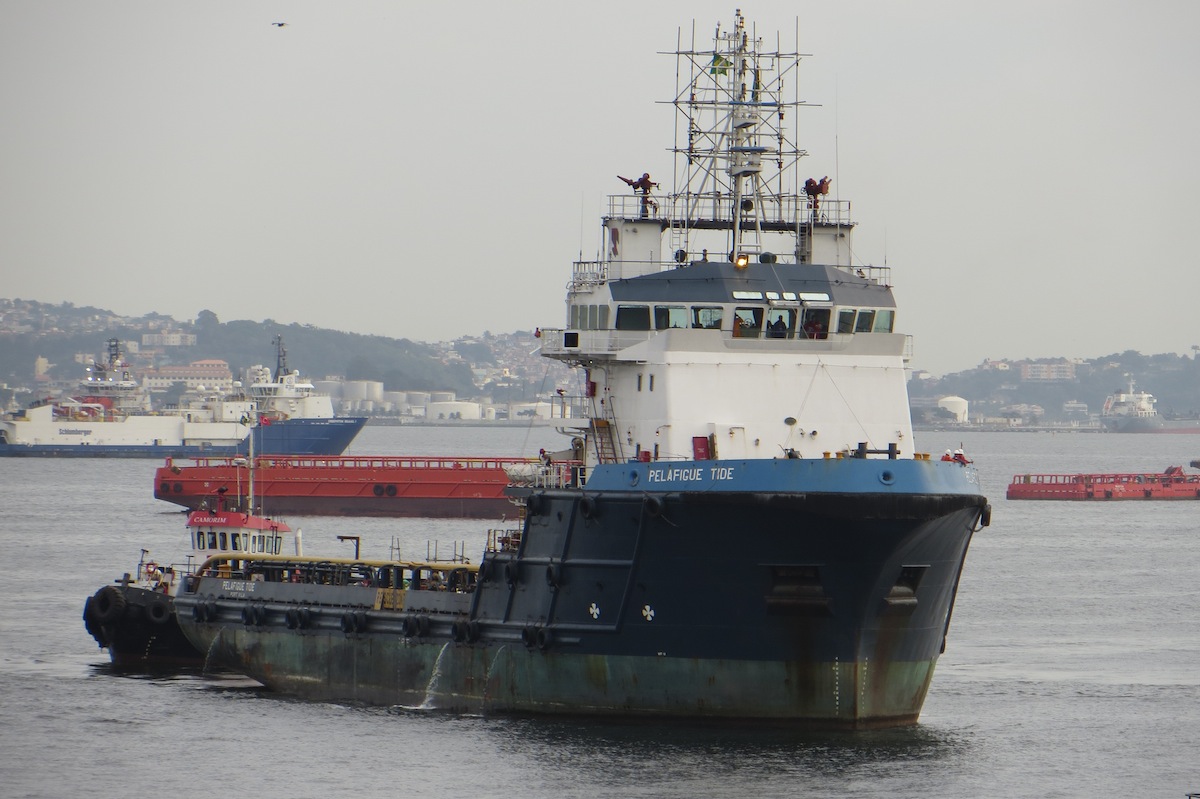

TYPE: NAME: Pelafigue Tide PHOTO: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built - Aft Thrusters - Brine -
Shipyard - Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: Stephen Wallace Dick PHOTO: Pat McCardle

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
Gross Tonnage 3601

For'd Thrusters

- Mud -
DWT 5144 tonnes Az Thruster - Base oil -
Deck area - Aft Thrusters - Brine -
Year built 2011 Joystick - Dry bulk -
Shipyard Fujian DP - Berths -
Previous names -
Comments -
Current Charter - Available - Location -



DISPOSALS

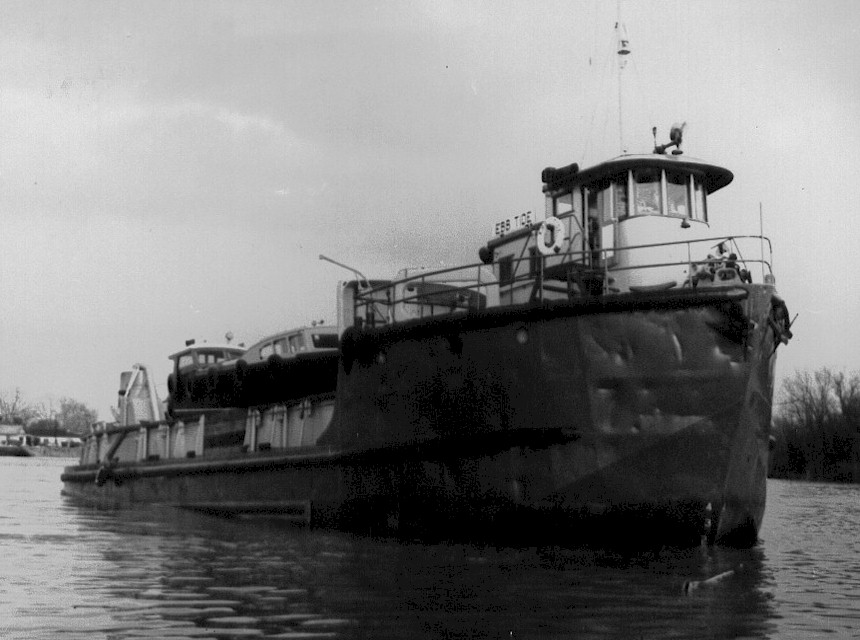

TYPE: NAME: Ebb Tide PHOTO: Tidewater

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built - Aft Thrusters - Brine -
Shipyard - Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments This is the first ever offshore support vessel. It would seem to be inappropriate not to include it.

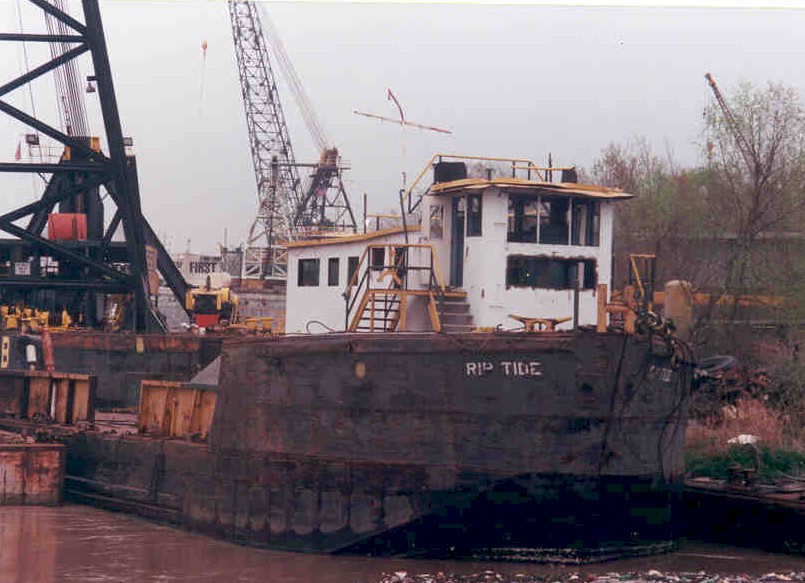

TYPE: NAME: Rip Tide PHOTO: Kenny Polson

GENERAL PROPULSION CARGO CAPACITY
Length OA - Engines - Fuel -
Breadth - BHP/kW - Pot water -
DWT -

For'd Thrusters

- Mud -
Deck area - Az Thruster - Base oil -
Year built - Aft Thrusters - Brine -
Shipyard - Joystick - Dry bulk -
Berths - DP - Tank Cleaning -
Previous names -
Comments -



TYPE: KMAR 404

NAME: Howard Hogue

PHOTO:


General Propulsion Deck Equip
Length OA 73.5 m Engines 2 x Wartsila 12V32 Workdrum pull 300 tonnes
Breadth 16.4 m BHP 15000 Capacity 1 2042m x 76mm
DWT 2900 tonnes kW 11060 Capacity 2
Deck area 560 m2 For'd Thrusters 1 x 1000 bhp Towdrum pull 300 tonnes
Fuel 930 m3 Az Thrusters 1 x 1000 bhp Capacity 1 2042m x 76mm-
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 615 m3 Bollard pull 180 tonnes Sharks Jaw Karmforks
Brine 581 m3 DP - Cranes 1 x Norlift
Dry bulk 240 m3 Joystick KaMeWa Tank Cleaning None
Year Built 1999 Shipyard Kvaerner Kleven Berths -
Former Names Torm Heron
Comments  Sold on to Deep Sea Supply



TYPE: KMAR 404

NAME: Billy Joe Ramey

PHOTO:


General Propulsion Deck Equip
Length OA 73.5 m Engines 2 x Wartsila 12V32 Workdrum pull 300 tonnes
Breadth 16.4 m BHP 15000 Capacity 1 2042m x 76mm
DWT 2900 tonnes kW 11060 Capacity 2
Deck area 560 m2 For'd Thrusters 1 x 1000 bhp Towdrum pull 300 tonnes
Fuel 930 m3 Az Thrusters 1 x 1000 bhp Capacity 1 2042m x 76mm-
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 615 m3 Bollard pull 180 tonnes Sharks Jaw Karmforks
Brine 581 m3 DP - Cranes 1 x Norlift
Dry bulk 240 m3 Joystick KaMeWa Tank Cleaning None
Year Built 1999 Shipyard Kvaerner Kleven Berths 22
Former Names Maersk Detector
Comments  Sold on to Deep Sea Supply

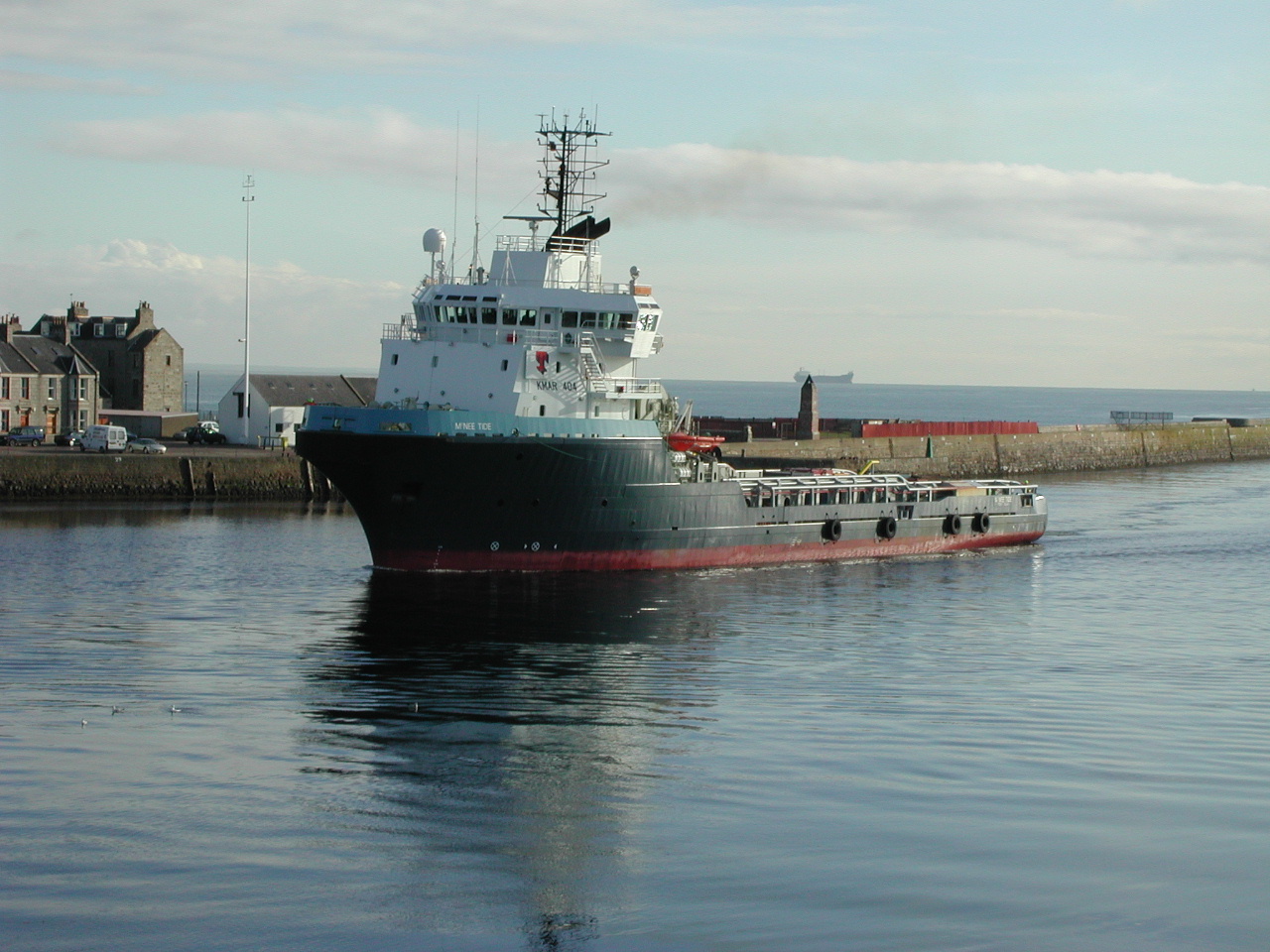

TYPE: KMAR 404

NAME: McNee Tide

PHOTO: George Craigen

General Propulsion Deck Equip
Length OA 73.5 m Engines 2 x Wartsila 12V32 Workdrum pull 300 tonnes
Breadth 16.4 m BHP 15000 Capacity 1 2042m x 76mm
DWT 2900 tonnes kW 11060 Capacity 2
Deck area 560 m2 For'd Thrusters 1 x 1000 bhp Towdrum pull 300 tonnes
Fuel 930 m3 Az Thrusters 1 x 1000 bhp Capacity 1 2042m x 76mm-
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 615 m3 Bollard pull 180 tonnes Sharks Jaw Karmforks
Brine 581 m3 DP - Cranes 1 x Norlift
Dry bulk 240 m3 Joystick KaMeWa Tank Cleaning None
Year Built 1999 Shipyard Kvaerner Berths 16
Former Names Torm Eagle
Comments  Sold on to Deep Sea Supply

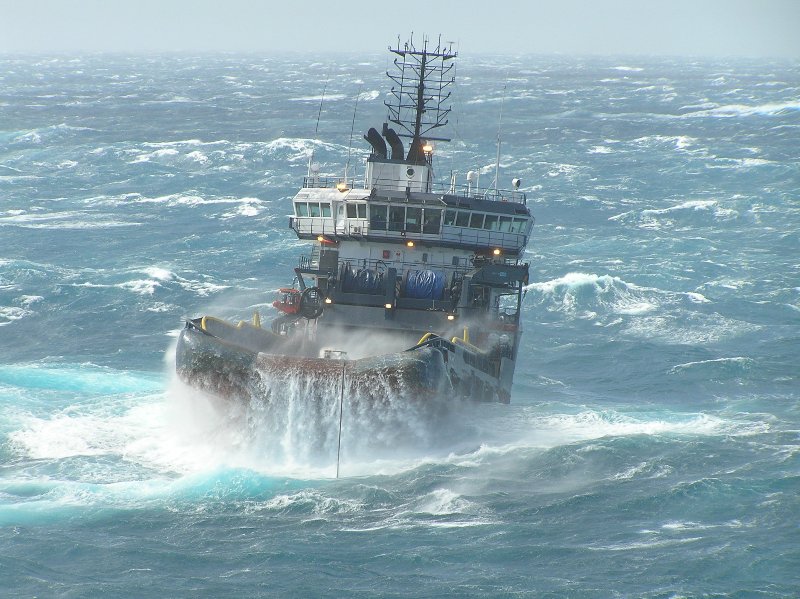

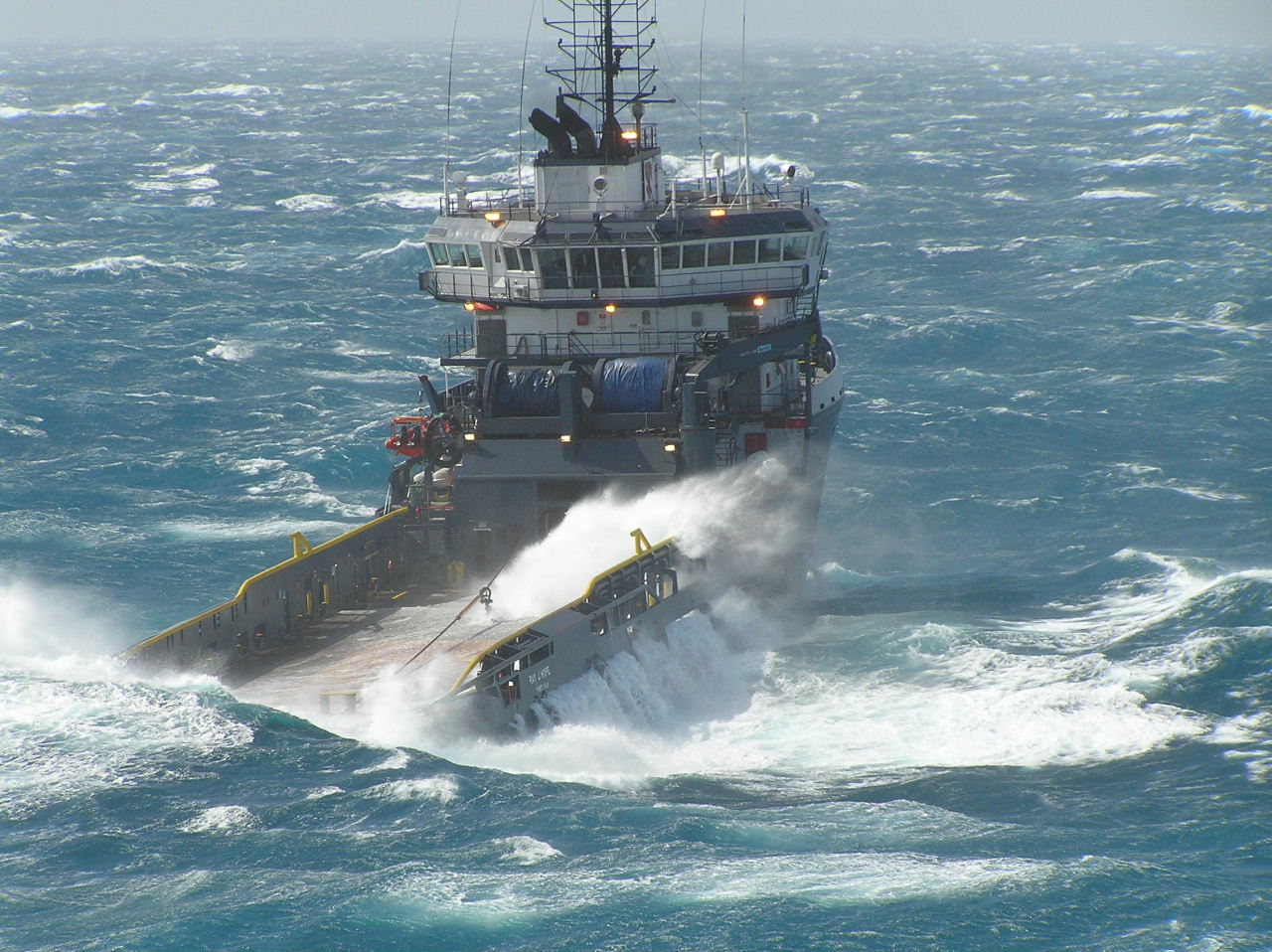

TYPE: KMAR 404

NAME: Ray J Hope

PHOTO: James McLellan

General Propulsion Deck Equip
Length OA 73.5 m Engines 2 x Wartsila 12V32 Workdrum pull 300 tonnes
Breadth 16.4 m BHP 15000 Capacity 1 2042m x 76mm
DWT 2900 tonnes kW 11060 Capacity 2
Deck area 560 m2 For'd Thrusters 1 x 1000 bhp Towdrum pull 300 tonnes
Fuel 930 m3 Az Thrusters 1 x 1000 bhp Capacity 1 2042m x 76mm-
Pot water 522 m3 Aft Thrusters 1 x 1000 bhp Capacity 2
Mud 615 m3 Bollard pull 180 tonnes Sharks Jaw Karmforks
Brine 581 m3 DP - Cranes 1 x Norlift
Dry bulk 240 m3 Joystick KaMeWa Tank Cleaning None
Year Built 1999 Shipyard Kvaerner Berths 16
Former Names Maersk Dispatcher
Comments  Sold on to Deep Sea Supply



KMAR404 AMADON TIDE BUILT: 1999 KVAERNER KLEVEN

General Propulsion Deck Equip
Length OA 73.5m Engines 2 x 12V 32 Workdrum pull 500t
Breadth 16.4m BHP 15,000 Capacity 1 2040m x 76mm
DWT 2870t For'd Thruster 1 x 1200 bhp Capacity 2
Deck area 560m2 Az Thruster 1 x AQM UL Towdrum pull 300t
Fuel 929.9m3 Aft Thrusters 1 x 1200 Capacity 1 2040m x 76mm
Pot water 521.6m3 Bollard pull 170t Capacity 2
Mud 615.3m3     Sharks Jaw
Base oil   DP   Cranes 1 x Norlift GPFO
Brine   Joystick
Dry bulk 240m3 Year built 1999 Shipyard Kvaerner Kleven
Tank Cleaning
Comment Sold on to Deep Sea Supply
Former Names



  TYPE: UT 704 NAME: Guard Tide   PHOTO: Tony Poll, Torleif Klokset


GENERAL

PROPULSION

EQUIPMENT

Length OA 64.4 m Engines 2 x Polar SF116V Workdrum pull 180 tonnes
Breadth 13.8 m BHP 9163 Capacity 1 1200m x 64mm
DWT 1858 tonnes kW 6738 Capacity 2
Deck area 423 m2 For'd Thruster 1 x 840 bhp Towdrum pull
Fuel 900 m3 Az Thruster   Capacity 1 1000 x 64mm
Pot water 255 m3 Aft Thrusters   Capacity 2
Mud   Bollard pull 113 tonnes Sharks Jaw Karmfork
Brine   DP   Cranes
Dry bulk 170 m3 Joystick Ulstein Tank cleaning
Year built/due - Shipyard - Berths 23
Previous names -
Comments Said some time ago to be on sale while laid up in Trinidad, so put in disposals


RETURN TO TOP

SHIPPING COMPANY INFORMATION

NORTH AMERICAN COMPANIES

Abdon Callais
AET Offshore
Aries Marine Corp
Atlantic Towing
Bisso Marine
C&G Boats
Deepocean
Edison Chouest
Ensco Marine
Flomex Shipping
Gulf Americas
Harvey Gulf
Hornbeck
J Ray McDermott
L&M Botruc
Naviera Bourbon
Neches Gulf
Odyssea Marine
Otto Candies
Rowan
Seabulk
Seacor Marine
Sea Mar Inc
Secunda Canada
Southern States
Tidewater
Trico Marine
Zapata Gulf


SOUTH ATLANTIC AND CARRIBEAN COMPANIES

Astromaritima
BOS
Bourbon Maritima
CBO
Delba Maritima
Delta Logistics
DOF Brazil
Finarge Brazil
Gulf Brazil
Gulf Trinidad
Odekole International
Radam Maritime
Saveiros Camuyrano
Seatrucks Group
South Patagonia Services
Siem Brazil
Ultrapetrol
Vega Offshore
WSUT

INDIAN COMPANIES

ABS Marine
Alpha Logistics
Dolphin Offshore
Global Offshore
GOL Offshore
Hind Offshore
Indus
Seamac Ltd
Trinity Offshore
Varun Shipping















The details of vessels have been compiled from a number of sources and are not guaranteed to be correct. All photographs remain the property of the photographer and may not be used for any commercial purpose, either in print or electronically without permission.  The articles contained on the site remain the intellectual property of the authors and must not be reproduced in part or in full without permission.
