BOURBON OFFSHORE MARITIMA

 Delba Maritima is reported by the Seabrokers Monthly Newsletter as being a company owned by Brazilian entrepreneur Mr Newton Lins and the French offshore company SURF.

In 2004, the last time this page was updated, the company owned no ships but was building three UT 722s in Brazil for eventual long term charter with Petrobras. The three UT 722s were to be of different specifications, ranging in power from 12,240 to 14,410 BHP.

During 2010 the company was purchased by Bourbon Offshore who have added vessels to the fleet, and changed the name. Hence this will be the last change to this page and the story will be continued on the Bourbon Offshore Maritima page, and here we are. This fleet list is derived from the information collected for Delba Maritima and with information added by Fabián Pérez who is working offshore in South America.

Now in 2012 the Bourbon presentation on its website includes all ships worldwide, so it has become difficult to assign them to areas. however I have done my best.

At the 2014 review I have decided to divide Bourbon into three groups. This is the Brazilian Group, and in addition to the ships details on the Bourbon Maritima site we have also included Bourbon ships which have been photographed in the area. The second group will be Bourbon Norway who have a pretty well defined fleet list, and the third area will be Bourbon Offshore which will contain the rest of the fleet. To make things a bit more complex, Bourbon are in the process of selling ships and bareboating them back, to provide capital for continued expansion.

There may well now be further additions to this fleet since the marine world is infested with Liberty 100, 150s and 200s. But no/one has sent any photos of them in, and who knows what the future holds with Petrobras becoming less financially secure than heretofore.

 Reviewed 5th March 2015.





ANCHOR-HANDLERS

  TYPE: UT 722 NAME: Geonisio Barroso   PHOTO:




GENERAL

PROPULSION

EQUIPMENT

Length OA 75.6 m Engines 2 x Bergen BRM12 Workdrum pull 350 t
Breadth 18.0 m BHP 14,200 Capacity 1 5072 x 76mm
DWT 2240 t kW   Capacity 2
Deck area 459 m2 For'd Thruster 883 kW Towdrum pull
Fuel 810 m3 Az Thruster 1120 kW Capacity 1 5072 x 76mm
Pot water 830 m3 Aft Thrusters 883 kW Capacity 2
Mud   Bollard pull 154 t Sharks Jaw
Brine   DP DP 1 Cranes
Dry bulk   Joystick Yes Tank cleaning
Year built/due 2004     Shipyard Fels Setal Brazil
Previous names
Comments

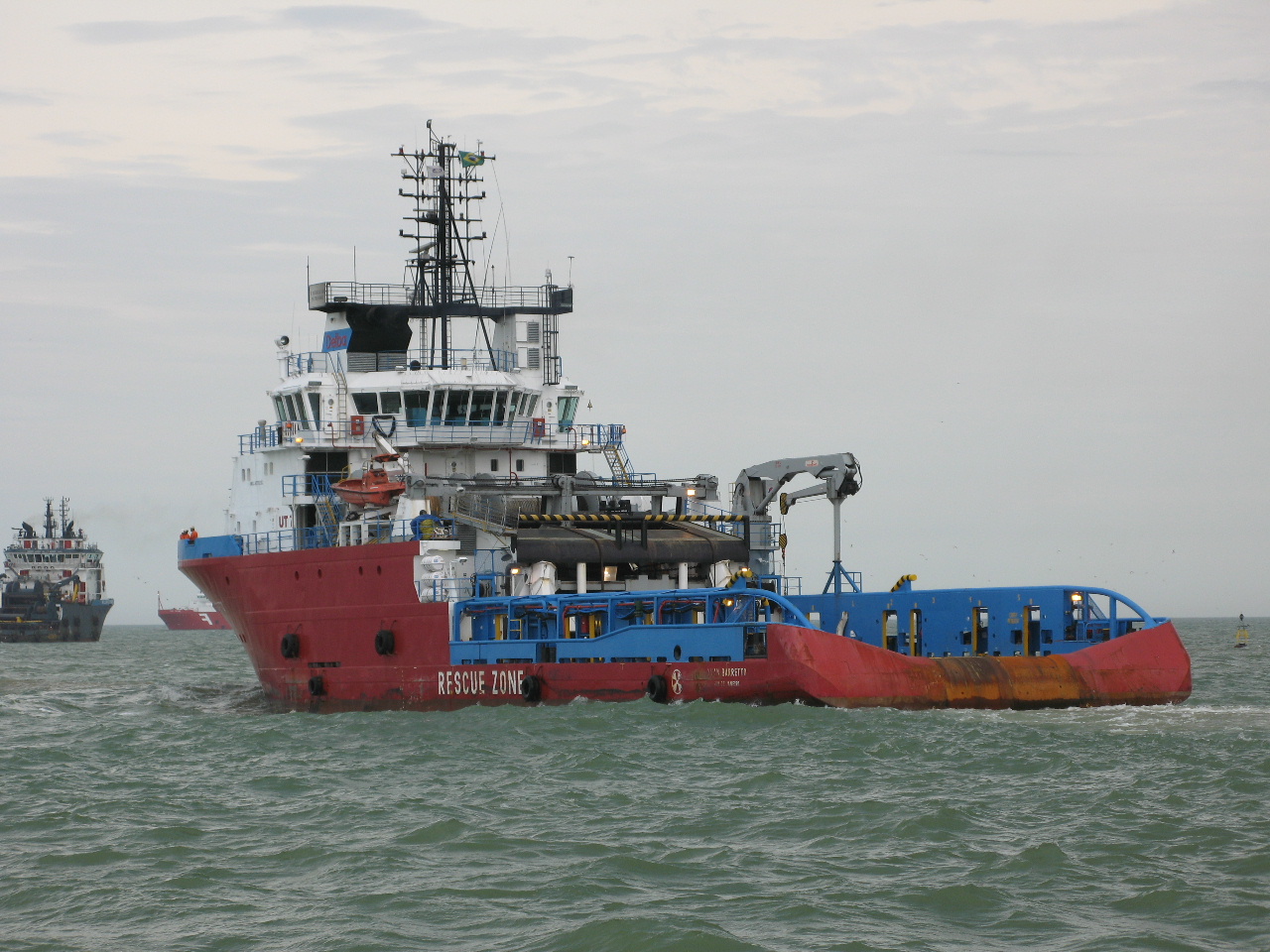

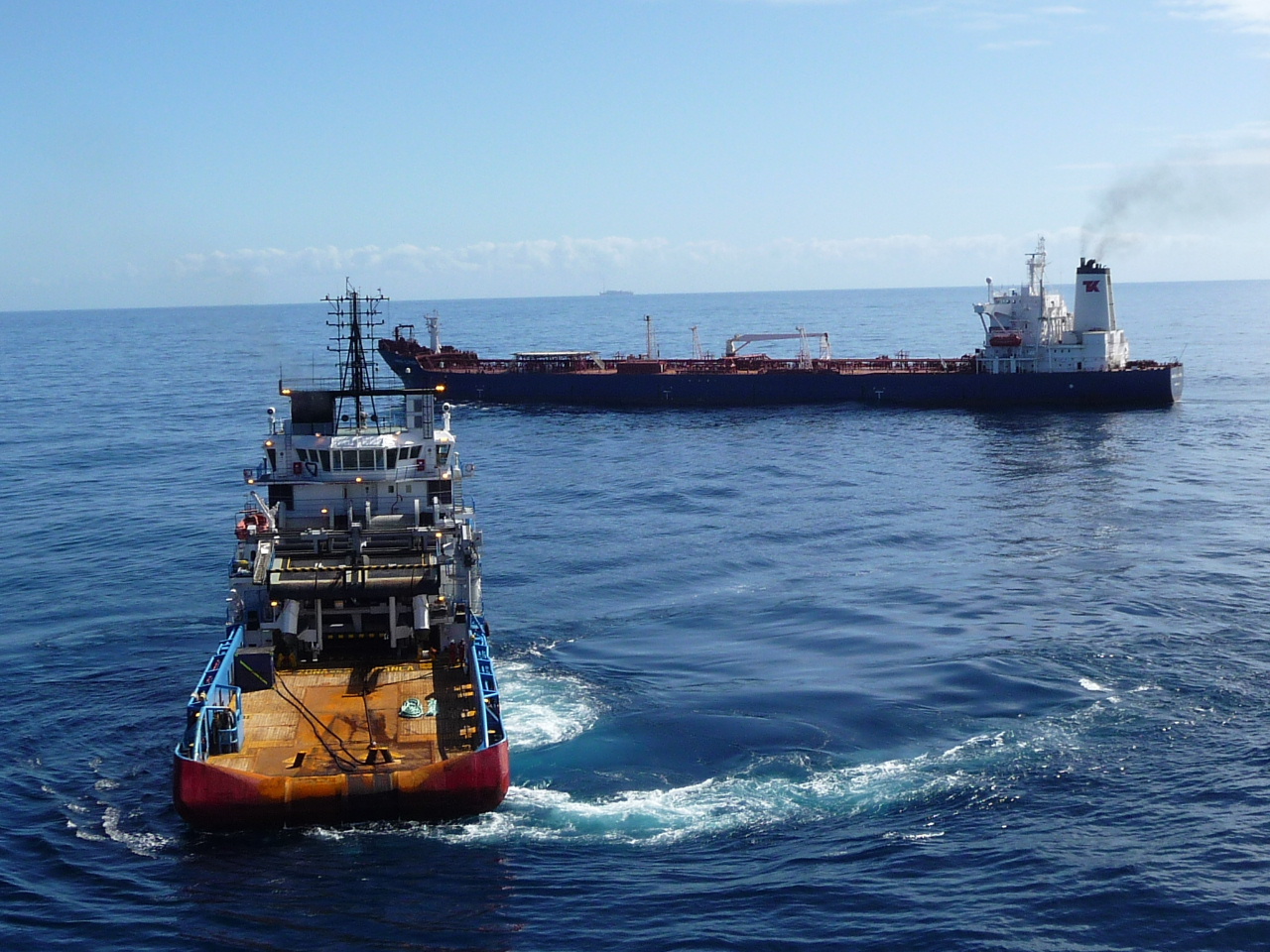

  TYPE: UT 722 NAME: Yvan Barretto   PHOTO: Erik Azevedo, Tony Poll

GENERAL

PROPULSION

EQUIPMENT

Length OA 75.6 m Engines 2 x Bergen B32 Workdrum pull 350 t
Breadth 18.0 m BHP 12240 Capacity 1 5072m x 72mm
DWT 2230 t kW 9000 Capacity 2
Deck area 459 m2 For'd Thruster 883 kW Towdrum pull 350 t
Fuel 830 m3 Az Thruster 883 kW Capacity 1 5072m x 72mm
Pot water 847 m3 Aft Thrusters 883 kW Capacity 2
Mud   Bollard pull 144 t Sharks Jaw
Brine   DP DP 1 Cranes
Dry bulk   Joystick Yes Tank cleaning
Year built/due 2004     Shipyard Fels Setal Brazil
Previous names
Comments

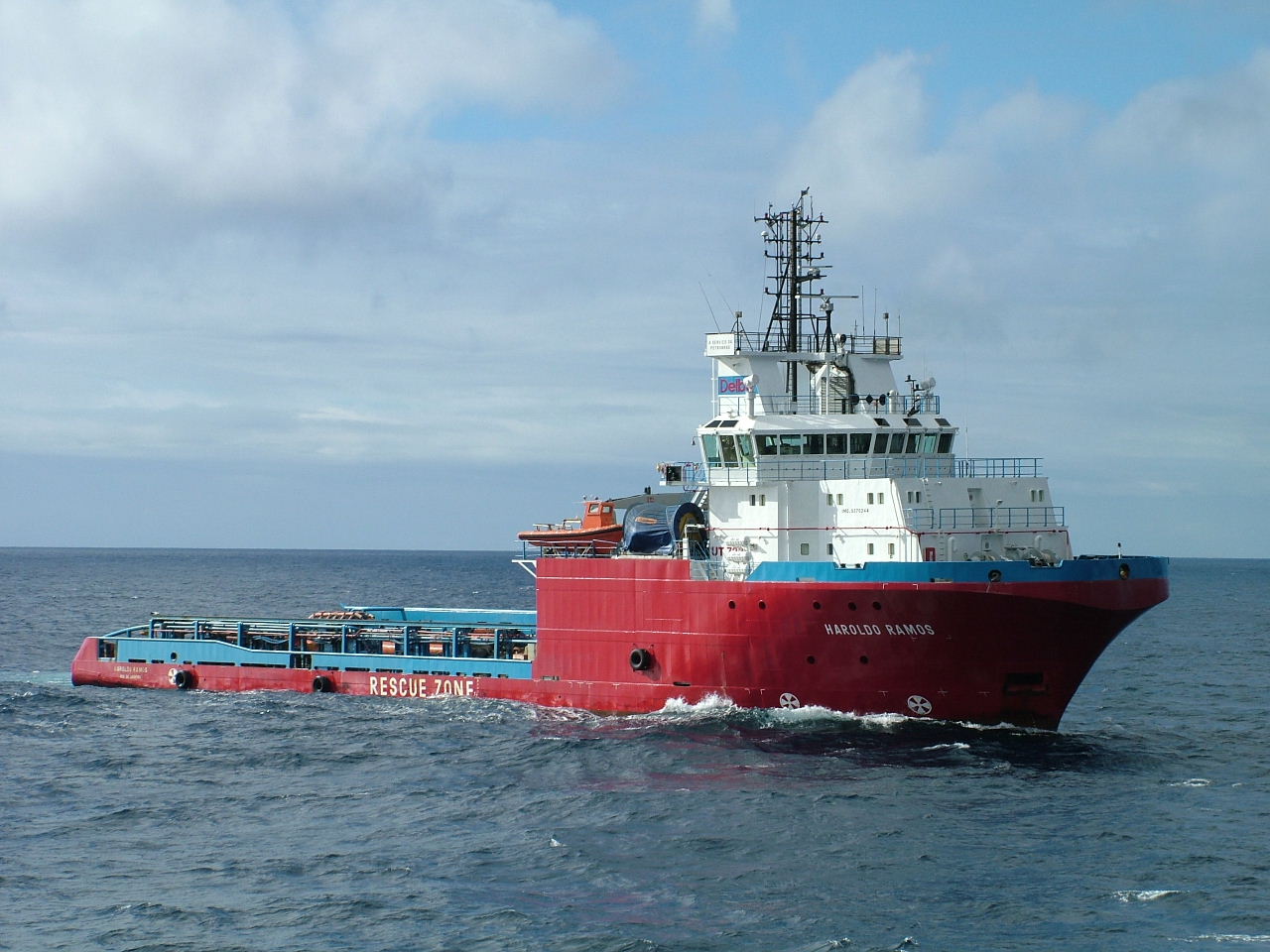

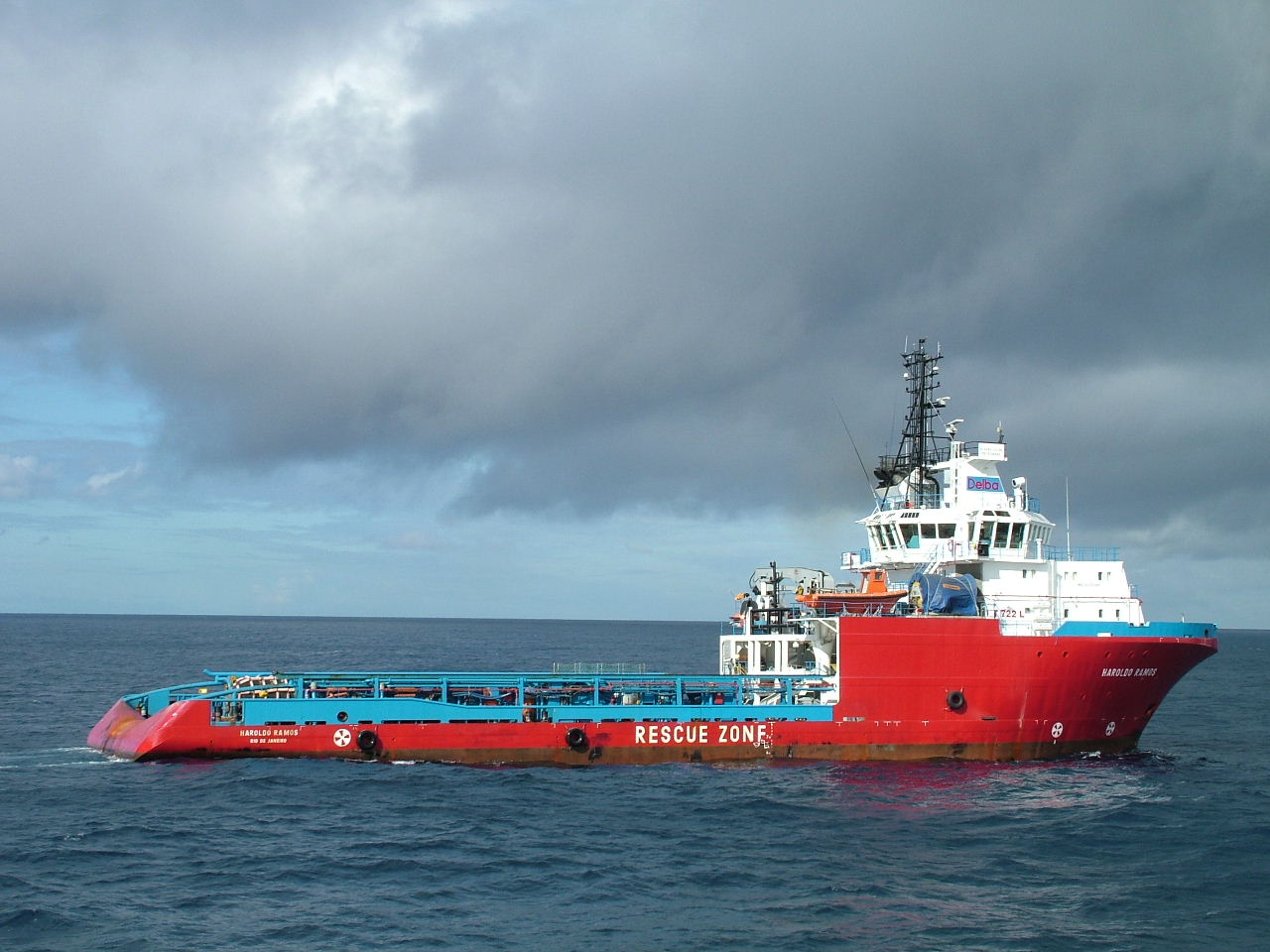

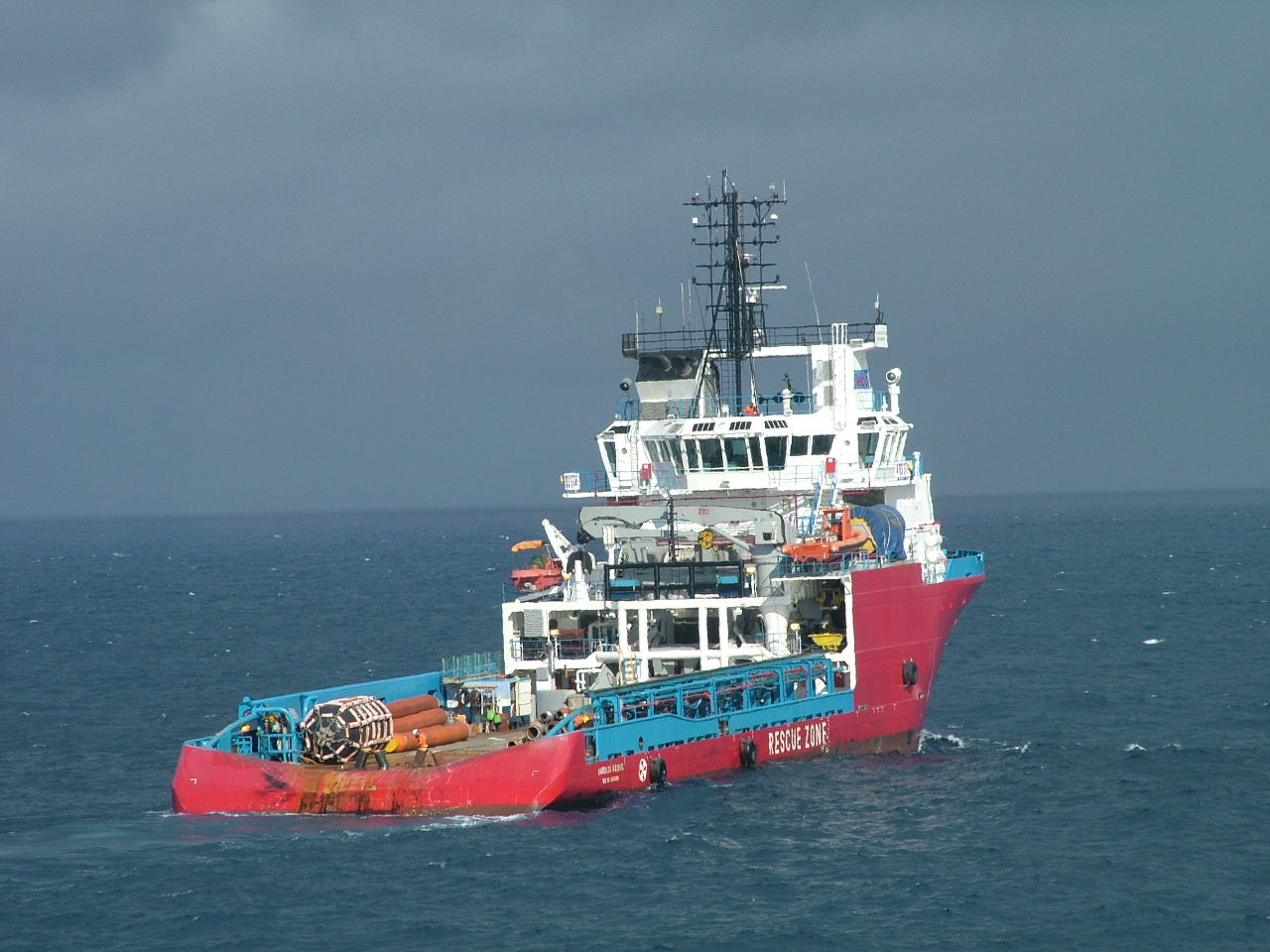

TYPE: UT 722L NAME: Haroldo Ramos PHOTO: Tony Poll

GENERAL

PROPULSION

EQUIPMENT

Length OA 77.5 m Engines 2 x Bergen B32 Workdrum pull 350t
Breadth 18 m BHP 12240 Capacity 1 3000m x 72mm
DWT 2240 t kW 9000 Capacity 2 -
Deck area 600 m2 For'd Thruster 1 x 883 kW Towdrum pull 350 t
Fuel 1050 m3 Az Thruster 1 x 883 kW Capacity 1 3000m x 72mm
Pot water 930 m3 Aft Thrusters 1 x 883 kW Capacity 2
Mud   Bollard pull 130 Tonnes Sharks Jaw
Brine   DP DP1 Cranes 1 x 5t
Dry bulk   Joystick Yes Tank cleaning
Year built 2004     Shipyard FELS Setal
Previous names
Comments

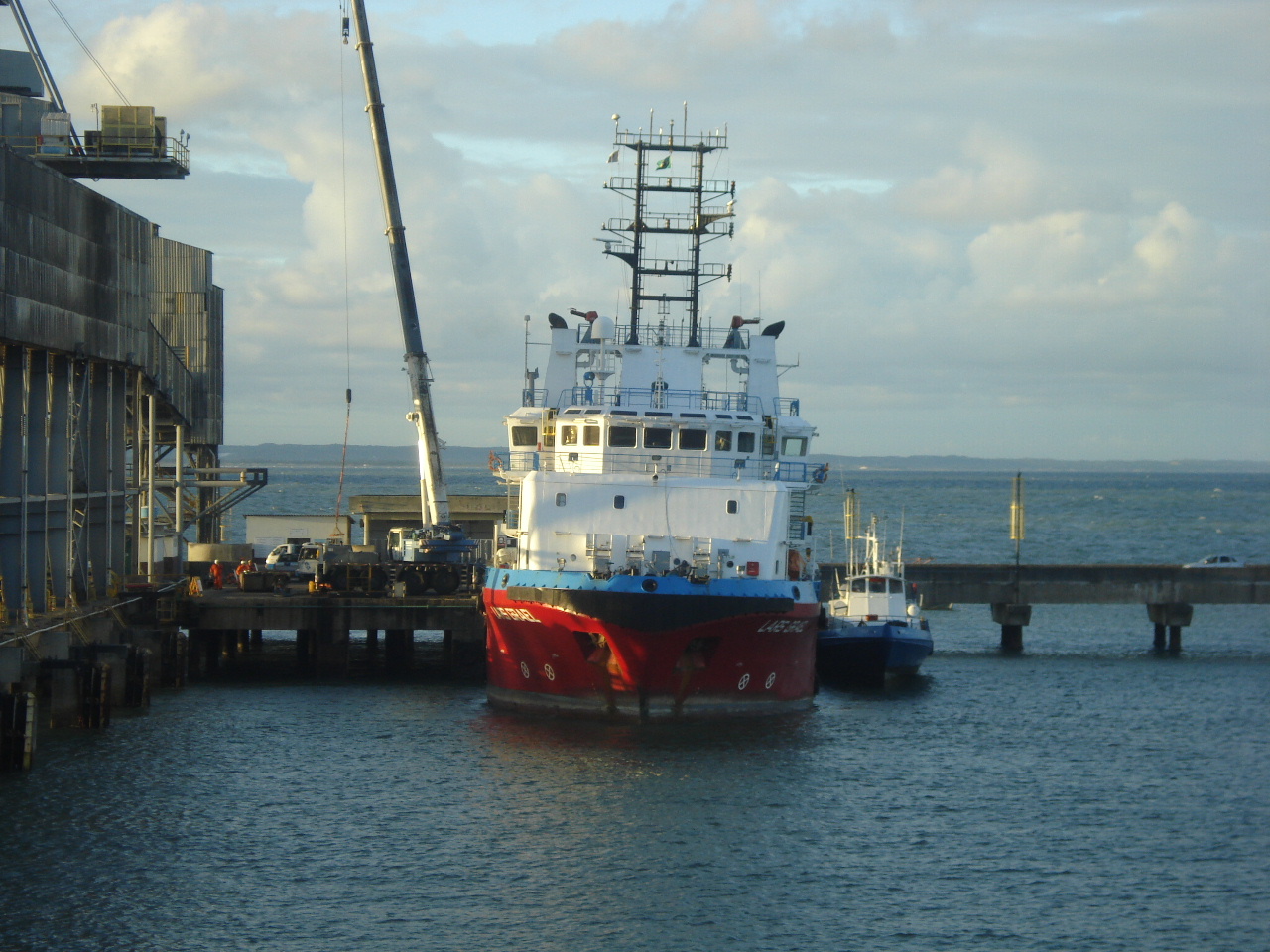

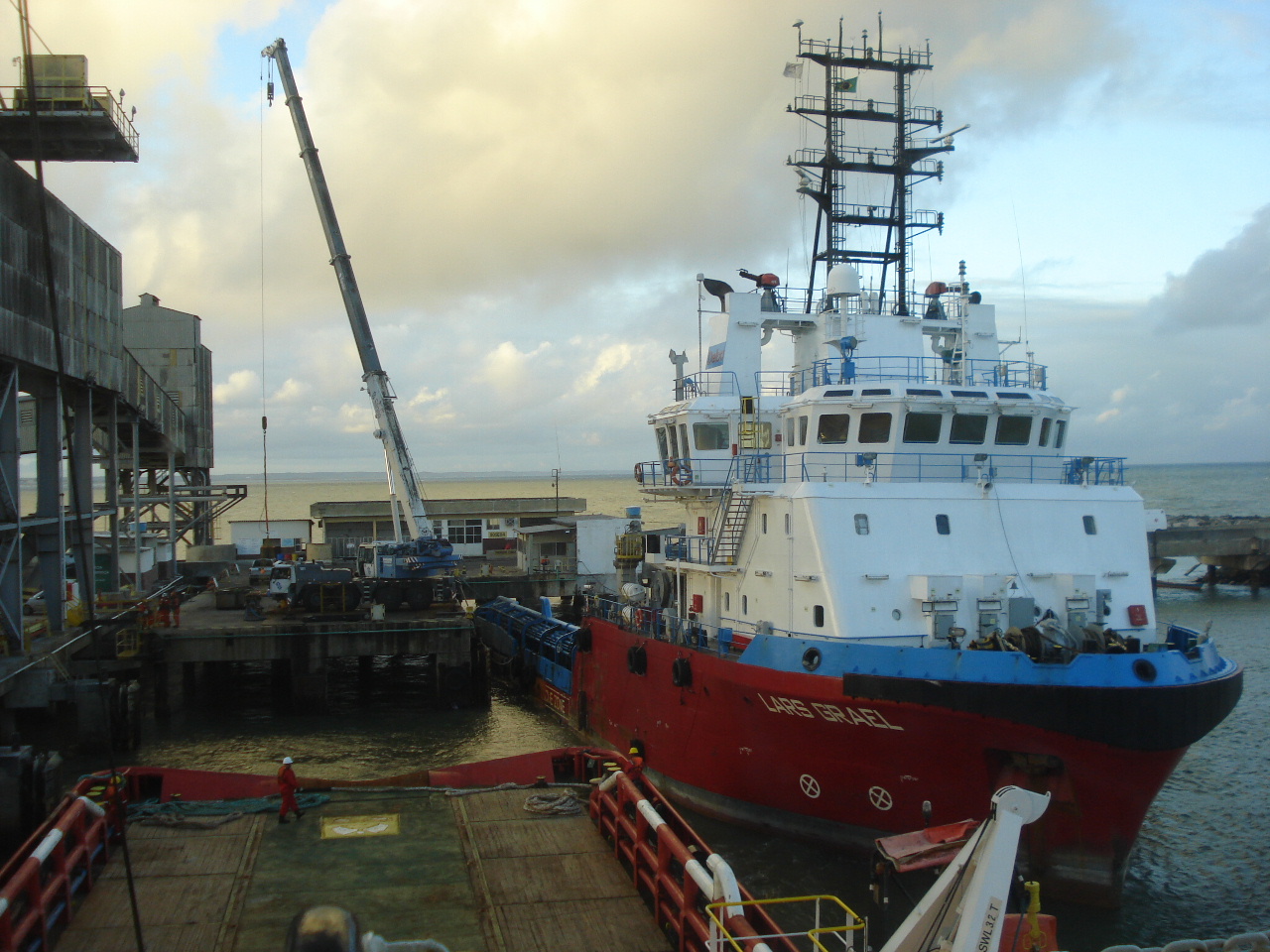

  TYPE: NAME: Bourbon Thor   PHOTO: -

GENERAL

PROPULSION

EQUIPMENT

Length OA 64.8 m Engines 2 x MAK Workdrum pull 150 t
Breadth 16.0 m BHP 7183 Capacity 1 1500m x 60mm
DWT 1603 t kW 5280 Capacity 2 -
Deck area 420 m2 For'd Thruster 2 x 500 kW Towdrum pull 150 t
Fuel 607 m3 Az Thruster - Capacity 1 1500m x 60mm
Pot water 446 m3 Aft Thrusters 1 x 500 kW Capacity 2 -
Mud 112 m3 Bollard pull 85 t Sharks Jaw 2
Brine 112 m3 DP - Cranes 1 x 1.7 t
Dry bulk 170 m3 Joystick - Tank cleaning -
Year built 2006     Shipyard Yanghzou
Previous names Lars Grael
Comments It is not known whether the renaming of this vessel has resulted in a change of its location



  TYPE: Guido Perla NAME: A LIBERTY 200   PHOTO: Mike Prendergast




GENERAL

PROPULSION

EQUIPMENT

Length OA 53.78 m Engines 3 x ?? Workdrum pull 150 t
Breadth 15.0 m BHP 7446 Capacity 1 1500m x 62mm
DWT 1460 t kW 5475 Capacity 2
Deck area 331 m2 For'd Thruster 2 x 560 kW Towdrum pull 150 t
Fuel 606 m3 Az Thruster   Capacity 1 1500m x 62mm
Pot water 354 m3 Aft Z drives 3 x 1685 kW Capacity 2
Mud 651 m3 Bollard pull 82.5 t Sharks Jaw 1
Brine - DP DP II Cranes 1 x 1.8 t
Dry bulk 156 m3 Joystick   Tank cleaning
Year built/due 2009-2012 Shipyard Dayang Berths 20
Previous names -
Comments One of these ships is assigned to the Bourbon Offshore Maritima Fleet

There is much that could be said about this concept, not least the confidence the company must have in the design. They are not even conventional in construction. they will all have three propellers, one in the middle which is fixed, probably, and one on each side which are azimuthing. This configuration according to the publicity will provide a greater level of reliability, and in the text of the supplement various ship-masters testify to the ease with which the ships can be handled. This may be just as well, since one has difficulty imagining how they will manage to place skilled staff on each of these ships as they enter service (extract from news and views).



PLATFORM SHIPS

TYPE: NAME: D'Isabela PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 43.0 m Engines 2 x Daihatsu Fuel 222 m3
Breadth 9.3 m BHP/kW 1500/1100 Pot water 200 m3
DWT 348 t For'd Thrusters 1 x 270 bhp Mud 128 m3
Deck area 147 m2 Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 1989 Joystick - Dry bulk -
Shipyard Corena Metalurgia DP - Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: D'Manoela PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 43.0 m Engines 2 x Daihatsu Fuel 222 m3
Breadth 9.3 m BHP/kW 1500/1100 Pot water 200 m3
DWT 366 t For'd Thrusters 1 x 270 bhp Mud 128 m3
Deck area 147 m2 Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 1989 Joystick - Dry bulk -
Shipyard Corena Metalurgia DP - Tank Cleaning -
Previous names -
Comments -

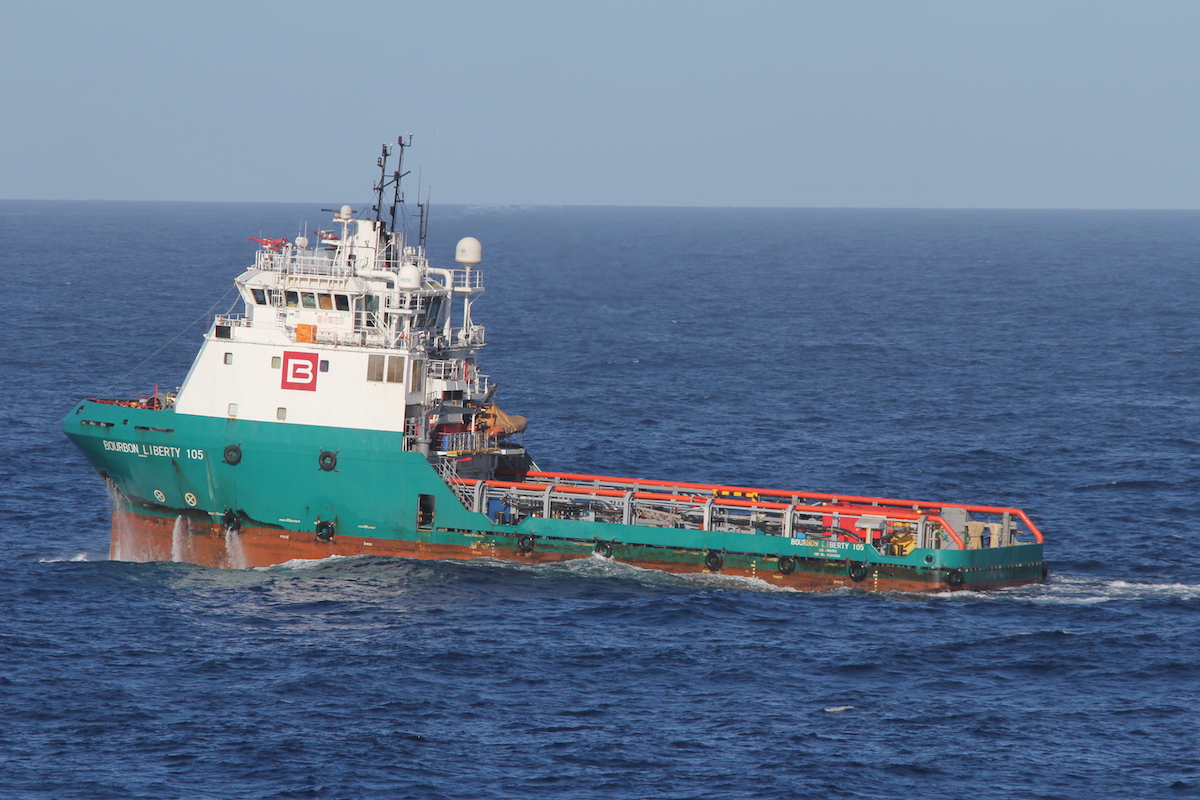

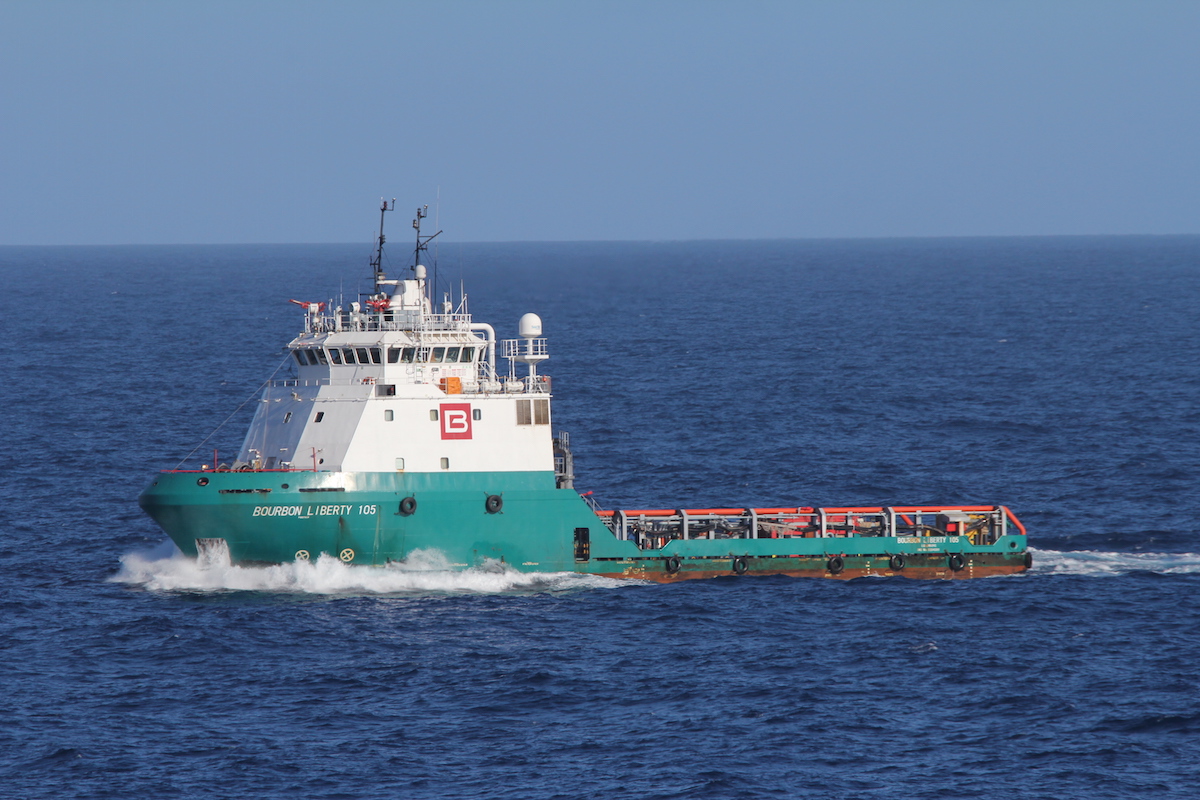

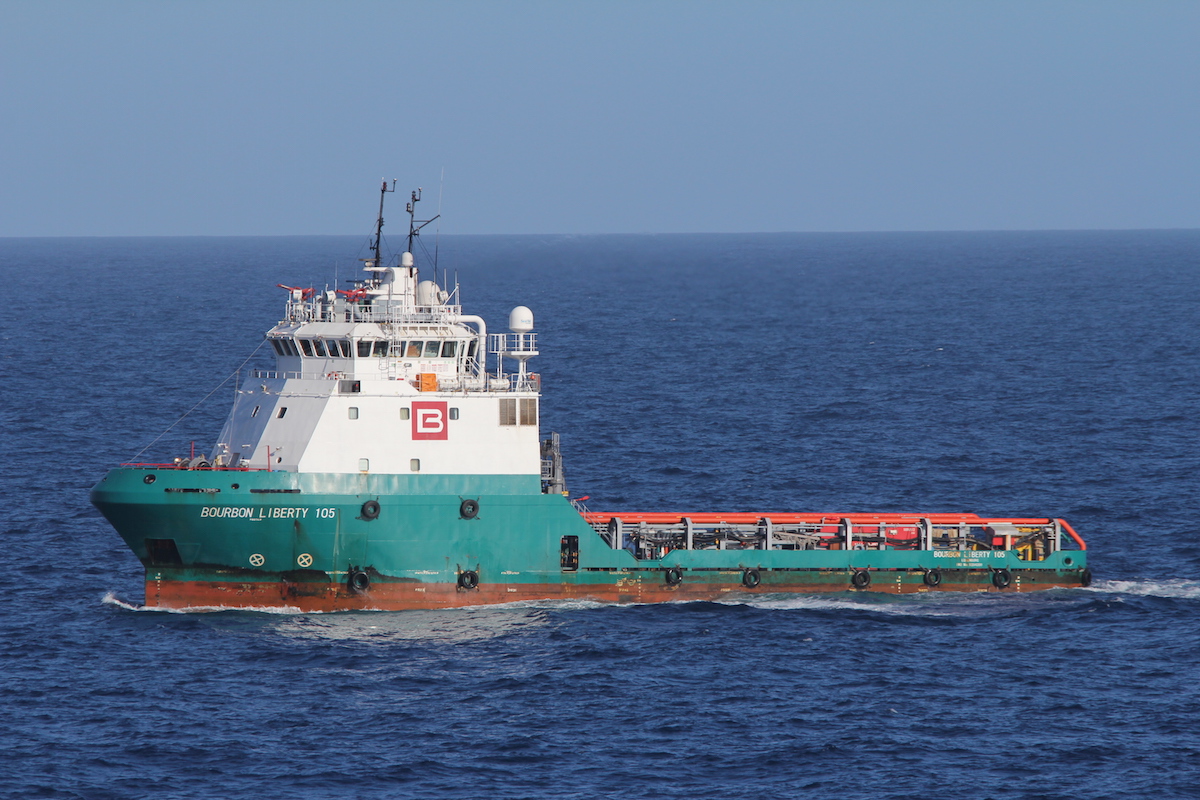

TYPE: NAME: BOURBON LIBERTY 105 Photos: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel  779 m3
Breadth 14.0 m BHP 4110 Pot water  329 m3
DWT 1509 t For'd Thrusters 2 x 560 kW Mud  527 m3
Deck area 360 m2 Az Thruster   Base oil
 Berths 22 Aft Thrusters 2 x 843 kW Brine
Year built 2008-2012 Joystick   Dry bulk   168 m3
Shipyard Dayang China DP DP2 Tank Cleaning   ?
Previous names
Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.

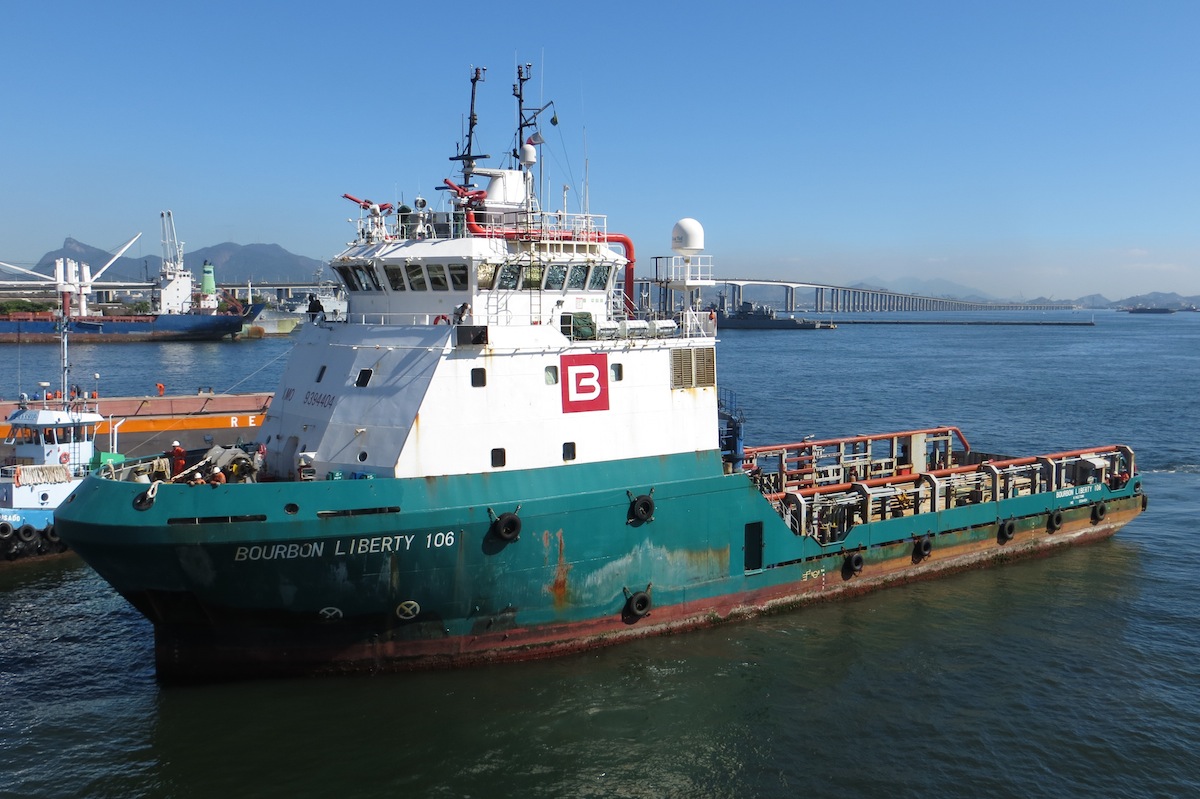

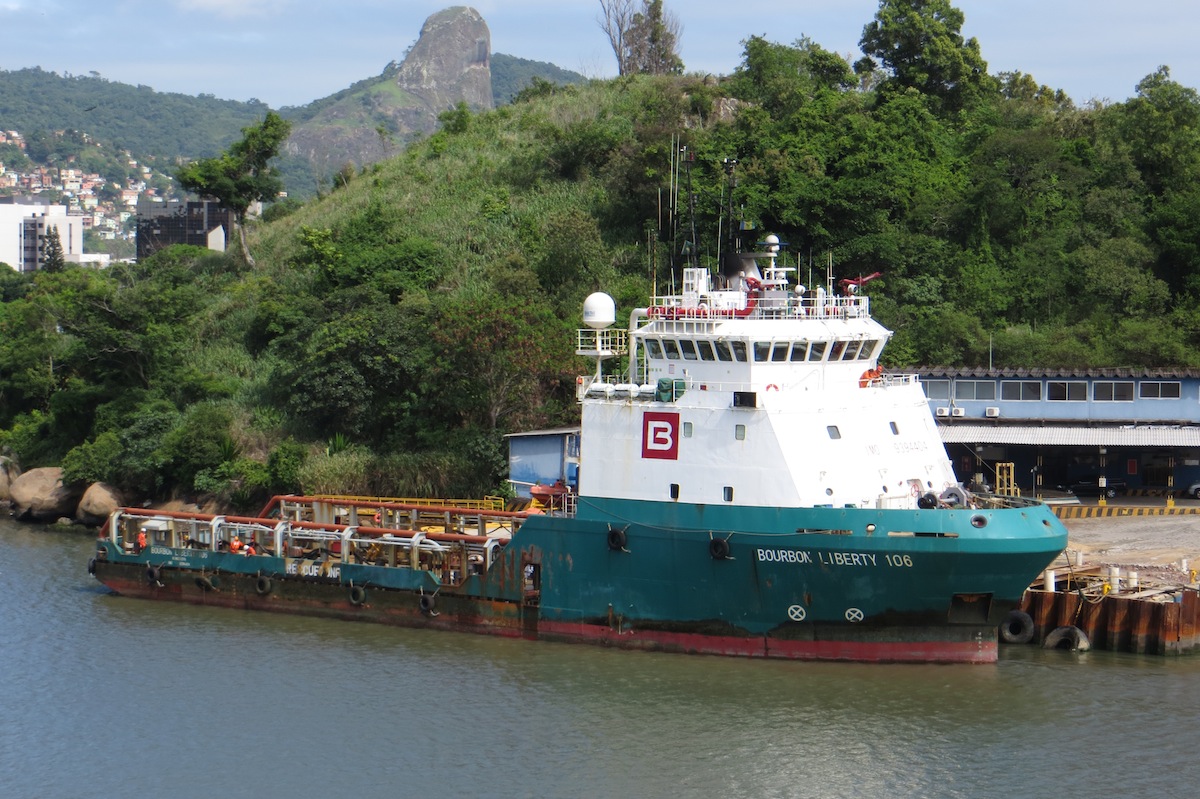

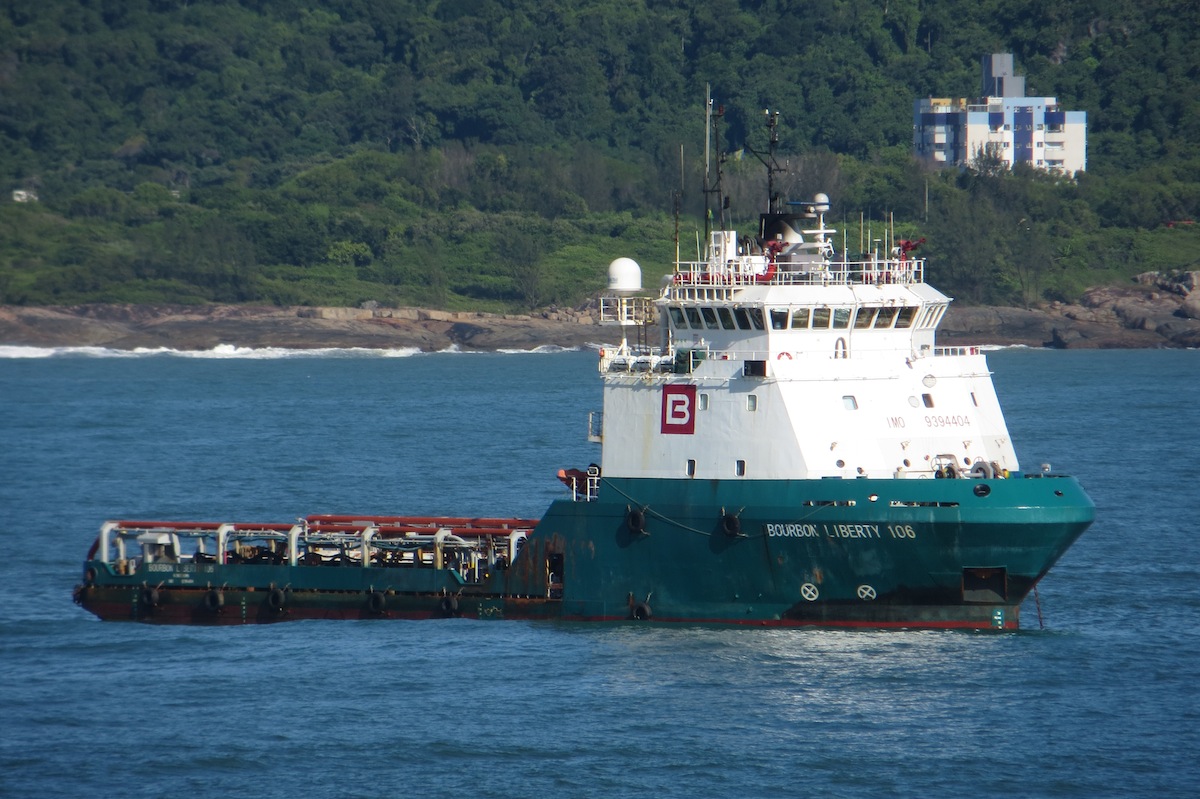

TYPE: NAME: BOURBON LIBERTY 106 Photos: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel  779 m3
Breadth 14.0 m BHP 4110 Pot water  329 m3
DWT 1509 t For'd Thrusters 2 x 560 kW Mud  527 m3
Deck area 360 m2 Az Thruster   Base oil
 Berths 22 Aft Thrusters 2 x 843 kW Brine
Year built 2008-2012 Joystick   Dry bulk   168 m3
Shipyard Dayang China DP DP2 Tank Cleaning   ?
Previous names
Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.



TYPE: NAME: BOURBON LIBERTY 107 Photos:

GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel  779 m3
Breadth 14.0 m BHP 4110 Pot water  329 m3
DWT 1509 t For'd Thrusters 2 x 560 kW Mud  527 m3
Deck area 360 m2 Az Thruster   Base oil
 Berths 22 Aft Thrusters 2 x 843 kW Brine
Year built 2008-2012 Joystick   Dry bulk   168 m3
Shipyard Dayang China DP DP2 Tank Cleaning   ?
Previous names
Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.

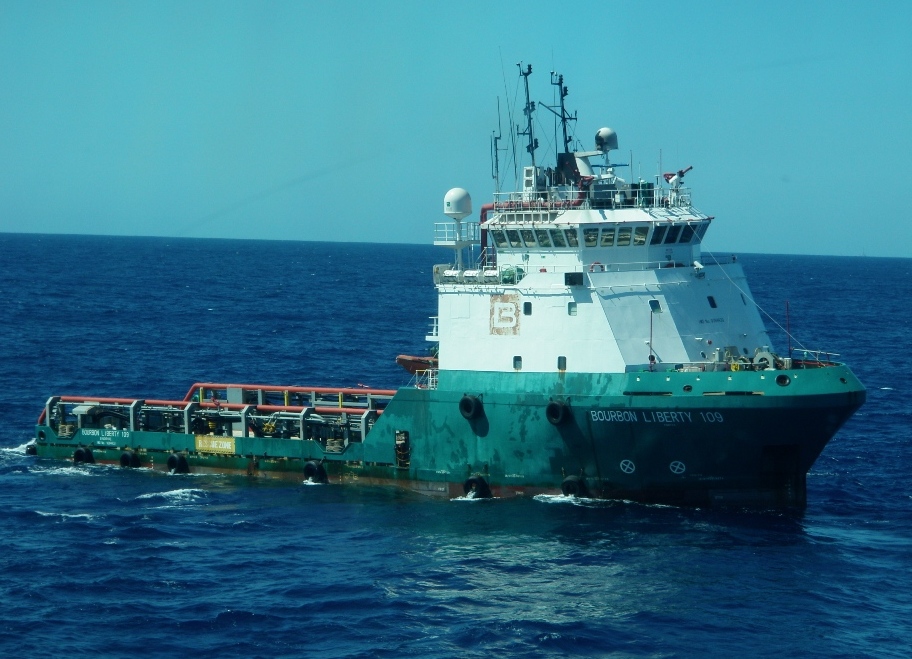

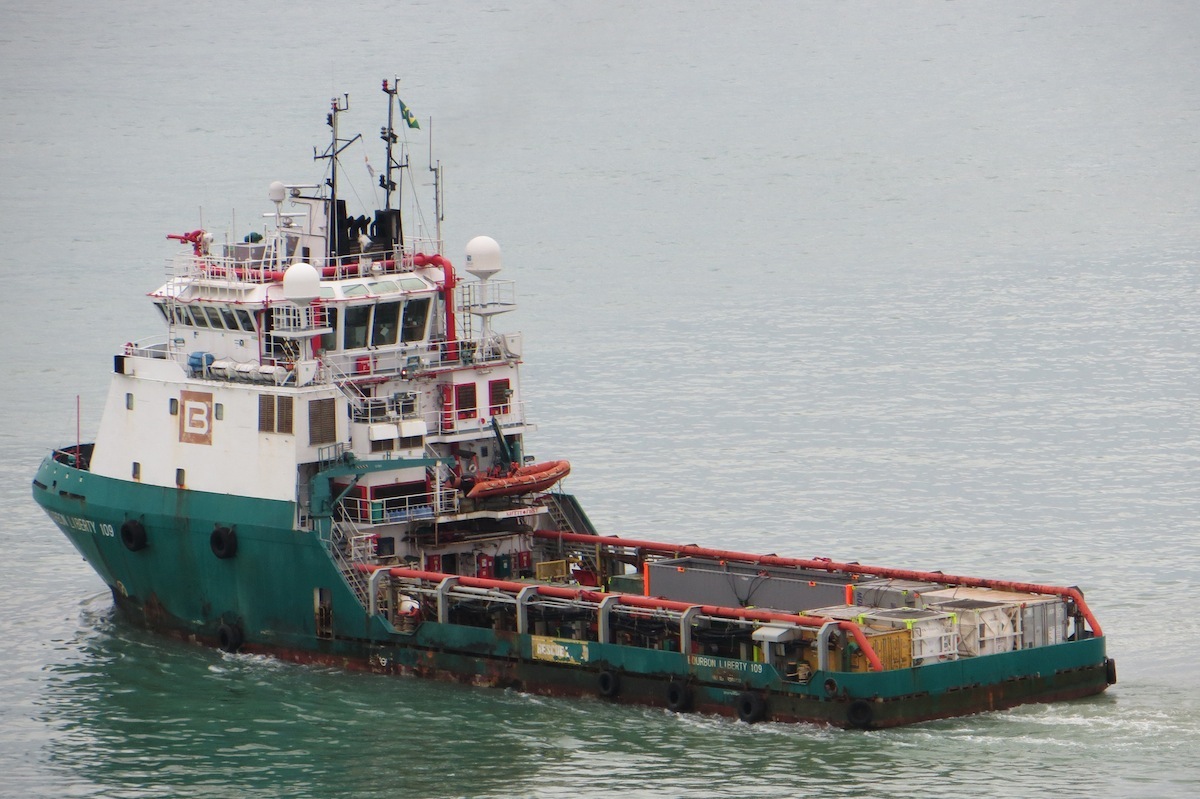

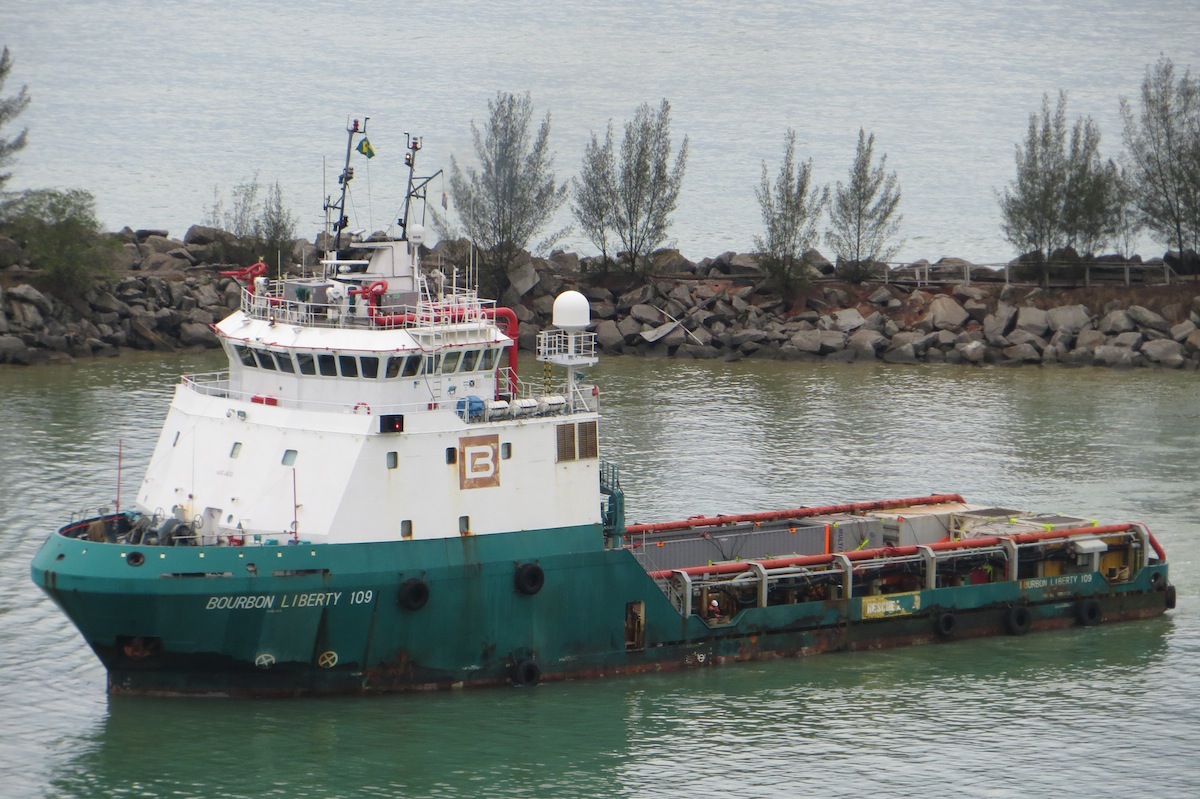

TYPE: NAME: BOURBON LIBERTY 109 Photos:Fabian Perez,  Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel  779 m3
Breadth 14.0 m BHP 4110 Pot water  329 m3
DWT 1509 t For'd Thrusters 2 x 560 kW Mud  527 m3
Deck area 360 m2 Az Thruster   Base oil
 Berths 22 Aft Thrusters 2 x 843 kW Brine
Year built 2008-2012 Joystick   Dry bulk   168 m3
Shipyard Dayang China DP DP2 Tank Cleaning   ?
Previous names
Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.

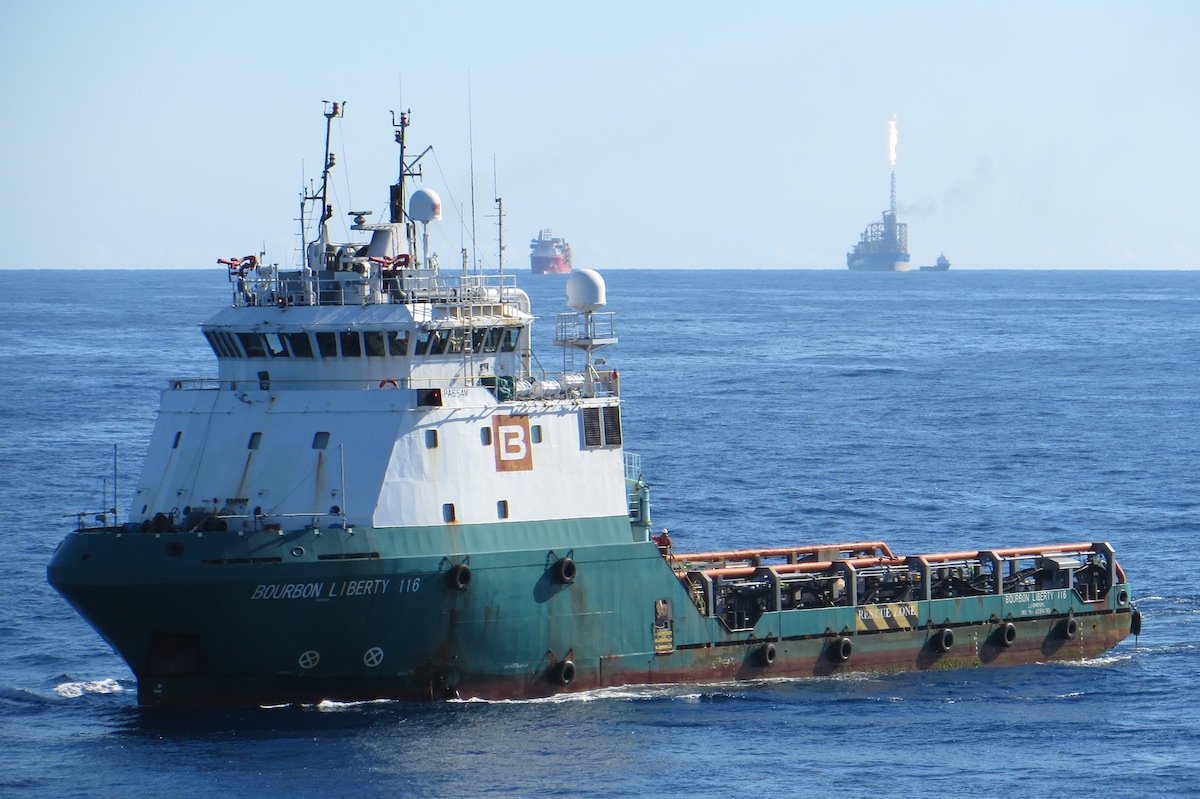

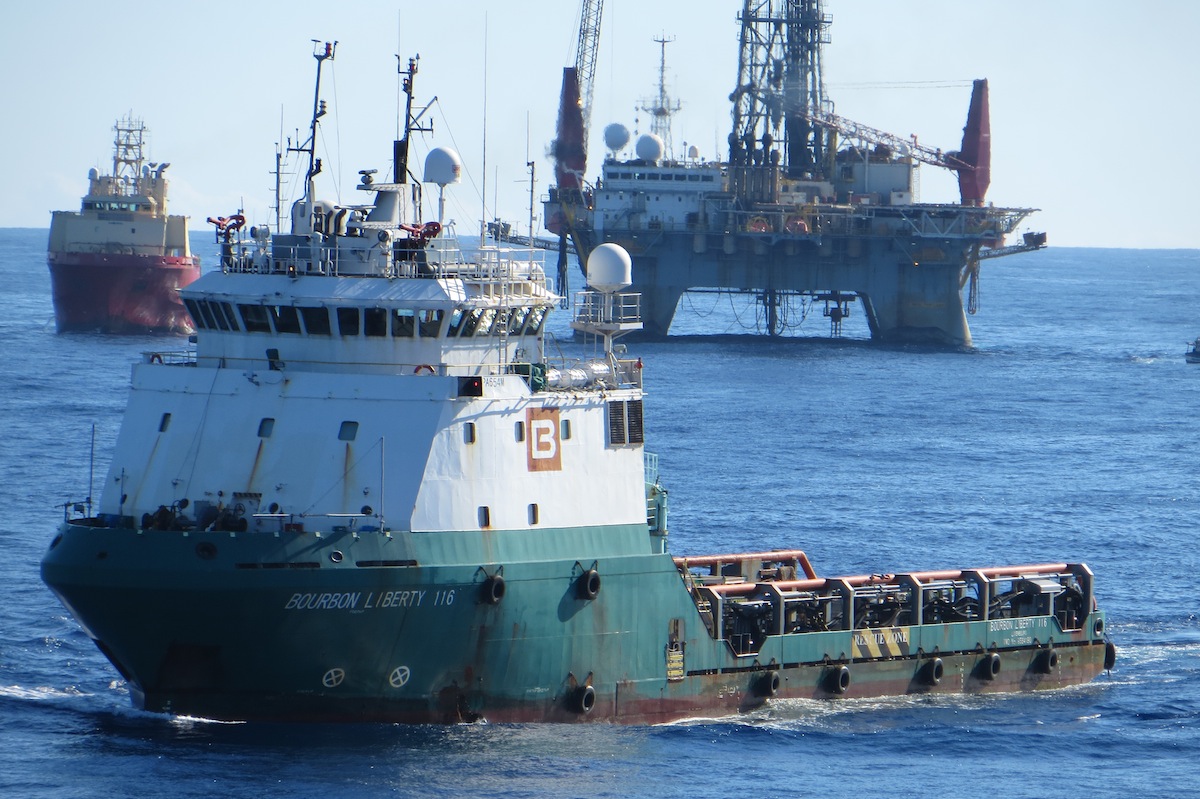

TYPE: NAME: BOURBON LIBERTY 116 Photos: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel  779 m3
Breadth 14.0 m BHP 4110 Pot water  329 m3
DWT 1509 t For'd Thrusters 2 x 560 kW Mud  527 m3
Deck area 360 m2 Az Thruster   Base oil
 Berths 22 Aft Thrusters 2 x 843 kW Brine
Year built 2008-2012 Joystick   Dry bulk   168 m3
Shipyard Dayang China DP DP2 Tank Cleaning   ?
Previous names
Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.

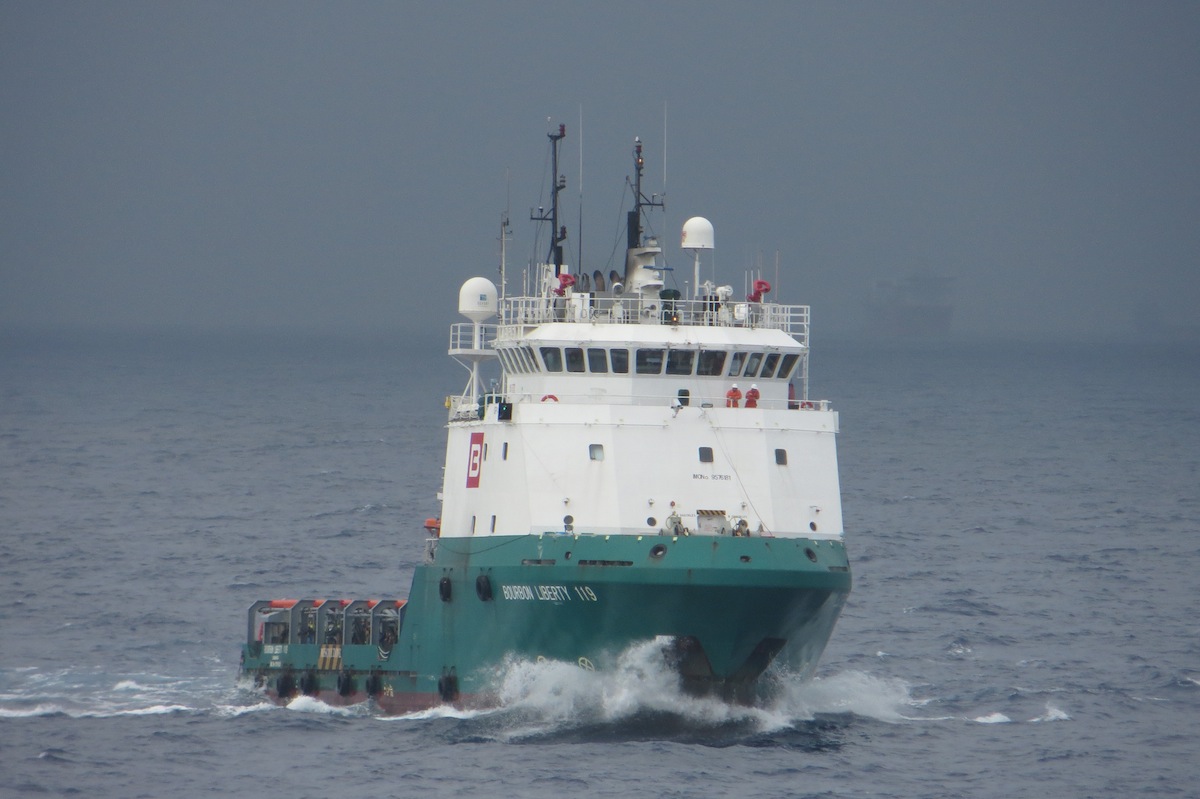

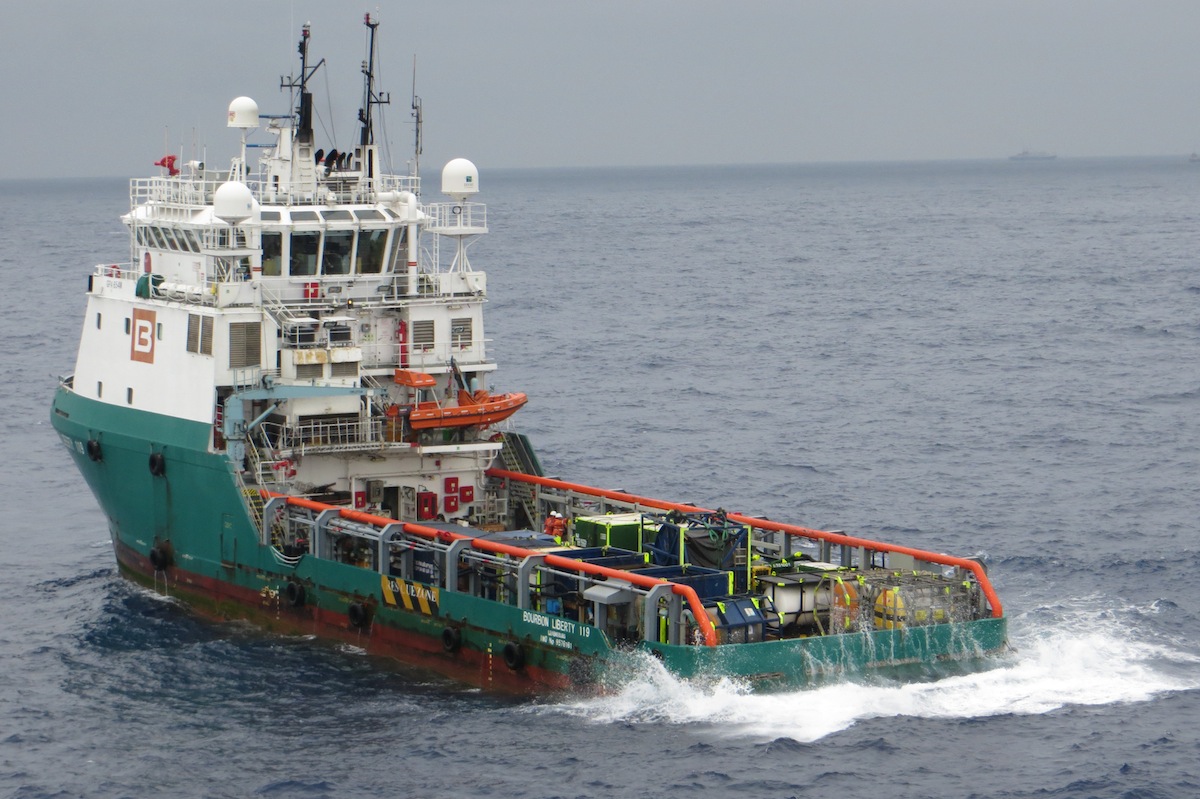

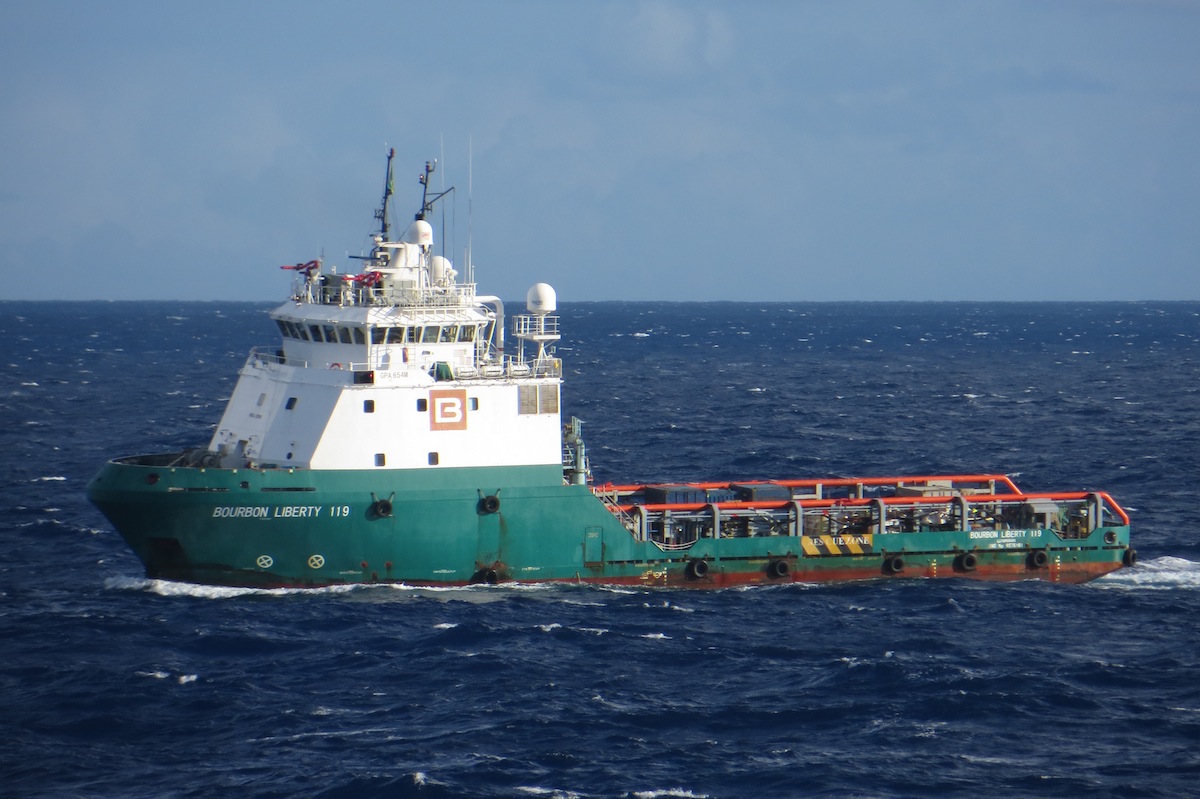

TYPE: NAME: BOURBON LIBERTY 119 Photos: Jan Plug
GENERAL PROPULSION CARGO CAPACITY
Length OA 57.9 m Engines 3 Fuel  779 m3
Breadth 14.0 m BHP 4110 Pot water  329 m3
DWT 1509 t For'd Thrusters 2 x 560 kW Mud  527 m3
Deck area 360 m2 Az Thruster   Base oil
 Berths 22 Aft Thrusters 2 x 843 kW Brine
Year built 2008-2012 Joystick   Dry bulk   168 m3
Shipyard Dayang China DP DP2 Tank Cleaning   ?
Previous names
Comments This ship revived the slightly unusual configurations of three diesel electric engines on deck combined with one fixed propeller and two azimuthing thrusters aft. There are to be 50 of these by 2012.
TYPE: NAME: N.S.Loreto PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 63.95 m Engines 2 x Deutz Fuel 674 m3
Breadth 14.8 m BHP/kW 2626/1930 Pot water 954 m3
DWT 1557 t For'd Thrusters 2 x 300 bhp Mud -
Deck area 231.7 m2 Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 1982 Joystick - Dry bulk 128 m3
Shipyard Maclaren Brazil DP - Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: D'Cecilia PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 43.0 m Engines 2 x Daihatsu Fuel 222 m3
Breadth 9.3 m BHP/kW 1500/1100 Pot water 200 m3
DWT 366 t For'd Thrusters 1 x 270 bhp Mud 128 m3
Deck area 147 m2 Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 1988 Joystick - Dry bulk -
Shipyard Corena Metalurgia DP - Tank Cleaning -
Previous names -
Comments -



TYPE: NAME: D'Georgiana PHOTO:

GENERAL PROPULSION CARGO CAPACITY
Length OA 43.0 m Engines 2 x Daihatsu Fuel 222 m3
Breadth 9.3 m BHP/kW 1500/1100 Pot water 200 m3
DWT 366 t For'd Thrusters 1 x 270 bhp Mud 128 m3
Deck area 147 m2 Az Thruster - Base oil -
    Aft Thrusters - Brine -
Year built 1989 Joystick - Dry bulk -
Shipyard Corena Metalurgia DP - Tank Cleaning -
Previous names -
Comments -
