SEA TRUCKS GROUP

The Sea Trucks Group operates vessels in a number of sectors and in a number of areas of the offshore industry. They appear to be based in Holland, but for the purposes of this site we are limiting our presentation to the anchor-handlers in the fleet which all appear to be based in West Africa.

In 2012 this company seems to have expanded and a single pipelay vessel is included as an example, although there are ten pipelay and accommodation vessels and four accommodation barges.

At the time of the 2013 review I am attempting to include all the ship shape vessel which have their own power which are 40 metres in length or more. This excludes a number of barges, and five accommodation units.

At the 2015 review a number of newbuilt anchor-handlers have been added to the fleet, and two second hand vessels which used to be the Husky and Retriever, Heerema's well known AHTS. It is also possible that the Jascon 18, under construction in 2013 has now entered service.

Updated 13th March 2015

SHIP TYPE

NOW

ORDERED



AHTS Under 10000 bhp 24 1
AHTS 10000bhp to 20000bhp 2 -
AHTS 20000 bhp and over - -
Seismic ships - -
Heavy lift ships 3 1
Pipelayer/Accommodation 3 -
IMR ships 1 -
PSVs deck less than 1000 m2 - -
PSVs deck 1000 m2 + - -
SBSs/ERRVs - -



ANCHOR-HANDLERS

  TYPE: SL 1000 NAME: Jascon 10   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 58.12 m Engines 2 x StorkWerksp'r Workdrum pull 60 t
Breadth 13.0 m BHP 8000 Capacity 1 750m x 58mm
DWT - kW 5880 Capacity 2 750m x 58mm
Deck area 300 m2 For'd Thruster 1 x 315 bhp Towdrum pull 60 t
Fuel 523 m3 Az Thruster - Capacity 1 1000m x 61mm
Pot water 108 m3 Aft Thrusters - Capacity 2 -
Mud 525 m3 Bollard pull 86 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 178 m3 Joystick - Tank cleaning -
Year built 1975     Shipyard Bodewes
Previous names Smit-Lloyd 110
Comments -



  TYPE: NAME: Jascon 11   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 40 .0 m Engines 2 x Cat 3516B Workdrum pull 200t
Breadth 11.4 m BHP 5150 Capacity 1 -
DWT - kW 3786 Capacity 2 -
Deck area - For'd Thruster 1 x 370 kW Towdrum pull 200t
Fuel 268 m3 Az Thruster - Capacity 1 -
Pot water 68 m3 Aft Aziprops 2 x Capacity 2 -
Mud - Bollard pull 63 t Sharks Jaw -
Brine - DPI Yes Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2006 Shipyard - Berths 15
Previous names -
Comments -



  TYPE: NAME: Jascon 12   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 40 .0 m Engines 2 x Cat 3516B Workdrum pull 200t
Breadth 11.4 m BHP 5150 Capacity 1 -
DWT - kW 3786 Capacity 2 -
Deck area - For'd Thruster 1 x 370 kW Towdrum pull 200t
Fuel 268 m3 Az Thruster - Capacity 1 -
Pot water 68 m3 Aft Aziprops 2 x Capacity 2 -
Mud - Bollard pull 63 t Sharks Jaw -
Brine - DPI Yes Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2007 Shipyard - Berths 15
Previous names -
Comments -



  TYPE: NAME: Jascon 20   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 50.0 m Engines 2 x EMDs Workdrum pull -
Breadth 13.8 m BHP 6040 Capacity 1 -
DWT - kW 4440 Capacity 2 -
Deck area 296 m2 For'd Thruster 2 x 370 kW Towdrum pull -
Fuel 425 m3 Az Thruster - Capacity 1 -
Pot water 400 m3 Aft Aziprops 2 x Capacity 2 -
Mud - Bollard pull 72 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2009     Shipyard Shanghai Huali
Previous names -
Comments -



  TYPE: NAME: Jascon 21   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 50.0 m Engines 2 x EMDs Workdrum pull -
Breadth 13.8 m BHP 6040 Capacity 1 -
DWT - kW 4440 Capacity 2 -
Deck area 296 m2 For'd Thruster 2 x 370 kW Towdrum pull -
Fuel 425 m3 Az Thruster - Capacity 1 -
Pot water 400 m3 Aft Aziprops 2 x Capacity 2 -
Mud - Bollard pull 82 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2009     Shipyard Shanghai Huali
Previous names -
Comments -



  TYPE: SL 7500 NAME: Jascon 22   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 58.12 m Engines 2 x StorkWerksp'r Workdrum pull 150 t
Breadth 13.0 m BHP 8000 Capacity 1 750m x 58mm
DWT 1046 t kW 5880 Capacity 2 750m x 58mm
Deck area 300 m2 For'd Thruster 1 x 315 bhp Towdrum pull 60 t
Fuel 523 m3 Az Thruster - Capacity 1 1000m x 61mm
Pot water 108 m3 Aft Thrusters - Capacity 2 -
Mud 525 m3 Bollard pull 100 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 178 m3 Joystick - Tank cleaning -
Year built 1975     Shipyard De Waal BV
Previous names Smit-Lloyd 111, Smit Lumut
Comments -



  TYPE: NAME: Jascon 23   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 54.0 m Engines 2 x Cat 3516B Workdrum pull -
Breadth 14.95 m BHP 5150 Capacity 1 -
DWT - kW 3786 Capacity 2 -
Deck area - For'd Thruster 1 x 400 bhp Towdrum pull -
Fuel 535 m3 Az Thruster - Capacity 1 -
Pot water 360 m3 Aft Thrusters - Capacity 2 -
Mud 365 m3 Bollard pull 63 t Sharks Jaw -
Brine - DPI Yes Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2006     Shipyard Fujian
Previous names -
Comments -



  TYPE: NAME: Jascon 24   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 54.0 m Engines 2 x Cat 3516B Workdrum pull -
Breadth 14.95 m BHP 5150 Capacity 1 -
DWT - kW 3786 Capacity 2 -
Deck area - For'd Thruster 1 x 400 bhp Towdrum pull -
Fuel 535 m3 Az Thruster - Capacity 1 -
Pot water 360 m3 Aft Thrusters - Capacity 2 -
Mud 365 m3 Bollard pull 63 t Sharks Jaw -
Brine - DPI Yes Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2006     Shipyard Fujian
Previous names -
Comments -

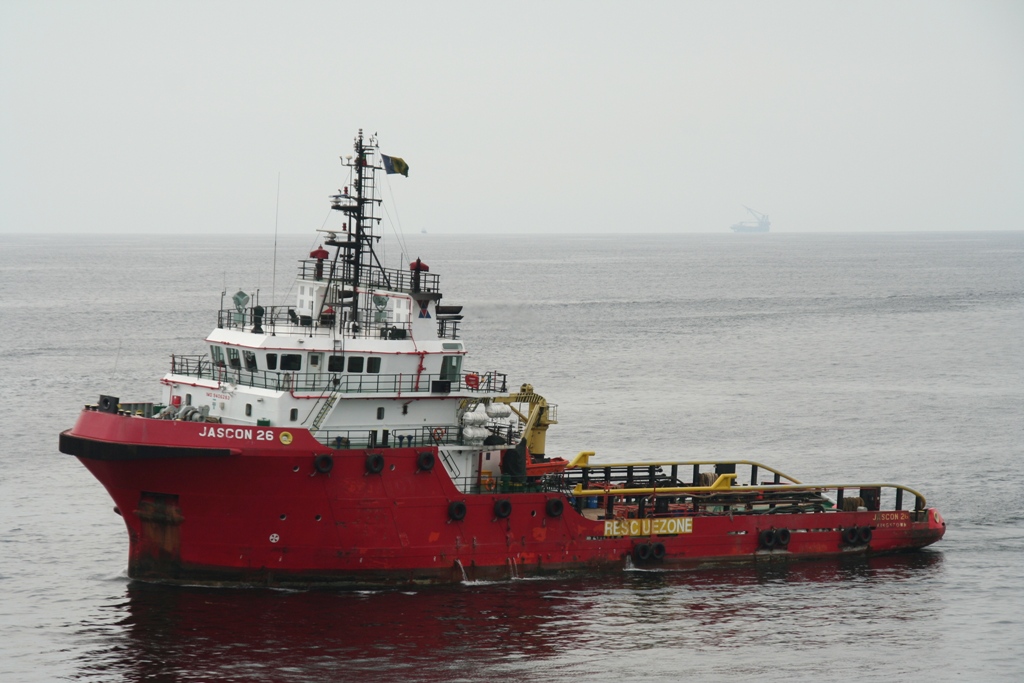

  TYPE: NAME: Jascon 26   PHOTO: Jan Plug


GENERAL

PROPULSION

EQUIPMENT

Length OA 54.0 m Engines 2 x Cat 3606 Workdrum pull 150 t
Breadth 14.95 m BHP 5450 Capacity 1 -
DWT - kW 4000 Capacity 2 -
Deck area 350 m2 For'd Thruster 1 x 400 bhp Towdrum pull 150 t
Fuel 535 m3 Az Thruster - Capacity 1 -
Pot water 360 m3 Aft Thrusters - Capacity 2 -
Mud 365 m3 Bollard pull 65 t Sharks Jaw -
Brine - DPI Yes Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2006     Shipyard Fujian
Previous names -
Comments -



  TYPE: SL 7500 NAME: Jascon 29   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 58.12 m Engines 2 x StorkWerkspoor Workdrum pull 150 t
Breadth 13.0 m BHP 8000 Capacity 1 750m x 58mm
DWT 1046 t kW 5880 Capacity 2 750m x 58mm
Deck area 300 m2 For'd Thruster 1 x 315 bhp Towdrum pull 60 t
Fuel 523 m3 Az Thruster - Capacity 1 1000m x 61mm
Pot water 108 m3 Aft Thrusters - Capacity 2 -
Mud 525 m3 Bollard pull 100 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 178 m3 Joystick - Tank cleaning -
Year built 1976     Shipyard De Waal BV
Previous names Smit-Lloyd 117, Smit Luzon
Comments -



  TYPE: NAME: Jascon 39   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 57.5 m Engines 2 x 3516B Workdrum pull 150 t
Breadth 13.8 m BHP 5500 Capacity 1 -
DWT - kW 4044 Capacity 2 -
Deck area - For'd Thruster 1 x 400 bhp Towdrum pull 150 t
Fuel 396 m3 Az Thruster - Capacity 1 -
Pot water 200 m3 Aft Thrusters - Capacity 2 -
Mud 256 m3 Bollard pull 60 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 180 m3 Joystick - Tank cleaning -
Year built 2007     Shipyard PT Batamec
Previous names -
Comments -



  TYPE: NAME: Jascon 40   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 57.5 m Engines 2 x 3516B Workdrum pull 150 t
Breadth 13.8 m BHP 5500 Capacity 1 -
DWT - kW 4044 Capacity 2 -
Deck area - For'd Thruster 1 x 400 bhp Towdrum pull 150 t
Fuel 396 m3 Az Thruster - Capacity 1 -
Pot water 200 m3 Aft Thrusters - Capacity 2 -
Mud 256 m3 Bollard pull 60 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 180 m3 Joystick - Tank cleaning -
Year built 2007     Shipyard PT Batamec
Previous names -
Comments -



  TYPE: NAME: JASCON 45   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 40.0 m Engines 2 x Cat 3516B Workdrum pull -
Breadth 11.8 m BHP 4200 Capacity 1 1000m x 50mm
DWT - kW 3088 Capacity 2 -
Deck area 125 m2 For'd Thruster 1 x ? Towdrum pull -
Fuel 320 m3 Az Thruster - Capacity 1 1000m x 50mm
Pot water 112 m3 Aft Thrusters - Capacity 2 -
Mud - Bollard pull 48 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2010 Shipyard - Berths 20
Previous names -
Comments -



  TYPE: NAME: JASCON 46   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 40.0 m Engines 2 x Cat 3516B Workdrum pull -
Breadth 11.8 m BHP 4200 Capacity 1 1000m x 50mm
DWT - kW 3088 Capacity 2 -
Deck area 125 m2 For'd Thruster 1 x ? Towdrum pull -
Fuel 320 m3 Az Thruster - Capacity 1 1000m x 50mm
Pot water 112 m3 Aft Thrusters - Capacity 2 -
Mud - Bollard pull 48 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 2010 Shipyard - Berths 20
Previous names -
Comments -



  TYPE: NAME: Jascon 57   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 50 m Engines 2 x Cat 3516B Workdrum pull 150 t
Breadth 13.2 m BHP 5150 Capacity 1 1000m x 54mm
DWT - kW 3786 Capacity 2 -
Deck area - For'd Thruster 1 x 500 bhp Towdrum pull 150 t
Fuel 596 m3 Az Thruster - Capacity 1 1000m x 54mm
Pot water 214 m3 Aft Thrusters - Capacity 2 -
Mud - Bollard pull 67.3 t Sharks Jaw -
Brine - DP - Cranes 1 x 2t
Dry bulk - Joystick - Tank cleaning -
Year built 2012 Shipyard - Berths 30
Previous names -
Comments -



  TYPE: NAME: Jascon 66   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 60.5 m Engines 2 x Cat 3516C Workdrum pull 150 t
Breadth 15.8 m BHP 5220 Capacity 1 1000m x 56mm
Gross Tonnage 1922 kW 3840 Capacity 2 -
DWT - For'd Thruster 2 x 650 kW Towdrum pull -
Deck area 360 m2 Az Thruster 1 x 650 kW Capacity 1 -
Fuel 596.8 m3 Aft Thrusters - Capacity 2 -
Pot water 412 m3 Bollard pull 65 t Sharks Jaw -
Mud 271 m3 DPII Yes Cranes 1 x 3t
Brine - Joystick - Tank cleaning -
Dry bulk 6000 cu.ft Shipyard - Berths 42
Year built 2013 - - - -
Previous names -
Comments -
Charter - Available - Location -



  TYPE: NAME: Jascon 67   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 60.5 m Engines 2 x Cat 3516C Workdrum pull 150 t
Breadth 15.8 m BHP 5220 Capacity 1 1000m x 56mm
Gross Tonnage 1922 kW 3840 Capacity 2 -
DWT - For'd Thruster 2 x 650 kW Towdrum pull -
Deck area 360 m2 Az Thruster 1 x 650 kW Capacity 1 -
Fuel 596.8 m3 Aft Thrusters - Capacity 2 -
Pot water 412 m3 Bollard pull 65 t Sharks Jaw -
Mud 271 m3 DPII Yes Cranes 1 x 3t
Brine - Joystick - Tank cleaning -
Dry bulk 6000 cu.ft Shipyard - Berths 42
Year built 2013 - - - -
Previous names -
Comments -
Charter - Available - Location -



  TYPE: NAME: Jascon 68   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.1 m Engines 2 x 2575 bhp Workdrum pull 150 t
Breadth 15.8 m BHP 5150 Capacity 1 -
Gross Tonnage 2090 kW 3786 Capacity 2 -
DWT - For'd Thruster 2 x 10t Towdrum pull -
Deck area 480 m2 Az Thruster - Capacity 1 -
Fuel 590 m3 Aft Thrusters 1 x 10t Capacity 2 -
Pot water 450 m3 Bollard pull 65 t Sharks Jaw -
Mud 520 m3 DPII Yes Cranes -
Brine - Joystick - Tank cleaning -
Dry bulk 212.5 m3 Shipyard - Berths 42
Year built 2014 - - - -
Previous names -
Comments -
Charter - Available - Location -



  TYPE: NAME: Jascon 69   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 70.1 m Engines 2 x 2575 bhp Workdrum pull 150 t
Breadth 15.8 m BHP 5150 Capacity 1 -
Gross Tonnage 2090 kW 3786 Capacity 2 -
DWT - For'd Thruster 2 x 10t Towdrum pull -
Deck area 480 m2 Az Thruster - Capacity 1 -
Fuel 590 m3 Aft Thrusters 1 x 10t Capacity 2 -
Pot water 450 m3 Bollard pull 65 t Sharks Jaw -
Mud 520 m3 DPII Yes Cranes -
Brine - Joystick - Tank cleaning -
Dry bulk 212.5 m3 Shipyard - Berths 42
Year built 2014 - - - -
Previous names -
Comments -
Charter - Available - Location -



  TYPE: Heerema NAME: Maro   PHOTO: Jan Plug


GENERAL

PROPULSION

EQUIPMENT

Length OA 60.45 m Engines  2 x MAK Workdrum pull 168 t
Breadth 15.03 m BHP 12000 Capacity 1 1320m x 77mm
DWT 1754 t kW 8820 Capacity 2 -
Deck area 282 m2 For'd Thruster 2 x 550 bhp Towdrum pull 168 t
Fuel 1929 m3 Az Thruster - Capacity 1 1320m x 77mm
Pot water 66 m3 Aft Thrusters - Capacity 2 -
Mud - Bollard pull 152 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 1978     Shipyard Appingedam

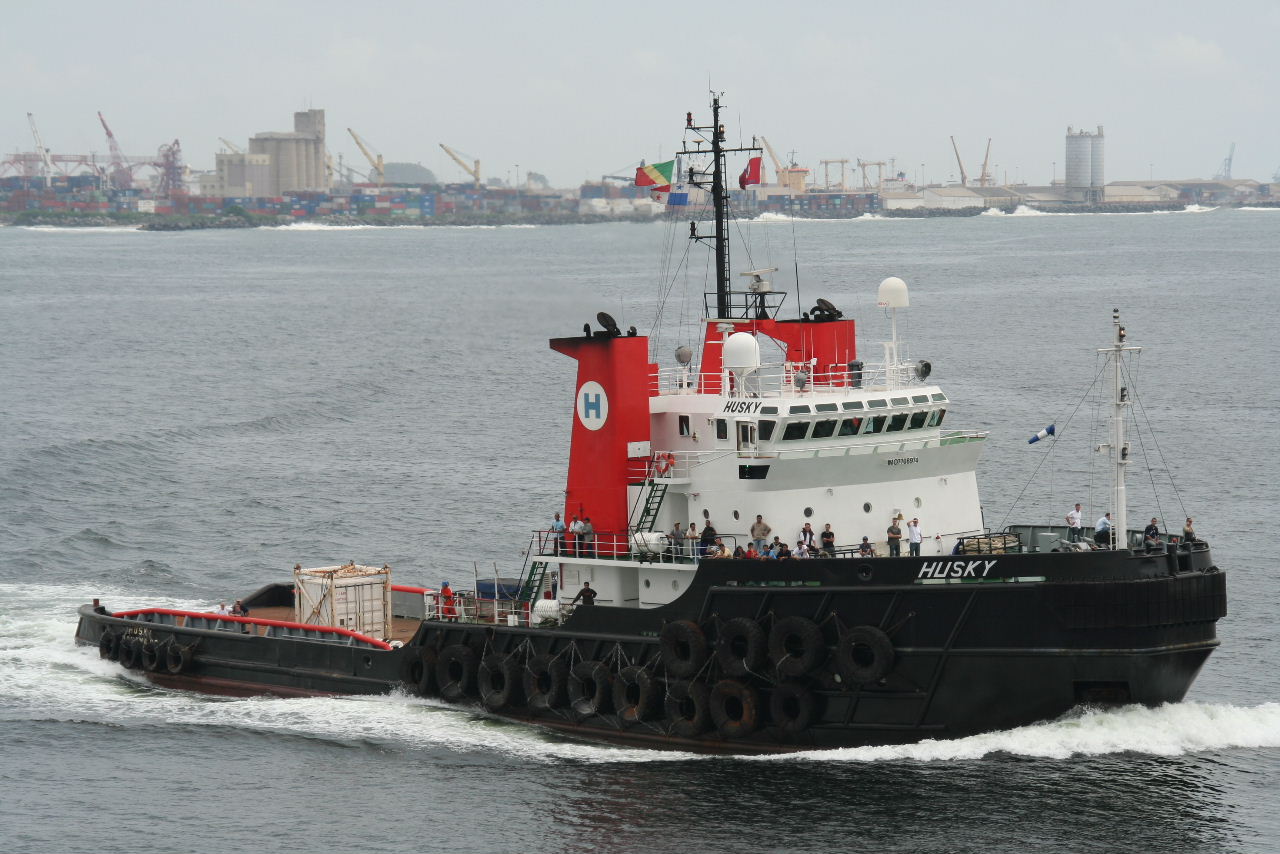

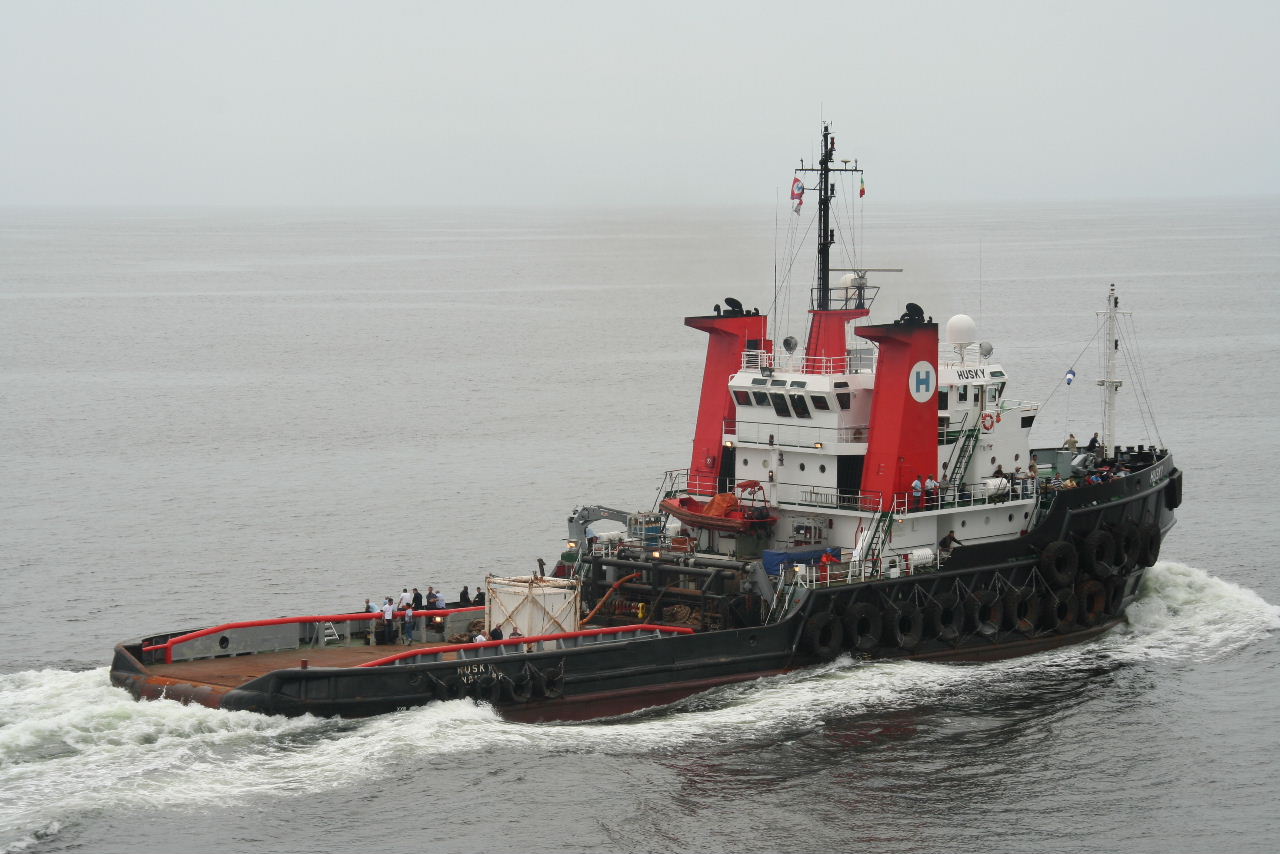

Previous names Husky
Comments Sold in 2014 to West African Ventures (WAV) and renamed Maro. Refurbished in 2009.



  TYPE: Heerema NAME: Roma   PHOTO: Oddgeir Refvik

GENERAL

PROPULSION

EQUIPMENT

Length OA 60.45 m Engines 2 x MAK Workdrum pull 240 t
Breadth 10.68 m BHP 16000 Capacity 1 2500m x 77mm
DWT 1745 m2 kW 11760 Capacity 2 -
Deck area 283 m2 For'd Thruster 2 x 450 bhp Towdrum pull 240 t
Fuel 1900 m3 Az Thruster - Capacity 1 2500m x 77mm
Pot water 48 m3 Aft Thrusters - Capacity 2 -
Mud - Bollard pull 160 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk - Joystick - Tank cleaning -
Year built 1982     Shipyard Niestern-Sandern

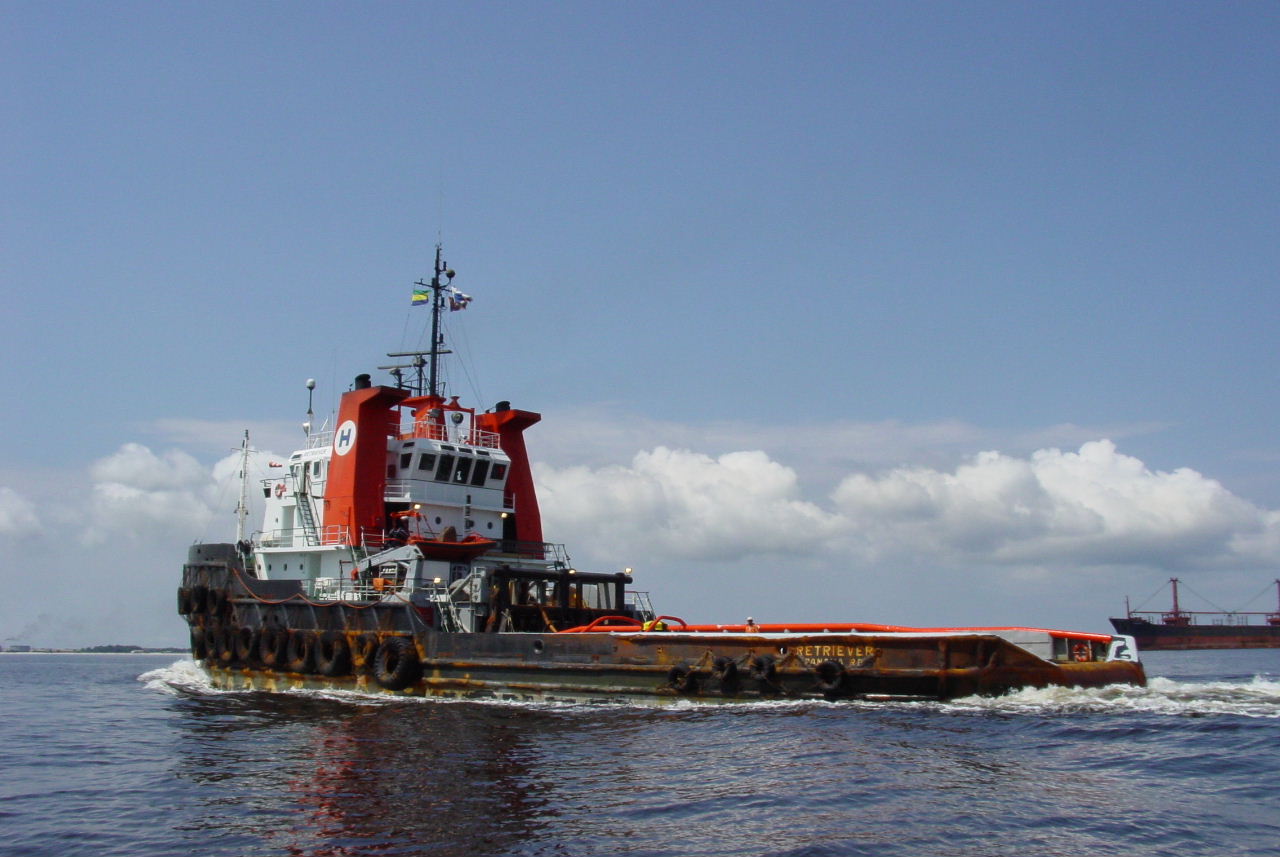

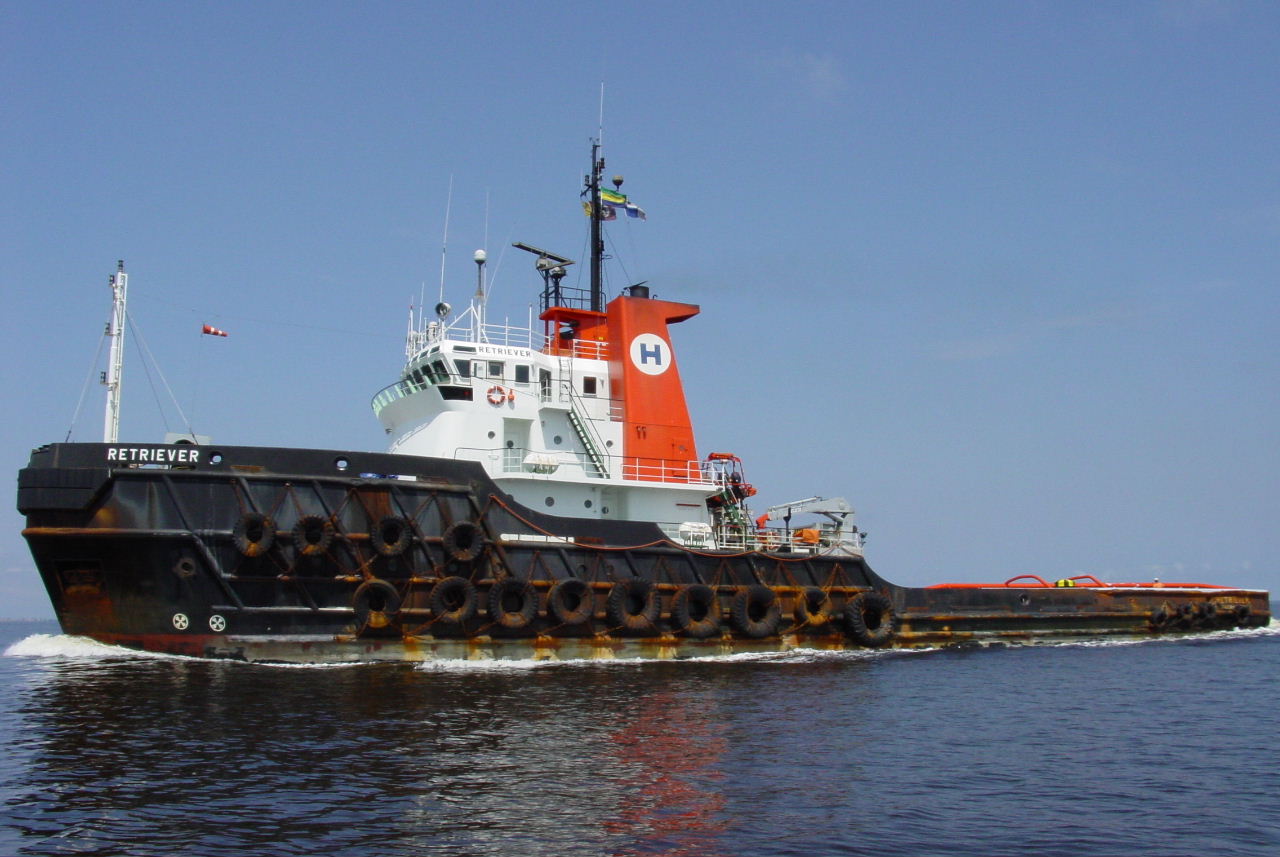

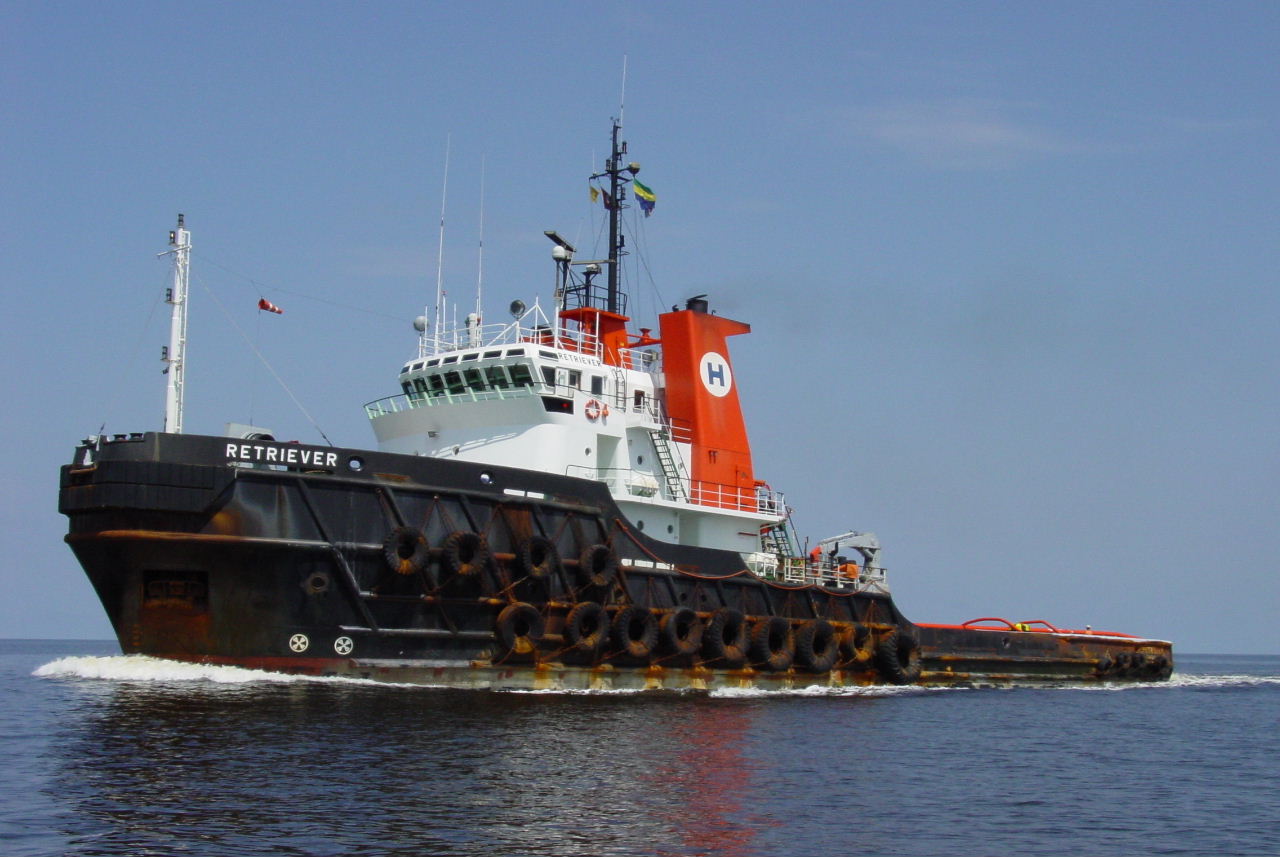

Previous names Retriever
Comments Sold in 2014 to West African ventures and renamed Roma



  TYPE: Halter 180ft ? NAME: Walvis 1   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 53.6 m Engines 2 x Cat 3516TA Workdrum pull 157 t
Breadth 12.02 m BHP 4000 Capacity 1 -
DWT 1104 t kW 2940 Capacity 2 -
Deck area 299 m2 For'd Thruster 1 x 300 bhp Towdrum pull 157 t
Fuel 310 m3 Az Thruster - Capacity 1 1690m x 56mm
Pot water 54 m3 Aft Thrusters - Capacity 2 -
Mud 222 m3 Bollard pull 50 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 113 m3 Joystick - Tank cleaning -
Year built 1982/1996     Shipyard Hudson, Pass
Previous names Reliant Seahorse, Mar 24, PBR 372
Comments -



  TYPE: NAME: Walvis 2   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 56.7 m Engines 2 x EMDs Workdrum pull 159 t
Breadth 12.2 m BHP 6140 Capacity 1 1600m x 55mm
DWT 986 t kW 4514 Capacity 2 -
Deck area 329 m2 For'd Thruster 1 x 400 bhp Towdrum pull 159 t
Fuel 532 m3 Az Thruster - Capacity 1 1600m x 55mm
Pot water 250 m3 Aft Thrusters - Capacity 2 -
Mud 220 m3 Bollard pull 72 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 104 m3 Joystick - Tank cleaning -
Year built 1975     Shipyard Burton USA
Previous names Atlantic Seahorse
Comments -



  TYPE: NAME: Walvis 5   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 57.0 m Engines 2 x CAT 3516TA Workdrum pull 113 t
Breadth 11.6 m BHP 3840 Capacity 1 -
DWT - kW 2820 Capacity 2 -
Deck area - For'd Thruster 1 x 400 bhp Accomm berths 44
Fuel 408 m3 Az Thruster - Storage capacity

-

Pot water 178 m3 Aft Az Props - ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP II - Cranes 1 x 13 t
Dry bulk - Joystick - Tank cleaning -
Year built 1980/1998     Shipyard -
Previous names -
Comments Diving vessel with 4 point mooring system. At the 2015 review this ship appears to be owned by Walvis International.



  TYPE: NAME: Walvis 6   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 61.0 m Engines 2 x Daihatsu Workdrum pull 129 t
Breadth 13.15 m BHP 4200 Capacity 1 -
DWT 1295 t kW 3088 Capacity 2 -
Deck area 280 m2 For'd Thruster 1 x 350 bhp Towdrum pull 129 t
Fuel 310 m3 Az Thruster - Capacity 1 -
Pot water 195 m3 Aft Thrusters - Capacity 2 -
Mud 187 m3 Bollard pull 53 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 112 m3 Joystick - Tank cleaning -
Year built 1982     Shipyard Wakamatsu
Previous names Zamil Abdullah
Comments -



  TYPE: NAME: Walvis 7   PHOTO: -


GENERAL

PROPULSION

EQUIPMENT

Length OA 61.0 m Engines 2 x Daihatsu Workdrum pull 129 t
Breadth 13.15 m BHP 4200 Capacity 1 -
DWT 1295 t kW 3088 Capacity 2 -
Deck area 280 m2 For'd Thruster 1 x 350 bhp Towdrum pull 129 t
Fuel 310 m3 Az Thruster - Capacity 1 -
Pot water 195 m3 Aft Thrusters - Capacity 2 -
Mud 187 m3 Bollard pull 53 t Sharks Jaw -
Brine - DP - Cranes -
Dry bulk 112 m3 Joystick - Tank cleaning -
Year built 1982     Shipyard Wakamatsu
Previous names Zamil Munira
Comments -

CONSTRUCTION AND OTHER VESSELS

  TYPE: NAME: Jascon 18   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 150 m Engines 8 x EMDs
1 x Cat
Workdrum pull -
Breadth 36.8 m BHP 40188 Capacity 1 -
DWT 11890 mt kW 29550 Capacity 2 -
Deck area 1800 m2 For'd Thruster 1 x 1700 kW Accomm berths 399 in 123 cabins
Fuel 3562 m3 Az Thruster 5 x 2400 kW
2 x 1800 kW
Storage capacity

-

Pot water 2540 m3 Aft Az Props 2 x 3000 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Yes Cranes 1 x 1800 t
Dry bulk - Joystick - Tank cleaning -
Year built 2013     Shipyard -
Previous names -
Comments Although these seems to be no information available but on the basis of the picture from early this year it is assumed that this ship had entered service or is about to do so.At the 2015 review it might be still under construction, but if the photos are anything to go by it is nearly finished.



  TYPE: NAME: JASCON 25   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 118.8 m Engines 4 x Cat 3516B Workdrum pull -
Breadth 30.4 m BHP 9922 Capacity 1 -
DWT 7867 mt kW 7296 Capacity 2 -
Deck area 1500 m2 For'd Thruster 1 x 1355 kW Accomm berths 355 in 105 cabins
Fuel 1887 m3 Az Thruster 4 x 1825 Storage capacity

-

Pot water 2614 m3 Aft Az Props 2 x 1825 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Kongsberg KPos 22 Cranes 1 x 800 t
Dry bulk - Joystick - Tank cleaning -
Year built 2009     Shipyard -
Previous names -
Comments This ship has a gangway, can lay pipe, and its thruster power requirements seem to exceed the power capacity of the engines.



  TYPE: NAME: Jascon 28   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 111.8 m Engines 3 x Cat 3516B Workdrum pull -
Breadth 30.48 m BHP 7446 Capacity 1 -
DWT 6791 mt kW 5475 Capacity 2 -
Deck area 1100 m2 For'd Thruster 1 x 1355 kW Accomm berths 464 in 120 cabins
Fuel 1857 m3 Az Thruster 4 x 1200 kW Storage capacity

-

Pot water 2430 m3 Aft Thrusters 2 x 600 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Kongsberg Kpos 22 Cranes 1 x 270 t
Dry bulk - Joystick - Tank cleaning -
Year built 2008     Shipyard -
Previous names -
Comments Once more it is really difficult to see how this ship manages its power requirements / and if it comes to that how it can possibly be a DP3 vessel.



  TYPE: NAME: Jascon 30   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 111.0 m Engines 3 x Cat 3516B Workdrum pull -
Breadth 30.48 m BHP 7446 Capacity 1 -
DWT 7116 mt kW 5475 Capacity 2 -
Deck area 700 m2 For'd Thruster 1 x 1355 kW Accomm berths 296
Fuel 2171 m3 Az Thruster all 4 x 1200 kW Storage capacity

-

Pot water 3111 m3 Centre aft 1 x 1000 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Kongsberg SDP21 Cranes 1 x 270 t
Dry bulk - Joystick - Tank cleaning -
Year built 2007     Shipyard -
Previous names -
Comments Once more thruster requirements seem to exceed power generation, but it is also provided with a 10 point mooring system.



  TYPE: NAME: Jascon 31   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 111.0 m Engines 7 x Cat 3516B Workdrum pull -
Breadth 30.48 m BHP 17374 Capacity 1 -
DWT 5873 mt kW 12775 Capacity 2 -
Deck area 1300 m2 For'd Thruster 1 x 1355 kW Accomm berths 469
Fuel 2672 m3 Az Thruster 2 x 1600 kW Storage capacity

-

Pot water 955 m3 Aft Az Props 2 x 1600 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Kongsberg Kpos 22 Cranes 1 x 400 t
Dry bulk - Joystick - Tank cleaning -
Year built 2011     Shipyard -
Previous names -
Comments -



  TYPE: NAME: Jascon 34   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 118.8 m Engines 4 x Cat 3516B Workdrum pull -
Breadth 30.4 m BHP 9928 Capacity 1 -
DWT 9278 mt kW 7300 Capacity 2 -
Deck area 1350 m2 For'd Thruster 1 x 1355 kW Accomm berths 335
Fuel 2313 m3 Az Thruster 4 x 1920 kW Storage capacity

-

Pot water 2667 m3 Aft Az Props 2 x 1920 kW ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP III Kongsberg Kpos 22 Cranes 1 x 800 t
Dry bulk - Joystick - Tank cleaning -
Year built 2010     Shipyard -
Previous names -
Comments -



  TYPE: NAME: Jascon 55   PHOTO:


GENERAL

PROPULSION

EQUIPMENT

Length OA 78.0 m Engines 2 x Wartsila 9L20 Workdrum pull -
Breadth 20.0 m BHP 4896 Capacity 1 -
DWT - kW 3600 Capacity 2 -
Deck area - For'd Thruster 2 x 650 kW Accomm berths 172
Fuel - Az Thruster - Storage capacity

-

Pot water - Aft Az Props 2 x - ROV -
Mud - Bollard pull - Diving Capability -
Brine - DP II Kongsberg Kpos Cranes 1 x 120t
Dry bulk - Joystick - Tank cleaning -
Year built 2013     Shipyard -
Previous names -
Comments -



DISPOSALS





RETURN TO TOP OF PAGE


SHIPPING COMPANY INFORMATION

NORTH AMERICAN COMPANIES

Abdon Callais
AET Offshore
Aries Marine Corp
Atlantic Towing
Bisso Marine
C&G Boats
Deepocean
Edison Chouest
Ensco Marine
Flomex Shipping
Gulf Americas
Harvey Gulf
Hornbeck
J Ray McDermott
L&M Botruc
Naviera Bourbon
Neches Gulf
Odyssea Marine
Otto Candies
Rowan
Seabulk
Seacor Marine
Sea Mar Inc
Secunda Canada
Southern States
Tidewater
Trico Marine
Zapata Gulf


SOUTH ATLANTIC AND CARRIBEAN COMPANIES

Astromaritima
BOS
Bourbon Maritima
CBO
Delba Maritima
Delta Logistics
DOF Brazil
Finarge Brazil
Gulf Brazil
Gulf Trinidad
Odekole International
Radam Maritime
Saveiros Camuyrano
Seatrucks Group
South Patagonia Services
Siem Brazil
Ultrapetrol
Vega Offshore
WSUT

INDIAN COMPANIES

ABS Marine
Alpha Logistics
Dolphin Offshore
Global Offshore
GOL Offshore
Hind Offshore
Indus
Seamac Ltd
Trinity Offshore
Varun Shipping















The details of vessels have been compiled from a number of sources and are not guaranteed to be correct. All photographs remain the property of the photographer and may not be used for any commercial purpose, either in print or electronically without permission.  The articles contained on the site remain the intellectual property of the authors and must not be reproduced in part or in full without permission.
