ATLANTIC TOWING

Atlantic Towing are a Canadian company and their four UT722s were built in Halifax, initially most of them worked in the North Sea, but now (2009) they all seem to be working on the Atlantic margin offshore Canada. A master from Edda went over to Canada to help train the crews.

They have a single UT 755LN on order which will be delivered some time late in 2010.

At the 2012 review it can be seen that the former Asso Ventidue, one of the UT 722s built at Orskov, ans been added to the fleet, and now a VS anchor handler built by Jaya holdings had also been added. Our info is now slightly better than that available on the Atlantic Towing website.

At the 2014 review it was seen that Atlantic Towing had agreed to purchase the sister ship of the Atlantic Kestrel. It is due in the first quarter of 2014.

At the 2014 review it can be seen that Atlantic Towing is part of a group called J.D.Irviing. The company has gained another VS designed anchor handler and apparently a small AHTS standby vessel since the last review. Which was at the beginning of 2014. The website has changed a bit in the interim.

Updated 6th November 2014.

SHIP TYPE	NOW	ORDERED
AHTS Under 10000 bhp	1	-
AHTS 10000bhp to 20000bhp	7	-
AHTS 20000 bhp and over	-	-
Seismic ships	-	-
Heavy lift ships	-	-
Pipelayers	-	-
IMR ships	-	-
PSVs deck less than 1000 m2	1	4
PSVs deck 1000 m2 +	-	-
SBSs/ERRVs	-	-

ANCHOR-HANDLERS

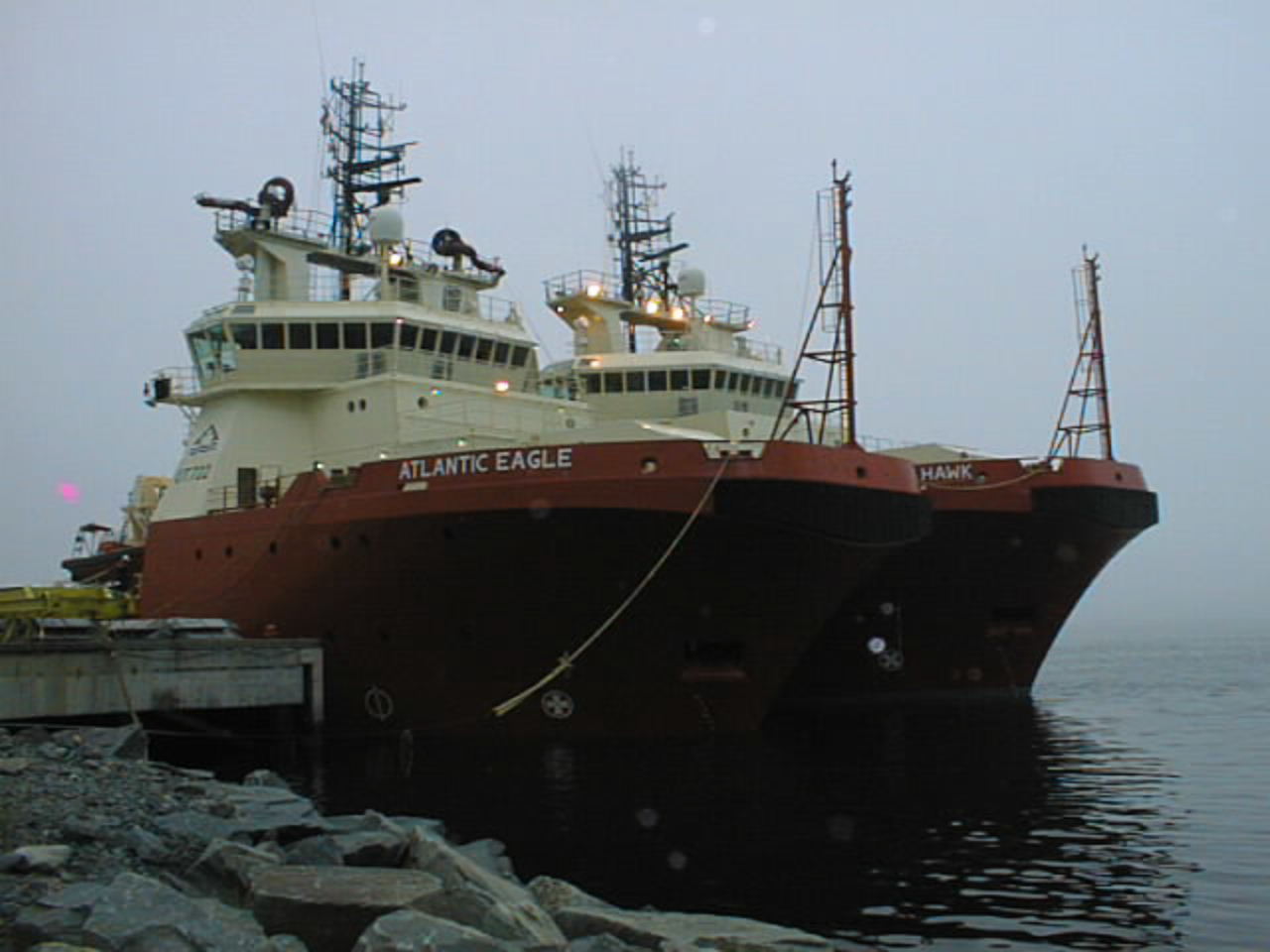

TYPE: UT 722		NAME: ATLANTIC EAGLE		PHOTO: Halifax Shipyard, Perry White, Peter Williams

GENERAL		PROPULSION		EQUIPMENT
Length OA	75 m	Engines	2 x Bergen Ulstein	Workdrum pull	300 tonnes
Breadth	18 m	BHP	14400	Capacity 1	1290m x 76mm
DWT	2200 t	kW	10588	Capacity 2	1290m x 76mm
Deck area	551 m2	For'd Thrusters	1 x 1200 bhp	Towdrum pull
Fuel	991 m3	Az Thrusters	1 x 1500 bhp	Capacity 1	1560m x 76mm
Pot water	704 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	-
Mud	417 m3	Bollard pull	162 t	Sharks Jaw	2 x Karmforks
Brine	401 m3	DP	Simrad DPS 116	Cranes	1 x 5 t
Dry bulk	280 m3	Joystick	2 x Poscon	Tank cleaning	Butterworth
Year built	1999			Shipyard	Halifax, Canada
Previous names
Comments

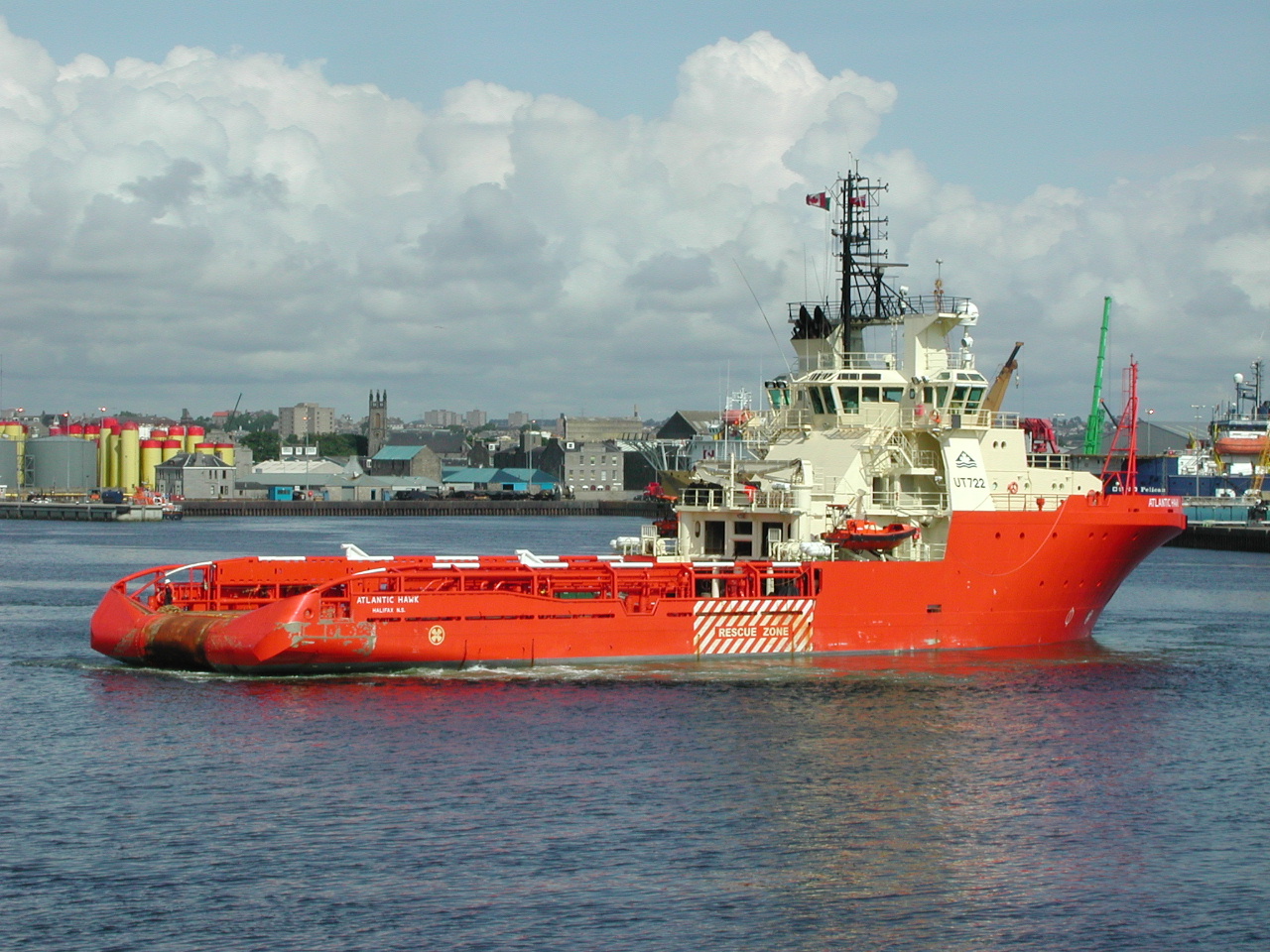

TYPE: UT 722		NAME: ATLANTIC HAWK		PHOTO: George Craigen, Vic Gibson

GENERAL		PROPULSION		EQUIPMENT
Length OA	75 m	Engines	2 x Bergen Ulstein	Workdrum pull	300 tonnes
Breadth	18 m	BHP	14400	Capacity 1	1290m x 76mm
DWT	2200 t	kW	10588	Capacity 2	1290m x 76mm
Deck area	551 m2	For'd Thrusters	1 x 1200 bhp	Towdrum pull
Fuel	991 m3	Az Thrusters	1 x 1500 bhp	Capacity 1	1560m x 76mm
Pot water	704 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2	-
Mud	417 m3	Bollard pull	162 t	Sharks Jaw	2 x Karmforks
Brine	401 m3	DP	Kongsberg SDP 21	Cranes	1 x 5 t
Dry bulk	280 m3	Joystick	2 x Poscon	Tank cleaning	Butterworth
Year built	2000			Shipyard	Halifax, Canada
Previous names
Comments

TYPE: VS 4622 CD		NAME: ATLANTIC KESTREL		PHOTO: Mike Wall

GENERAL		PROPULSION		EQUIPMENT
Length OA	85.2 m	Engines	2 x Wartsila 12V32	Workdrum pull	400 t
Breadth	22.0 m	BHP	16320	Capacity 1	4000m x 76mm
DWT	4400 mt	kW	12000	Capacity 2	-
Deck area	750 m2	For'd Thruster	2 x 1100 kW	Towdrum pull	400 t
Fuel	1980 m3	Az Thruster	-	Capacity 1	2550m x 76mm
Pot water	1252 m3	Aft Thrusters	2 x 850 kW	Capacity 2	-
Mud	965 m3	Bollard pull	200 t	Sharks Jaw	-
Brine	799 m3	DPII	Kongsberg	Cranes	-
Dry bulk	220 m3	Joystick	-	Tank cleaning	-
Year built	2012	Shipyard	JSE Singapore	Berths	45
Previous names	Jaya Supreme
Comments	Purchased brand new by Atlantic Towing

TYPE: VS 4622 CD		NAME: ATLANTIC MERLIN		PHOTO: -

GENERAL		PROPULSION		EQUIPMENT
Length OA	85.2 m	Engines	2 x Wartsila 12V32	Workdrum pull	400 t
Breadth	22.0 m	BHP	16320	Capacity 1	4000m x 76mm
DWT	4400 mt	kW	12000	Capacity 2	-
Deck area	750 m2	For'd Thruster	2 x 1100 kW	Towdrum pull	400 t
Fuel	1980 m3	Az Thruster	-	Capacity 1	2550m x 76mm
Pot water	1252 m3	Aft Thrusters	2 x 850 kW	Capacity 2	-
Mud	965 m3	Bollard pull	210 t	Sharks Jaw	-
Brine	799 m3	DPII	Kongsberg	Cranes	-
Dry bulk	220 m3	Joystick	-	Tank cleaning	-
Year built	2014	Shipyard	JSE Singapore	Berths	45
Previous names	Jaya Sovereign
Comments	-

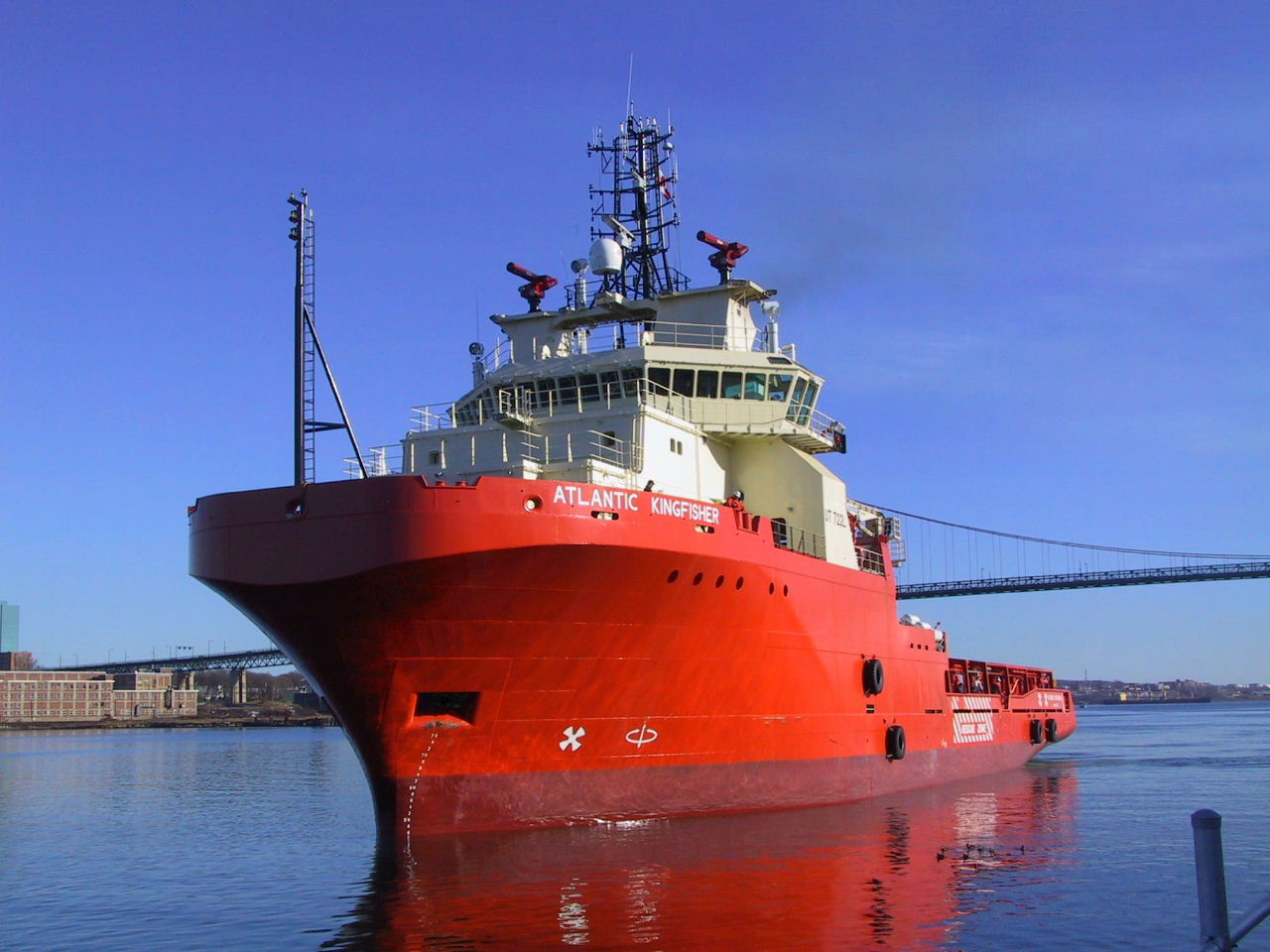

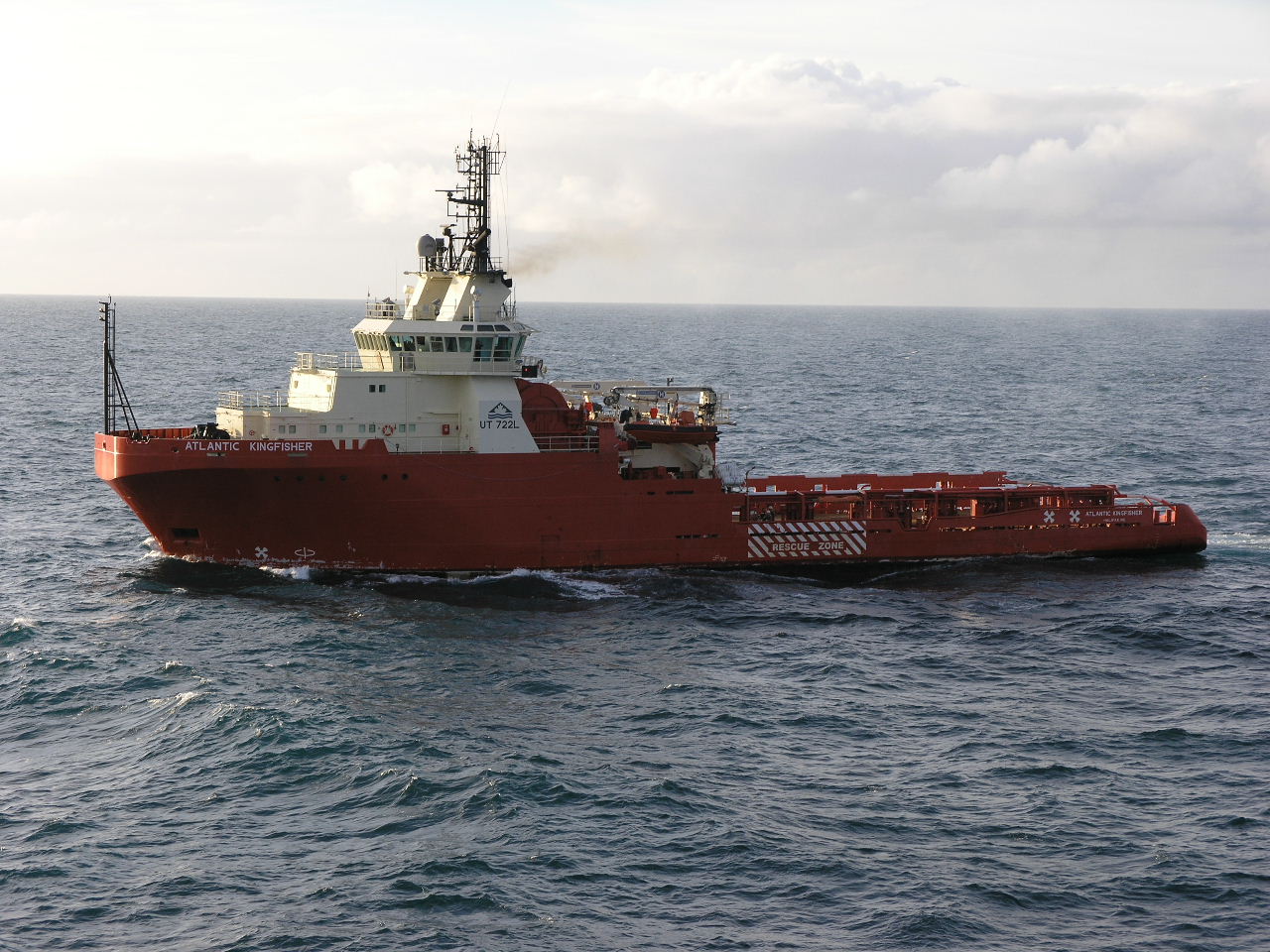

TYPE: UT 722L		NAME: ATLANTIC KINGFISHER		PHOTO: Halifax Shipyard, Ian McDougal, Vic Gibson

GENERAL		PROPULSION		EQUIPMENT
Length OA	80 m	Engines	4 x Bergen B32	Workdrum pull	400 tonnes
Breadth	18 m	BHP	16092	Capacity 1	5800m x 83mm
DWT	2750 t	kW	11832	Capacity 2	-
Deck area	550 m2	For'd Thrusters	1 x 1200 bhp	Towdrum pull	500 t
Fuel	1100 m3	Az Thrusters	1 x 1200 bhp	Capacity 1	4250m x 83mm
Pot water	500 m3	Aft Thrusters	2 x 800 bhp	Capacity 2	-
Mud	430 m3	Bollard pull	171 t	Sharks Jaw	2 x Karmforks
Brine	272 m3	DPII	Kongsberg SDP21	Cranes	1 x 5 t
Dry bulk	283 m3	Joystick	2 x Poscon	Tank cleaning	Butterworth
Year built	2002			Shipyard	Halifax, Canada
Previous names
Comments

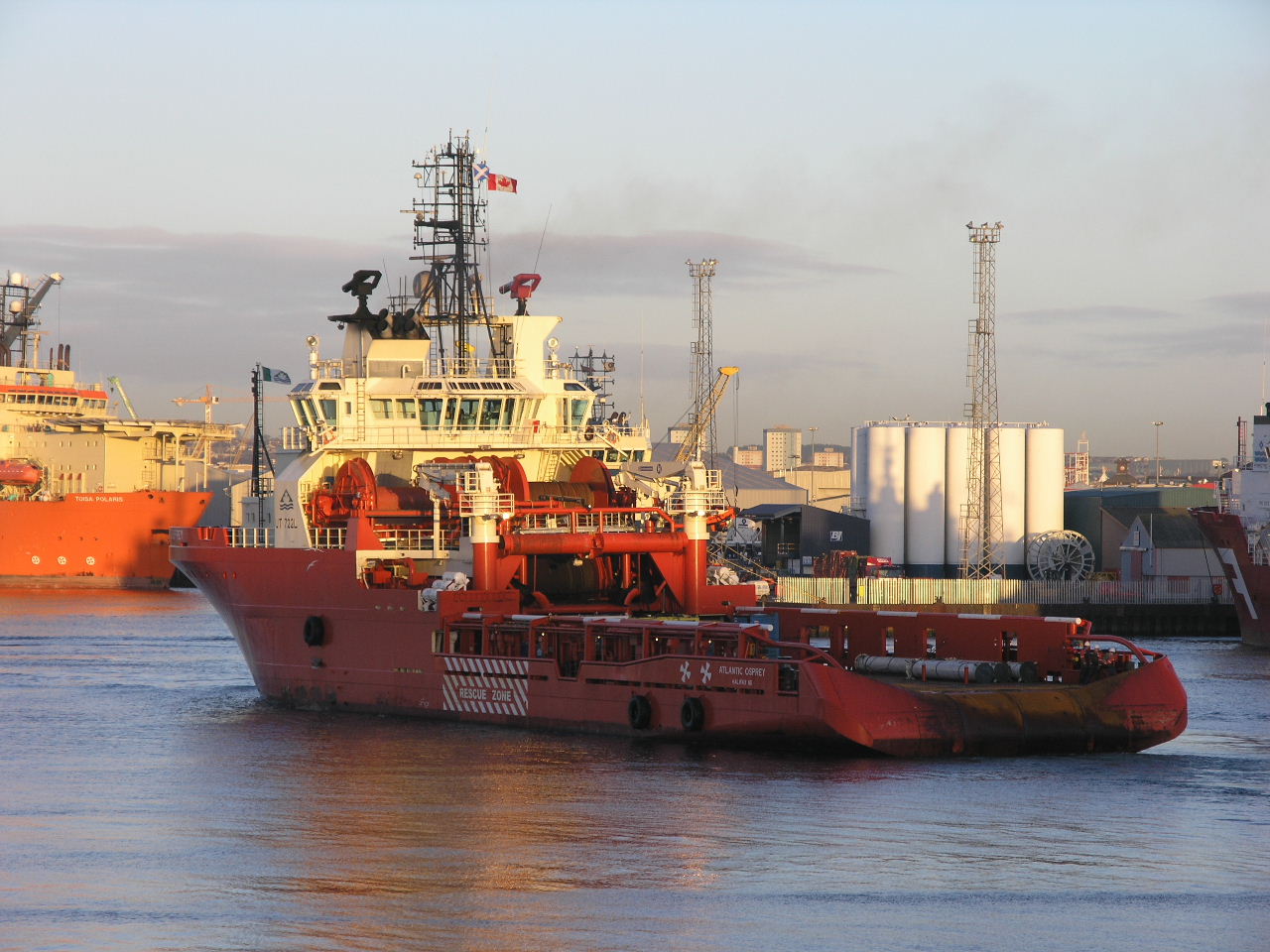

UT 722L		ATLANTIC OSPREY		PHOTO: Halifax Shipyard, Vic Gibson

GENERAL		PROPULSION		EQUIPMENT
Length OA	80 m	Engines	4 x Bergen B32	Workdrum pull	400 tonnes
Breadth	18 m	BHP	16092	Capacity 1	5800m x 83mm
DWT	2750 t	kW	11832	Capacity 2	-
Deck area	550 m2	For'd Thrusters	1 x 1200 bhp	Towdrum pull	500 t
Fuel	1100 m3	Az Thrusters	1 x 1200 bhp	Capacity 1	4250m x 83mm
Pot water	500 m3	Aft Thrusters	2 x 800 bhp	Capacity 2	-
Mud	430 m3	Bollard pull	176 t	Sharks Jaw	2 x Karmforks
Brine	272 m3	DPII	Kongsberg SDP21	Cranes	1 x 5 t
Dry bulk	283 m3	Joystick	2 x Poscon	Tank cleaning	Butterworth
Year built	2003			Shipyard	Halifax, Canada
Previous names
Comments

TYPE: UT 722		NAME: ATLANTIC RAVEN		PHOTO: George Craigen, Holgar Lutz

GENERAL		PROPULSION		EQUIPMENT
Length OA	75 m	Engines	4 x Bergen BRM6	Workdrum pull	300 tonnes
Breadth	18 m	BHP	14400	Capacity 1	1200m x 76mm
DWT	3133 tonnes	kW	10590	Capacity 2	1200m x 76mm
Deck area	573 m2	For'd Thruster	1 x 1200 bhp	Towdrum pull
Fuel	950 m3	Az Thruster	1 x 1200 bhp	Capacity 1	1500m x 77mm
Pot water	710 m3	Aft Thrusters	1 x 1200 bhp	Capacity 2
Mud	415 m3	Bollard pull	170 tonnes	Sharks Jaw	2 x Karmforks
Base oil	197 m3	DP	Yes DP 2	Cranes	1 x 5t
Brine	565 m3	Joystick	Yes-	Tank Cleaning
Dry bulk	283 m3	Year built	1999	Shipyard	Orskov
Previous names	Asso Ventidue
Comments	-

TYPE:		NAME: ATLANTIC TERN		PHOTO: -

GENERAL		PROPULSION		EQUIPMENT
Length OA	63.89 m	Engines	2 x Nohab Polar	Workdrum pull	136 t
Breadth	13.72 m	BHP	6940	Capacity 1	-
DWT	1050 mt	kW	5100	Capacity 2	-
Deck area	302 m2	For'd Thruster	1 x 260 kW	Towdrum pull	136 t
Fuel	-	Az Thruster	1 x 1072 kW	Capacity 1	-
Pot water	-	Aft Thrusters	-	Capacity 2	-
Mud	-	Bollard pull	75 t	Sharks Jaw	-
Brine	-	DP	-	Cranes	-
Dry bulk	-	Joystick	-	Tank cleaning	-
Year built	1975/1998	Shipyard	Vito Steel Canada	Berths	-
Previous names	Canmar Supplier II, Supplier II, Rem Supporter, Thor Supporter, Atlantic Birch II
Comments	-
Charter	-	Available	-	Location	-

PLATFORM SHIPS

TYPE: UT 755 LN		NAME: ATLANTIC CONDOR		PHOTO: Jan Plug

GENERAL		PROPULSION		CARGO CAPACITY
Length OA	73.6 m	Engines	2 x Bergen	Fuel	1495 m3
Breadth	16.0 m	BHP/kW	5120/3760	Pot water	970 m3
DWT	3600 t	For'd Thrusters	1 x 800 bhp	Mud	-
Deck area	635 m2	Az Thruster	1 x 1200 bhp	Methanol	170 m3
Year built	2010?	Aft Thrusters	2 x 800 bhp	Brine	-
Shipyard	Irving Halifax	Joystick	-	Dry bulk	-
Berths	24	DPII	Yes	Tank Cleaning	-
Previous names	-
Comments	As it turns out this ship is not to be delivered until some time in 2011!
